About
Learn what makes this product unique and why it’s right for you.

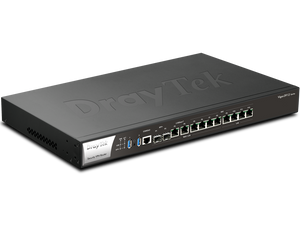

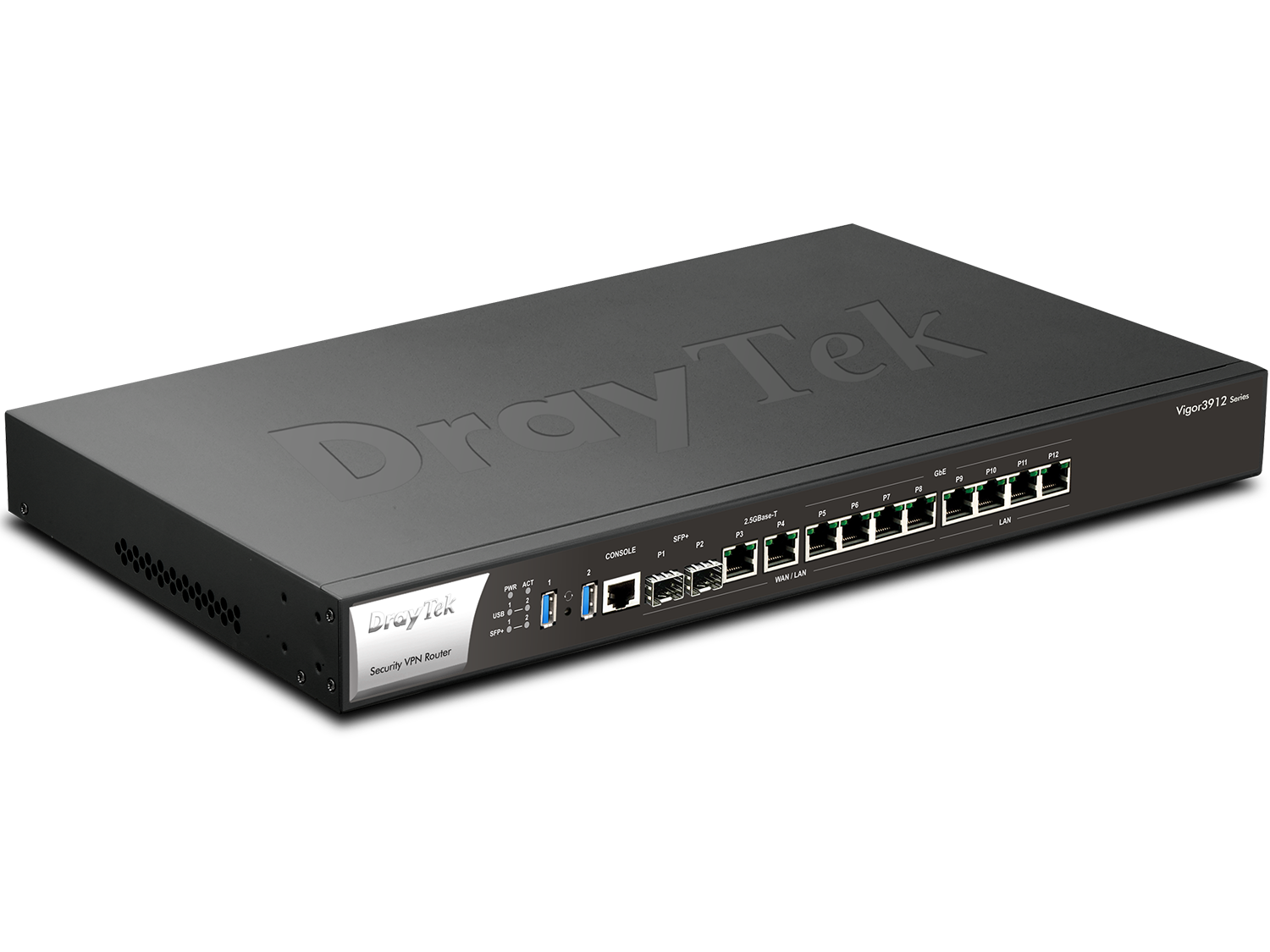

A premium, next‑generation multi‑WAN router tailored for demanding SME and enterprise networks, combining extraordinary throughput, security, and flexibility.
KEY FEATURES
- Memory:
4GB DDR4 (Vigor3912)
8GB DDR4 + 256GB SSD (Vigor3912S)
The Vigor3912S model comes equipped with a 256GB SSD pre-installed with Ubuntu OS and Docker applications such as Suricata IDS (Intrusion Detection System) and VigorConnect to enhance network security. - 2 x 10G/2.5G/1G SFP+ Fibre configurable WAN/LAN Slots
- 2 x 2.5G/1G/100M/10M Ethernet configurable WAN/LAN ports
- 4 x 1G/100M/10M Ethernet Configurable WAN/LAN ports
- 4 x 1G/100M/10M Ethernet LAN ports with 1 million NAT sessions
- Multi-WAN Load Balancing & Failover
- Quad-Core CPU with 15.6 Gbps NAT throughput**
- 500 x VPN tunnels (including 200 x OpenVPN/ SSL-VPN tunnels) with most security protocols. The built-in EasyVPN features simplify VPN setup, ensuring effortless and reliable connectivity.
- Fast VPN throughput, VPN Load Balancing, Failover, and backup for site-to-site applications
- 100 x VLANs for secure and efficient workgroup management
- 1 x RJ-45 console port
- 2 x USB 3.0 ports for external storage (one USB flash drive is supported at any one time)
- High-Availability (with CARP) ensuring 24/7 system uptime
- Object-based SPI Firewall, CSM (Content Security Management) and Port Knocking for network security
- Multi-subnet WAN/LAN through 802.1Q
- IPv6 & IPv4
- Bandwidth management
- Smart Action automates network responses with up to 64 customizable event-to-action profiles.
- Supports VigorACS 3 Central Management Software for remote management
- SD-WAN capability when used with VigorACS 3
- Supports Central AP Management (up to 50 Vigor Access Points)
- Supports Central Switch Management (up to 30 Vigor Switches)
- Rack-mountable
- 2 year back to base warranty
**bi-directional(TX+RX) performance
MODEL
| Model | Vigor3912S | Vigor3912 | Vigor3910 |
|---|---|---|---|
| Product |
|
|
|
| Multi Gigabit WAN |
2 x 10Gb SFP+ WAN/LAN slots
2 x 2.5GbE WAN/LAN ports 4 x 1GbE WAN/LAN ports |
2 x 10Gb SFP+ WAN/LAN slots
2 x 2.5GbE WAN/LAN ports 4 x 1GbE WAN/LAN ports |
2 x 10Gb SFP+ WAN/LAN slots
2 x 2.5GbE WAN/LAN ports 4 x 1GbE WAN/LAN ports |
| Gigabit LAN | 4 | 4 | 4 |
| Quad-Core Processor | 2GHz | 2GHz | 1.2GHz |
| Max. Number of VLAN | 100 | 100 | 100 |
| VPN Tunnels | 500 | 500 |
500 |
| Memory | 8GB DDR4 + 256GB SSD | 4GB DDR4 |
|
| Wireless LAN |
|
|
|
SPECIFICATION
| Interface | |
|---|---|
| WAN/LAN Port | 2 x 10G/2.5G/1G SFP+ Fibre configurable WAN/LAN Slots 2 x 2.5G/1G/100M/10M Ethernet configurable WAN/LAN, RJ-45 4 x 1G/100M/10M Ethernet Configurable WAN/LAN ports, RJ-45 4 x 1G/100M/10M Ethernet LAN ports with 1 million NAT sessions |
| USB Port | 2 x USB 3.0 ports for external storage (one USB flash drive is supported at any one time) |
| Console Port | 1 x RJ-45 |
| Reset Button | 1 x Factory Reset |
| Performance | |
|---|---|
| NAT Throughput | 15.6 Gbps ( bi-directional(TX+RX) performance) |
| IPsec VPN Performance | 5.7 Gbps |
| SSL VPN Performance | 4.3 Gbps |
| NAT Sessions | 1,000,000 |
| Max. Concurrent VPN Tunnels | 500 |
| Max. Concurrent OpenVPN + SSL VPN | 200 |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-LAN Tagging | |
| Multi-VLAN/PVC | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping, Strict ARP |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 100 |
| Number of LAN Subnet | 100 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| IP Pool Count | Up to 4K per LAN Subnet |
| PPPoE Server | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Policy Route, Inter-VLAN Routing, Fast Routing, RIP v1/v2, OSPFv2, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| Smart Action | |
| High Availability | |
| DNS Security (DNSSEC) | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| EasyVPN | |
| Port Knocking | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN, Wireguard |
| IPsec VPN Throughput (AES 256 bits) (single-directional) |
3300 Mbps |
| IPsec VPN Throughput (AES 256 bits) (bi-directional) |
5700 Mbps |
| SSL VPN Throughput (single-directional) |
3300 Mbps |
| SSL VPN Throughput (bi-directional) |
4300 Mbps |
| Wireguard VPN Throughput (single-directional) |
900 Mbps |
| Wireguard VPN Throughput (bi-directional) |
1080 Mbps |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP, TOTP |
| IKE Authentication | EAP, Pre-Shared Key, X.509, XAuth |
| IPsec Authentication | MD5, SHA-1, SHA-256, SHA-512 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| VPN from LAN | |
| VPN Isolation | |
| VPN Packet Capture | |
| VPN 2FA Authentication for AD/LDAP | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
|---|---|
| IP-based Firewall Policy | |
| Content Filtering | Application, URL Keyword, DNS Keyword, Web Features, Web Category (subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
| Linux Applications (Vigor3912S only) | |
|---|---|
| Suricata | |
| VigorConnect | |
| NAT | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, Port Knocking, Fast NAT, DMZ Host, UPnP, Server Load Balance |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
| VoIP Prioritization | |
| APP QoS | |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Port knocking for Local Service | |
| Config Backup/Restore | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Central AP Management | 50 Vigor Access Points |
| Central Switch Management | 30 Vigor Switches |
| VigorACS Management (Since f/w) | V4.3.5.1 |
| Physical | |
|---|---|
| Power Input | AC 100~240V @ 0.6A |
| Max. Power Consumption | 35 watts |
| Memory | 8GB DDR4 (Vigor3912) 8GB DDR4 + 256GB SSD (Vigor3912S) |
| Dimension | 443 mm x 285 mm x 45 mm |
| Weight | 3.35 kg |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -10 to 55°C |
| Operating Humidity (non-condensing) | 10 to 90% |
Note :
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
