About
Learn what makes this product unique and why it’s right for you.

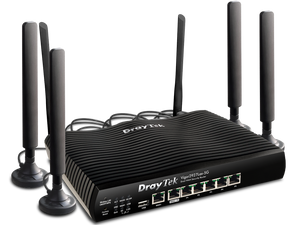

The DrayTek Vigor2927Lax-5G is a high-performance dual-WAN security router combining ultra-fast 5G connectivity with advanced Wi-Fi 6 technology. It’s designed for businesses that demand reliable, secure, and high-speed internet access with flexible failover options.
KEY FEATURES
- 5G/4G LTE modem with dual nano SIM slots (SIM slot 2 for Failover) for SA and NSA 5G WAN
- Supports 5G NR Sub-6 SA Band: n1, 3, 5, 7, 8, 20, 28, 38, 40, 77, 78; great coverage in Australia and New Zealand
- 5G Max. Data Rate NR SA: 2.4Gbps (DL) / 900Mbps (UL)**
- 5G Max. Data Rate NR NSA: 3.4Gbps (DL) / 550Mbps (UL)**
- Multi-WAN with 1 x fixed GbE WAN port, 1 x configurable GbE WAN/LAN port, 1 x USB port, 2 x 5G/4G LTE nano SIM slots, and 2 x Wi-Fi WANs for Lax-5G model
- 1 x fixed GbE WAN port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
- 1 x USB 2.0 port for connection of 3G/4G LTE USB modem, FTP server, network printer and thermometer
- 5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
- 50 x VPN tunnels (including 25 x OpenVPN/ SSL-VPN tunnels) with comprehensive secure protocols
- Fast VPN throughput, VPN Load Balancing and backup for site-to-site applications
- Hardware Acceleration and Hardware QoS for up to 8k NAT and routing connections, and 940Mbps (Single WAN) or 1.8Gbps (Multi-WAN) Firewall speed
- Integrated IEEE 802.11ax (WiFi 6, AX3000) wireless Access Point; dual band; up to 2402 Mbps throughput (Lax-5G model)
- 16 x VLANs for secure and efficient workgroup management
- IPv6 & IPv4
- Up to 1022 IP addresses and 8 IP subnets
- High Availability mode
- Object-based SPI Firewall and CSM (Content Security Management) for network security
- Supports VigorACS 3 Central Management Software for remote management
- SD-WAN capability when used with VigorACS 3
- Central VPN Management for up to 8 remote Vigor routers Learn more
- Central AP Management for up to 20 Vigor Access Points Learn more
- Central Switch Management for up to 10 VigorSwitches Learn more
**Typical 5G Downlink/ Uplink speeds are 400Mbps/200Mbps, depending on the local conditions.
MODEL
| Model | Vigor2927L-5G | Vigor2927Lax-5G |
|---|---|---|
| Product |  |
 |
| Gigabit WAN | 1 | 1 |
| Selectable Gigabit WAN/LAN | 1 | 1 |
| 5G/4G LTE/3G | 2 x nano SIM slots (SIM slot 2 for Failover) 1 x USB 2.0 |
2 x nano SIM slots (SIM slot 2 for Failover) 1 x USB 2.0 |
| Wireless WAN | 2 | |
| Gigabit LAN | 5 | 5 |
| VPN Tunnels | 50 | 50 |
| Wireless LAN | WiFi 6, AX3000 | |
| Wi-Fi Antenna | 3.5 dBi for 5GHz 2.3 dBi for 2.4GHz |
|
| VoIP (2xFXS) |
SPECIFICATION
| Interface | |
|---|---|
| Fixed WAN Port | 1 x Gigabit Ethernet |
| LAN/WAN Switchable Port | 1 x Gigabit Ethernet |
| Fixed LAN Port | 5 x Gigabit Ethernet |
| SIM Slot | 2 x nano SIM slots (SIM slot 2 for Failover) |
| USB Port | 1 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| LTE Antenna | 4 x External Dipole Peak Gain 4.37dBi |
| Wi-Fi Antenna | 2 x External Dipole Gain: 3 dBi for 5GHz, 2.5 dBi for 2.4GHz (Lax-5G model) |
| 2.4G WLAN | 802.11x 2×2 MIMO 574Mbps (Lax-5G model) |
| 5G WLAN | 802.11ax 2×2 MU-MIMO 2402Mbps (Lax-5G model) |
| Performance | |
|---|---|
| NAT Throughput | 700 Mbps |
| NAT Throughput w/ Hardware Acceleration: Single WAN | 940 Mbps |
| NAT Throughput w/ Hardware Acceleration: Dual WAN | 1800 Mbps |
| IPsec VPN Performance | 250 Mbps (AES 256 bits) |
| SSL VPN Performance | 120 Mbps |
| Max. Concurrent VPN Tunnels | 50 |
| Max. Concurrent OpenVPN/ SSL VPN | 25 |
| 5G | |
|---|---|
| 5G Band | n1, n20, n28, n3, n38, n40, n5, n7, n77, n78, n8 |
| 5G NSA Max. Rx Link Rate (Mbps)** | 3400 |
| 5G NSA Max. Tx Link Rate (Mbps)** | 550 |
| 5G SA Max. Rx Link Rate (Mbps)** | 2400 |
| 5G SA Max. Tx Link Rate (Mbps)** | 900 |
| **Typical 5G Downlink/Uplink speeds are 400Mbps/200Mbps, depending on the local conditions. | |
| 4G | |
|---|---|
| LTE Category | CAT.19 |
| LTE Antenna (External Dipole) | 4 |
| Max. Rx Link Rate | 1600 Mbps |
| Max. Tx Link Rate | 200 Mbps |
| FDD Band | 1 (2100MHz), 20 (800MHz), 28 (700MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz) |
| TDD Band | 38 (2600MHz), 40 (2300MHz) |
| WCDMA (3G) Band | 1, 8 |
| SMS Gateway | Learn More |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| LTE WAN Bridge | |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| 5G/4G/LTE/3G WAN with USB modem | |
| WAN Failover | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Strict ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Policy Route, Inter-VLAN Route, RIP v1/v2, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN, Wireguard |
| Max. VPN Tunnels | 50 |
| Max. OpenVPN + SSL VPN Tunnels | 25 |
| IPsec VPN Throughput (AES 256 bits) (single-directional) | 250 Mbps |
| SSL VPN Throughput (single-directional) | 120 Mbps |
| Wireguard VPN Throughput (single-directional) | 80 Mbps |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Failover, Load Balancing |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
|---|---|
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category (subscription required) |
| DoS Attack Defence | |
| Spoofing Defense | |
| NAT | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, Port Knocking Fast NAT, DMZ Host, UPnP, Server Load Balance |
| ALG (Application Layer Gateway) | FTP, H.323, RTSP, SIP |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
| APP Qos | |
| Wireless LAN (Lax-5G model) | |
|---|---|
| 2.4G WLAN | 802.11ax 2×2 MIMO |
| 5G WLAN | 802.11ax 2×2 MU-MIMO |
| Antennas | 2 |
| Antenna Type | External Dipole |
| 2.4G Gain | 2.5 dBi |
| 5G Gain | 3 dBi |
| 2.4G Max. Link Rate | 574 Mbps |
| 5G Max. Link Rate | 2402 Mbps |
| Max. Number of SSIDs per band | 4 |
| Security Mode | OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication | Pre-Shared Key, 802.1x |
| WiFi 6 | |
| OFDMA | |
| WPS | PIN, PBC |
| WDS Repeater | (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| AirTime Fairness | |
| Band Steering | |
| WMM | |
| Mesh (Lax model Only) | Root (See Mesh compatibility chart) |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069 |
| Config Backup/Restore | |
| Config File Compatibility | Vigor2926 LTE |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| Netflow | IPFIX, v5, v9 |
| SNMP | v1, v2c, v3 |
| Syslog | |
| VPN Managment | 8 |
| AP Managment (APM) | 20 |
| Mesh (Number of manageable APs) | 7 |
| Switch Management (SWM) | 10 |
| VigorACS Management (Since f/w) | v4.4.5 |
| Physical | |
|---|---|
| Power Supply | Vigor2927L-5G: DC 12V @ 2.1A Vigor2927Lax-5G: DC 12V @ 2.6A |
| Max. Power Consumption | Vigor2927L-5G: 25.2 watts Vigor2927Lax-5G: 31.2 watts @ 2.6A |
| Dimension | 241mm x 165mm x 44mm |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
Note :
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
Learn what makes this product unique and why it’s right for you.
The DrayTek Vigor2927Lax-5G is a high-performance dual-WAN security router combining ultra-fast 5G connectivity with advanced Wi-Fi 6 technology. It’s designed for businesses that demand reliable, secure, and high-speed internet access with flexible failover options.
KEY FEATURES
- 5G/4G LTE modem with dual nano SIM slots (SIM slot 2 for Failover) for SA and NSA 5G WAN
- Supports 5G NR Sub-6 SA Band: n1, 3, 5, 7, 8, 20, 28, 38, 40, 77, 78; great coverage in Australia and New Zealand
- 5G Max. Data Rate NR SA: 2.4Gbps (DL) / 900Mbps (UL)**
- 5G Max. Data Rate NR NSA: 3.4Gbps (DL) / 550Mbps (UL)**
- Multi-WAN with 1 x fixed GbE WAN port, 1 x configurable GbE WAN/LAN port, 1 x USB port, 2 x 5G/4G LTE nano SIM slots, and 2 x Wi-Fi WANs for Lax-5G model
- 1 x fixed GbE WAN port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
- 1 x USB 2.0 port for connection of 3G/4G LTE USB modem, FTP server, network printer and thermometer
- 5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
- 50 x VPN tunnels (including 25 x OpenVPN/ SSL-VPN tunnels) with comprehensive secure protocols
- Fast VPN throughput, VPN Load Balancing and backup for site-to-site applications
- Hardware Acceleration and Hardware QoS for up to 8k NAT and routing connections, and 940Mbps (Single WAN) or 1.8Gbps (Multi-WAN) Firewall speed
- Integrated IEEE 802.11ax (WiFi 6, AX3000) wireless Access Point; dual band; up to 2402 Mbps throughput (Lax-5G model)
- 16 x VLANs for secure and efficient workgroup management
- IPv6 & IPv4
- Up to 1022 IP addresses and 8 IP subnets
- High Availability mode
- Object-based SPI Firewall and CSM (Content Security Management) for network security
- Supports VigorACS 3 Central Management Software for remote management
- SD-WAN capability when used with VigorACS 3
- Central VPN Management for up to 8 remote Vigor routers Learn more
- Central AP Management for up to 20 Vigor Access Points Learn more
- Central Switch Management for up to 10 VigorSwitches Learn more
**Typical 5G Downlink/ Uplink speeds are 400Mbps/200Mbps, depending on the local conditions.
MODEL
| Model | Vigor2927L-5G | Vigor2927Lax-5G |
|---|---|---|
| Product | |
|
| Gigabit WAN | 1 | 1 |
| Selectable Gigabit WAN/LAN | 1 | 1 |
| 5G/4G LTE/3G | 2 x nano SIM slots (SIM slot 2 for Failover) 1 x USB 2.0 |
2 x nano SIM slots (SIM slot 2 for Failover) 1 x USB 2.0 |
| Wireless WAN | 2 | |
| Gigabit LAN | 5 | 5 |
| VPN Tunnels | 50 | 50 |
| Wireless LAN | WiFi 6, AX3000 | |
| Wi-Fi Antenna | 3.5 dBi for 5GHz 2.3 dBi for 2.4GHz |
|
| VoIP (2xFXS) |
SPECIFICATION
| Interface | |
|---|---|
| Fixed WAN Port | 1 x Gigabit Ethernet |
| LAN/WAN Switchable Port | 1 x Gigabit Ethernet |
| Fixed LAN Port | 5 x Gigabit Ethernet |
| SIM Slot | 2 x nano SIM slots (SIM slot 2 for Failover) |
| USB Port | 1 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| LTE Antenna | 4 x External Dipole Peak Gain 4.37dBi |
| Wi-Fi Antenna | 2 x External Dipole Gain: 3 dBi for 5GHz, 2.5 dBi for 2.4GHz (Lax-5G model) |
| 2.4G WLAN | 802.11x 2×2 MIMO 574Mbps (Lax-5G model) |
| 5G WLAN | 802.11ax 2×2 MU-MIMO 2402Mbps (Lax-5G model) |
| Performance | |
|---|---|
| NAT Throughput | 700 Mbps |
| NAT Throughput w/ Hardware Acceleration: Single WAN | 940 Mbps |
| NAT Throughput w/ Hardware Acceleration: Dual WAN | 1800 Mbps |
| IPsec VPN Performance | 250 Mbps (AES 256 bits) |
| SSL VPN Performance | 120 Mbps |
| Max. Concurrent VPN Tunnels | 50 |
| Max. Concurrent OpenVPN/ SSL VPN | 25 |
| 5G | |
|---|---|
| 5G Band | n1, n20, n28, n3, n38, n40, n5, n7, n77, n78, n8 |
| 5G NSA Max. Rx Link Rate (Mbps)** | 3400 |
| 5G NSA Max. Tx Link Rate (Mbps)** | 550 |
| 5G SA Max. Rx Link Rate (Mbps)** | 2400 |
| 5G SA Max. Tx Link Rate (Mbps)** | 900 |
| **Typical 5G Downlink/Uplink speeds are 400Mbps/200Mbps, depending on the local conditions. | |
| 4G | |
|---|---|
| LTE Category | CAT.19 |
| LTE Antenna (External Dipole) | 4 |
| Max. Rx Link Rate | 1600 Mbps |
| Max. Tx Link Rate | 200 Mbps |
| FDD Band | 1 (2100MHz), 20 (800MHz), 28 (700MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz) |
| TDD Band | 38 (2600MHz), 40 (2300MHz) |
| WCDMA (3G) Band | 1, 8 |
| SMS Gateway | Learn More |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| LTE WAN Bridge | |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| 5G/4G/LTE/3G WAN with USB modem | |
| WAN Failover | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Strict ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Policy Route, Inter-VLAN Route, RIP v1/v2, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN, Wireguard |
| Max. VPN Tunnels | 50 |
| Max. OpenVPN + SSL VPN Tunnels | 25 |
| IPsec VPN Throughput (AES 256 bits) (single-directional) | 250 Mbps |
| SSL VPN Throughput (single-directional) | 120 Mbps |
| Wireguard VPN Throughput (single-directional) | 80 Mbps |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Failover, Load Balancing |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
|---|---|
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category (subscription required) |
| DoS Attack Defence | |
| Spoofing Defense | |
| NAT | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, Port Knocking Fast NAT, DMZ Host, UPnP, Server Load Balance |
| ALG (Application Layer Gateway) | FTP, H.323, RTSP, SIP |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
| APP Qos | |
| Wireless LAN (Lax-5G model) | |
|---|---|
| 2.4G WLAN | 802.11ax 2×2 MIMO |
| 5G WLAN | 802.11ax 2×2 MU-MIMO |
| Antennas | 2 |
| Antenna Type | External Dipole |
| 2.4G Gain | 2.5 dBi |
| 5G Gain | 3 dBi |
| 2.4G Max. Link Rate | 574 Mbps |
| 5G Max. Link Rate | 2402 Mbps |
| Max. Number of SSIDs per band | 4 |
| Security Mode | OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication | Pre-Shared Key, 802.1x |
| WiFi 6 | |
| OFDMA | |
| WPS | PIN, PBC |
| WDS Repeater | (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| AirTime Fairness | |
| Band Steering | |
| WMM | |
| Mesh (Lax model Only) | Root (See Mesh compatibility chart) |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069 |
| Config Backup/Restore | |
| Config File Compatibility | Vigor2926 LTE |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| Netflow | IPFIX, v5, v9 |
| SNMP | v1, v2c, v3 |
| Syslog | |
| VPN Managment | 8 |
| AP Managment (APM) | 20 |
| Mesh (Number of manageable APs) | 7 |
| Switch Management (SWM) | 10 |
| VigorACS Management (Since f/w) | v4.4.5 |
| Physical | |
|---|---|
| Power Supply | Vigor2927L-5G: DC 12V @ 2.1A Vigor2927Lax-5G: DC 12V @ 2.6A |
| Max. Power Consumption | Vigor2927L-5G: 25.2 watts Vigor2927Lax-5G: 31.2 watts @ 2.6A |
| Dimension | 241mm x 165mm x 44mm |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
Note :
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.

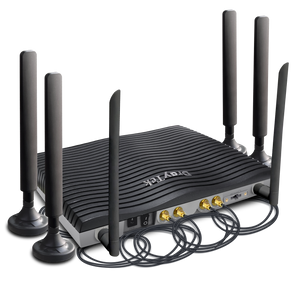

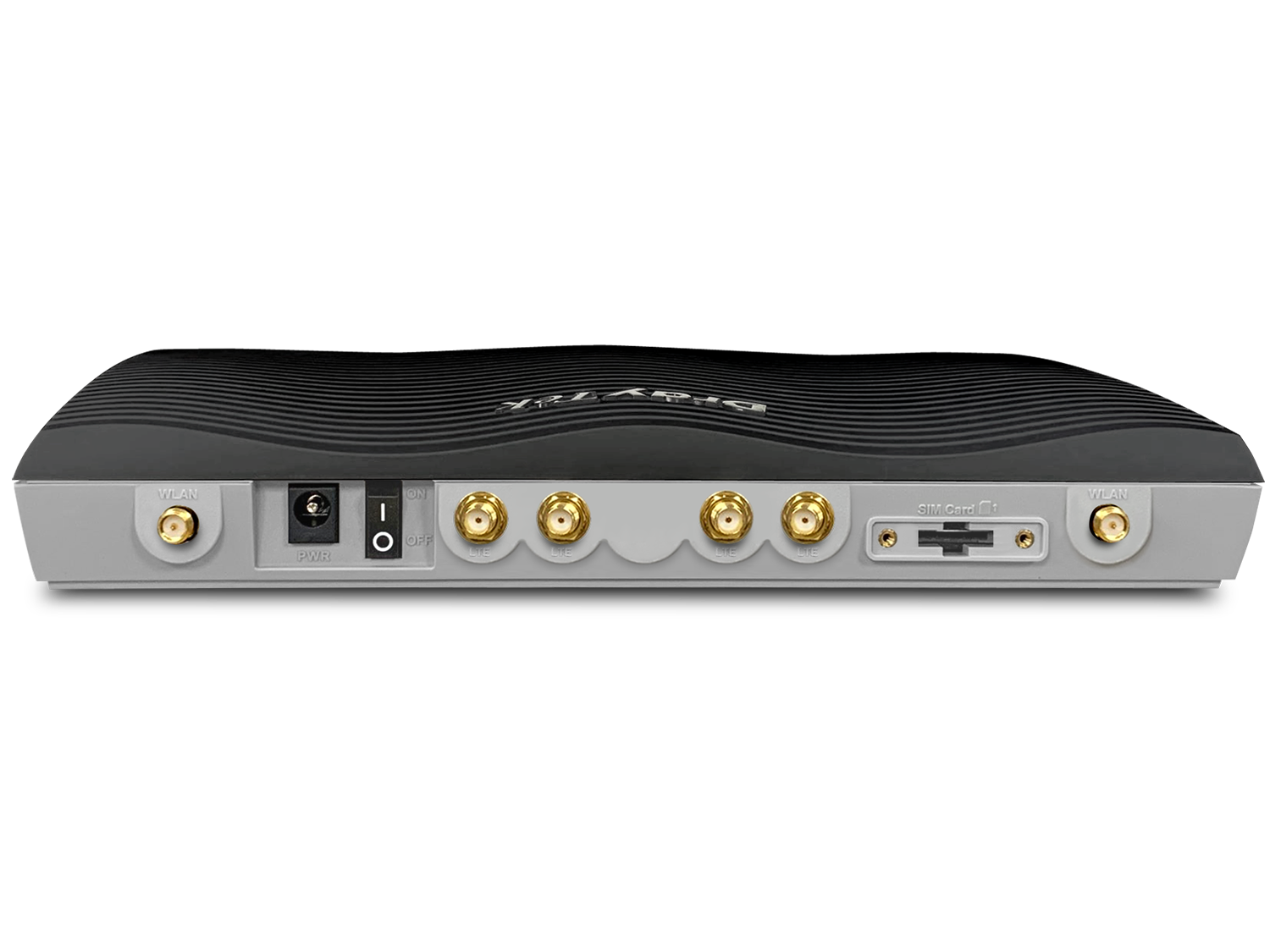

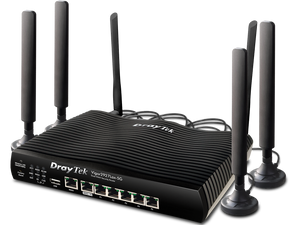

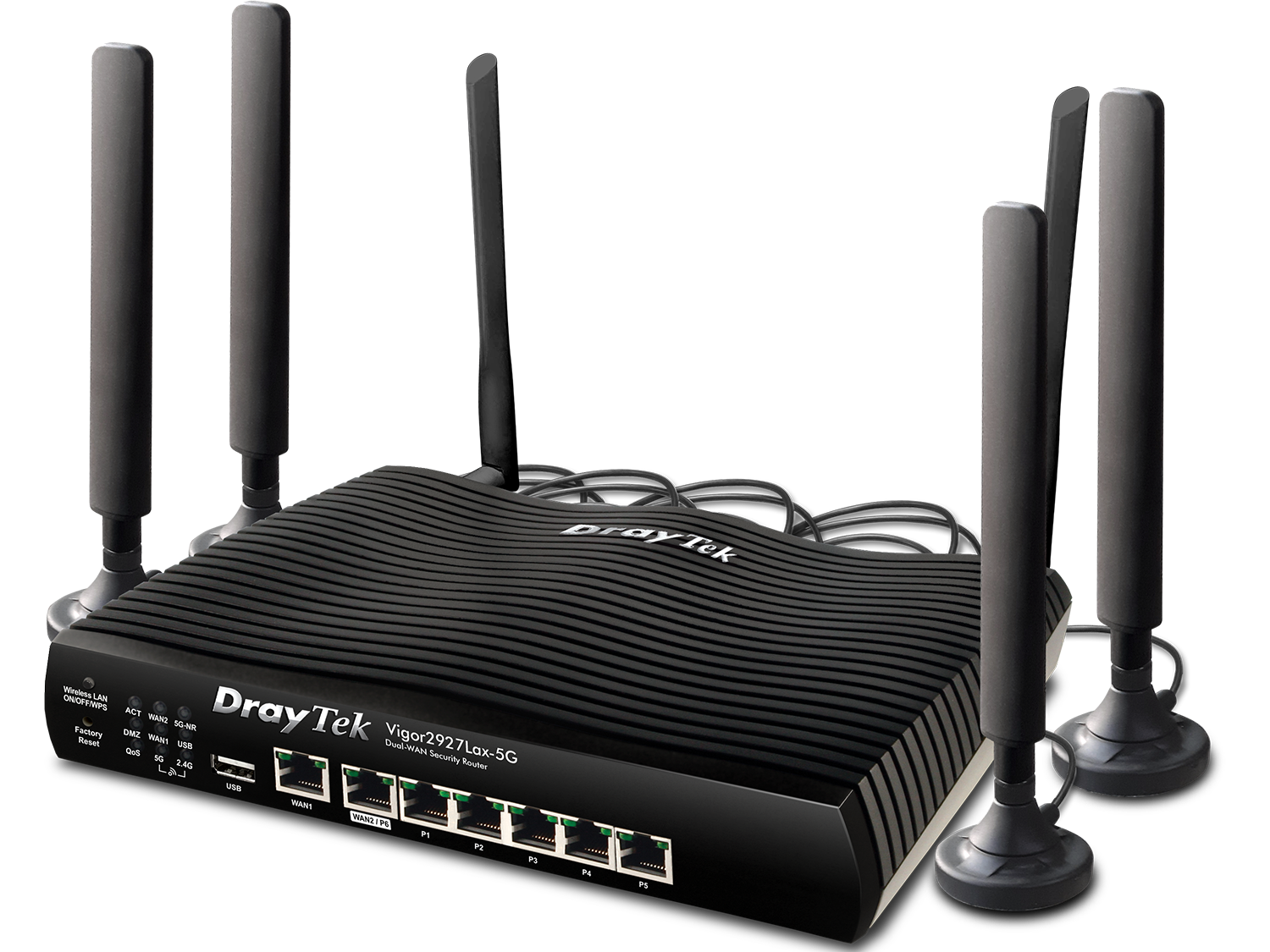

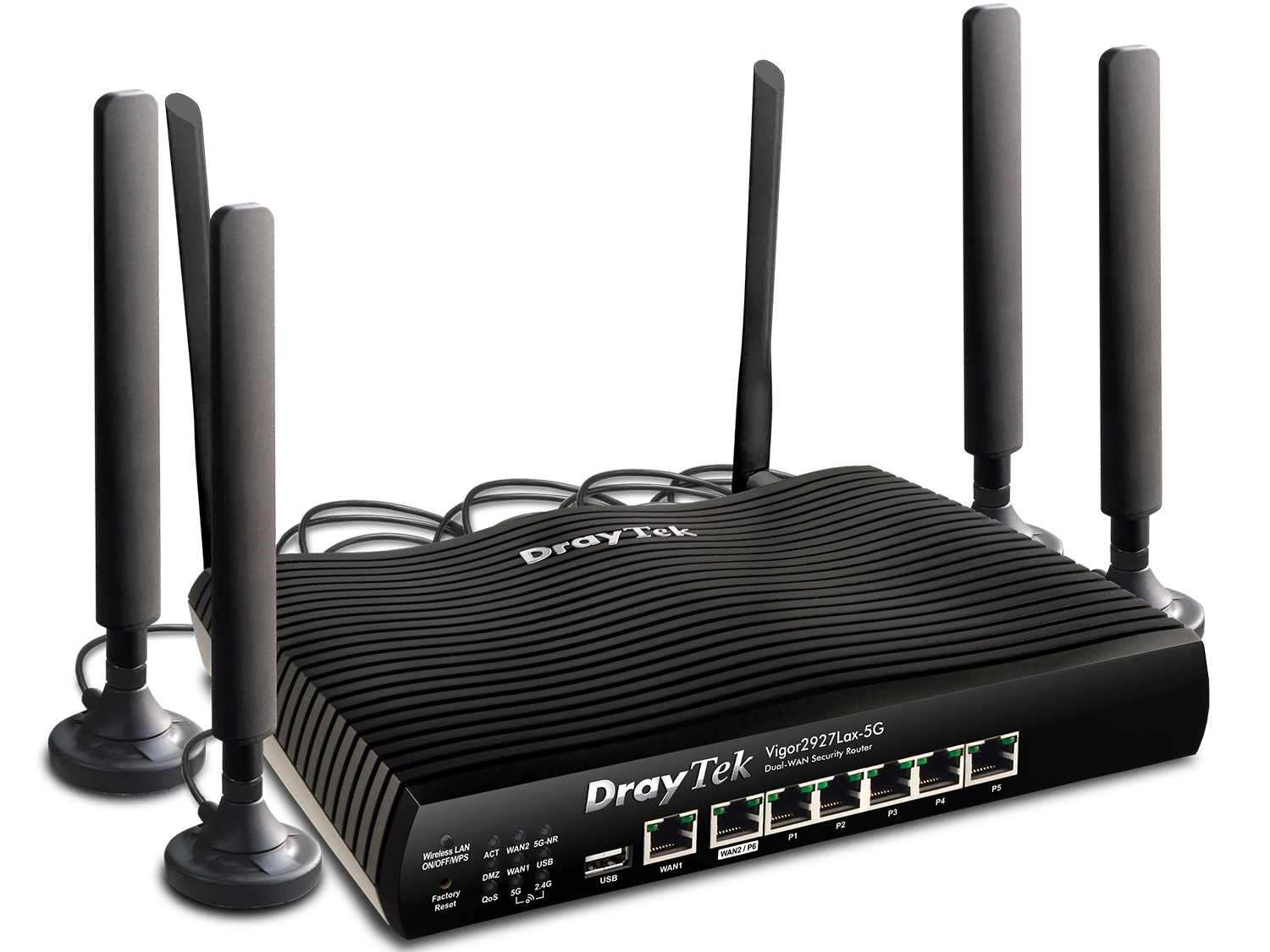

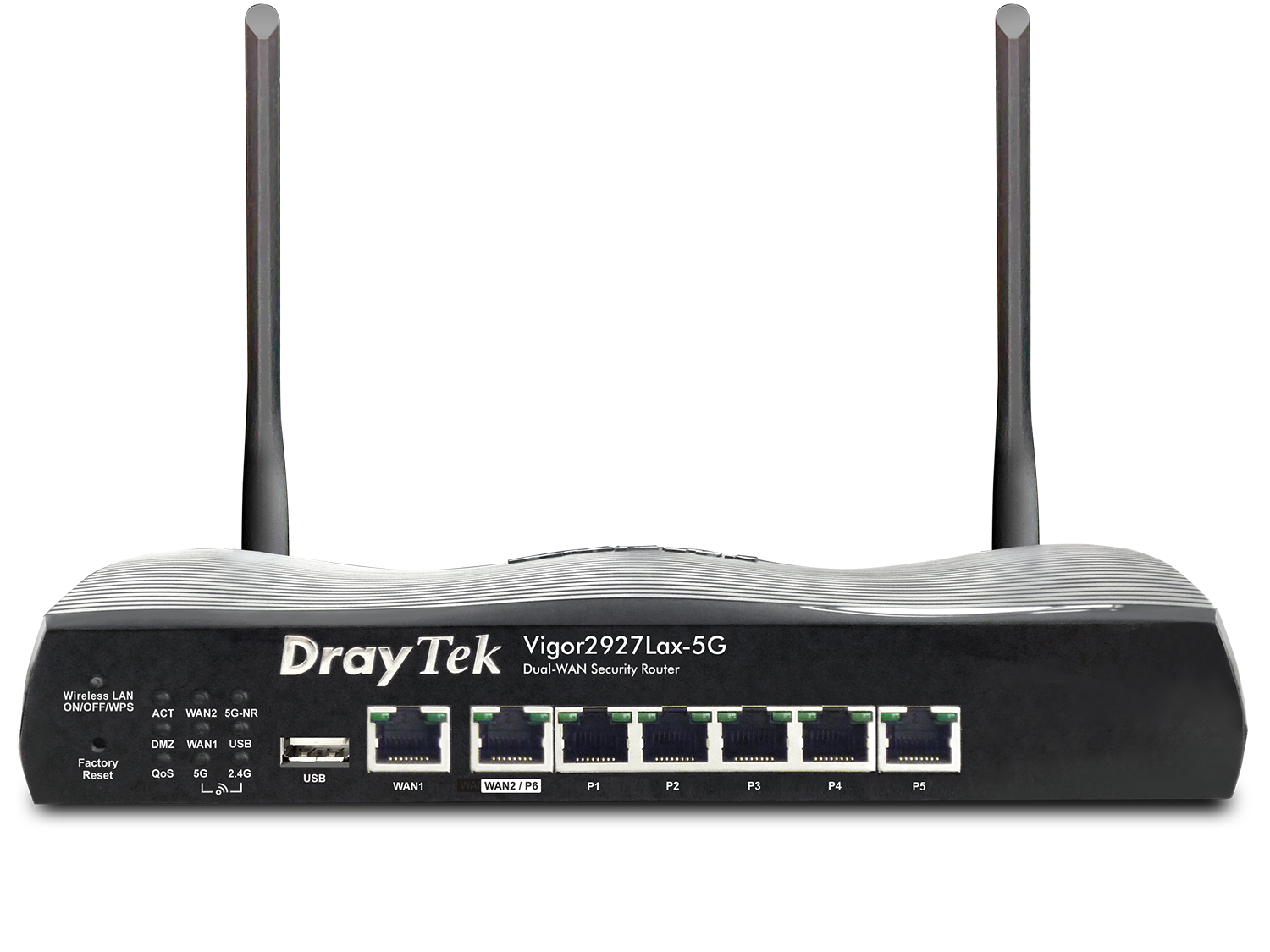

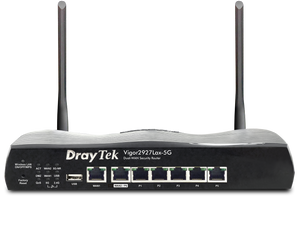

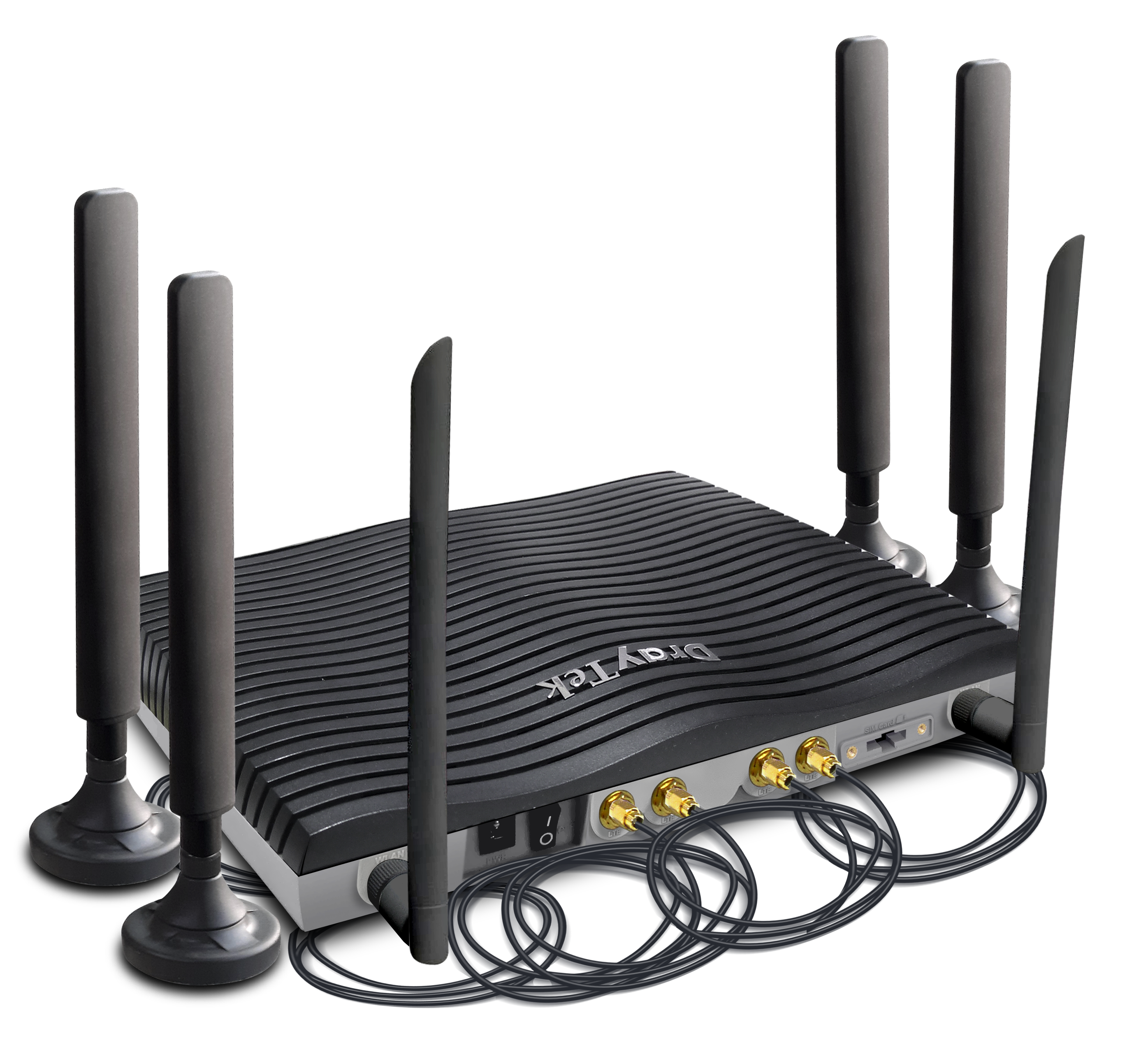

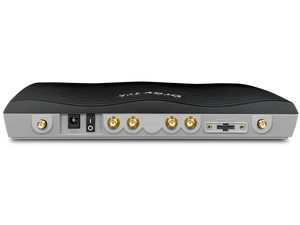

Draytek Vigor 2927Lax-5G Multi WAN Cat6 5G/ 4G LTE Router with WiFi-ax
- Regular price
- $1,360.00
- Sale price
- $1,360.00
- Regular price
-
Couldn't load pickup availability
