About

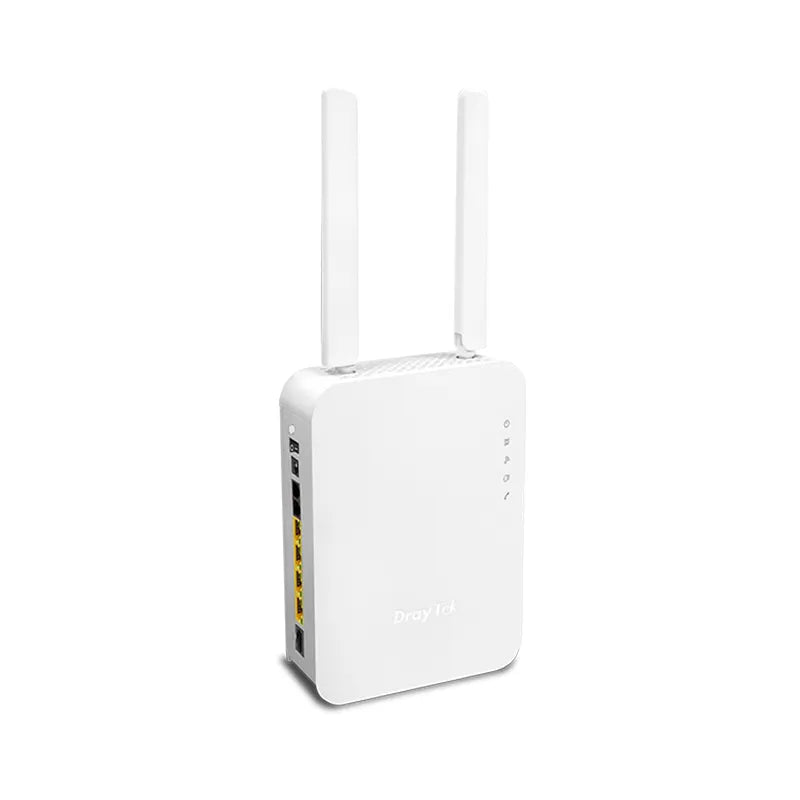

A compact VDSL2 35b supervectoring modem/router with built-in Wi‑Fi 6 (AX3000) functionality, the Vigor 2765ax integrates DSL modem, firewall, and VPN router into one device. It supports dual‑band wireless (up to 574 Mbps on 2.4 GHz and 2.4 Gbps on 5 GHz) and can handle up to 3 Gbps link rate with AX mode enabled
KEY FEATURES
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 6 (802.11ax) with AX3000 performance |
| Wireless Speed | Up to 574 Mbps on 2.4 GHz + 2.4 Gbps on 5 GHz |
| DSL Support | VDSL2 35b Supervectoring built-in modem |
| Ethernet Ports | 4 × GbE ports — 3 fixed LAN, 1 switchable to WAN |
| VPN Support | 2 VPN tunnels (IPsec up to ~200 Mbps AES‑256, SSL VPN supported) |
| Security | Firewall, content filtering, category blocking, VLANs, ACLs |
| Traffic Control | QoS, bandwidth management, NAT session control (up to 50,000) |
| Remote Management | HTTP/HTTPS, Telnet/SSH, SNMP, TR‑069, DrayDDNS |
| Central Management | Supports VigorACS, APM, and hotspot portal |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | DrayTek Vigor 2765ax |
| Wi‑Fi Capability | Dual-band AX3000 (2.4 GHz + 5 GHz) |
| Modem | VDSL2/ADSL2+ modem with Supervectoring 35b |
| WAN/LAN Ports | 4 × GbE ports (1 switchable LAN/WAN) |
| VPN Tunnels | 2 concurrent tunnels (IPsec, SSL) |
| Routing Performance | Up to ~940 Mbps with hardware acceleration |
| NAT Sessions | Supports up to 50,000 concurrent sessions |
| Operating Temperature | 0 °C to 45 °C |
| VLAN Support | Up to 8 VLANs |
| Management Interfaces | Web UI, CLI, SNMP, TR-069, DrayTek ACS |
The Vigor 2765ax is ideal for power users, SOHO, and small offices needing fast VDSL connectivity, Wi‑Fi 6 coverage, VPN access, and fine‑grained control over networking and security—all in a single, hardware-accelerated appliance.
A compact VDSL2 35b supervectoring modem/router with built-in Wi‑Fi 6 (AX3000) functionality, the Vigor 2765ax integrates DSL modem, firewall, and VPN router into one device. It supports dual‑band wireless (up to 574 Mbps on 2.4 GHz and 2.4 Gbps on 5 GHz) and can handle up to 3 Gbps link rate with AX mode enabled
KEY FEATURES
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 6 (802.11ax) with AX3000 performance |
| Wireless Speed | Up to 574 Mbps on 2.4 GHz + 2.4 Gbps on 5 GHz |
| DSL Support | VDSL2 35b Supervectoring built-in modem |
| Ethernet Ports | 4 × GbE ports — 3 fixed LAN, 1 switchable to WAN |
| VPN Support | 2 VPN tunnels (IPsec up to ~200 Mbps AES‑256, SSL VPN supported) |
| Security | Firewall, content filtering, category blocking, VLANs, ACLs |
| Traffic Control | QoS, bandwidth management, NAT session control (up to 50,000) |
| Remote Management | HTTP/HTTPS, Telnet/SSH, SNMP, TR‑069, DrayDDNS |
| Central Management | Supports VigorACS, APM, and hotspot portal |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | DrayTek Vigor 2765ax |
| Wi‑Fi Capability | Dual-band AX3000 (2.4 GHz + 5 GHz) |
| Modem | VDSL2/ADSL2+ modem with Supervectoring 35b |
| WAN/LAN Ports | 4 × GbE ports (1 switchable LAN/WAN) |
| VPN Tunnels | 2 concurrent tunnels (IPsec, SSL) |
| Routing Performance | Up to ~940 Mbps with hardware acceleration |
| NAT Sessions | Supports up to 50,000 concurrent sessions |
| Operating Temperature | 0 °C to 45 °C |
| VLAN Support | Up to 8 VLANs |
| Management Interfaces | Web UI, CLI, SNMP, TR-069, DrayTek ACS |
The Vigor 2765ax is ideal for power users, SOHO, and small offices needing fast VDSL connectivity, Wi‑Fi 6 coverage, VPN access, and fine‑grained control over networking and security—all in a single, hardware-accelerated appliance.
Vigor2765ax
- Regular price
- $495.00
- Sale price
- $495.00
