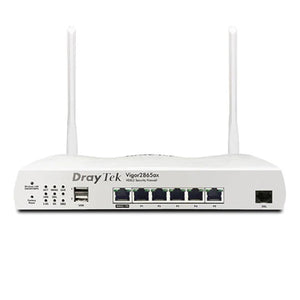

The Draytek Vigor 2865ax is a VDSL2 35b/ADSL2+ security Firewall router integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring. There is also a configurable Gigabit Ethernet WAN/LAN port for broadband connections to share the traffic load or serve as a Failover connection.

This model includes built-in 802.11ax Wi-Fi 6 (AX3000), supporting antenna gains of 3.5 dBi for 5 GHz and 2.3 dBi for 2.4 GHz.

KEY FEATURES

• Multi-WAN with 1 x VDSL2 35b Supervectoring / ADSL2+ WAN port, 1 x configurable GbE WAN/LAN port,  2 x USB ports and 2 x Wi-Fi WANs
• 1 x XDSL port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
• 2 x USB 2.0 ports for 3G/4G LTE USB modems, FTP server, network printer or thermometer
• 5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
• 32 x VPN tunnels (including 16 x OpenVPN/ SSL-VPN tunnels) with most security protocols
• Fast VPN throughput, VPN Load Balancing and backup for site-to-site VPN applications
• Hardware Acceleration and Hardware QoS for up to 8k NAT and routing connections, and 940Mbps (Single WAN) or 1.3Gbps (Multi-WAN) Firewall speed
• 16 x VLANs for secure and efficient workgroup management
• IPv6 & IPv4
• Up to 1022 IP addresses and 8 IP subnets
• Integrated IEEE 802.11ax (AX3000) wireless Access Point; dual band; up to 867 Mbps throughput

• High Availability mode
• Object-based SPI Firewall and CSM (Content Security Management) for network security

• Supports VigorACS 2 and VigorACS 3 Central Management Software for remote management
• SD WAN capability when used with VigorACS 3
• Central VPN Management for up to 8 remote Vigor routers Learn More
• Central AP Management for up to 20 Vigor Access Points Learn more
• Central Switch Management for up to 10 VigorSwitches Learn More
• 2 years back to base warranty

TECHNICAL SPECIFICATION
