About

Learn what makes this product unique and why it’s right for you.

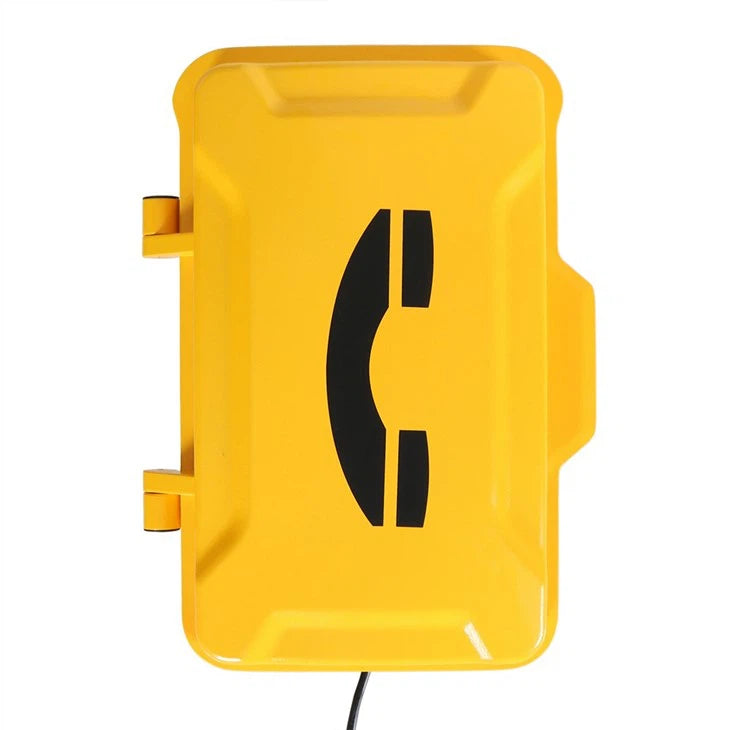

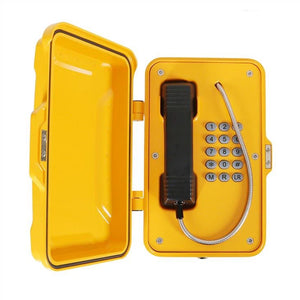

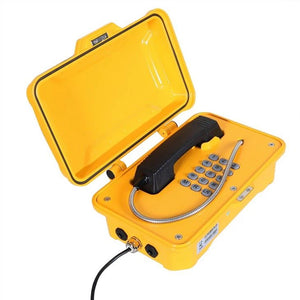

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use. The JR100 series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.





TECHNICAL SPECIFICATIONS

Category Details
Casing Material Die-cast aluminium, epoxy powder coated
Color Yellow (other colors available on request)
Handset Material Durable ABS plastic with stainless steel spiral cord
Keypad Waterproof rubber keypad
Temperature Range Operating: -40°C to +80°C
Storing: -45°C to +85°C
Weather Resistance IP66 - IP67
Ringing Tone Shrill warble tone, 90 dBA @ 1 metre typical
Hook Switch Electronic / magnetic with no visible moving parts
MTBF Calculated to exceed 50,000 hours
Weight Up to 7 kg depending on options

SIP-VoIP TECHNICAL SPECIFICATIONS

Category Details
Power Input 12-24V DC or PoE (Power over Ethernet)
Ports WAN: 10/100Base-T RJ-45 for LAN (Auto MDIX)
LAN: 10/100Base-T RJ-45 for PC (Auto MDIX)
Power Consumption Idle: 1.5W / Active: 1.8W
Protocol SIP 2.0 (RFC3261)
Codecs Supported G.711 A/u, G.723.1 (high/low), G.729, G.722
Echo Cancellation G.168 supported, up to 96ms (handsfree)
Full Duplex Yes
SIP Features SIP domain, SIP authentication (None, Basic, MD5), DNS server name,
DTMF: SIP info, DTMF Relay, RFC2833,
Flexible dial map, hotline support
Network Features Bridge mode, Static IP, DHCP, VLAN support,
Web-based configuration interface

ADDITIONAL FEATURES

  • Standard SIP phone
  • Vandal-resistant handset and cord
  • Weatherproof protection: IP66 - IP67
  • Waterproof full keypad
  • “LR” button for last number redial
  • “R” button for flash recall
  • “M” button for muting
  • Wall mounting, simple installation
  • Inductive coupler for hearing aid compatibility
  • PoE or external power supply (12-24V DC)
  • RJ45 Ethernet port for SIP connectivity
  • Compliant with CE, FCC, RoHS, IP67, ISO9001:2015
Learn what makes this product unique and why it’s right for you.

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use. The JR100 series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.





TECHNICAL SPECIFICATIONS

Category Details
Casing Material Die-cast aluminium, epoxy powder coated
Color Yellow (other colors available on request)
Handset Material Durable ABS plastic with stainless steel spiral cord
Keypad Waterproof rubber keypad
Temperature Range Operating: -40°C to +80°C
Storing: -45°C to +85°C
Weather Resistance IP66 - IP67
Ringing Tone Shrill warble tone, 90 dBA @ 1 metre typical
Hook Switch Electronic / magnetic with no visible moving parts
MTBF Calculated to exceed 50,000 hours
Weight Up to 7 kg depending on options

SIP-VoIP TECHNICAL SPECIFICATIONS

Category Details
Power Input 12-24V DC or PoE (Power over Ethernet)
Ports WAN: 10/100Base-T RJ-45 for LAN (Auto MDIX)
LAN: 10/100Base-T RJ-45 for PC (Auto MDIX)
Power Consumption Idle: 1.5W / Active: 1.8W
Protocol SIP 2.0 (RFC3261)
Codecs Supported G.711 A/u, G.723.1 (high/low), G.729, G.722
Echo Cancellation G.168 supported, up to 96ms (handsfree)
Full Duplex Yes
SIP Features SIP domain, SIP authentication (None, Basic, MD5), DNS server name,
DTMF: SIP info, DTMF Relay, RFC2833,
Flexible dial map, hotline support
Network Features Bridge mode, Static IP, DHCP, VLAN support,
Web-based configuration interface

ADDITIONAL FEATURES

  • Standard SIP phone
  • Vandal-resistant handset and cord
  • Weatherproof protection: IP66 - IP67
  • Waterproof full keypad
  • “LR” button for last number redial
  • “R” button for flash recall
  • “M” button for muting
  • Wall mounting, simple installation
  • Inductive coupler for hearing aid compatibility
  • PoE or external power supply (12-24V DC)
  • RJ45 Ethernet port for SIP connectivity
  • Compliant with CE, FCC, RoHS, IP67, ISO9001:2015

Weatherproof Telephone

$2,295.00
$2,295.00
