About

Learn what makes this product unique and why it’s right for you.

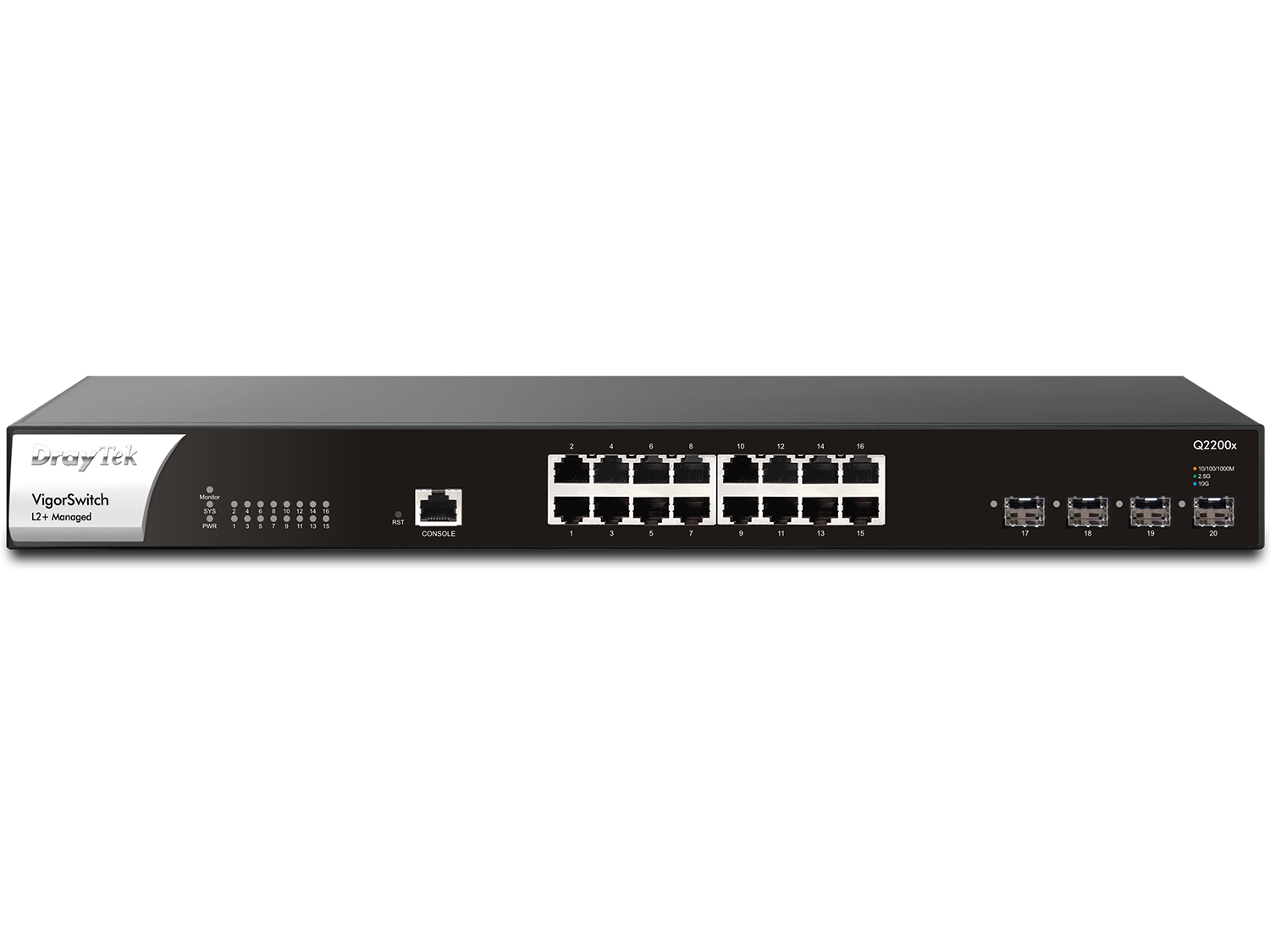

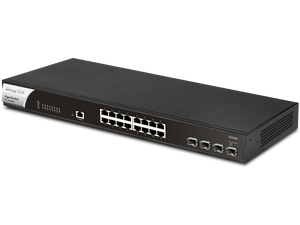

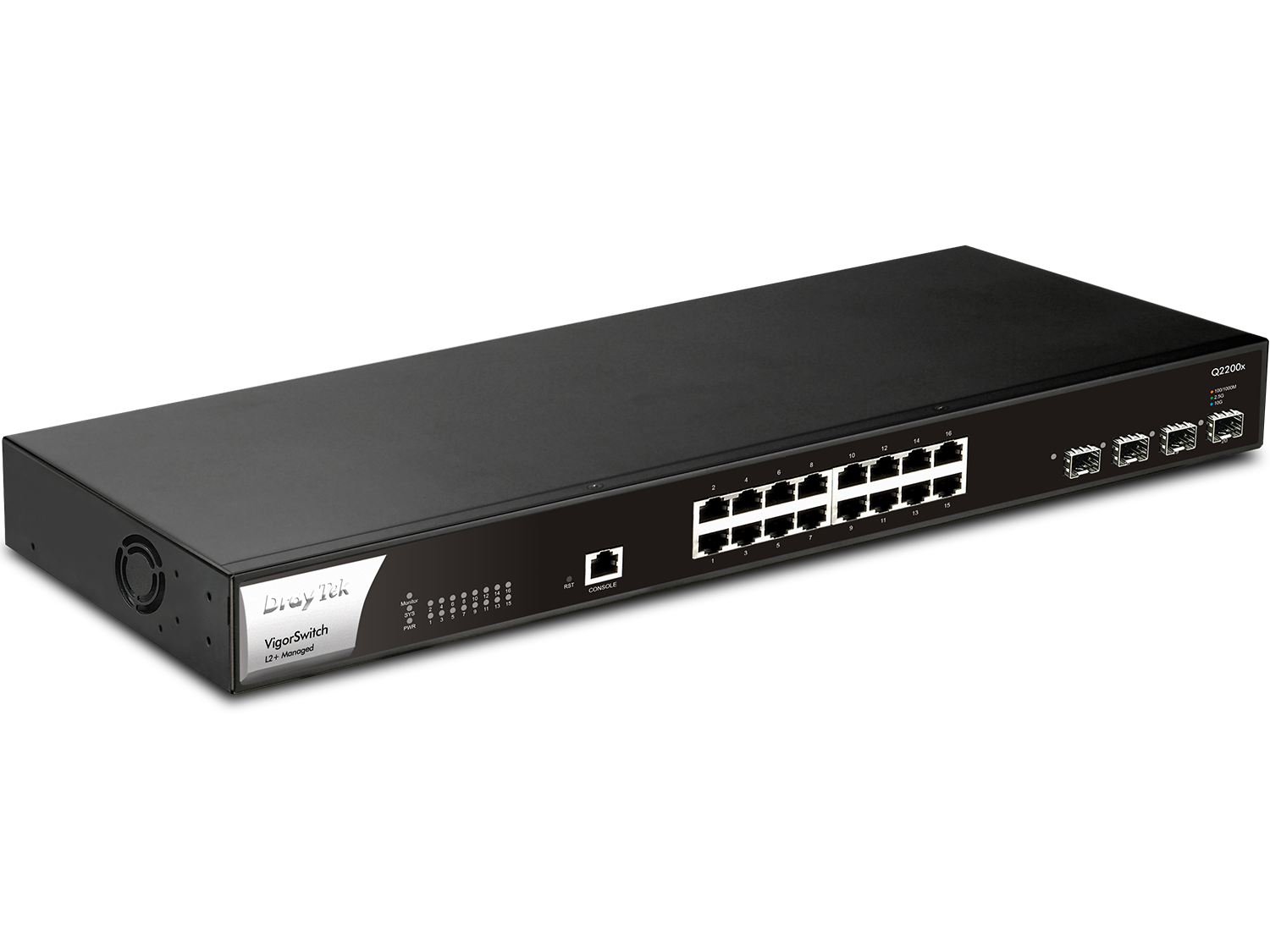

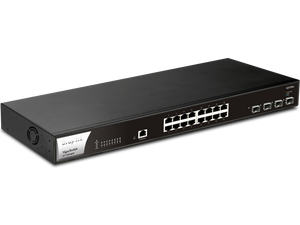

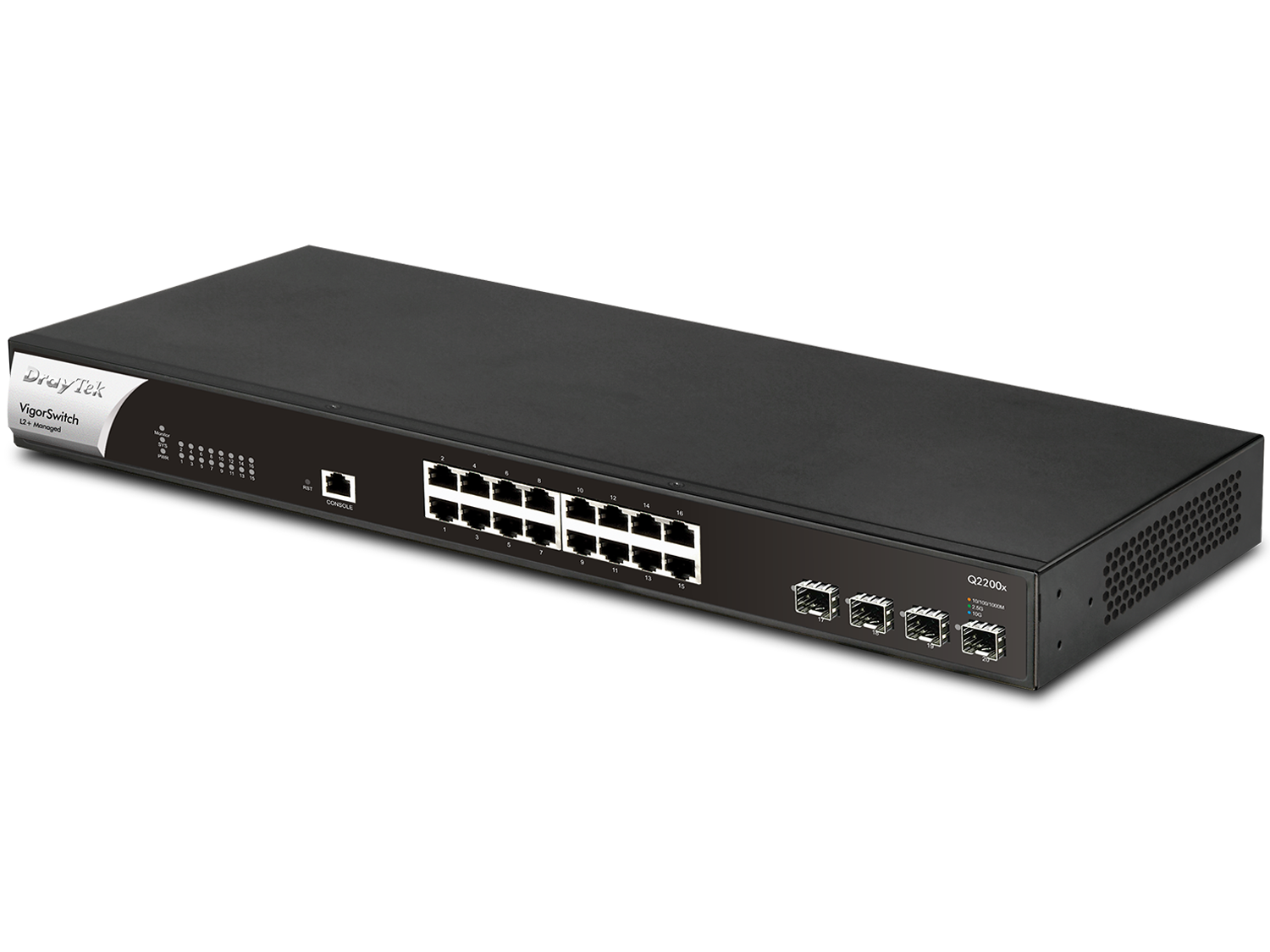

A powerful Layer 2+ managed switch featuring 16 × 2.5 GbE ports and 4 × 10 GbE SFP+ uplinks, designed for high-throughput networks. It supports advanced Layer 3 capabilities like VLAN Routing and DHCP Server, plus ONVIF camera management, IPv6 support, and robust security—housed in a 1U rack-mountable chassis.





KEY FEATURES

Feature Description
16 × 2.5 GbE Ports + 4 × 10 GbE SFP+ High-speed LAN ports and SFP+ uplinks for core or high-bandwidth applications
Layer 3 Capabilities Static Routing, VLAN Routing, and built-in DHCP Server for local network handling
ONVIF Camera Support Auto-detects and manages IP cameras with topology view and snapshot alerts
Security & Resilience Includes 802.1X, DHCP Snooping, IP Source Guard, ACL, IP Conflict Prevention, Loop Protection
Advanced QoS & VLAN Voice/Surveillance VLAN auto-detection, QoS via CoS/DSCP, VLAN Routing at wire-speed
IPv6 Ready Supports MLD Snooping, IPv6 ACL, and DNS resolver for IPv6 networking
Device Monitoring & Alerts Ping checks, mail alerts, and even auto-power-cycle via PoE (for PoE models)
Central Management Compatible with VigorACS, SWM via Vigor Routers, VigorConnect, CLI, and Web GUI





TECHNICAL SPECIFICATION

Category Details
Buffer Size 12 Mbit
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps (64-byte frames)
MAC Address Table — (DrayTek-spec unclear)
Max Jumbo Frame 10 KB
Ports 16×2.5 GbE RJ‑45, 4×10 GbE SFP+, 1×Console (RJ‑45)
Link Aggregation 8 groups, up to 8 ports/group, Static or LACP
VLAN Support Up to 512 VLANs, including VLAN types like Management, Voice, Surveillance, QinQ
Multicast IGMP v2/v3, Querier, MLD v1/v2, MVR support, up to 256 groups
Management Features Web UI, SSH/Telnet, SNMP v1/2c/3, Dual image, Mail alerts, Port diagnostics, sFlow
Power & Rack AC 100–240 V @ 0.9 A, max 45 W power draw; 1U rack-mountable
Physical 440 × 205 × 44 mm, ~2.8 kg (excluding SFP modules)
Environmental Operating: 0–50 °C, Storage: –20–70 °C; Humidity: 10–90% (non-condensing)
Technical Enhancements
  • Expanded buffer size and forwarding rate details
  • Full jumbo frame support up to 10 KB
  • Advanced multicast group and VLAN handling capabilities
  • IPv6 readiness with MLD snooping and ACL
  • Enhanced security with DHCP snooping, IP Source Guard, and loop protection
  • Comprehensive management tools including SNMP, sFlow, port diagnostics, and mail alerts
  • Physical and environmental specifications for rack mounting and reliability
Learn what makes this product unique and why it’s right for you.

A powerful Layer 2+ managed switch featuring 16 × 2.5 GbE ports and 4 × 10 GbE SFP+ uplinks, designed for high-throughput networks. It supports advanced Layer 3 capabilities like VLAN Routing and DHCP Server, plus ONVIF camera management, IPv6 support, and robust security—housed in a 1U rack-mountable chassis.





KEY FEATURES

Feature Description
16 × 2.5 GbE Ports + 4 × 10 GbE SFP+ High-speed LAN ports and SFP+ uplinks for core or high-bandwidth applications
Layer 3 Capabilities Static Routing, VLAN Routing, and built-in DHCP Server for local network handling
ONVIF Camera Support Auto-detects and manages IP cameras with topology view and snapshot alerts
Security & Resilience Includes 802.1X, DHCP Snooping, IP Source Guard, ACL, IP Conflict Prevention, Loop Protection
Advanced QoS & VLAN Voice/Surveillance VLAN auto-detection, QoS via CoS/DSCP, VLAN Routing at wire-speed
IPv6 Ready Supports MLD Snooping, IPv6 ACL, and DNS resolver for IPv6 networking
Device Monitoring & Alerts Ping checks, mail alerts, and even auto-power-cycle via PoE (for PoE models)
Central Management Compatible with VigorACS, SWM via Vigor Routers, VigorConnect, CLI, and Web GUI





TECHNICAL SPECIFICATION

Category Details
Buffer Size 12 Mbit
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps (64-byte frames)
MAC Address Table — (DrayTek-spec unclear)
Max Jumbo Frame 10 KB
Ports 16×2.5 GbE RJ‑45, 4×10 GbE SFP+, 1×Console (RJ‑45)
Link Aggregation 8 groups, up to 8 ports/group, Static or LACP
VLAN Support Up to 512 VLANs, including VLAN types like Management, Voice, Surveillance, QinQ
Multicast IGMP v2/v3, Querier, MLD v1/v2, MVR support, up to 256 groups
Management Features Web UI, SSH/Telnet, SNMP v1/2c/3, Dual image, Mail alerts, Port diagnostics, sFlow
Power & Rack AC 100–240 V @ 0.9 A, max 45 W power draw; 1U rack-mountable
Physical 440 × 205 × 44 mm, ~2.8 kg (excluding SFP modules)
Environmental Operating: 0–50 °C, Storage: –20–70 °C; Humidity: 10–90% (non-condensing)
Technical Enhancements
  • Expanded buffer size and forwarding rate details
  • Full jumbo frame support up to 10 KB
  • Advanced multicast group and VLAN handling capabilities
  • IPv6 readiness with MLD snooping and ACL
  • Enhanced security with DHCP snooping, IP Source Guard, and loop protection
  • Comprehensive management tools including SNMP, sFlow, port diagnostics, and mail alerts
  • Physical and environmental specifications for rack mounting and reliability

VigorSwitch Q2200x

$610.00
$610.00
