A compact, high-performance Layer 2+ managed switch, the VigorSwitch Q2121x offers 8 x 2.5 GbE RJ‑45 ports and 4 x 10 GbE SFP+ uplinks, featuring advanced features like VLAN routing, DHCP server, surveillance VLAN integration, and centralized management—all in a fanless, rack-mountable unit.
KEY FEATURES
| Feature | Description |
|---|---|
| 8 × 2.5 GbE Ports + 4 × 10 GbE SFP+ | Multi-gigabit LAN ports with high-speed SFP+ uplinks for flexible network topology |
| Layer 3 Features | Includes DHCP server and VLAN routing for improved intra-network traffic efficiency |
| ONVIF Surveillance Integration | Automatically handles camera discovery, topology mapping, video streaming, and maintenance |
| Security & Network Stability | IP Conflict Prevention, DHCP Snooping, DAI, 802.1x, ACL, DoS defense, storm control, loop protection |
| Multicast & Voice QoS | Voice and surveillance VLANs, 8 QoS queues, SPQ/WRR scheduling, CoS/DSCP tagging |
| Central & Remote Management | Manage via VigorACS, VigorConnect, SWM, CLI, or Web GUI |
| Redundancy & Alerts | Dual image firmware, mail alerts for port status, IP conflict, and restart events |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Ports | 8 × 2.5 GbE RJ‑45, 4 × 10 GbE SFP+, 1 × Console (RJ‑45) |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps (64-byte frames) |
| Buffer & MAC Table | 12 Mbit buffer, 16K MAC addresses |
| Jumbo Frames | Up to 10 KB |
| Layer 3 Routing Table | 6K static routes + 512 prefix entries |
| VLAN Support | 256 VLANs: port-based, 802.1Q, MAC-, protocol-, voice-, surveillance VLANs, port isolation, GVRP, QinQ |
| Multicast | IGMP v2/v3 snooping, IGMP Querier, MLD v1/v2, MVR, 256 multicast groups |
| Link Aggregation | Supports up to 8 groups, 8 ports per group, static & LACP |
| Management & Monitoring | Web GUI, CLI, SNMP v1/2c/3, RMON, LLDP-MED, sFlow, SNTP, dual image, port mirroring, cable test, mail alerts |
| Power & Rack | AC 100–240 V @ 0.6 A; ~25.4 W max; 1U rack-mountable |
| Physical | 355 × 205 × 44 mm; ~3.4 kg |
| Environmental | Operating: 0–45 °C, 10–90% RH; Storage: –20–70 °C, 5–90% RH |
Learn what makes this product unique and why it’s right for you.
A compact, high-performance Layer 2+ managed switch, the VigorSwitch Q2121x offers 8 x 2.5 GbE RJ‑45 ports and 4 x 10 GbE SFP+ uplinks, featuring advanced features like VLAN routing, DHCP server, surveillance VLAN integration, and centralized management—all in a fanless, rack-mountable unit.
KEY FEATURES
| Feature | Description |
|---|---|
| 8 × 2.5 GbE Ports + 4 × 10 GbE SFP+ | Multi-gigabit LAN ports with high-speed SFP+ uplinks for flexible network topology |
| Layer 3 Features | Includes DHCP server and VLAN routing for improved intra-network traffic efficiency |
| ONVIF Surveillance Integration | Automatically handles camera discovery, topology mapping, video streaming, and maintenance |
| Security & Network Stability | IP Conflict Prevention, DHCP Snooping, DAI, 802.1x, ACL, DoS defense, storm control, loop protection |
| Multicast & Voice QoS | Voice and surveillance VLANs, 8 QoS queues, SPQ/WRR scheduling, CoS/DSCP tagging |
| Central & Remote Management | Manage via VigorACS, VigorConnect, SWM, CLI, or Web GUI |
| Redundancy & Alerts | Dual image firmware, mail alerts for port status, IP conflict, and restart events |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Ports | 8 × 2.5 GbE RJ‑45, 4 × 10 GbE SFP+, 1 × Console (RJ‑45) |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps (64-byte frames) |
| Buffer & MAC Table | 12 Mbit buffer, 16K MAC addresses |
| Jumbo Frames | Up to 10 KB |
| Layer 3 Routing Table | 6K static routes + 512 prefix entries |
| VLAN Support | 256 VLANs: port-based, 802.1Q, MAC-, protocol-, voice-, surveillance VLANs, port isolation, GVRP, QinQ |
| Multicast | IGMP v2/v3 snooping, IGMP Querier, MLD v1/v2, MVR, 256 multicast groups |
| Link Aggregation | Supports up to 8 groups, 8 ports per group, static & LACP |
| Management & Monitoring | Web GUI, CLI, SNMP v1/2c/3, RMON, LLDP-MED, sFlow, SNTP, dual image, port mirroring, cable test, mail alerts |
| Power & Rack | AC 100–240 V @ 0.6 A; ~25.4 W max; 1U rack-mountable |
| Physical | 355 × 205 × 44 mm; ~3.4 kg |
| Environmental | Operating: 0–45 °C, 10–90% RH; Storage: –20–70 °C, 5–90% RH |

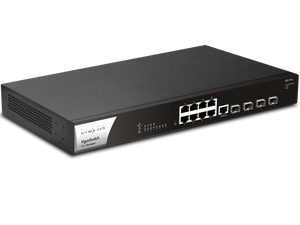

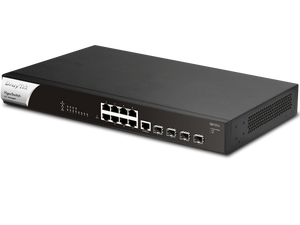

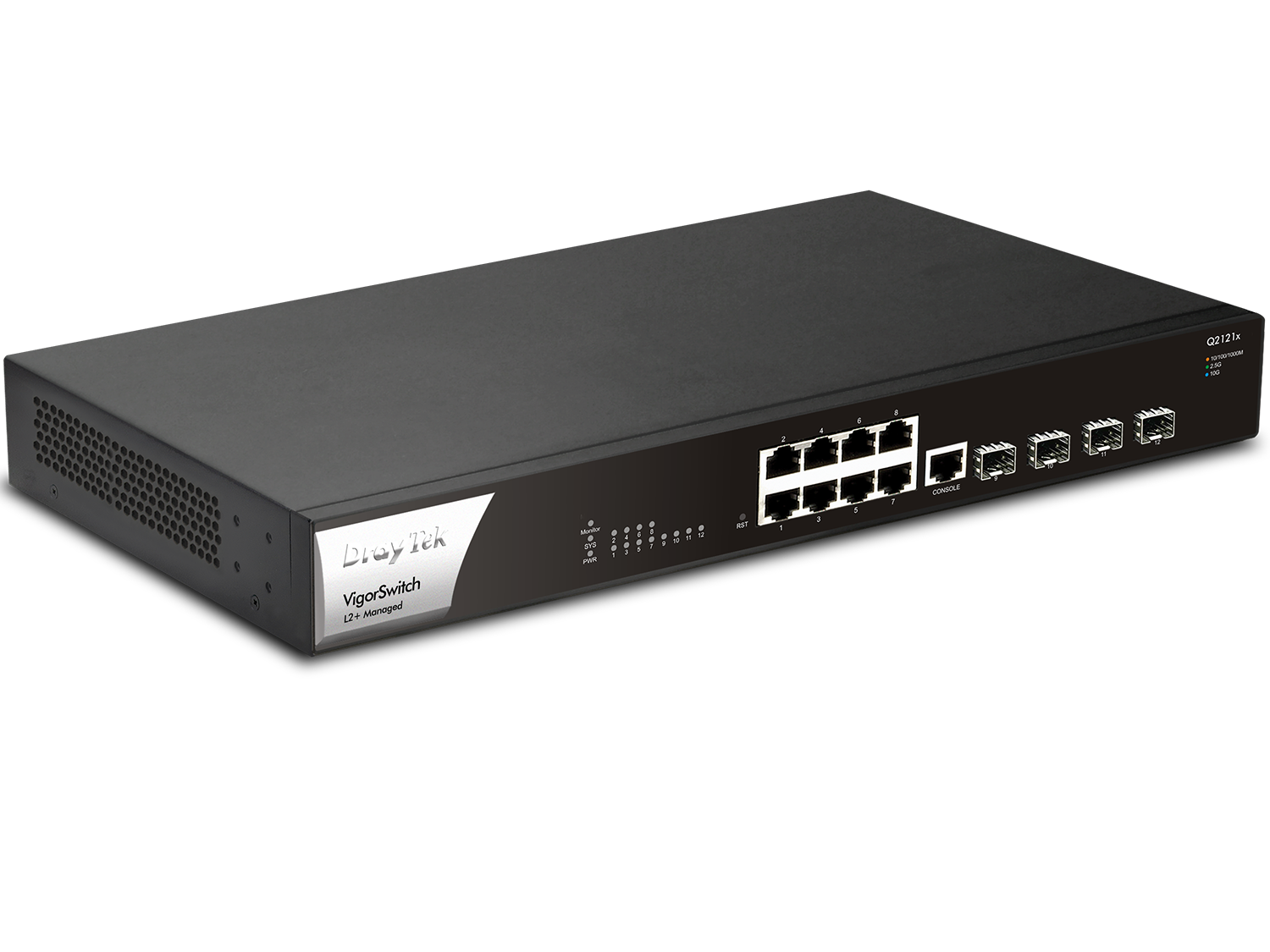

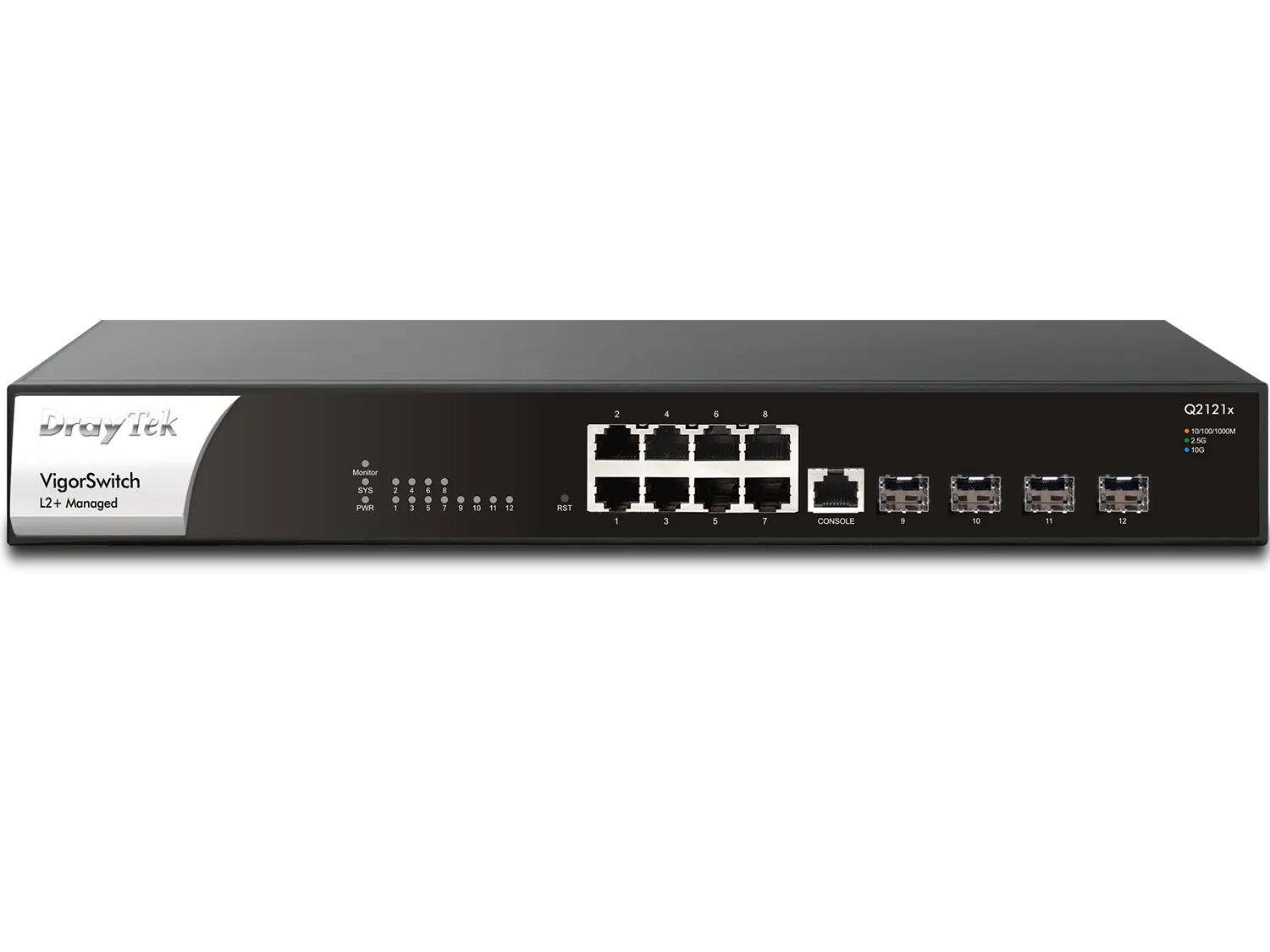

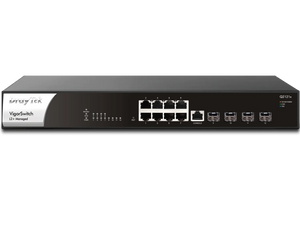

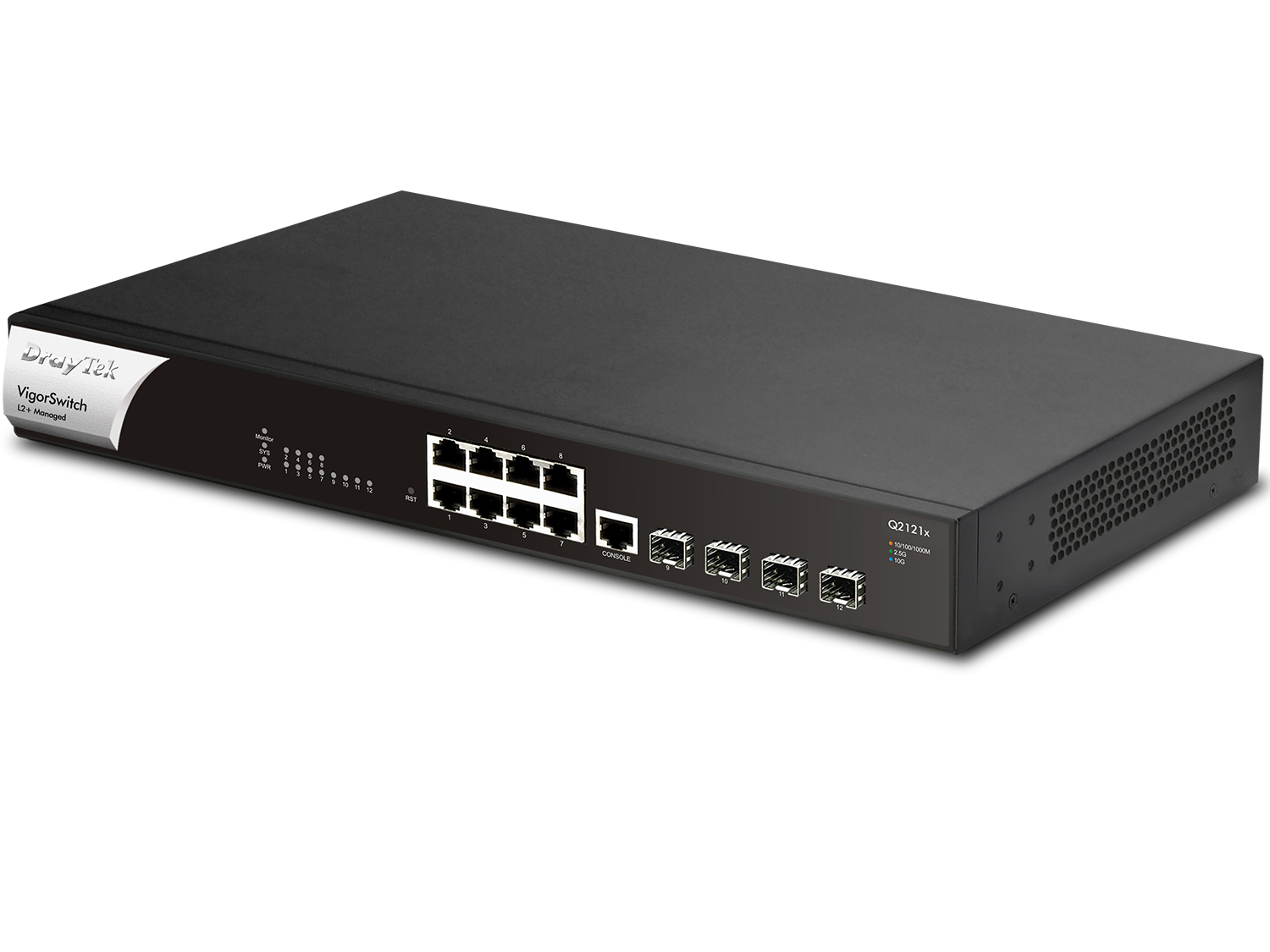

VigorSwitch Q2121x
