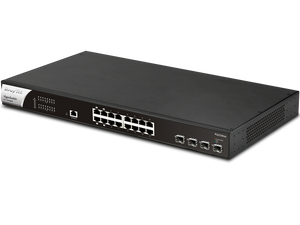

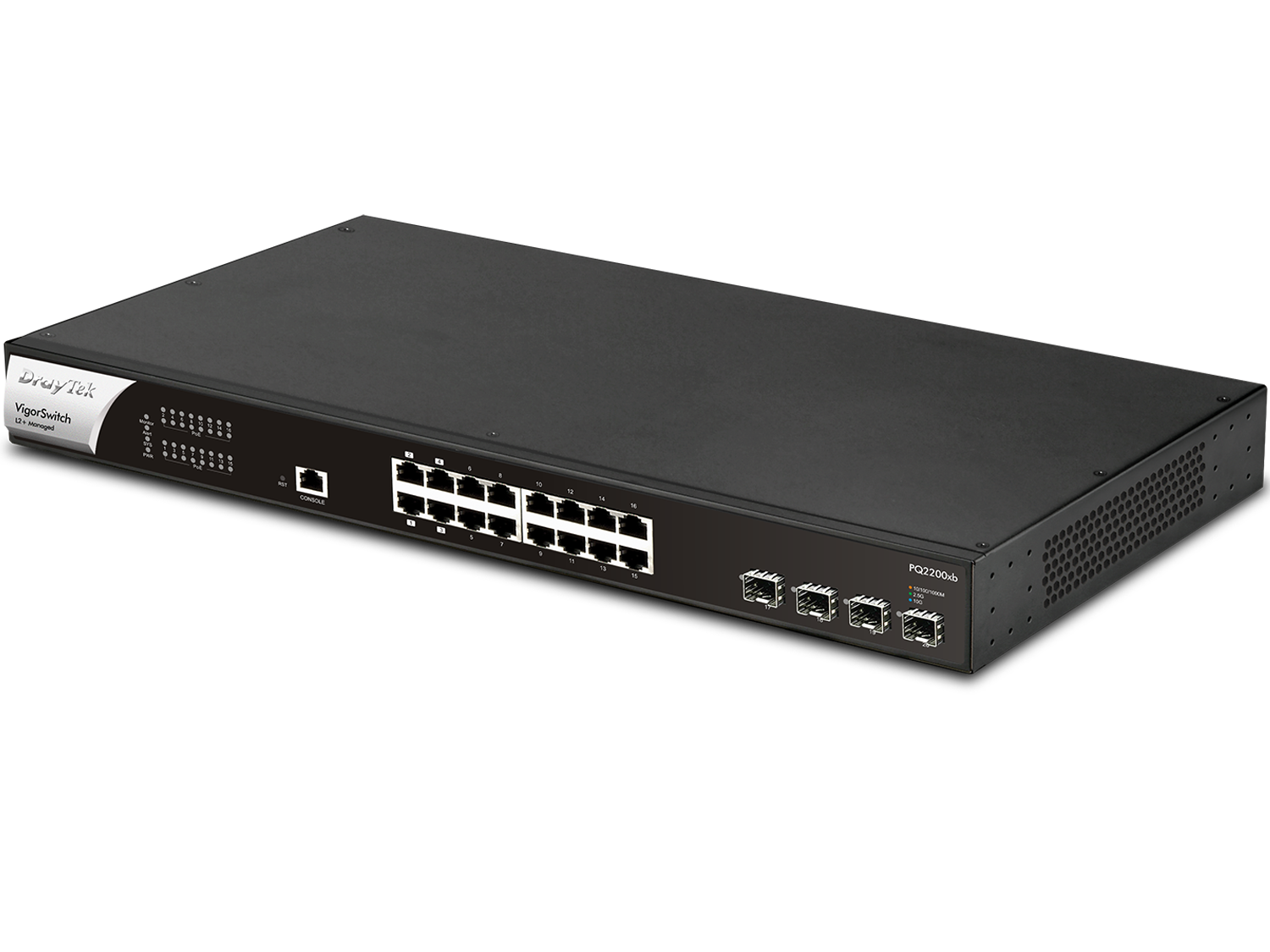

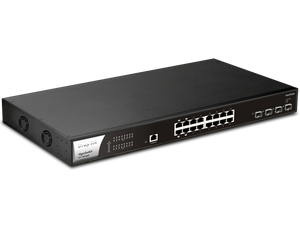

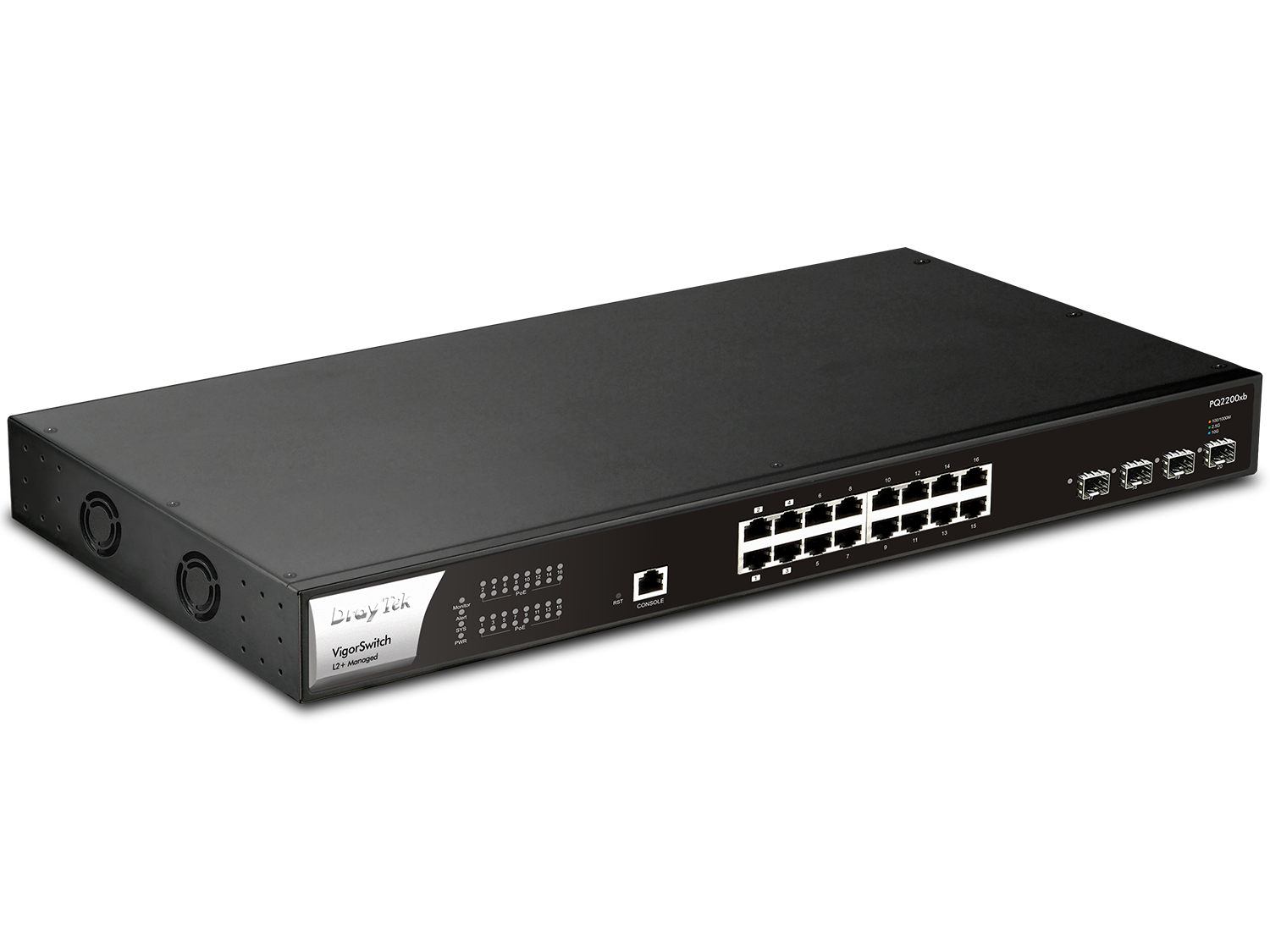

The VigorSwitch PQ2200xb is a high-performance Layer 2+ managed switch by DrayTek, designed for small to medium enterprises. It delivers 16 ports of 2.5 GbE connectivity alongside 4 × 10 Gbps SFP+ uplinks, and supports both PoE+ and PoE++, offering up to 400 W total power—ideal for powering Wi‑Fi 6 access points, IP cameras, POS systems, and more.
KEY FEATURES
| Feature | Description |
|---|---|
| Multi-Gigabit Ports | 16 × 2.5 GbE RJ-45 ports compatible with Cat 5e or better. |
| 10G SFP+ Uplinks | 4 × SFP+ ports supporting up to 10 Gbps uplinks to servers, NAS, or core switches. |
| PoE++ & PoE+ Support | 4 × PoE++ (90W), 12 × PoE+ (30W) with a total power budget of 400W. |
| Advanced Layer 2+/3 Features | VLAN Routing, Static Routing, and DHCP Server with support for up to 256 VLANs. |
| Security & QoS | 802.1X, ACLs, DHCP Snooping, IP Source Guard, and QoS prioritization (CoS, DSCP). |
| ONVIF Surveillance Support | Auto-detection of IP cameras, power cycle, and video stream monitoring via GUI. |
| Central Management | Manage via web UI, DrayTek Vigor router, or VigorACS cloud platform. |
| IPv6 Support | Supports MLD Snooping, IPv6 ACLs, DNS resolver, and IPv6 management. |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|

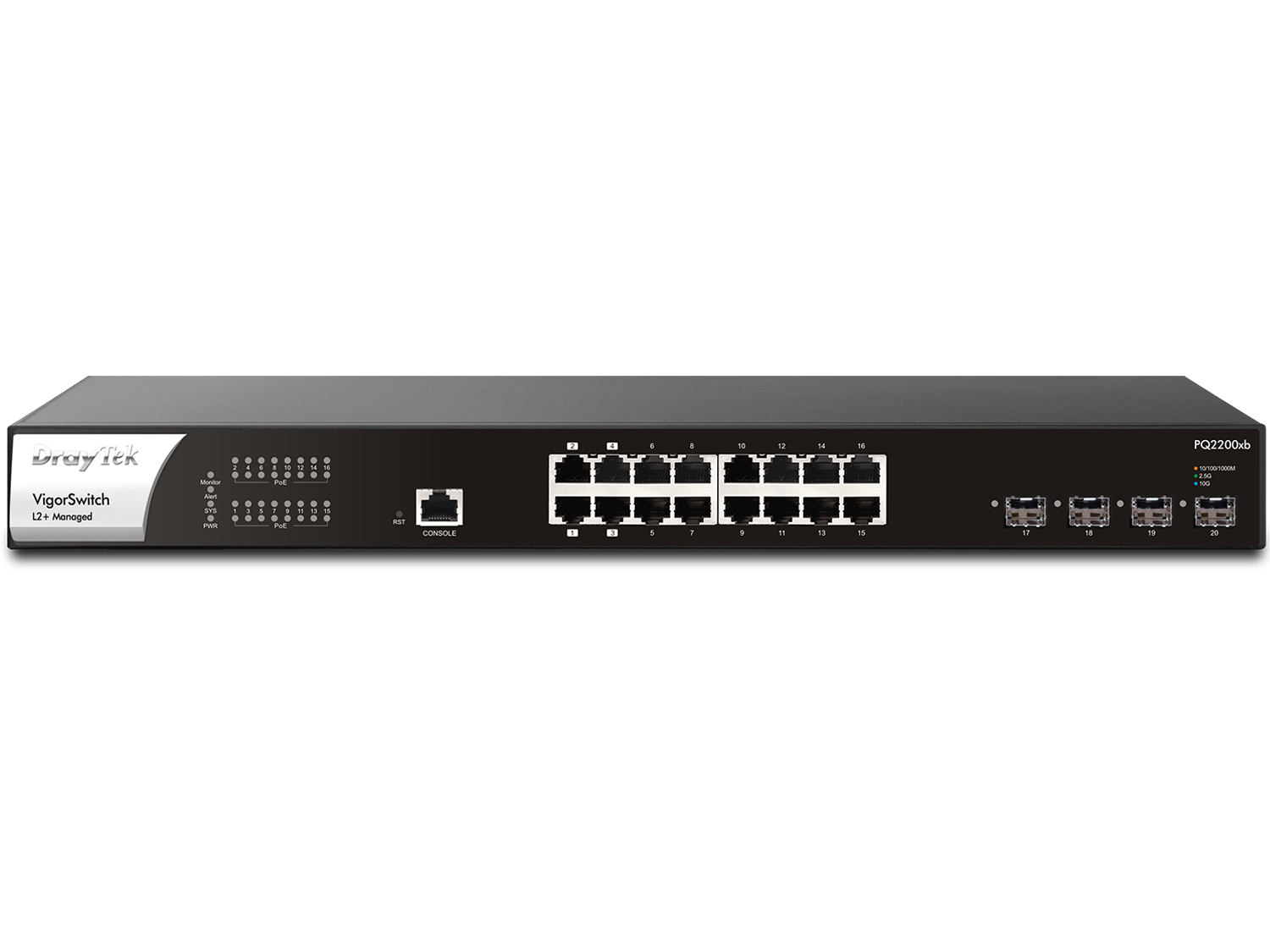

| Ports | 16 × 2.5 GbE RJ‑45, 4 × 10 Gbps SFP+, 1 × RJ-45 Console |
| Switching Capacity | 160 Gbps |
| MAC Address Table | Up to 16,000 entries |
| VLANs Supported | Up to 256 VLANs |
| PoE Budget | 400W total (PoE++ and PoE+ combined) |
| Power Input | 100–240 VAC, max 550W consumption |
| Dimensions | 440 mm × 281 mm × 44 mm (1U Rackmount) |
| Weight | Approx. 4.3 kg |
| Warranty | 2 Years (Back-to-Base) |
