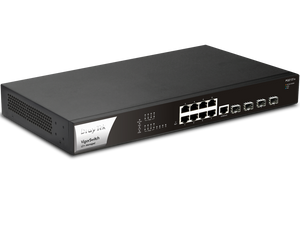

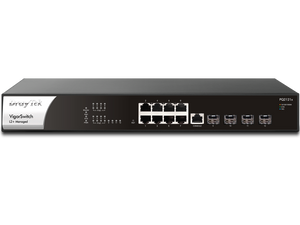

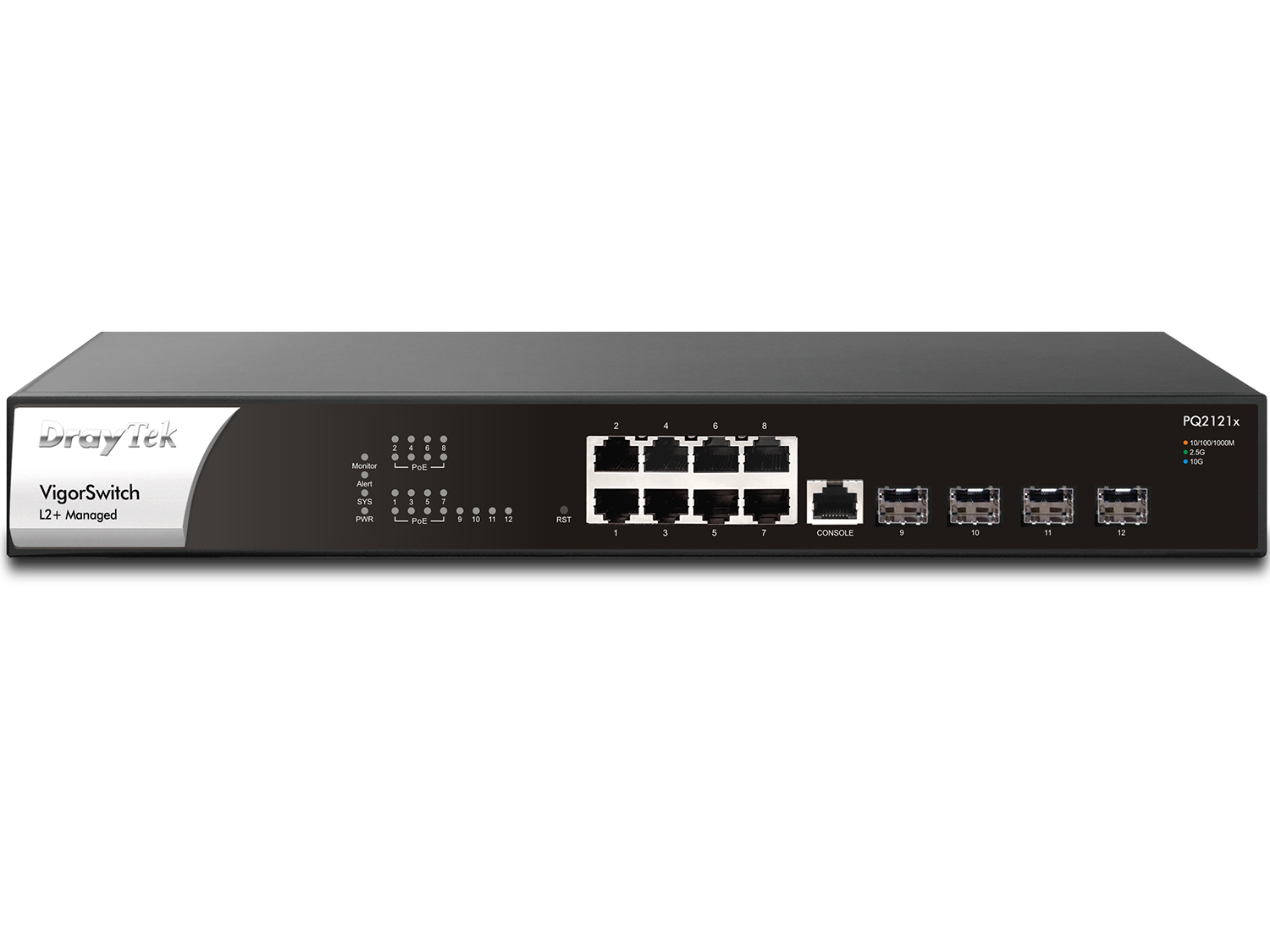

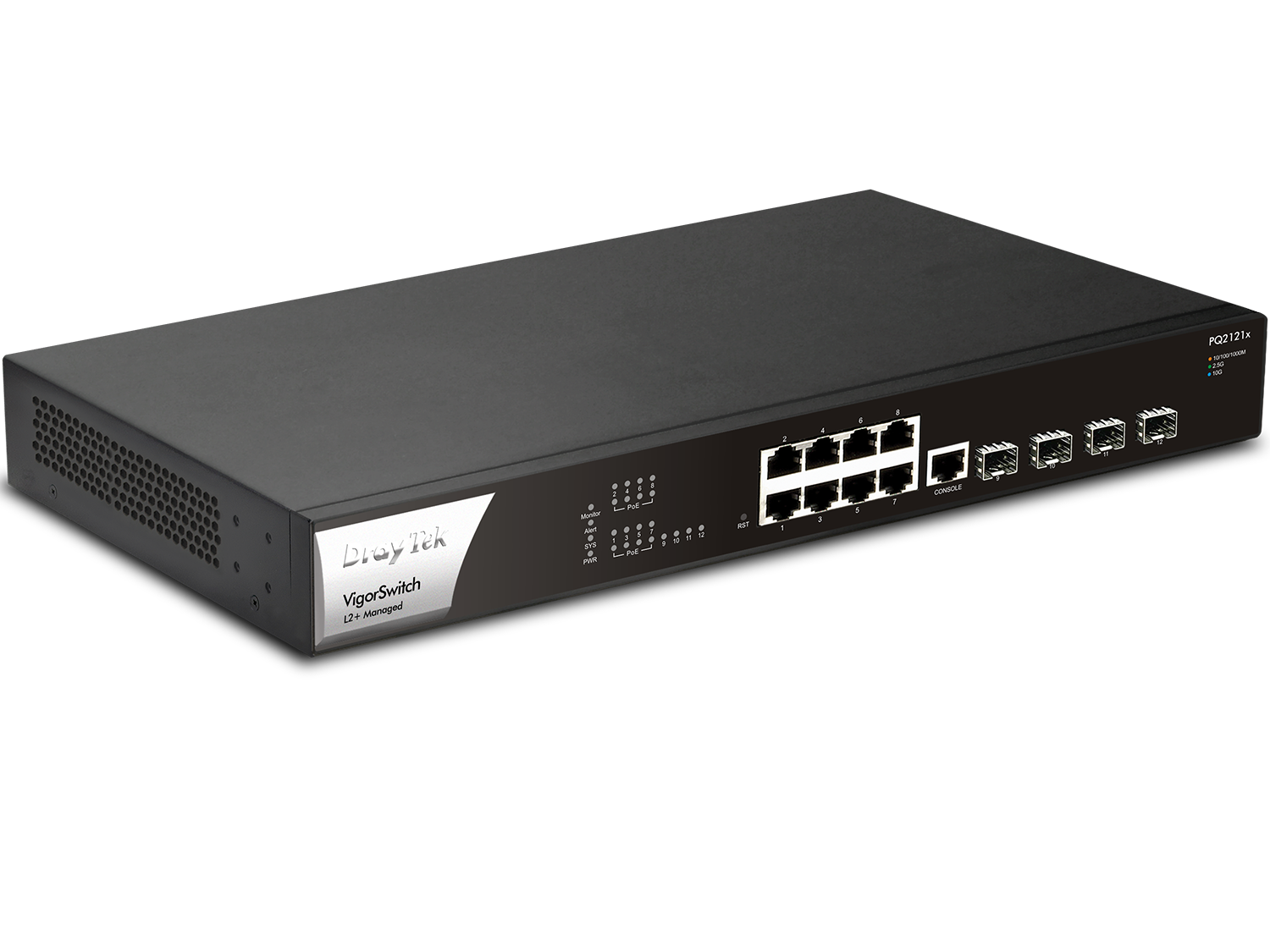

The DrayTek VigorSwitch PQ2121x is a compact yet powerful Layer 2+ managed switch featuring 8 × 2.5 GbE PoE/PoE+ ports and 4 × 10 GbE SFP+ uplinks, ideal for modern SMB networks and high-performance setups. With a 140 W PoE budget, ONVIF surveillance support, DHCP server, VLAN routing, IP conflict prevention, and IPv6 readiness, it delivers robust performance and centralized management within a silent 1U rack-mount chassis.





KEY FEATURES

Feature Description
8 × 2.5 GbE PoE+/PoE Ports 8 multi-speed PoE+ ports (10M/100M/1G/2.5 GbE) with a 140 W power budget
4 × 10 GbE SFP+ Uplinks High-speed SFP+ ports for fiber uplink or backbone use
ONVIF Surveillance Support Auto-detects IP cameras, shows topology, enables snapshots, streaming, and remote maintenance
Layer 3 Features Includes static routing, VLAN routing, DHCP server, and improves inter-VLAN traffic performance
IP Conflict Detection/Prevention Continuously monitors and blocks IP conflicts to improve network stability
QoS & Auto-VLAN Automatic Voice/Surveillance VLAN tagging with QoS via CoS, DSCP, and IP precedence
IPv6 Ready Supports IPv6 features including MLD snooping, IPv6 ACLs, and DNS resolver
PoE & Ping Watchdog Monitors device status; auto power-cycling via PoE when ping fails, with email alerts
Central Management Manage via Web GUI, CLI, SNMP, VigorACS, SWM, VigorConnect, plus multi-admin levels





TECHNICAL SPECIFICATION

Category Details
Switching Capacity & Performance 120 Gbps switching capacity; 89.28 Mpps forwarding; 12 Mbit packet buffer; 10 KB jumbo frames; 16K MAC table
Standards & Multicast Supports 256 VLANs; IGMP v2/v3 and MLD snooping; handles up to 256 multicast groups
Link Aggregation Supports up to 8 LAG groups with 8 ports each, using static or LACP
Security & Storm Control 802.1X, ACLs, DHCP snooping, DoS defense, storm protection, and Energy‑Efficient Ethernet compliance
Management & Diagnostics Features SNMP v1/2c/3, RMON, syslog, port mirroring, ping/cable test, reset button, and multiple admin profiles
PoE & Power 140 W PoE budget; typical power consumption ~25.4 W
Physical / Environmental 1U rack-mount (355 × 205 × 44 mm); operates at 0–50 °C; wall mountable; weighs ~3.4 kg
Technical Enhancements
  • Exact buffer and MAC capacities for planning performance
  • Multicast group support counts
  • Multi-protocol security & access controls
  • Detailed management and reset capabilities
  • Physical dimensions, power draw, and PoE specifics
Learn what makes this product unique and why it’s right for you.

The DrayTek VigorSwitch PQ2121x is a compact yet powerful Layer 2+ managed switch featuring 8 × 2.5 GbE PoE/PoE+ ports and 4 × 10 GbE SFP+ uplinks, ideal for modern SMB networks and high-performance setups. With a 140 W PoE budget, ONVIF surveillance support, DHCP server, VLAN routing, IP conflict prevention, and IPv6 readiness, it delivers robust performance and centralized management within a silent 1U rack-mount chassis.





KEY FEATURES

Feature Description
8 × 2.5 GbE PoE+/PoE Ports 8 multi-speed PoE+ ports (10M/100M/1G/2.5 GbE) with a 140 W power budget
4 × 10 GbE SFP+ Uplinks High-speed SFP+ ports for fiber uplink or backbone use
ONVIF Surveillance Support Auto-detects IP cameras, shows topology, enables snapshots, streaming, and remote maintenance
Layer 3 Features Includes static routing, VLAN routing, DHCP server, and improves inter-VLAN traffic performance
IP Conflict Detection/Prevention Continuously monitors and blocks IP conflicts to improve network stability
QoS & Auto-VLAN Automatic Voice/Surveillance VLAN tagging with QoS via CoS, DSCP, and IP precedence
IPv6 Ready Supports IPv6 features including MLD snooping, IPv6 ACLs, and DNS resolver
PoE & Ping Watchdog Monitors device status; auto power-cycling via PoE when ping fails, with email alerts
Central Management Manage via Web GUI, CLI, SNMP, VigorACS, SWM, VigorConnect, plus multi-admin levels





TECHNICAL SPECIFICATION

Category Details
Switching Capacity & Performance 120 Gbps switching capacity; 89.28 Mpps forwarding; 12 Mbit packet buffer; 10 KB jumbo frames; 16K MAC table
Standards & Multicast Supports 256 VLANs; IGMP v2/v3 and MLD snooping; handles up to 256 multicast groups
Link Aggregation Supports up to 8 LAG groups with 8 ports each, using static or LACP
Security & Storm Control 802.1X, ACLs, DHCP snooping, DoS defense, storm protection, and Energy‑Efficient Ethernet compliance
Management & Diagnostics Features SNMP v1/2c/3, RMON, syslog, port mirroring, ping/cable test, reset button, and multiple admin profiles
PoE & Power 140 W PoE budget; typical power consumption ~25.4 W
Physical / Environmental 1U rack-mount (355 × 205 × 44 mm); operates at 0–50 °C; wall mountable; weighs ~3.4 kg
Technical Enhancements
  • Exact buffer and MAC capacities for planning performance
  • Multicast group support counts
  • Multi-protocol security & access controls
  • Detailed management and reset capabilities
  • Physical dimensions, power draw, and PoE specifics

VigorSwitch PQ2121x

$550.00
