About

Learn what makes this product unique and why it’s right for you.

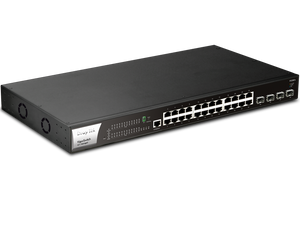

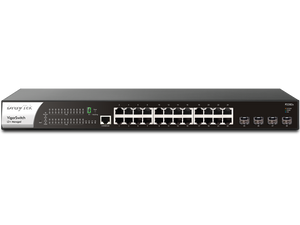

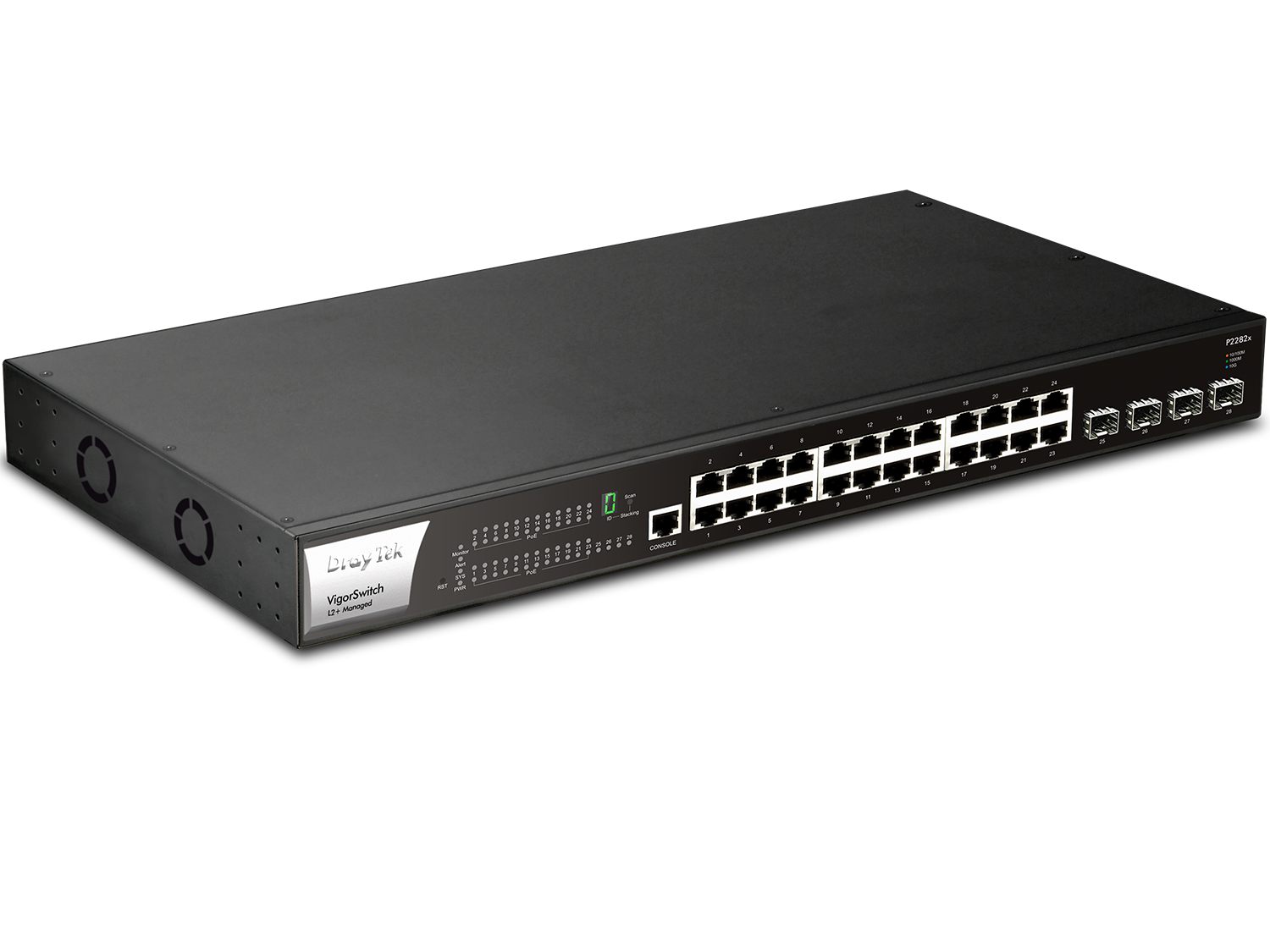

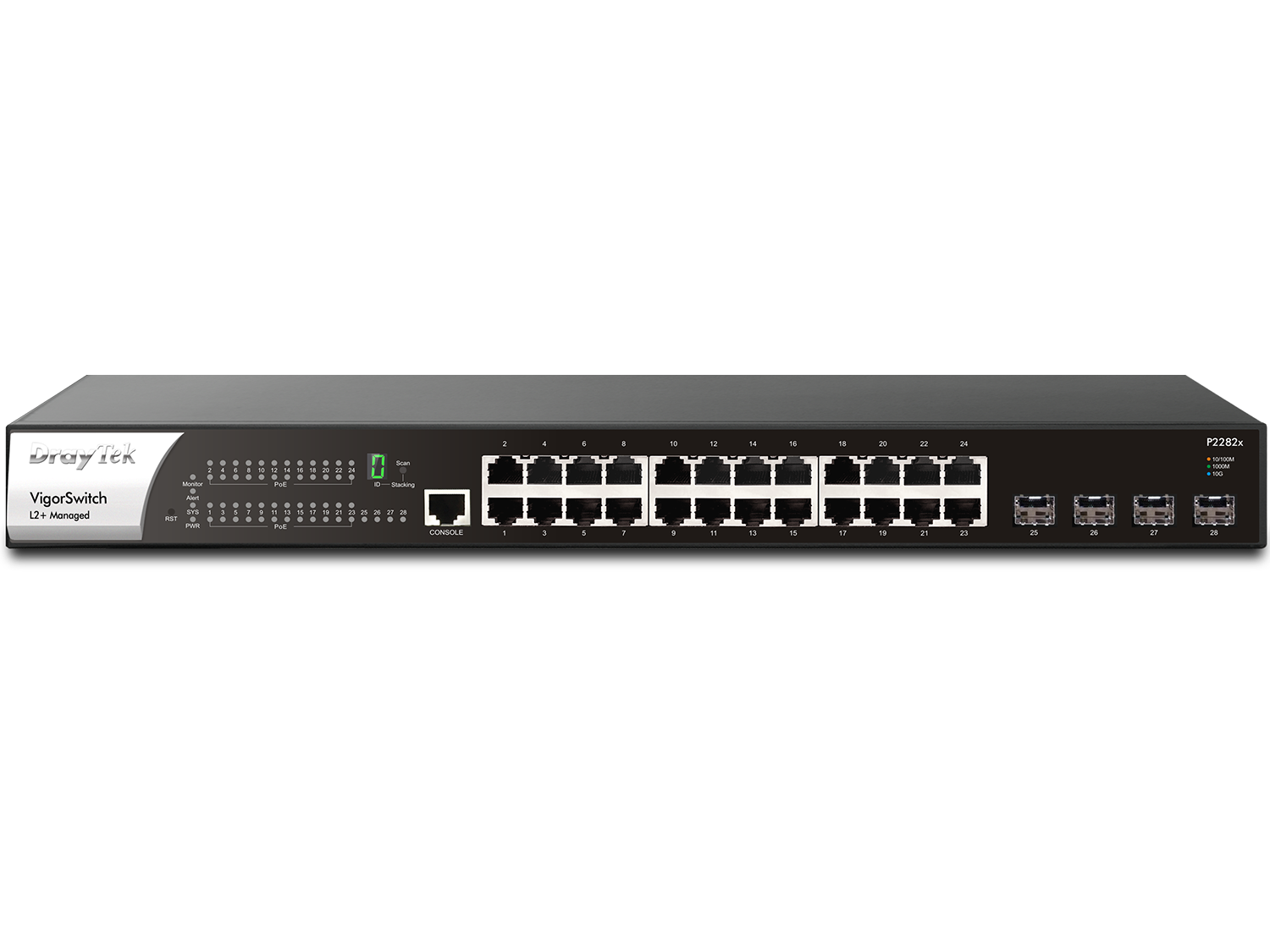

The DrayTek VigorSwitch P2282x is a powerful managed switch offering 24 PoE+/PoE Gigabit ports and 4×10G SFP+ uplinks. Ideal for high-performance networks, it includes advanced features like VLAN routing, ONVIF camera integration, robust security, QoS, multicast control, and Layer 3 functionality—all deliverable via centralized UI or CLI management, with full physical and PoE specifications.





KEY FEATURES

Feature Description
24 × PoE+/PoE Ports Supports PoE+ with a total 400 W budget, includes scheduling and ping watchdog power controls
4 × 10G SFP+ Uplinks High-speed fiber uplinks for core connectivity
Layer 2+ and DHCP Routing Offers static routing, DHCP server, VLAN routing, IPv6 support
ONVIF Surveillance Supports camera auto-detection and maintenance tools
Network Security 802.1X, ACLs, DHCP Snooping, DAI, IP Source Guard, Loop Protection, DoS Defense
QoS & VLAN Management 256 VLANs, QoS queues, IGMP/MLD Snooping, CoS/DSCP support
Advanced Administration Web UI, CLI, SNMP v1/2c/3, VigorACS, VigorConnect, mail alerts





TECHNICAL SPECIFICATION

Category Details
Switching Capacity 128 Gbps; 95.2 Mpps forwarding; 12 Mbit buffer; 16K MAC table; 12 KB Jumbo frames
Layer 3 Routing 6K static routes, 512 prefix-based routing entries
PoE Power 400 W PoE budget; 460 W maximum power draw
Physical Specs 1U rack; dimensions 440 × 281 × 44 mm; weight 4.26 kg; 0–50 °C operating
Technical Enhancements
  • Advanced performance and jumbo frame metrics
  • Detailed multicast and VLAN management capabilities
  • Dual power options with physical footprint clarity
  • Comprehensive security and protocol support
Learn what makes this product unique and why it’s right for you.

The DrayTek VigorSwitch P2282x is a powerful managed switch offering 24 PoE+/PoE Gigabit ports and 4×10G SFP+ uplinks. Ideal for high-performance networks, it includes advanced features like VLAN routing, ONVIF camera integration, robust security, QoS, multicast control, and Layer 3 functionality—all deliverable via centralized UI or CLI management, with full physical and PoE specifications.





KEY FEATURES

Feature Description
24 × PoE+/PoE Ports Supports PoE+ with a total 400 W budget, includes scheduling and ping watchdog power controls
4 × 10G SFP+ Uplinks High-speed fiber uplinks for core connectivity
Layer 2+ and DHCP Routing Offers static routing, DHCP server, VLAN routing, IPv6 support
ONVIF Surveillance Supports camera auto-detection and maintenance tools
Network Security 802.1X, ACLs, DHCP Snooping, DAI, IP Source Guard, Loop Protection, DoS Defense
QoS & VLAN Management 256 VLANs, QoS queues, IGMP/MLD Snooping, CoS/DSCP support
Advanced Administration Web UI, CLI, SNMP v1/2c/3, VigorACS, VigorConnect, mail alerts





TECHNICAL SPECIFICATION

Category Details
Switching Capacity 128 Gbps; 95.2 Mpps forwarding; 12 Mbit buffer; 16K MAC table; 12 KB Jumbo frames
Layer 3 Routing 6K static routes, 512 prefix-based routing entries
PoE Power 400 W PoE budget; 460 W maximum power draw
Physical Specs 1U rack; dimensions 440 × 281 × 44 mm; weight 4.26 kg; 0–50 °C operating
Technical Enhancements
  • Advanced performance and jumbo frame metrics
  • Detailed multicast and VLAN management capabilities
  • Dual power options with physical footprint clarity
  • Comprehensive security and protocol support

VigorSwitch P2282x

$830.00
