About

Learn what makes this product unique and why it’s right for you.

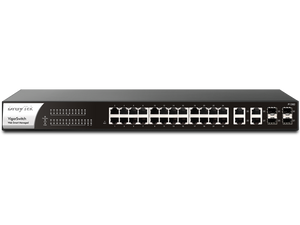

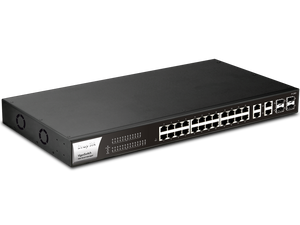

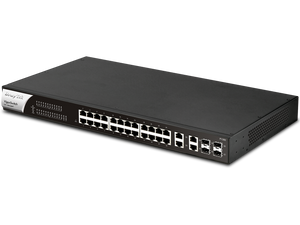

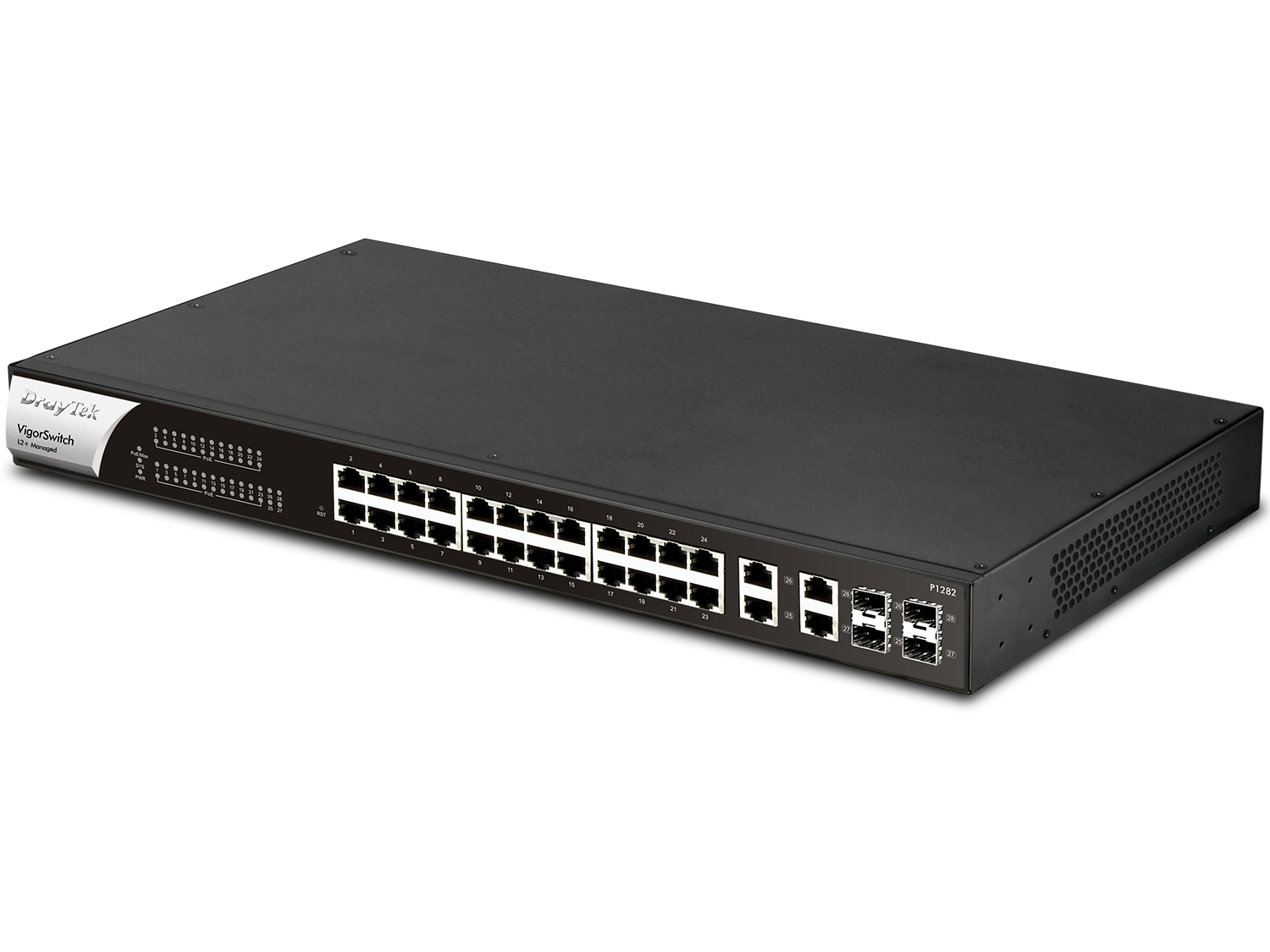

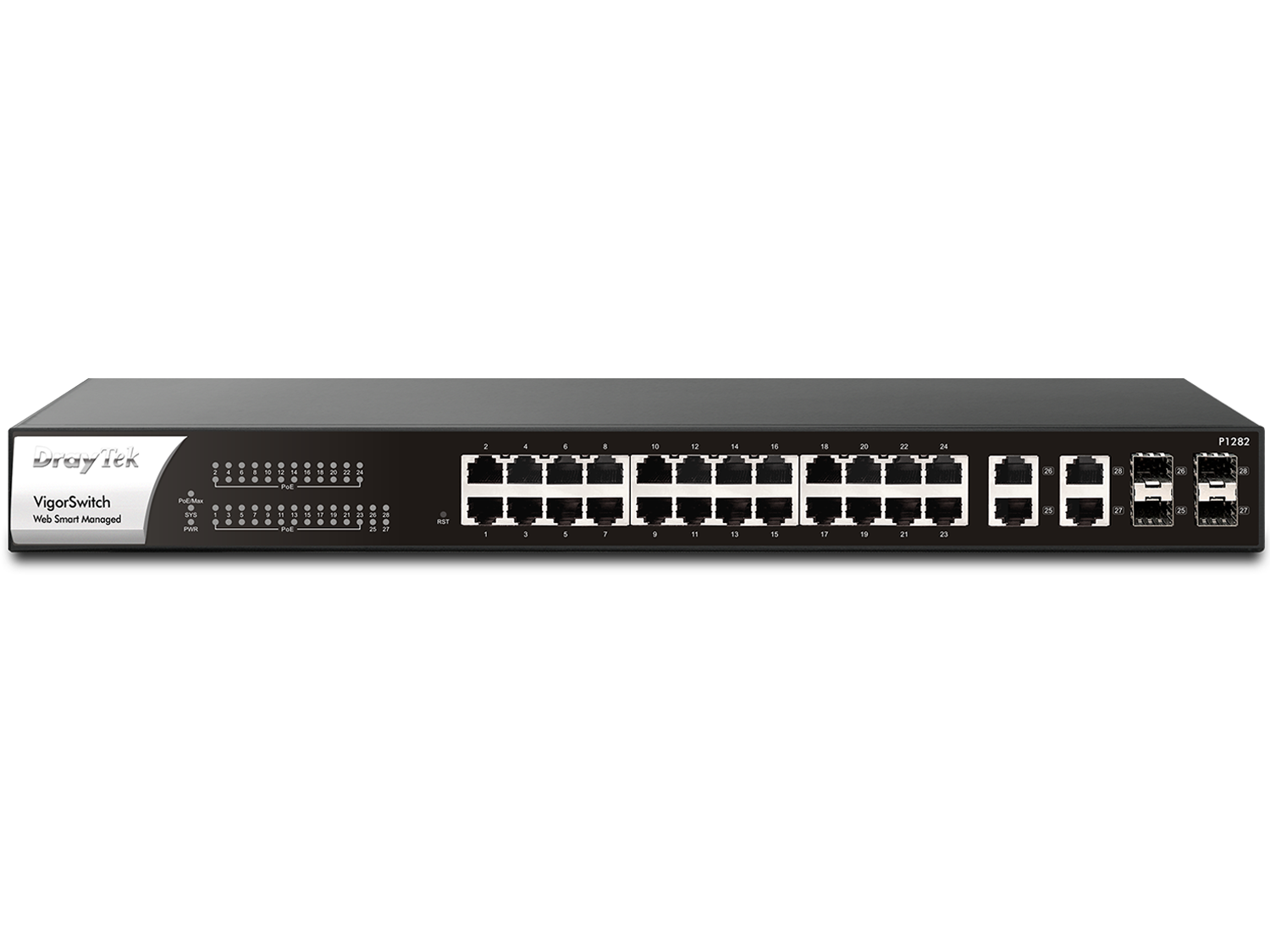

A rack-mountable, web-managed Gigabit PoE+ switch with 24 RJ‑45 PoE ports and 4 combo SFP/RJ‑45 uplinks. Ideal for SMBs with IP cameras and VoIP phones, it features powerful PoE, advanced security, VLAN types, ONVIF-friendly surveillance, and comprehensive monitoring tools.





KEY FEATURES

Feature Description
PoE+ (24 ports) 24 Gigabit PoE/PoE+ ports with up to 400 W power budget, scheduled on/off, ping/watchdog, manual recycling:contentReference[oaicite:1]{index=1}
4 Combo Uplink Ports Selectable RJ‑45 or SFP for flexible network uplinks:contentReference[oaicite:2]{index=2}
Power and Surveillance Automation Auto-detects voice and camera traffic for QoS tagging (Voice/Surveillance VLAN) and ONVIF device management:contentReference[oaicite:3]{index=3}
Central Management Manage via VigorACS, VigorConnect, VigorRouter SWM, Web GUI, CLI, SNMP:contentReference[oaicite:4]{index=4}
Robust Security ACL (MAC, IPv4, IPv6), DoS defense, IP Source Guard, IP conflict prevention, storm control, loop protection:contentReference[oaicite:5]{index=5}
Advanced QoS & VLAN 8 QoS queues (SPQ, WRR), CoS/DSCP/IP Precedence; up to 256 VLANs including management, voice, surveillance, MAC-based, etc.:contentReference[oaicite:6]{index=6}





TECHNICAL SPECIFICATION

Category Details
Switching & Buffer 56 Gbps switching; 41.7 Mpps forwarding (64‑byte); 4.2 Mbit buffer; 8K MAC table:contentReference[oaicite:7]{index=7}
Jumbo Frames Up to 9 KB:contentReference[oaicite:8]{index=8}
Networking Standards IPv4/IPv6, STP/RSTP, LACP, LLDP, EEE, SNMP v1/2c/3, SSH, Telnet, HTTP/HTTPS, OpenVPN client, SNTP, on‑box diagnostics:contentReference[oaicite:9]{index=9}
Multicast IGMP v2/v3, IGMP Querier, Multicast VLAN Registration, up to 256 groups:contentReference[oaicite:10]{index=10}
ONVIF Surveillance Discovery, topology view, streaming, device maintenance, IP camera reboot and snapshot mail alerts:contentReference[oaicite:11]{index=11}
Diagnostics & Alerts Mail alerts (port status, IP conflict, system restart), port mirroring, ping, cable test, syslog, dual admin levels:contentReference[oaicite:12]{index=12}
Physical & Power 1U rack‑mountable, 440×281×44 mm, 4.3 kg; Max 460 W power consumption; Dual-fan cooling; 0–50 °C operating:contentReference[oaicite:13]{index=13}
Technical Enhancements
  • Buffer size, MAC table, and jumbo frame specs for better performance insight
  • Detailed multicast, VLAN, and multicast VLAN support inclusion
  • Email alert types and ONVIF snapshot functions enhanced monitoring
  • UPS-like PoE features: per-port scheduling, watchdog, and camera auto-reboot
  • Physical dimensions, weight, and cooling details included
Learn what makes this product unique and why it’s right for you.

A rack-mountable, web-managed Gigabit PoE+ switch with 24 RJ‑45 PoE ports and 4 combo SFP/RJ‑45 uplinks. Ideal for SMBs with IP cameras and VoIP phones, it features powerful PoE, advanced security, VLAN types, ONVIF-friendly surveillance, and comprehensive monitoring tools.





KEY FEATURES

Feature Description
PoE+ (24 ports) 24 Gigabit PoE/PoE+ ports with up to 400 W power budget, scheduled on/off, ping/watchdog, manual recycling:contentReference[oaicite:1]{index=1}
4 Combo Uplink Ports Selectable RJ‑45 or SFP for flexible network uplinks:contentReference[oaicite:2]{index=2}
Power and Surveillance Automation Auto-detects voice and camera traffic for QoS tagging (Voice/Surveillance VLAN) and ONVIF device management:contentReference[oaicite:3]{index=3}
Central Management Manage via VigorACS, VigorConnect, VigorRouter SWM, Web GUI, CLI, SNMP:contentReference[oaicite:4]{index=4}
Robust Security ACL (MAC, IPv4, IPv6), DoS defense, IP Source Guard, IP conflict prevention, storm control, loop protection:contentReference[oaicite:5]{index=5}
Advanced QoS & VLAN 8 QoS queues (SPQ, WRR), CoS/DSCP/IP Precedence; up to 256 VLANs including management, voice, surveillance, MAC-based, etc.:contentReference[oaicite:6]{index=6}





TECHNICAL SPECIFICATION

Category Details
Switching & Buffer 56 Gbps switching; 41.7 Mpps forwarding (64‑byte); 4.2 Mbit buffer; 8K MAC table:contentReference[oaicite:7]{index=7}
Jumbo Frames Up to 9 KB:contentReference[oaicite:8]{index=8}
Networking Standards IPv4/IPv6, STP/RSTP, LACP, LLDP, EEE, SNMP v1/2c/3, SSH, Telnet, HTTP/HTTPS, OpenVPN client, SNTP, on‑box diagnostics:contentReference[oaicite:9]{index=9}
Multicast IGMP v2/v3, IGMP Querier, Multicast VLAN Registration, up to 256 groups:contentReference[oaicite:10]{index=10}
ONVIF Surveillance Discovery, topology view, streaming, device maintenance, IP camera reboot and snapshot mail alerts:contentReference[oaicite:11]{index=11}
Diagnostics & Alerts Mail alerts (port status, IP conflict, system restart), port mirroring, ping, cable test, syslog, dual admin levels:contentReference[oaicite:12]{index=12}
Physical & Power 1U rack‑mountable, 440×281×44 mm, 4.3 kg; Max 460 W power consumption; Dual-fan cooling; 0–50 °C operating:contentReference[oaicite:13]{index=13}
Technical Enhancements
  • Buffer size, MAC table, and jumbo frame specs for better performance insight
  • Detailed multicast, VLAN, and multicast VLAN support inclusion
  • Email alert types and ONVIF snapshot functions enhanced monitoring
  • UPS-like PoE features: per-port scheduling, watchdog, and camera auto-reboot
  • Physical dimensions, weight, and cooling details included

VigorSwitch P1282

$620.00
$620.00
