About

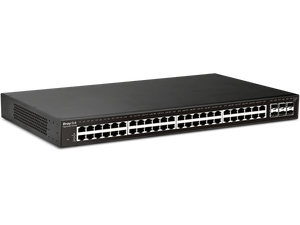

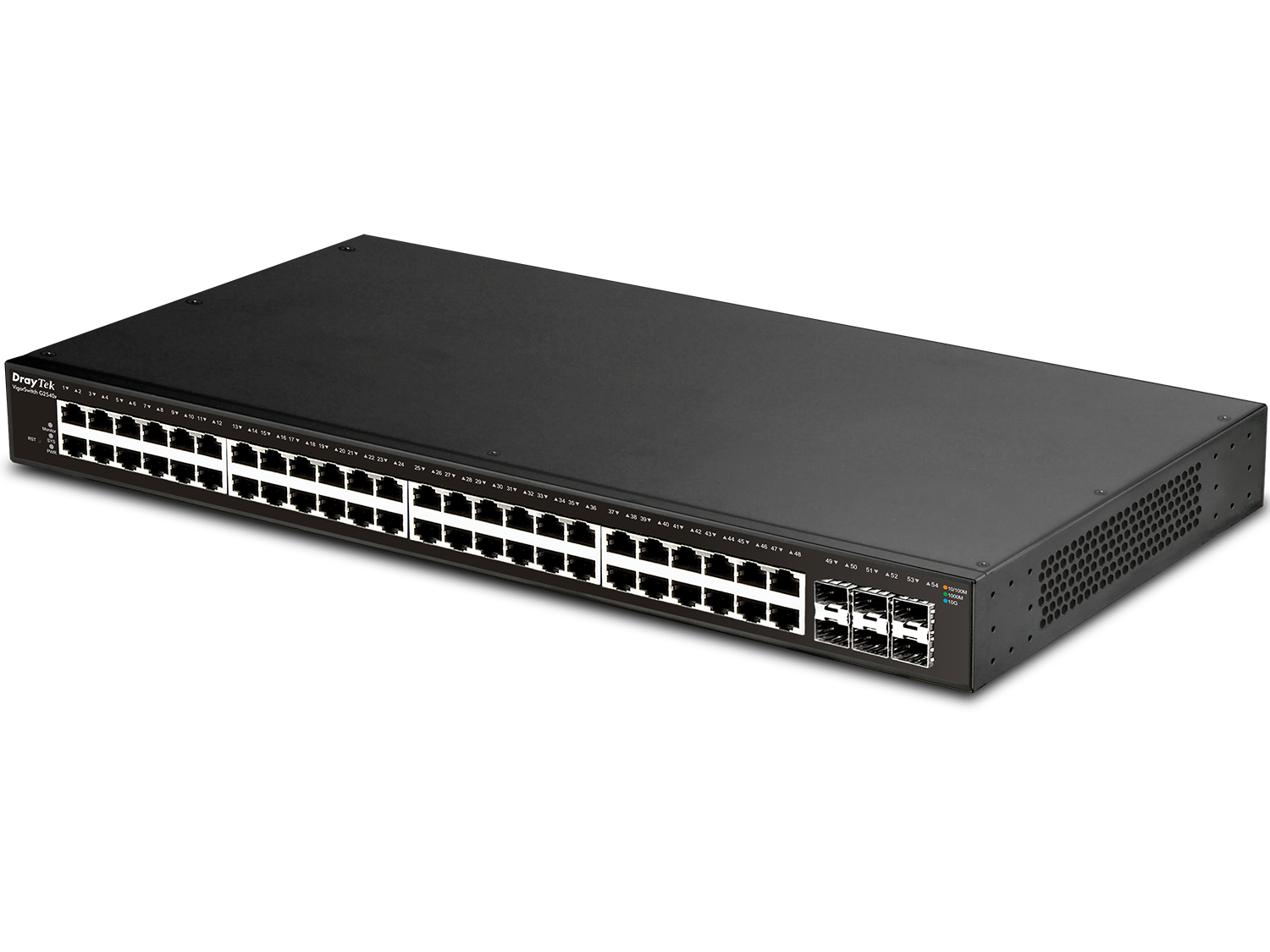

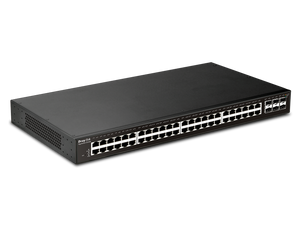

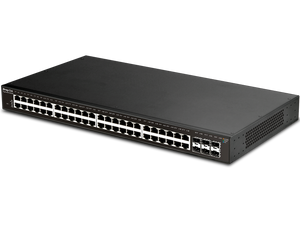

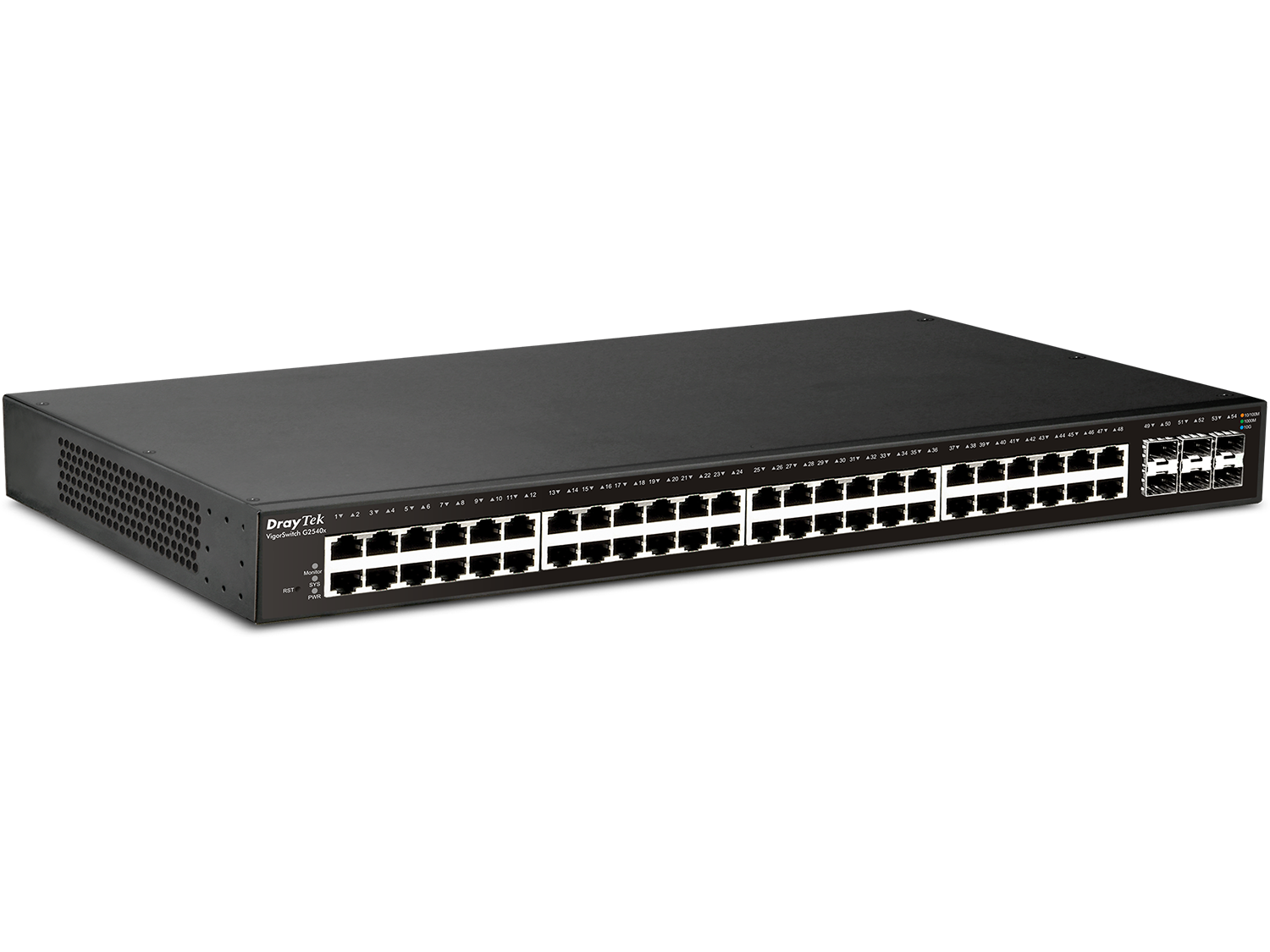

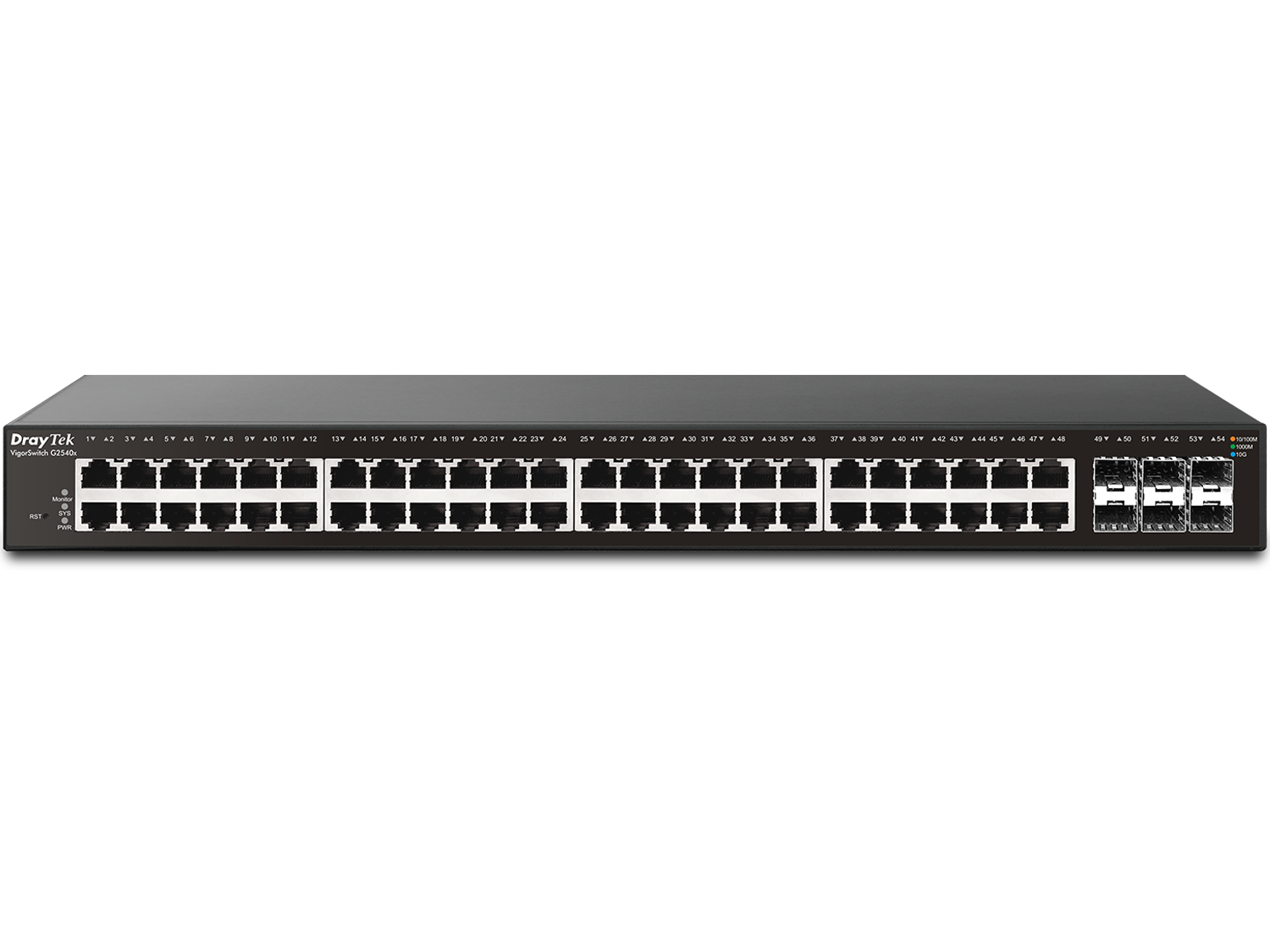

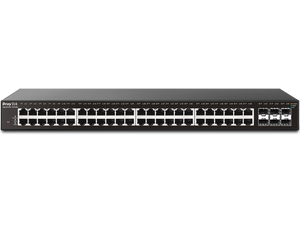

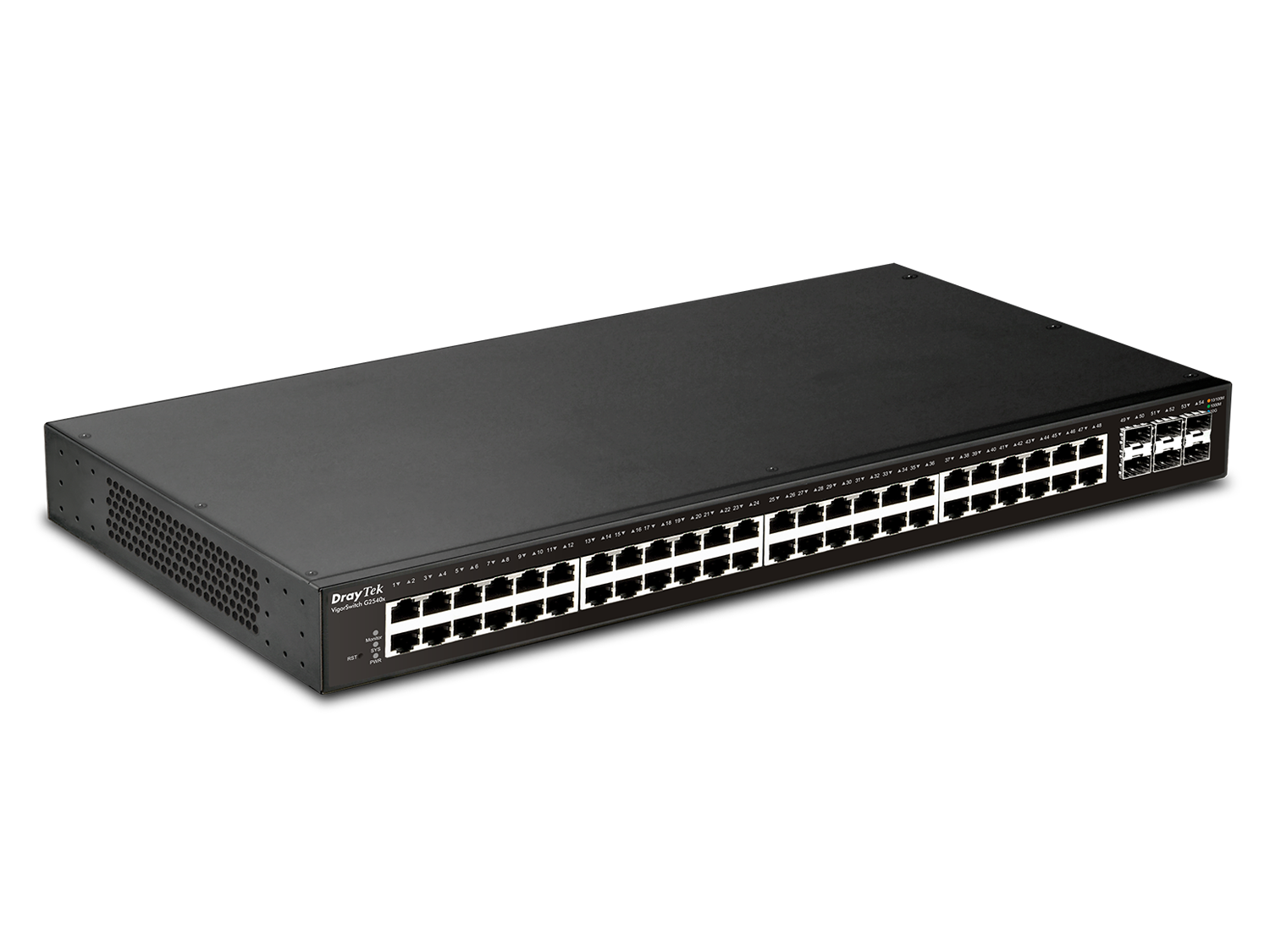

The DrayTek VigorSwitch G2540xs is a powerful Layer 2+ managed switch with high-speed 10G uplinks, ideal for core or aggregation layers in medium to large enterprise networks. Featuring 40 Gigabit Ethernet ports and 4 SFP+ 10GbE uplinks, it offers high throughput, robust VLAN and QoS control, and centralized management through VigorACS or DrayTek Router-based Switch Controller.
KEY FEATURES
| Feature | Description |
|---|---|
| 40 x Gigabit Ethernet Ports | Provides 40x 10/100/1000Mbps RJ-45 ports for high-density LAN connectivity |
| 4 x 10G SFP+ Uplinks | SFP+ ports for high-speed uplink, server, or backbone connections |
| Layer 2+ Management | Includes VLAN, static routing, ACL, IGMP, and port aggregation |
| Traffic Control | Advanced QoS with traffic shaping and prioritization |
| Robust Security | Features like 802.1X, port security, ACLs, DoS defense |
| Centralized Management | Manage through VigorACS, CLI, Web UI, or Vigor Router Controller |
| Rack Mountable | 1U metal housing with rack ears included |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Switch Type | Layer 2+ Managed Gigabit Aggregation Switch |
| Ethernet Ports | 40 x 10/100/1000 Mbps RJ-45 |
| SFP+ Ports | 4 x 10G SFP+ |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| MAC Address Table | 16K MAC addresses |
| VLAN Support | 802.1Q, up to 256 VLANs |
| QoS | 8 queues per port, 802.1p, DSCP-based |
| Static Routing | Yes |
| Management Interface | Web UI, CLI (SSH/Telnet), SNMP, VigorACS |
| Power Supply | Internal AC power supply |
| Power Consumption | Max. 60W |
| Cooling | Dual fan-cooled |
| Dimensions | 440 x 290 x 44 mm |
| Weight | Approx. 4.2 kg |
| Operating Temperature | 0°C to 50°C |
The DrayTek VigorSwitch G2540xs is a powerful Layer 2+ managed switch with high-speed 10G uplinks, ideal for core or aggregation layers in medium to large enterprise networks. Featuring 40 Gigabit Ethernet ports and 4 SFP+ 10GbE uplinks, it offers high throughput, robust VLAN and QoS control, and centralized management through VigorACS or DrayTek Router-based Switch Controller.
KEY FEATURES
| Feature | Description |
|---|---|
| 40 x Gigabit Ethernet Ports | Provides 40x 10/100/1000Mbps RJ-45 ports for high-density LAN connectivity |
| 4 x 10G SFP+ Uplinks | SFP+ ports for high-speed uplink, server, or backbone connections |
| Layer 2+ Management | Includes VLAN, static routing, ACL, IGMP, and port aggregation |
| Traffic Control | Advanced QoS with traffic shaping and prioritization |
| Robust Security | Features like 802.1X, port security, ACLs, DoS defense |
| Centralized Management | Manage through VigorACS, CLI, Web UI, or Vigor Router Controller |
| Rack Mountable | 1U metal housing with rack ears included |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Switch Type | Layer 2+ Managed Gigabit Aggregation Switch |
| Ethernet Ports | 40 x 10/100/1000 Mbps RJ-45 |
| SFP+ Ports | 4 x 10G SFP+ |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| MAC Address Table | 16K MAC addresses |
| VLAN Support | 802.1Q, up to 256 VLANs |
| QoS | 8 queues per port, 802.1p, DSCP-based |
| Static Routing | Yes |
| Management Interface | Web UI, CLI (SSH/Telnet), SNMP, VigorACS |
| Power Supply | Internal AC power supply |
| Power Consumption | Max. 60W |
| Cooling | Dual fan-cooled |
| Dimensions | 440 x 290 x 44 mm |
| Weight | Approx. 4.2 kg |
| Operating Temperature | 0°C to 50°C |
