About

Learn what makes this product unique and why it’s right for you.

The VigorSwitch G2280x is a high-performance Layer 2+ managed Gigabit switch designed for enterprise and high-demand network environments. It features 24 Gigabit RJ-45 ports and 4 10-Gigabit SFP+ uplink ports, offering powerful performance, robust security, VLAN segmentation, and centralized management capabilities. Ideal for modern networks requiring high throughput, flexibility, and scalability.





KEY FEATURES

Feature Description
24-Port Gigabit Switch 24 x 10/100/1000Mbps RJ-45 ports for high-speed LAN access
4 x 10G SFP+ Uplinks 10-Gigabit SFP+ ports for ultra-fast backbone and server connections
Layer 2+ Features Supports VLAN, static routing, IGMP snooping, and multicast filtering
Advanced Security 802.1X, ACL, port security, DoS protection
Centralized Management Manage via DrayTek VigorACS or compatible Vigor Routers
Fan Cooled Design Efficient thermal control with active cooling for performance
Rack Mountable 1U rackmount form factor with mounting ears included





TECHNICAL SPECIFICATION

Category Details
Switch Type Managed Layer 2+ Gigabit Switch
Ethernet Ports 24 x 10/100/1000Mbps RJ-45
SFP+ Ports 4 x 10G SFP+ (uplink/fiber)
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 16K MAC addresses
VLAN Support 802.1Q, up to 256 VLANs
QoS 8 queues per port, 802.1p, DSCP
Static Routing Yes
Management Web GUI, CLI, SNMP, VigorACS, Router Switch Controller
Power Supply Internal AC power supply
Power Consumption Max. 30W
Cooling Active fan cooling
Dimensions 441 x 207 x 44 mm
Weight Approx. 2.9 kg
Operating Temperature 0°C to 50°C
Learn what makes this product unique and why it’s right for you.

The VigorSwitch G2280x is a high-performance Layer 2+ managed Gigabit switch designed for enterprise and high-demand network environments. It features 24 Gigabit RJ-45 ports and 4 10-Gigabit SFP+ uplink ports, offering powerful performance, robust security, VLAN segmentation, and centralized management capabilities. Ideal for modern networks requiring high throughput, flexibility, and scalability.





KEY FEATURES

Feature Description
24-Port Gigabit Switch 24 x 10/100/1000Mbps RJ-45 ports for high-speed LAN access
4 x 10G SFP+ Uplinks 10-Gigabit SFP+ ports for ultra-fast backbone and server connections
Layer 2+ Features Supports VLAN, static routing, IGMP snooping, and multicast filtering
Advanced Security 802.1X, ACL, port security, DoS protection
Centralized Management Manage via DrayTek VigorACS or compatible Vigor Routers
Fan Cooled Design Efficient thermal control with active cooling for performance
Rack Mountable 1U rackmount form factor with mounting ears included





TECHNICAL SPECIFICATION

Category Details
Switch Type Managed Layer 2+ Gigabit Switch
Ethernet Ports 24 x 10/100/1000Mbps RJ-45
SFP+ Ports 4 x 10G SFP+ (uplink/fiber)
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 16K MAC addresses
VLAN Support 802.1Q, up to 256 VLANs
QoS 8 queues per port, 802.1p, DSCP
Static Routing Yes
Management Web GUI, CLI, SNMP, VigorACS, Router Switch Controller
Power Supply Internal AC power supply
Power Consumption Max. 30W
Cooling Active fan cooling
Dimensions 441 x 207 x 44 mm
Weight Approx. 2.9 kg
Operating Temperature 0°C to 50°C

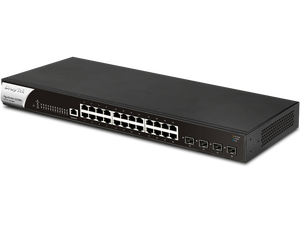

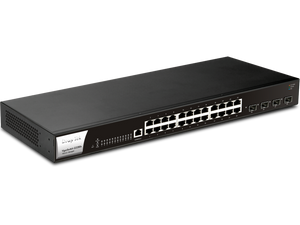

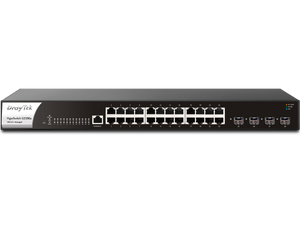

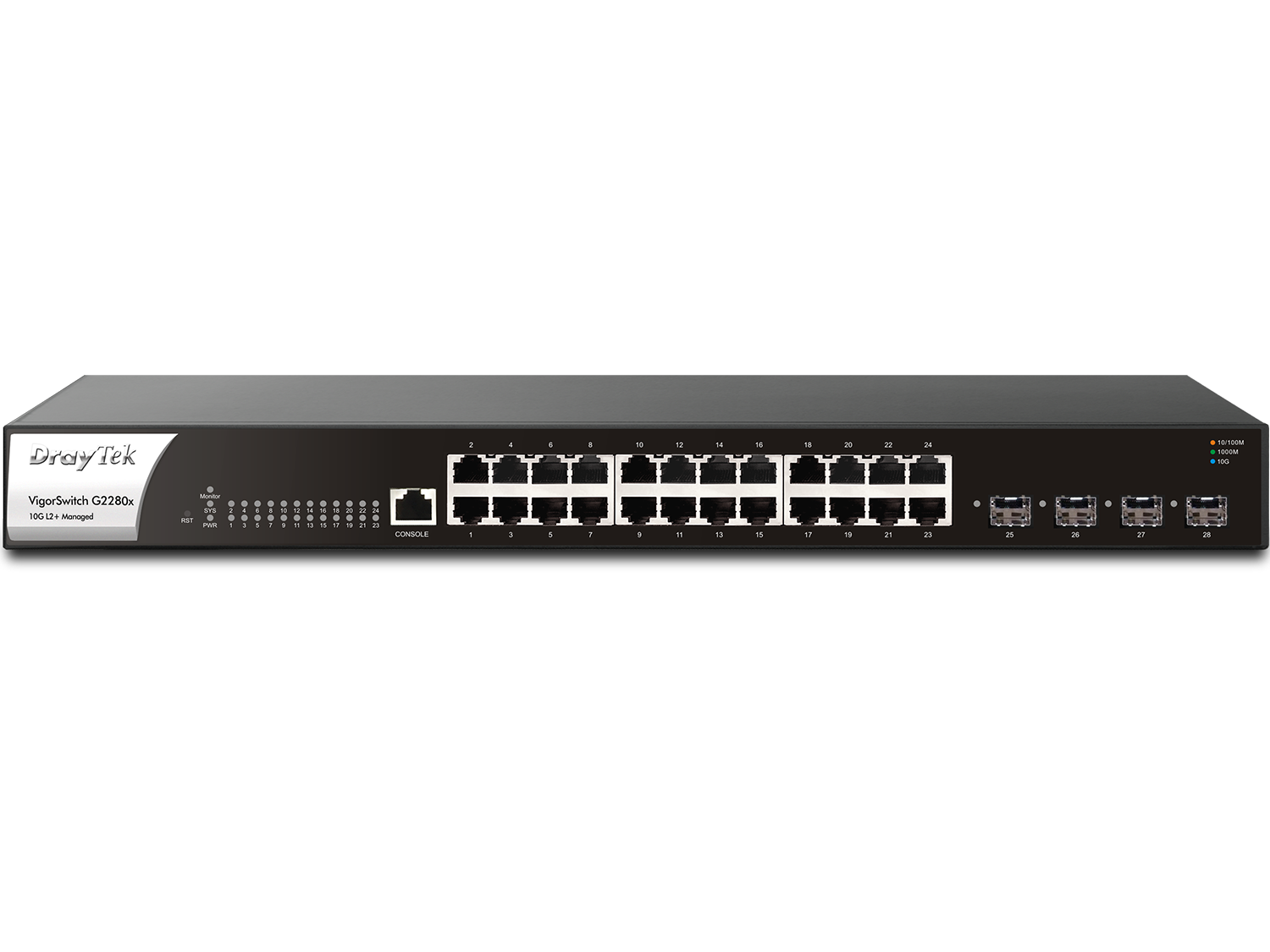

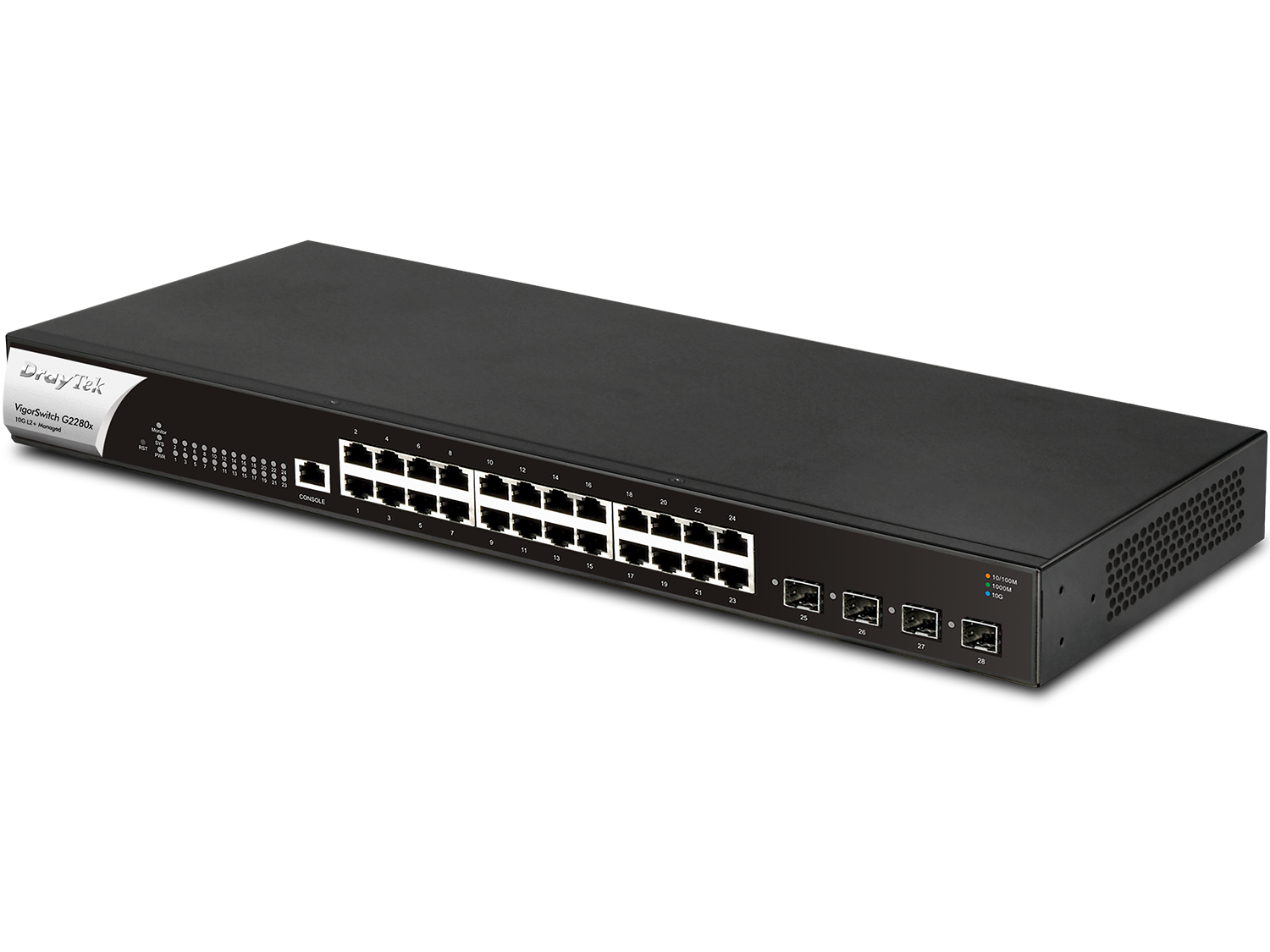

VigorSwitch G2280x

$360.00
$360.00
