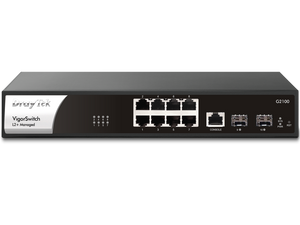

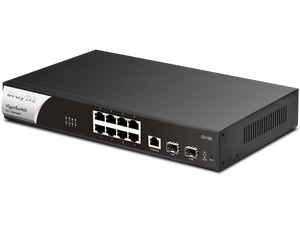

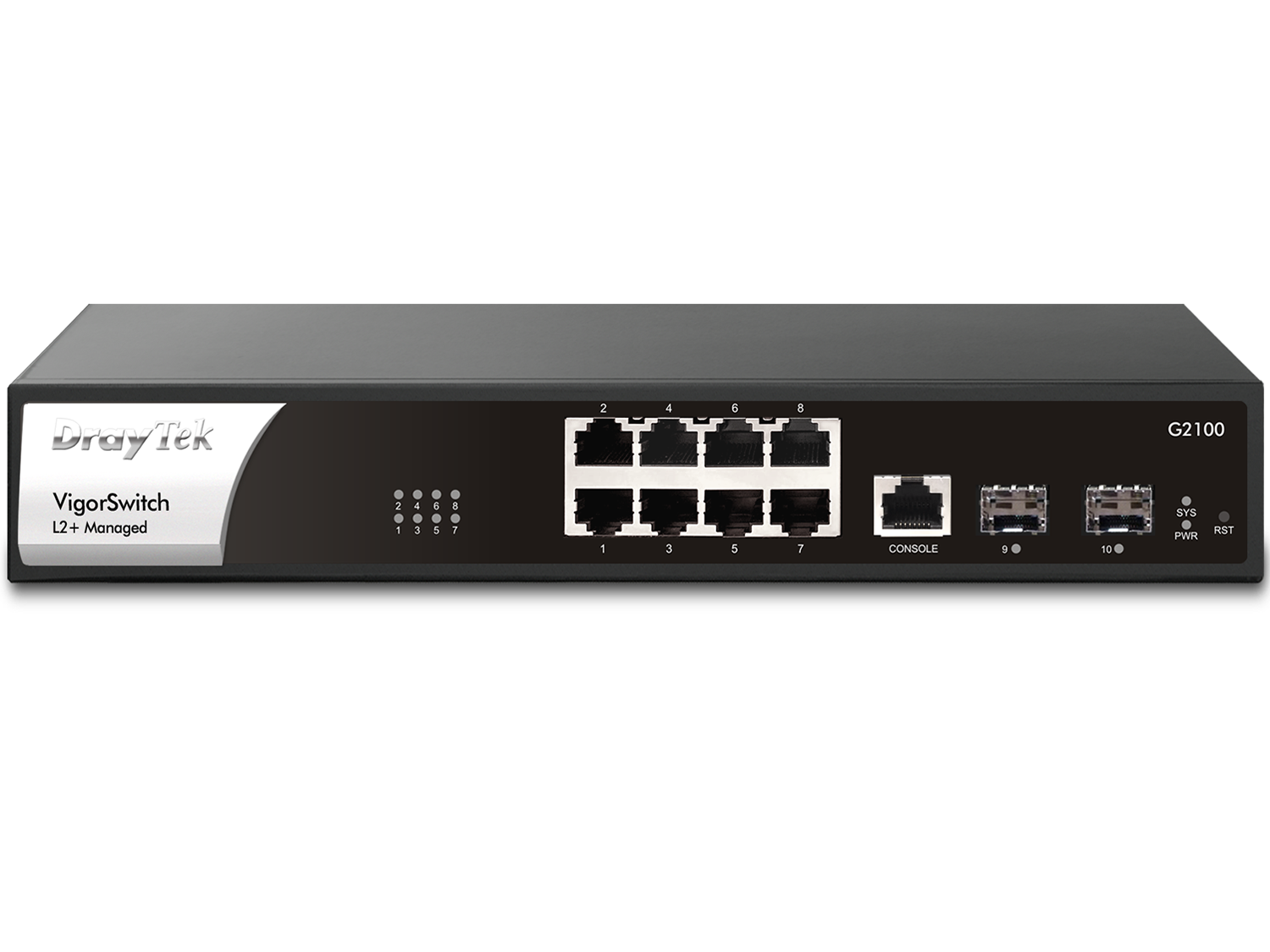

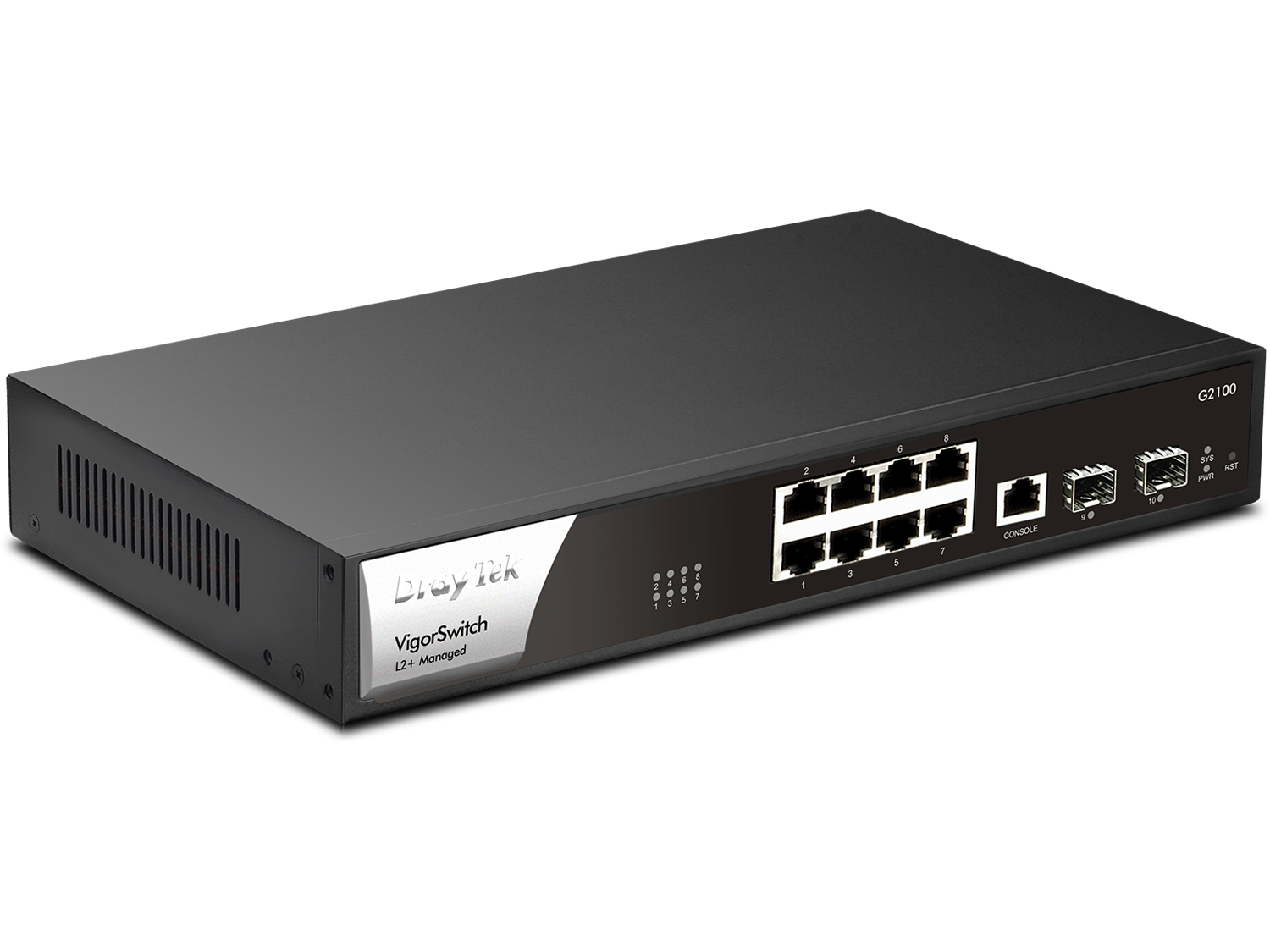

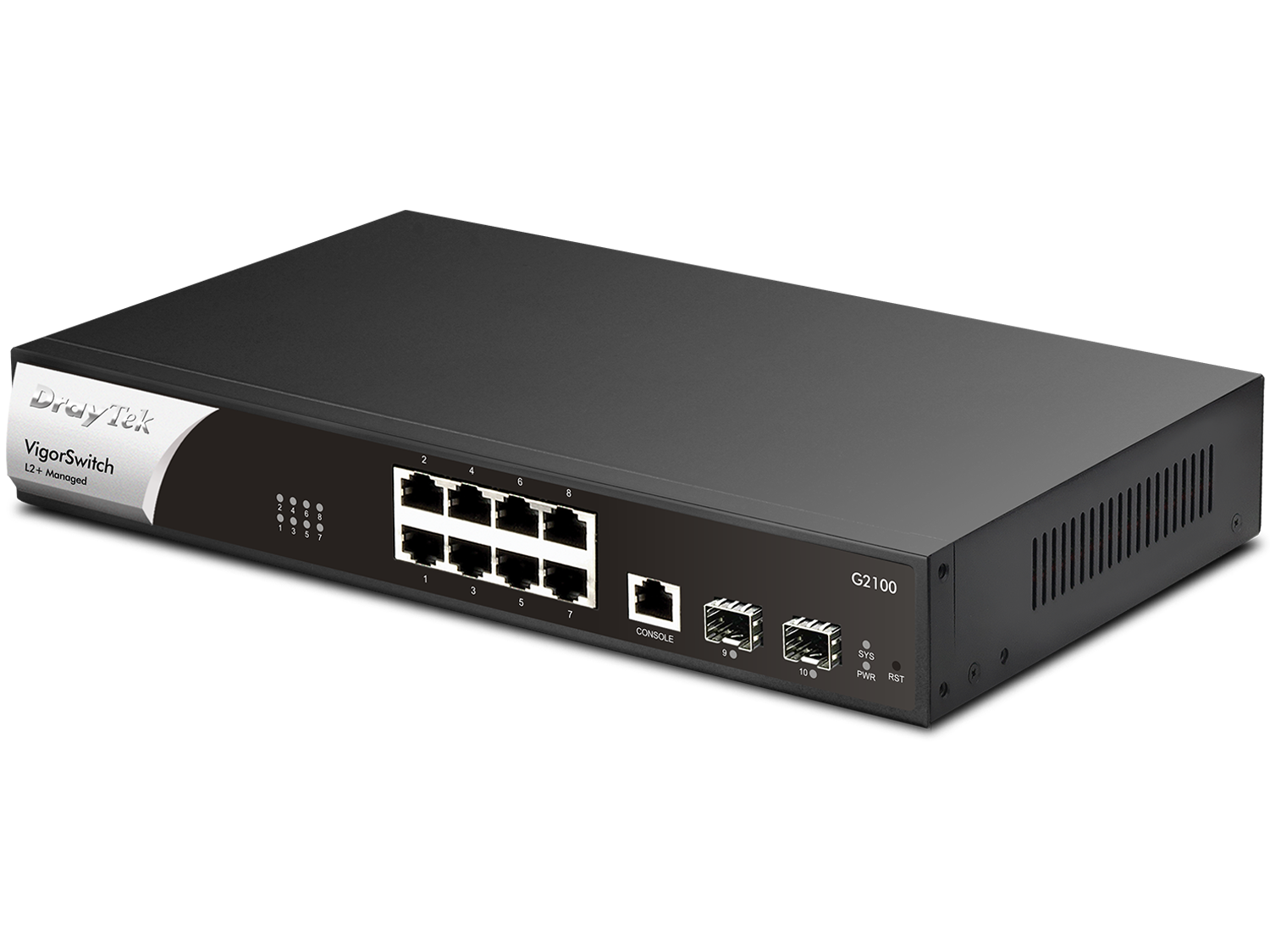

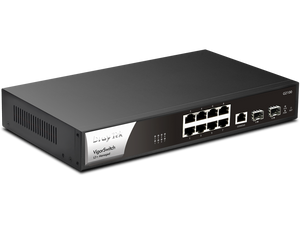

The VigorSwitch G2100 is a compact, high-performance Layer 2+ managed switch featuring 8 Gigabit Ethernet ports and 2 SFP uplink ports. Designed for small businesses and branch offices, it provides essential network management features like VLAN, QoS, security filtering, and centralized cloud management through VigorACS or a DrayTek router. With its fanless design, the G2100 offers silent operation and reliable performance.
KEY FEATURES
| Feature | Description |
|---|---|
| 8-Port Gigabit Switch | 8 x 10/100/1000Mbps RJ-45 ports for high-speed LAN connectivity |
| 2 SFP Uplink Ports | Fiber uplinks for flexible deployment and longer distance connections |
| Layer 2+ Management | Supports VLAN, QoS, IGMP Snooping, and static routing |
| Security Features | 802.1X, ACL, port security, and DoS defense |
| Centralized Management | Manage via VigorACS or DrayTek Router Switch Controller |
| Silent Operation | Fanless design ideal for noise-sensitive environments |
| Energy-Efficient | Compliant with IEEE 802.3az (Energy Efficient Ethernet) |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Switch Type | Managed Layer 2+ Switch |
| Ethernet Ports | 8 x Gigabit RJ-45 |
| SFP Ports | 2 x Gigabit SFP (for uplink or fiber) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K MAC addresses |
| VLAN Support | 802.1Q VLAN, Voice VLAN, Port-based VLAN |
| QoS | 4 Queues per port, 802.1p/DSCP-based prioritization |
| Static Routing | Yes (Layer 2+) |
| Management Interface | Web GUI, CLI, SNMP, VigorACS, Router Controller |
| Power Supply | External Power Adapter (12V DC) |
| Power Consumption | Max. 7.5W |
| Fan | Fanless |
| Dimensions | 207 x 121 x 39 mm |
| Weight | Approx. 0.6 kg |
| Operating Temperature | 0°C to 50°C |
The VigorSwitch G2100 is a compact, high-performance Layer 2+ managed switch featuring 8 Gigabit Ethernet ports and 2 SFP uplink ports. Designed for small businesses and branch offices, it provides essential network management features like VLAN, QoS, security filtering, and centralized cloud management through VigorACS or a DrayTek router. With its fanless design, the G2100 offers silent operation and reliable performance.
KEY FEATURES
| Feature | Description |
|---|---|
| 8-Port Gigabit Switch | 8 x 10/100/1000Mbps RJ-45 ports for high-speed LAN connectivity |
| 2 SFP Uplink Ports | Fiber uplinks for flexible deployment and longer distance connections |
| Layer 2+ Management | Supports VLAN, QoS, IGMP Snooping, and static routing |
| Security Features | 802.1X, ACL, port security, and DoS defense |
| Centralized Management | Manage via VigorACS or DrayTek Router Switch Controller |
| Silent Operation | Fanless design ideal for noise-sensitive environments |
| Energy-Efficient | Compliant with IEEE 802.3az (Energy Efficient Ethernet) |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Switch Type | Managed Layer 2+ Switch |
| Ethernet Ports | 8 x Gigabit RJ-45 |
| SFP Ports | 2 x Gigabit SFP (for uplink or fiber) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K MAC addresses |
| VLAN Support | 802.1Q VLAN, Voice VLAN, Port-based VLAN |
| QoS | 4 Queues per port, 802.1p/DSCP-based prioritization |
| Static Routing | Yes (Layer 2+) |
| Management Interface | Web GUI, CLI, SNMP, VigorACS, Router Controller |
| Power Supply | External Power Adapter (12V DC) |
| Power Consumption | Max. 7.5W |
| Fan | Fanless |
| Dimensions | 207 x 121 x 39 mm |
| Weight | Approx. 0.6 kg |
| Operating Temperature | 0°C to 50°C |
VigorSwitch G2100
- Regular price
- $210.00
- Sale price
- $210.00
