About

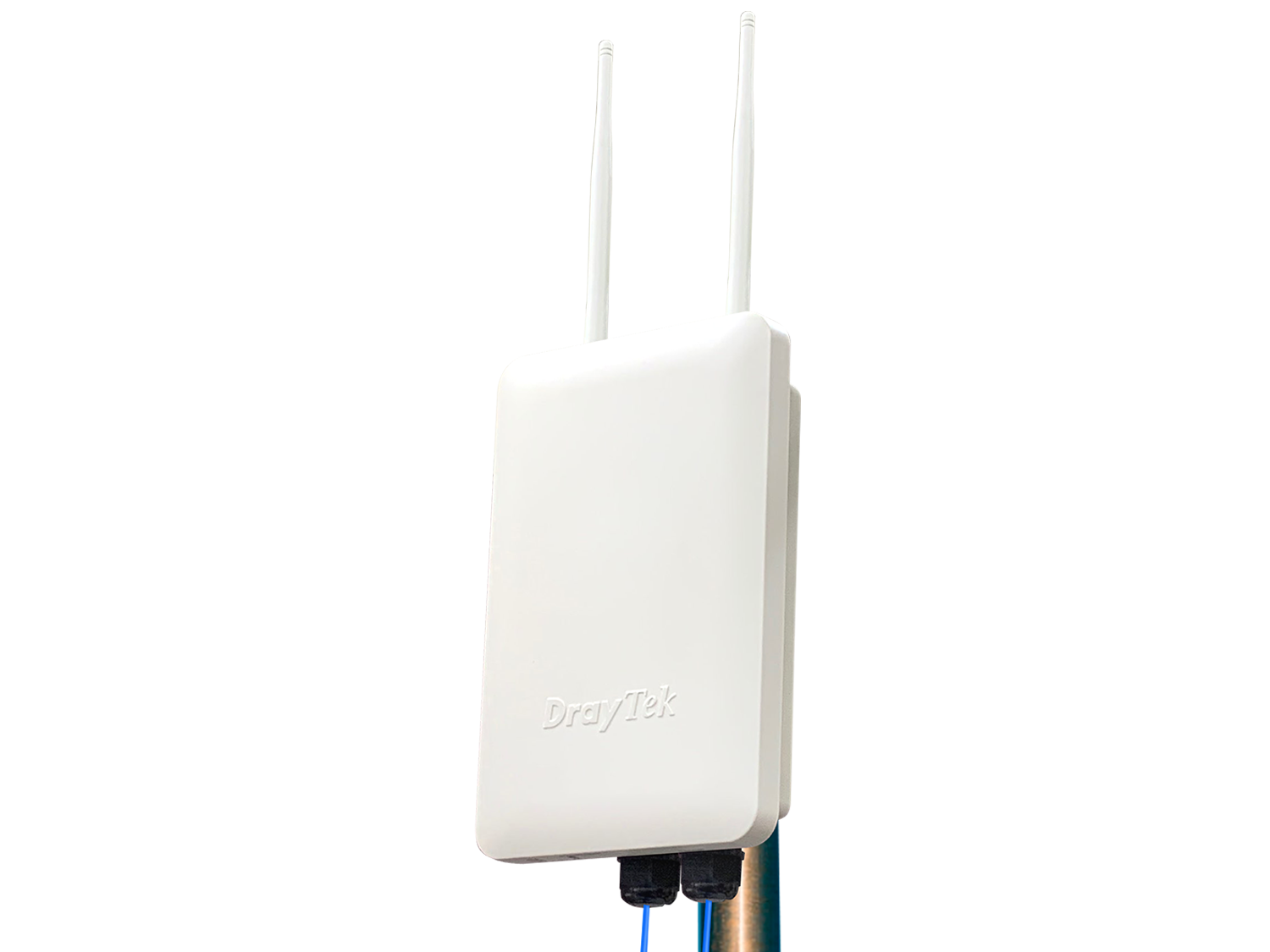

The VigorAP 918R is a rugged, weather-resistant outdoor access point designed for harsh environments. With dual-band concurrent Wi-Fi, IP67-rated housing, PoE support, and centralized management, it is ideal for outdoor areas like campuses, warehouses, construction sites, and outdoor event spaces. It ensures robust wireless coverage while withstanding extreme conditions.
KEY FEATURES
Feature | Description |
---|---|
Dual-Band Concurrent Wi-Fi | Simultaneous 2.4GHz and 5GHz operation with up to 1200 Mbps total throughput |
Rugged Outdoor Design | IP67-rated waterproof and dust-tight housing for outdoor environments |
Flexible Mounting Options | Pole and wall-mountable design for flexible installation |
PoE Powered | Supports 802.3af/at PoE for single-cable power and data |
Multiple SSIDs | Up to 4 SSIDs per band for flexible network segmentation |
VLAN Tagging | 802.1q VLAN per SSID for traffic separation |
Security Features | WPA2, MAC address filtering, wireless isolation |
Central Management | Manage via VigorACS or DrayTek AP Management on routers |
TECHNICAL SPECIFICATION
Category | Details |
---|---|
Wireless Standard | 802.11ac Wave 2 (Wi-Fi 5) |
Frequency Bands | 2.4GHz and 5GHz (concurrent) |
Wireless Speed | Up to 867 Mbps (5GHz) + 300 Mbps (2.4GHz) |
SSID Support | Up to 8 SSIDs (4 per band) |
VLAN Support | 802.1q VLAN tagging per SSID |
Security Protocols | WPA2, WPA, MAC filtering, wireless isolation |
Ethernet Ports | 1 x Gigabit Ethernet (RJ-45) |
PoE Support | 802.3af/at PoE (Power over Ethernet) |
Power Input | Via PoE or 12V DC power adapter (optional) |
Enclosure Rating | IP67 (waterproof and dustproof) |
Operating Temperature | -40°C to 70°C (-40°F to 158°F) |

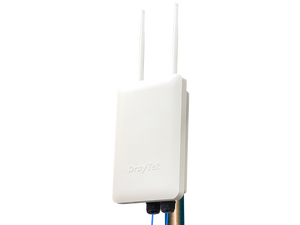

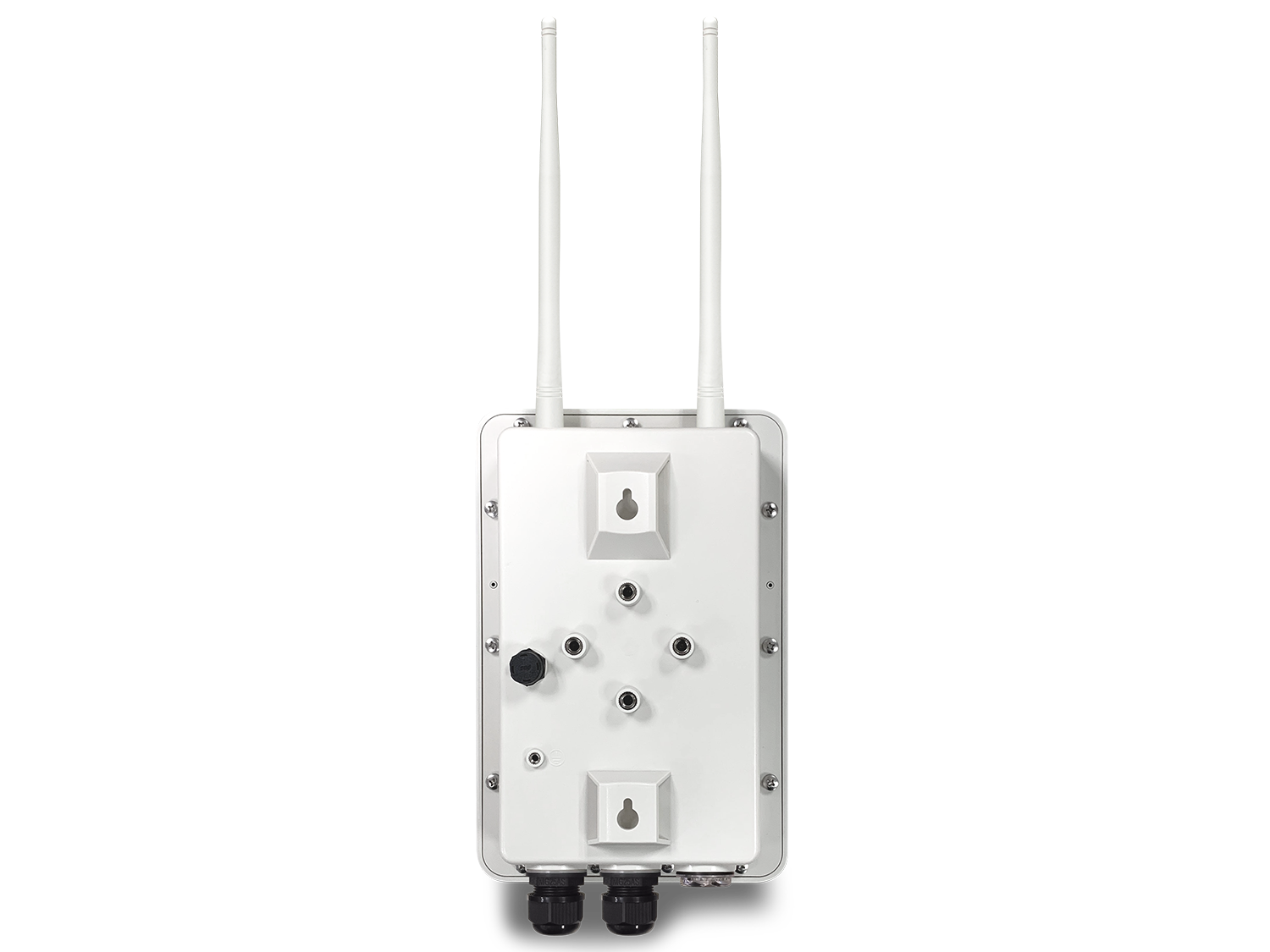

Mounting Options | Pole mount and wall mount (brackets included) |
Dimensions | 187 x 105 x 58 mm |
Weight | Approx. 750 grams |
Management | Web GUI, CLI, TR-069, VigorACS, AP Management via Vigor Router |
The VigorAP 918R is a rugged, weather-resistant outdoor access point designed for harsh environments. With dual-band concurrent Wi-Fi, IP67-rated housing, PoE support, and centralized management, it is ideal for outdoor areas like campuses, warehouses, construction sites, and outdoor event spaces. It ensures robust wireless coverage while withstanding extreme conditions.
KEY FEATURES
Feature | Description |
---|---|
Dual-Band Concurrent Wi-Fi | Simultaneous 2.4GHz and 5GHz operation with up to 1200 Mbps total throughput |
Rugged Outdoor Design | IP67-rated waterproof and dust-tight housing for outdoor environments |
Flexible Mounting Options | Pole and wall-mountable design for flexible installation |
PoE Powered | Supports 802.3af/at PoE for single-cable power and data |
Multiple SSIDs | Up to 4 SSIDs per band for flexible network segmentation |
VLAN Tagging | 802.1q VLAN per SSID for traffic separation |
Security Features | WPA2, MAC address filtering, wireless isolation |
Central Management | Manage via VigorACS or DrayTek AP Management on routers |
TECHNICAL SPECIFICATION
Category | Details |
---|---|
Wireless Standard | 802.11ac Wave 2 (Wi-Fi 5) |
Frequency Bands | 2.4GHz and 5GHz (concurrent) |
Wireless Speed | Up to 867 Mbps (5GHz) + 300 Mbps (2.4GHz) |
SSID Support | Up to 8 SSIDs (4 per band) |
VLAN Support | 802.1q VLAN tagging per SSID |
Security Protocols | WPA2, WPA, MAC filtering, wireless isolation |
Ethernet Ports | 1 x Gigabit Ethernet (RJ-45) |
PoE Support | 802.3af/at PoE (Power over Ethernet) |
Power Input | Via PoE or 12V DC power adapter (optional) |
Enclosure Rating | IP67 (waterproof and dustproof) |
Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
Mounting Options | Pole mount and wall mount (brackets included) |
Dimensions | 187 x 105 x 58 mm |
Weight | Approx. 750 grams |
Management | Web GUI, CLI, TR-069, VigorACS, AP Management via Vigor Router |

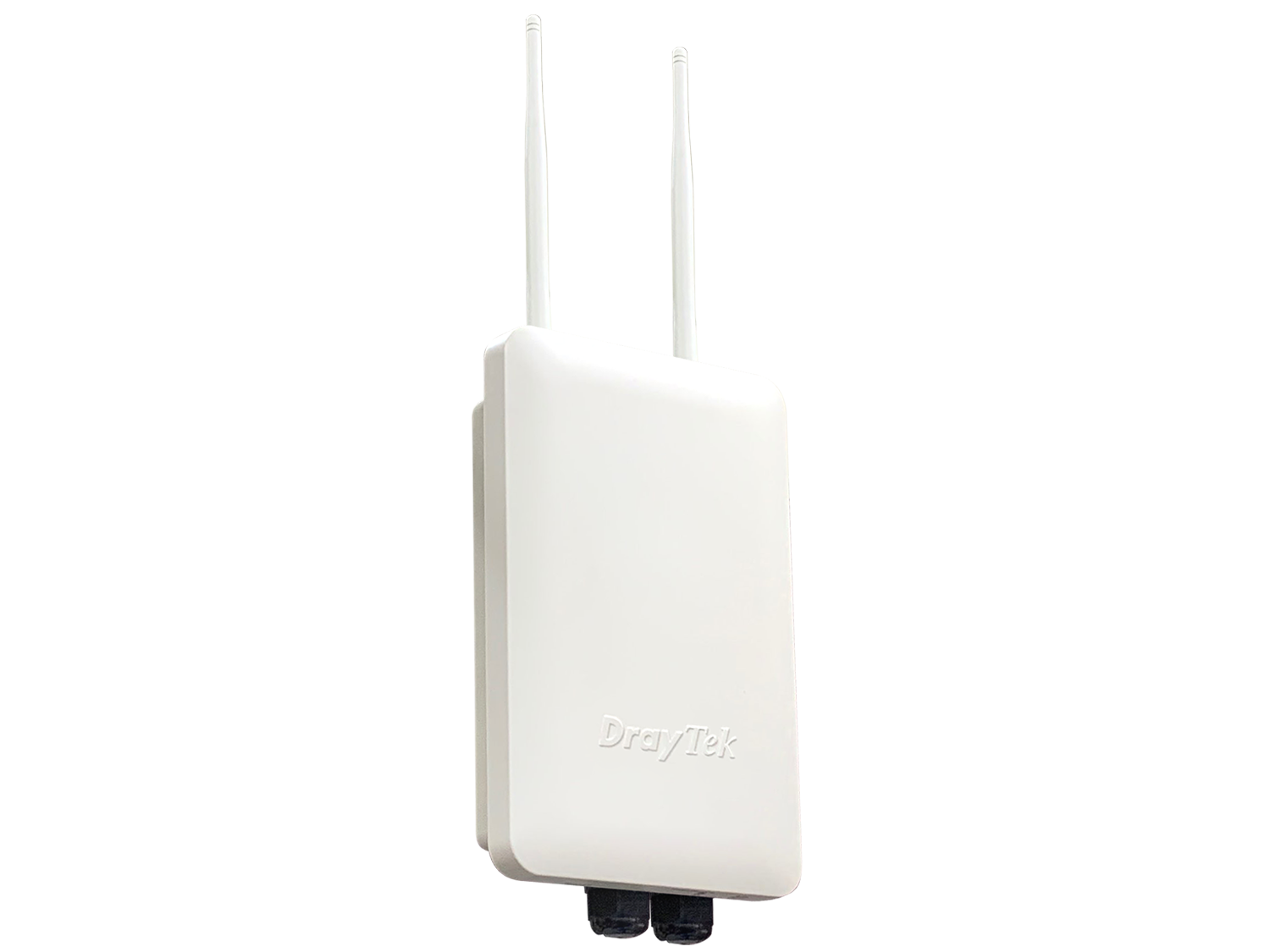

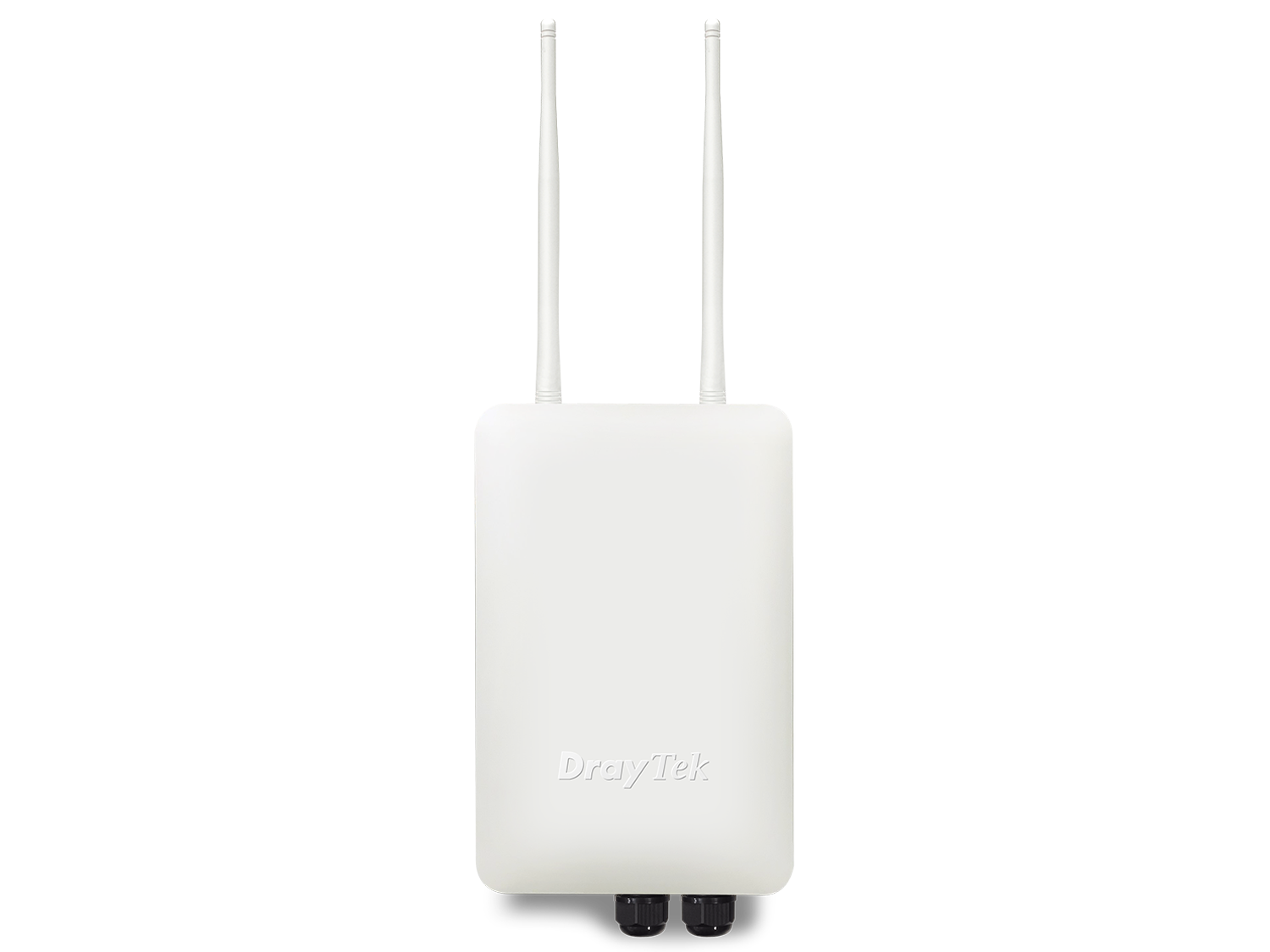

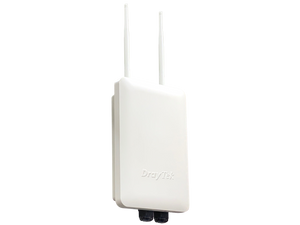

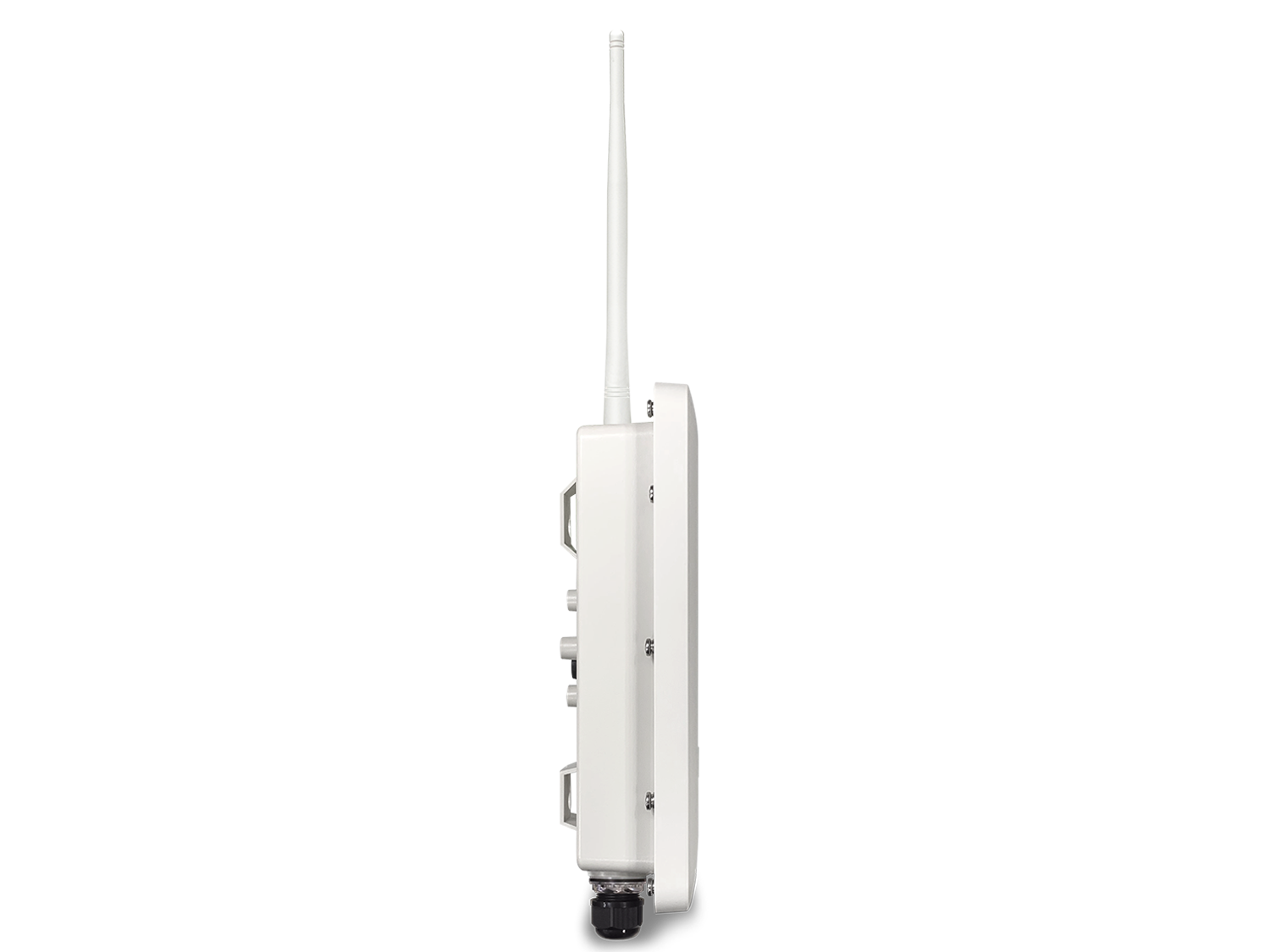

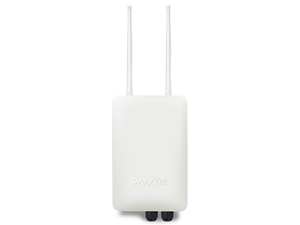

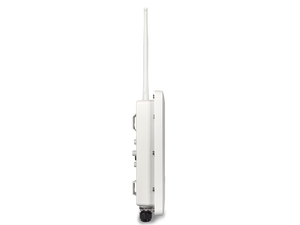

VigorAP 918R
- Regular price
- $625.00
- Sale price
- $625.00
