About
Learn what makes this product unique and why it’s right for you.

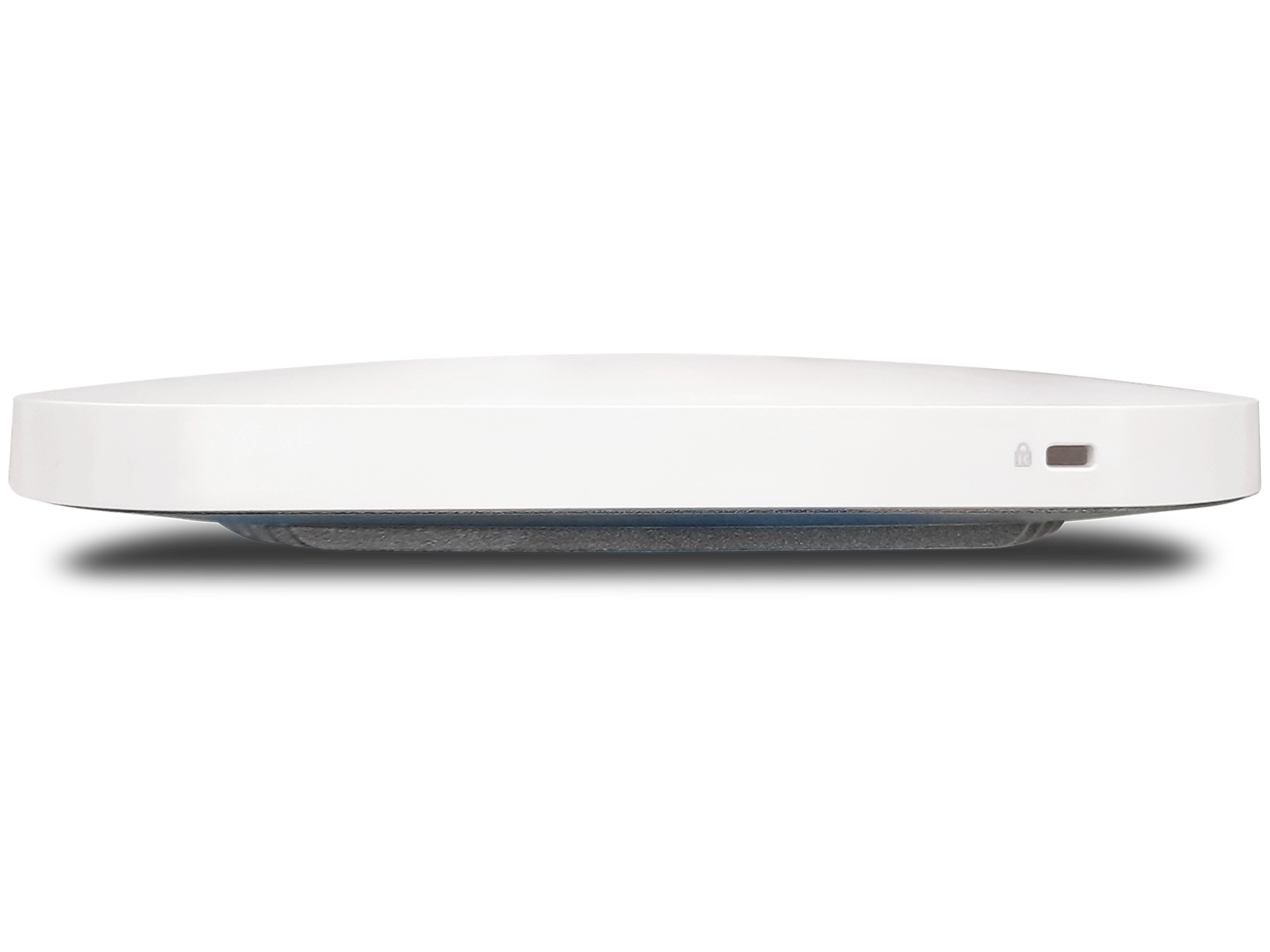

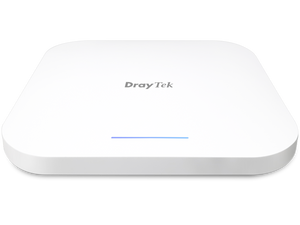

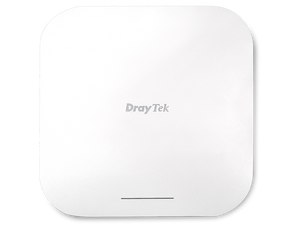

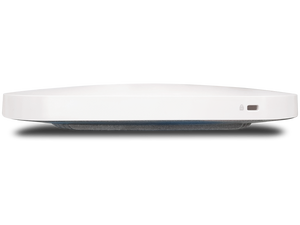

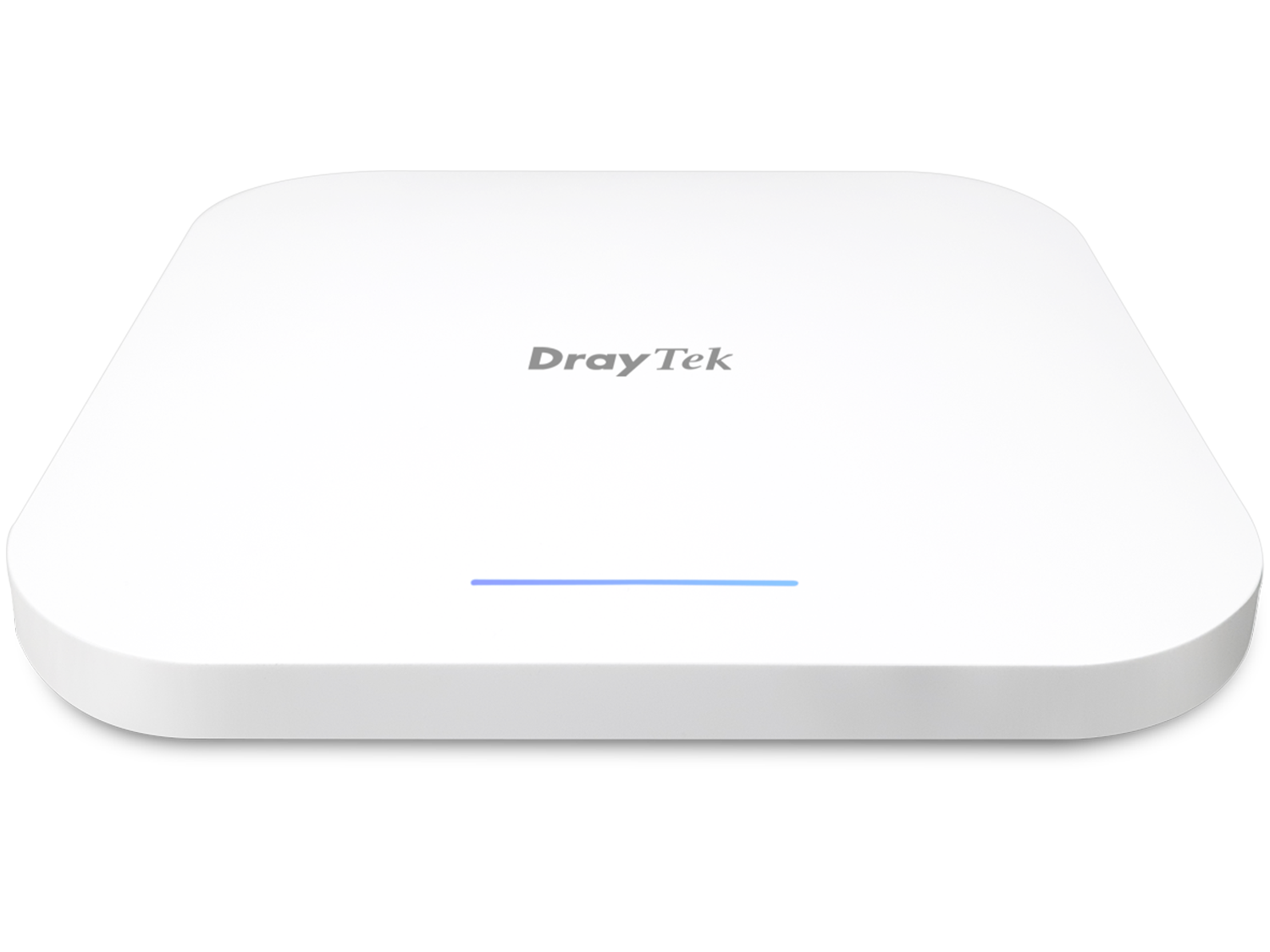

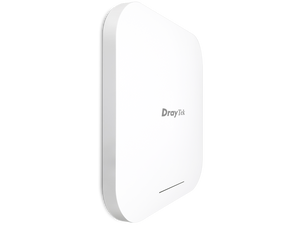

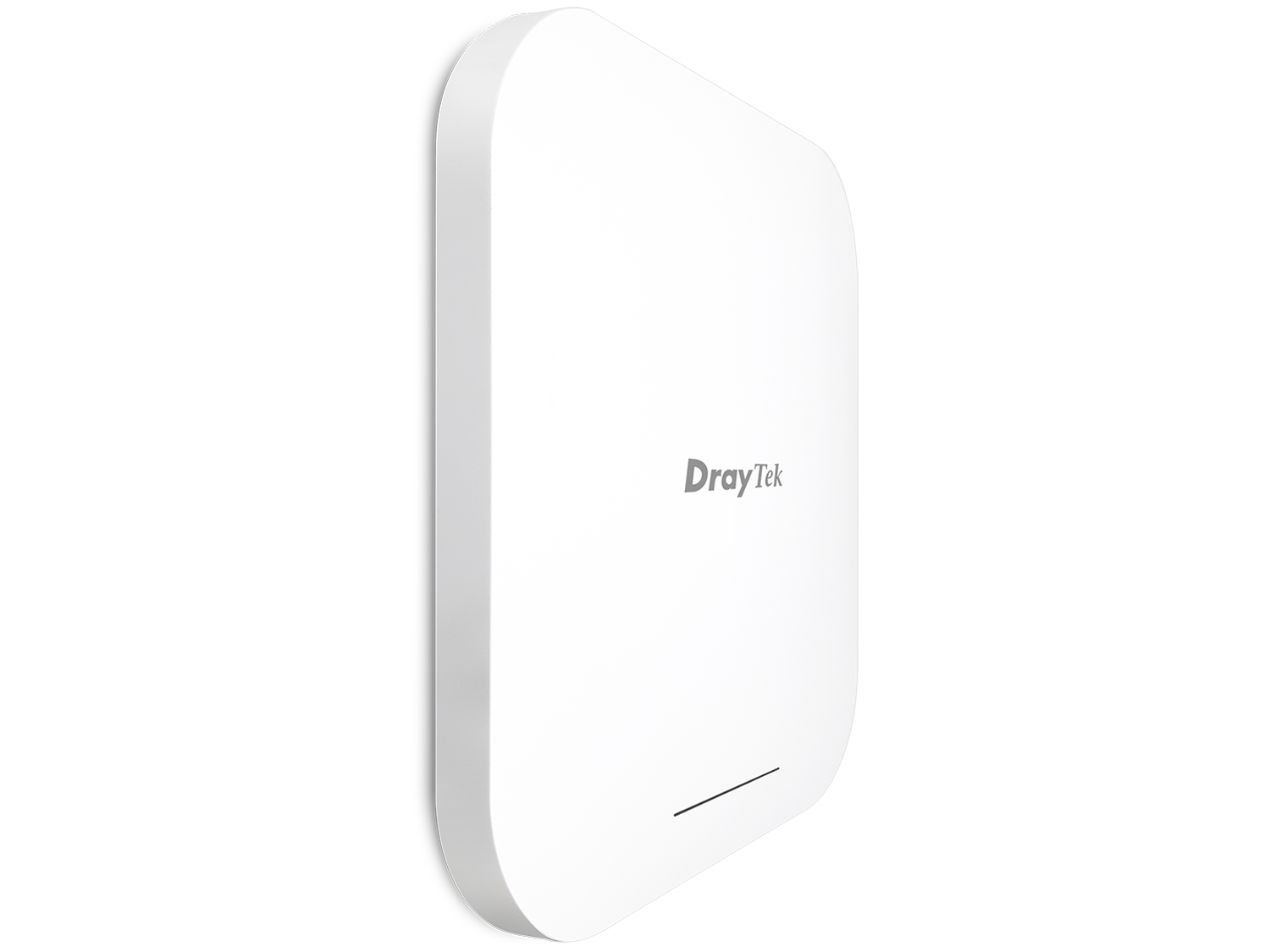

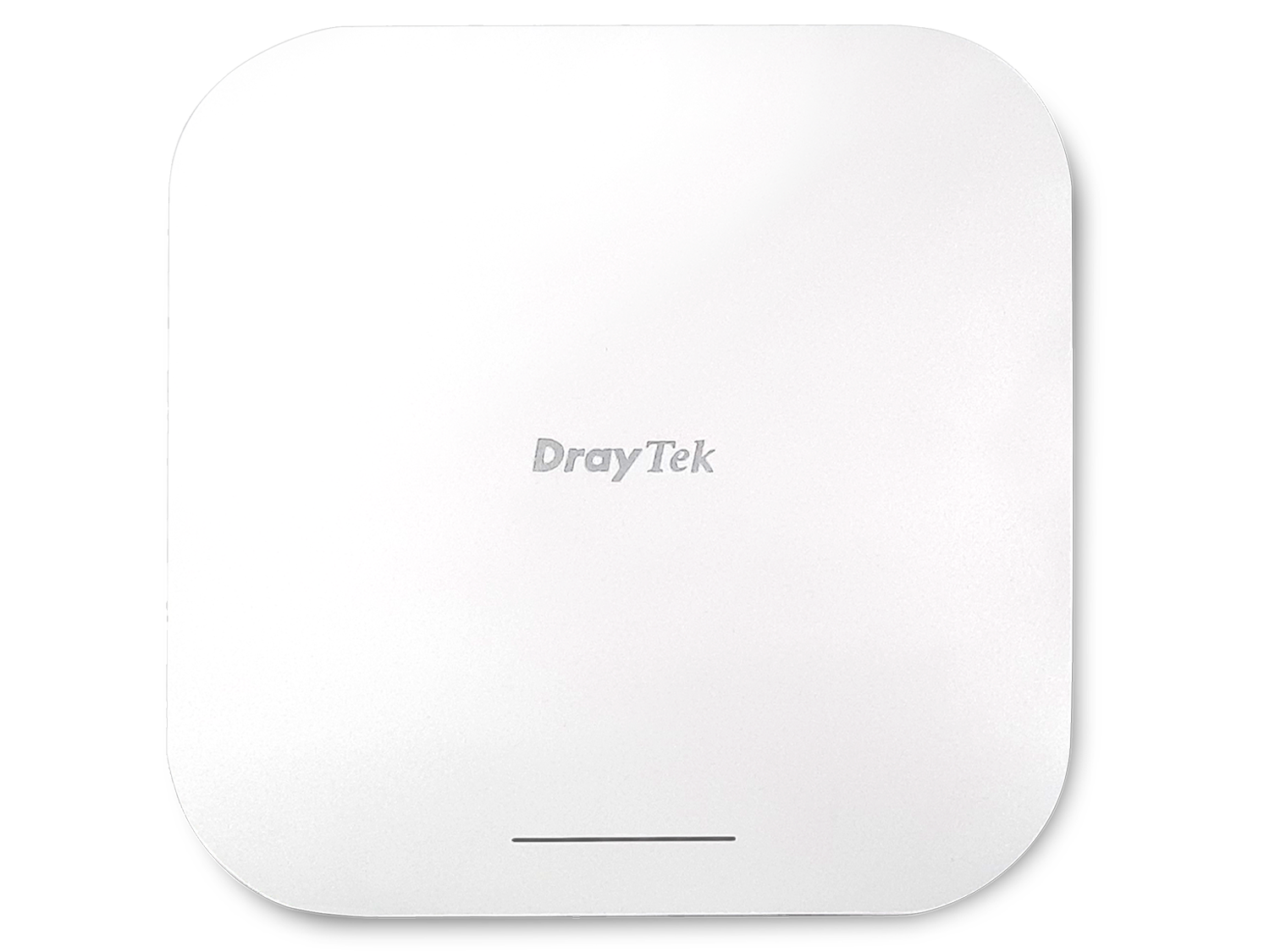

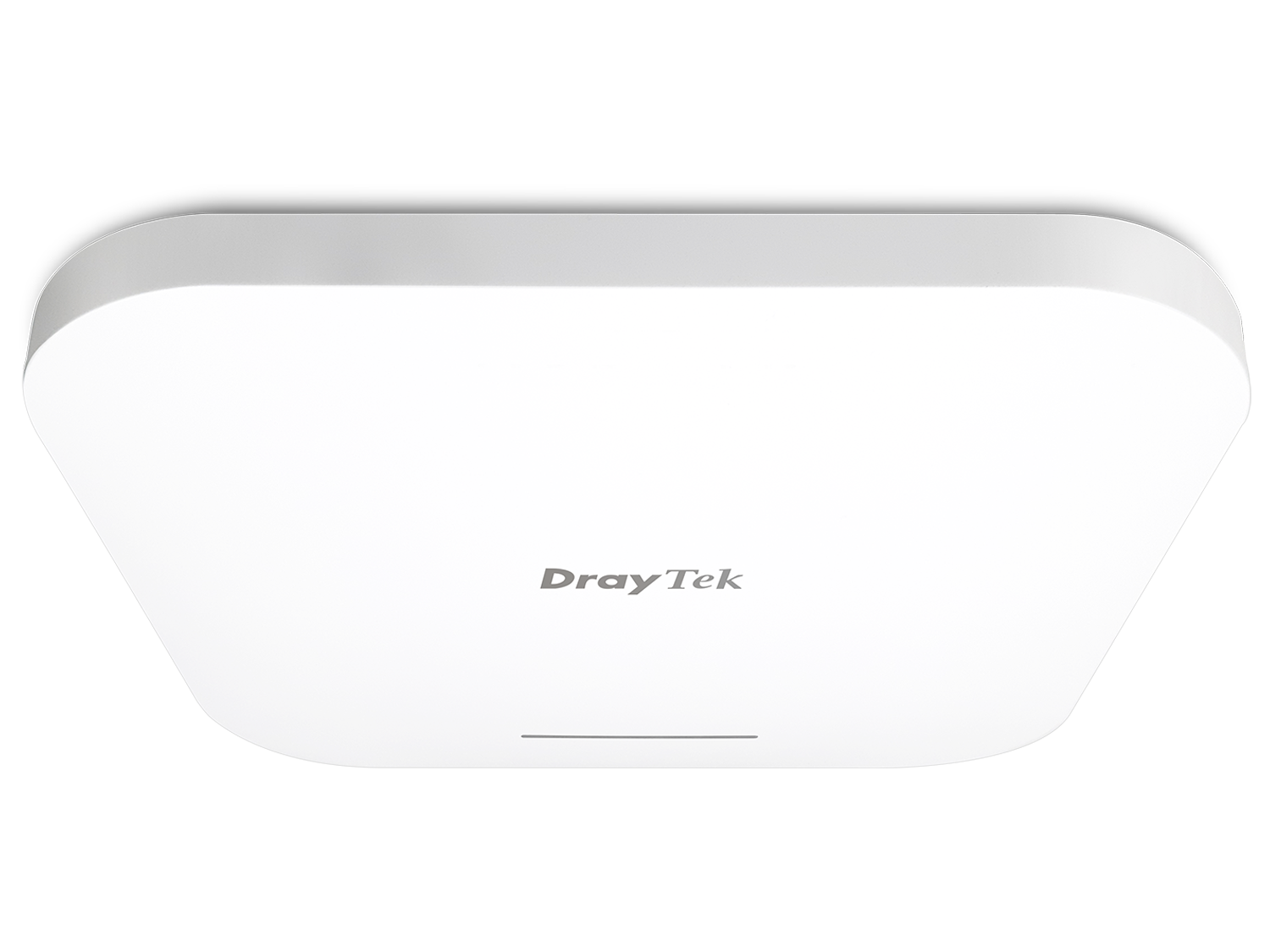

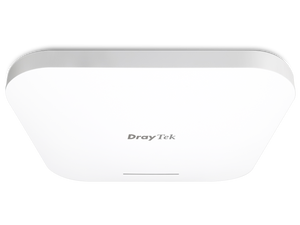

The DrayTek VigorAP 1060C is a high-performance Wi-Fi 6 (802.11ax) access point with tri-band support, ideal for large and high-density environments such as offices, campuses, and public venues. With total speeds up to 3600 Mbps, advanced wireless management, Mesh support, and enterprise-grade security, it's built to deliver fast, secure, and scalable wireless connectivity.
KEY FEATURES
| Feature | Description |
|---|---|
| Tri-Band Wi-Fi 6 (802.11ax) | Supports one 2.4GHz and two 5GHz radios for improved traffic distribution |
| AX3600 Speeds | Up to 2400 Mbps (5GHz) + 1200 Mbps (5GHz) + 600 Mbps (2.4GHz) |
| Wi-Fi 6 Features | OFDMA, MU-MIMO, BSS Coloring, Band Steering, Airtime Fairness |
| Multiple SSIDs | Supports up to 12 SSIDs across all bands |
| VLAN Tagging | 802.1q VLAN per SSID for network segmentation |
| WPA3 Security | Latest wireless security standard for strong encryption |
| Mesh Support | DrayTek Mesh system compatible for seamless roaming |
| 2.5Gbps Ethernet | 1 x 2.5GbE port for high-speed LAN uplink |
| PoE+ Support | Powered via IEEE 802.3at PoE+ for easy deployment |
| Central Management | Manage via VigorACS or DrayTek router-based AP management |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Wireless Standard | 802.11ax (Wi-Fi 6) – Tri-band |
| Frequency Bands | 1 x 2.4GHz + 2 x 5GHz |
| Wireless Speed | Up to 3600 Mbps total (2.4GHz: 600 Mbps, 5GHz: 2x up to 1200 Mbps) |
| Wi-Fi Features | OFDMA, MU-MIMO, BSS Coloring, Band Steering, Airtime Fairness |
| SSID Support | Up to 12 SSIDs |
| VLAN Support | 802.1q VLAN tagging per SSID |
| Security Protocols | WPA2/WPA3-Personal, WPA2-Enterprise, MAC filtering, Wireless isolation |

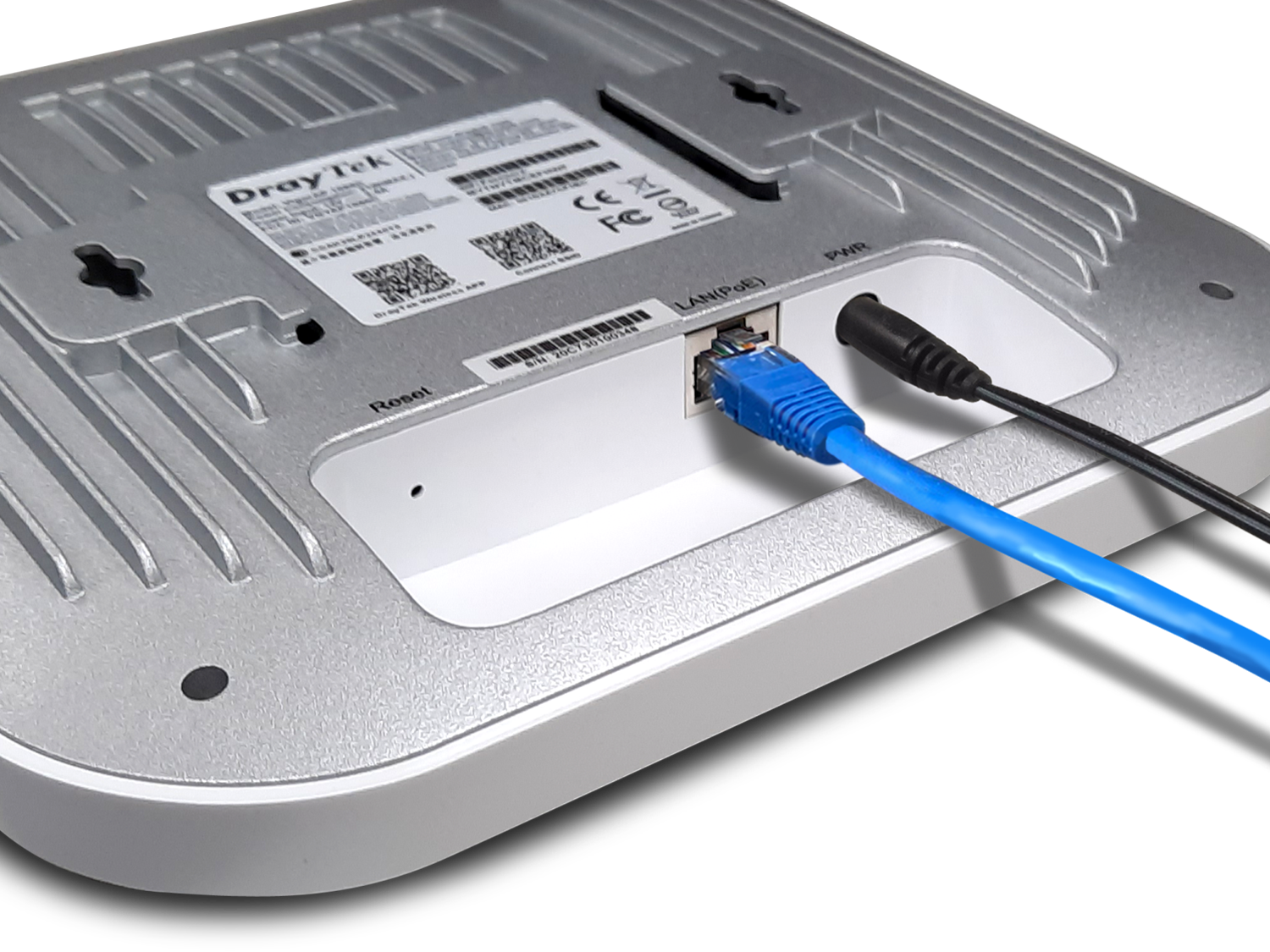

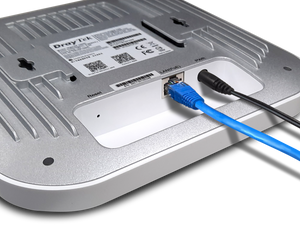

| Ethernet Port | 1 x 2.5 Gigabit Ethernet (RJ-45) |
| PoE Support | IEEE 802.3at PoE+ |
| Power Input | PoE+ or 12V DC adapter (optional) |
| Management | Web GUI, CLI (SSH/Telnet), TR-069, VigorACS, AP Management via DrayTek router |
| Mounting Options | Ceiling mountable (mounting kit included) |
| Dimensions | 205 x 205 x 33 mm |
| Weight | Approx. 545 grams |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 10% to 90% non-condensing |
Learn what makes this product unique and why it’s right for you.
The DrayTek VigorAP 1060C is a high-performance Wi-Fi 6 (802.11ax) access point with tri-band support, ideal for large and high-density environments such as offices, campuses, and public venues. With total speeds up to 3600 Mbps, advanced wireless management, Mesh support, and enterprise-grade security, it's built to deliver fast, secure, and scalable wireless connectivity.
KEY FEATURES
| Feature | Description |
|---|---|
| Tri-Band Wi-Fi 6 (802.11ax) | Supports one 2.4GHz and two 5GHz radios for improved traffic distribution |
| AX3600 Speeds | Up to 2400 Mbps (5GHz) + 1200 Mbps (5GHz) + 600 Mbps (2.4GHz) |
| Wi-Fi 6 Features | OFDMA, MU-MIMO, BSS Coloring, Band Steering, Airtime Fairness |
| Multiple SSIDs | Supports up to 12 SSIDs across all bands |
| VLAN Tagging | 802.1q VLAN per SSID for network segmentation |
| WPA3 Security | Latest wireless security standard for strong encryption |
| Mesh Support | DrayTek Mesh system compatible for seamless roaming |
| 2.5Gbps Ethernet | 1 x 2.5GbE port for high-speed LAN uplink |
| PoE+ Support | Powered via IEEE 802.3at PoE+ for easy deployment |
| Central Management | Manage via VigorACS or DrayTek router-based AP management |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Wireless Standard | 802.11ax (Wi-Fi 6) – Tri-band |
| Frequency Bands | 1 x 2.4GHz + 2 x 5GHz |
| Wireless Speed | Up to 3600 Mbps total (2.4GHz: 600 Mbps, 5GHz: 2x up to 1200 Mbps) |
| Wi-Fi Features | OFDMA, MU-MIMO, BSS Coloring, Band Steering, Airtime Fairness |
| SSID Support | Up to 12 SSIDs |
| VLAN Support | 802.1q VLAN tagging per SSID |
| Security Protocols | WPA2/WPA3-Personal, WPA2-Enterprise, MAC filtering, Wireless isolation |
| Ethernet Port | 1 x 2.5 Gigabit Ethernet (RJ-45) |
| PoE Support | IEEE 802.3at PoE+ |
| Power Input | PoE+ or 12V DC adapter (optional) |
| Management | Web GUI, CLI (SSH/Telnet), TR-069, VigorACS, AP Management via DrayTek router |
| Mounting Options | Ceiling mountable (mounting kit included) |
| Dimensions | 205 x 205 x 33 mm |
| Weight | Approx. 545 grams |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 10% to 90% non-condensing |
VigorAP 1060C
- Regular price
- $430.00
- Sale price
- $430.00
- Regular price
-
Couldn't load pickup availability
