About
Learn what makes this product unique and why it’s right for you.

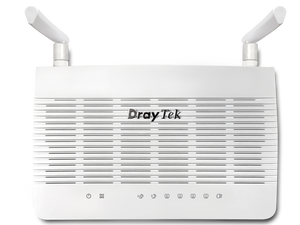

The Vigor 2136ax is a high-performance multi‑gigabit firewall router designed to fully exploit FTTP/FTTH fibre broadband. Alongside a 2.5 GbE WAN interface, it includes dual‑band Wi‑Fi 6 (AX3000) to deliver ultra-fast wired and wireless connectivity for advanced home and SOHO networks.
KEY FEATURES
| Feature | Description |
|---|---|
| High-Speed WAN | 2.5 GbE WAN port plus switchable 2.5 GbE LAN/WAN port; supports up to 2.3 Gbps NAT throughput even with traffic control enabled |
| Wi-Fi 6 (AX3000) | Dual-band 802.11ax Wi‑Fi with 2x2 MIMO; ideal for 4K streaming, gaming, and video conferencing |
| VPN Support | Supports IPsec (~390 Mbps, hardware-accelerated), OpenVPN, WireGuard, EasyVPN, and VPN Matcher |
| IAM (Identity & Access Management) | Enforces policy-based access control with multi-factor authentication and user/group-based rules |
| LAN Segmentation | Supports up to 4 VLANs or LAN subnets, each with dedicated firewall, routing, and QoS settings |
| Virtual Controller | Manages DrayTek VigorAPs and switches locally—ideal for mesh setups and monitoring |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | DrayTek Vigor 2136ax |

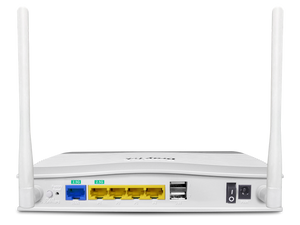

| WAN Ports | 1 × 2.5 GbE WAN port + 1 switchable 2.5 GbE LAN/WAN port |
| LAN Ports | Up to 3 × LAN ports (depending on port configuration) |
| Wi-Fi | Dual-band Wi‑Fi 6 (AX3000), 2x2 MIMO |
| Max NAT Throughput | Up to 2.3 Gbps with bandwidth control features |
| VPN Tunnels | Up to 4 IPsec tunnels; also supports OpenVPN and WireGuard |
| VPN Performance | ~390 Mbps IPsec with hardware acceleration |
| IAM Support | Multi-factor authentication, user/group-based access control |
| VLAN/Subnet Support | Up to 4 separate LAN subnets or VLANs |
| AP/Switch Management | Integrated Virtual Controller for DrayTek APs and switches |
| Management Tools | Web UI, CLI, TR-069, SNMP, VigorACS support |
Learn what makes this product unique and why it’s right for you.
The Vigor 2136ax is a high-performance multi‑gigabit firewall router designed to fully exploit FTTP/FTTH fibre broadband. Alongside a 2.5 GbE WAN interface, it includes dual‑band Wi‑Fi 6 (AX3000) to deliver ultra-fast wired and wireless connectivity for advanced home and SOHO networks.
KEY FEATURES
| Feature | Description |
|---|---|
| High-Speed WAN | 2.5 GbE WAN port plus switchable 2.5 GbE LAN/WAN port; supports up to 2.3 Gbps NAT throughput even with traffic control enabled |
| Wi-Fi 6 (AX3000) | Dual-band 802.11ax Wi‑Fi with 2x2 MIMO; ideal for 4K streaming, gaming, and video conferencing |
| VPN Support | Supports IPsec (~390 Mbps, hardware-accelerated), OpenVPN, WireGuard, EasyVPN, and VPN Matcher |
| IAM (Identity & Access Management) | Enforces policy-based access control with multi-factor authentication and user/group-based rules |
| LAN Segmentation | Supports up to 4 VLANs or LAN subnets, each with dedicated firewall, routing, and QoS settings |
| Virtual Controller | Manages DrayTek VigorAPs and switches locally—ideal for mesh setups and monitoring |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | DrayTek Vigor 2136ax |
| WAN Ports | 1 × 2.5 GbE WAN port + 1 switchable 2.5 GbE LAN/WAN port |
| LAN Ports | Up to 3 × LAN ports (depending on port configuration) |
| Wi-Fi | Dual-band Wi‑Fi 6 (AX3000), 2x2 MIMO |
| Max NAT Throughput | Up to 2.3 Gbps with bandwidth control features |
| VPN Tunnels | Up to 4 IPsec tunnels; also supports OpenVPN and WireGuard |
| VPN Performance | ~390 Mbps IPsec with hardware acceleration |
| IAM Support | Multi-factor authentication, user/group-based access control |
| VLAN/Subnet Support | Up to 4 separate LAN subnets or VLANs |
| AP/Switch Management | Integrated Virtual Controller for DrayTek APs and switches |
| Management Tools | Web UI, CLI, TR-069, SNMP, VigorACS support |
