About

Learn what makes this product unique and why it’s right for you.





The Vigor167 is an IPv6-ready ADSL2+/VDSL2 router designed for SOHO and residential broadband access requirements. This compact router can be deployed in nbn™ FTTN/FTTB installations either as a standalone router or configured in bridge mode to interface with Ethernet broadband equipment lacking a VDSL2 Internet connection.

The Vigor167 router supports VDSL2 35b Super Vectoring, allowing maximum speeds of 300 Mbps downstream and 100 Mbps upstream at a distance of 250 meters from the DSLAM. Additionally, the Vigor167 supports VigorACS 3 Central Management Software for remote management.

Alongside powerful firewall protection against malicious Denial of Service (DoS) attacks, the Vigor167 features advanced security measures such as Stateful Packet Inspection (SPI) to ensure network reliability by detecting and preventing malicious packets from penetrating the internal network. URL content filtering is also available to block access to inappropriate websites.





SPECIFICATION

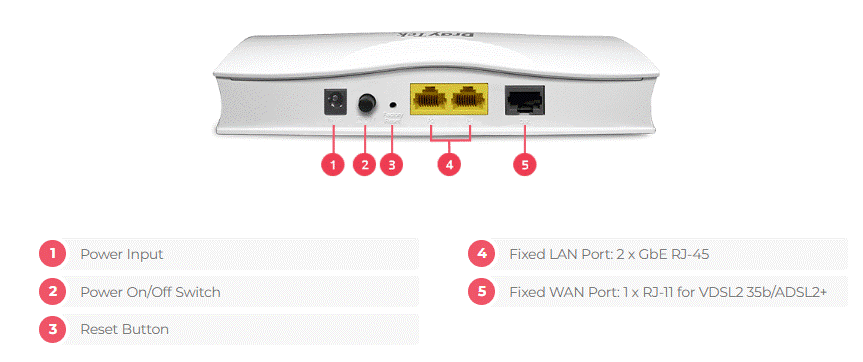

Interface
Fixed WAN Port:
1x RJ-11 for VDSL2 35b/ADSL2+
LAN Port:
2x Gigabit Ethernet RJ-45
Performance
Max. VDSL Speed:
300 Mbps
Max. ADSL Speed:
20 Mbps
Max. Number of
NAT Sessions:
10,000
Max. NAT Speed:
300 Mbps
NAT
NAT:
Port Redirection, Open Ports,
DMZ Host, UPnP
ALG (Application Layer Gateway):
FTP, H.323, RTSP, SIP
VPN Pass-Through:
PPTP, L2TP, IPsec
LAN Management
DHCP Server:
Custom DHCP Options,
IPv4/IPv6 DHCP Server,
IPv4/IPv6 DHCP Relay
Number of LAN Subnet: 1
IPv6 Address Assignment:
DHCPv6, RADVD
VDSL/ADSL
VDSL Standards:
ITU-T G.993.1 (VDSL)
ITU-T G.993.2 Annex A/B/M/Q
G.997.1
VDSL2 Profile:
8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a,
35b (not G.Fast)
VDSL Band Plan:
997, 998
ADSL Standards:
ITU-T G.992.1(G.dmt)
T1.413 Issue 2

Band Plan:
997, 998
Firewall & Content Filtering
IP-based Firewall
Policy
DoS Attack Defense
Spoofling Defense
Management
Local Service:
HTTP, HTTPS, Telnet, SSH v2, TR-069
Firmware Upgrade:
TFTP, HTTP, TR-069
Syslog
Managed by
VigorACS 3
Broadcast DSL Info
to LAN
Access Control:
Access List
Notification Alert:
E-mail
SNMP:
v2, v2c, v3
Internet Connection
IPv4:
PPPoE, PPoA, DHCP, Static IP
IPv6:
PPP, DHCPv6, Static IPv6, TSPC, 6rd,
6in4 Static Tunnel
Virtual WAN
PPPoE Pass-Through
MPoA Bridge

Dynamic DNS
Networking
Routing:
IPv4 Static Route, IPv6 Static Route,
RIP v1/v2
IGMP:
IGMP v2/v3, IGMP Proxy,
IGMP Snooping
Physical
Power Supply:
DC 12V @ 0.4A
Max. Power Consumption:
4.4 watts
Dimension:
181mm x 125mm x 40mm
Weight:
270g
Operating Temperature:
0 to 45°C
Storage Temperature:
-25 to 70°C
Operating Humidity
(non-condensing):
10 to 90%
Certificate:






Note :
  • All specifications are subject to change without notice.
  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
