About

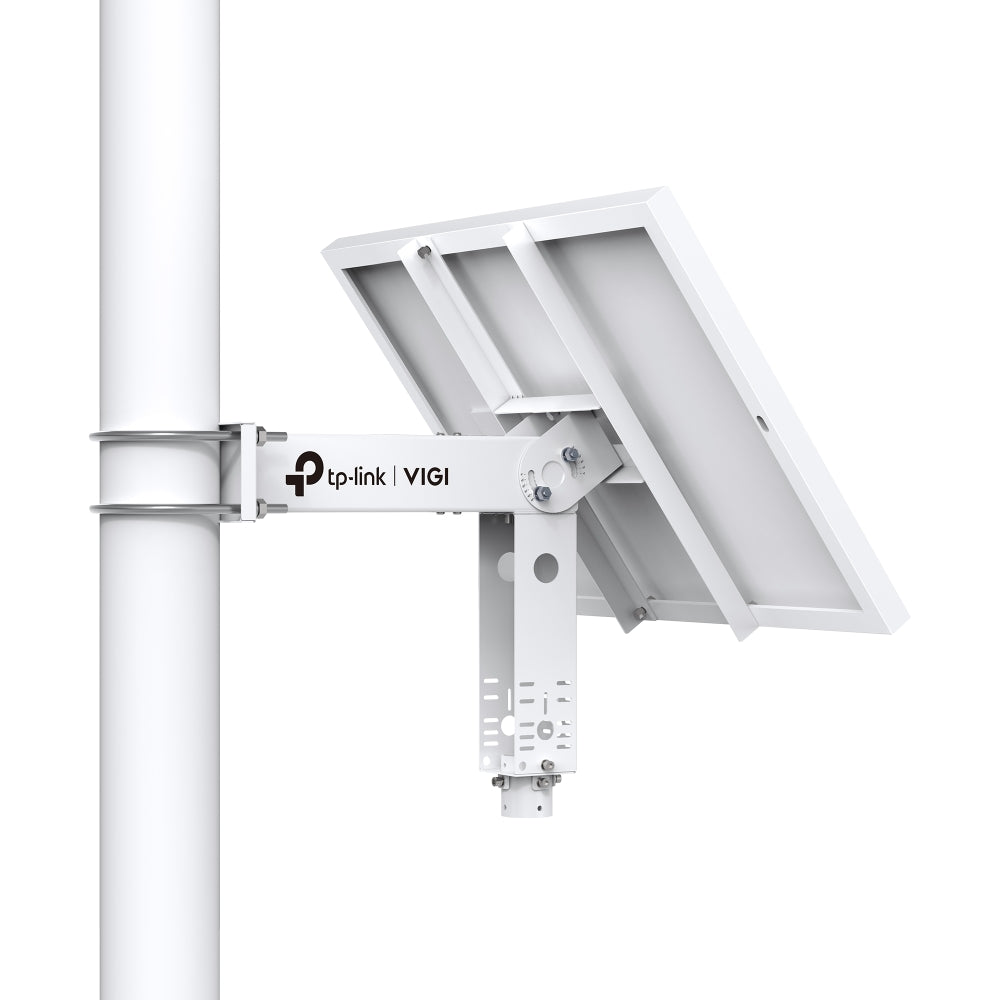

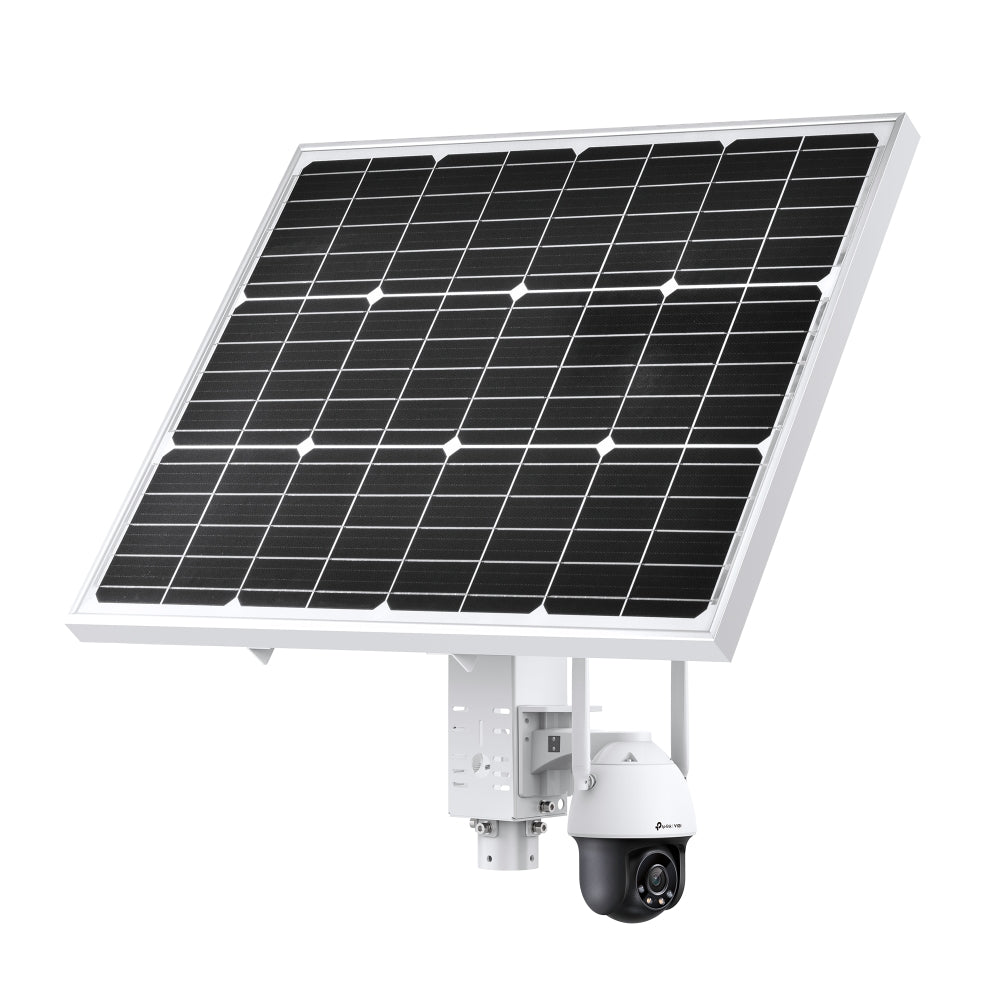

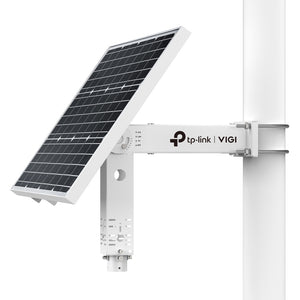

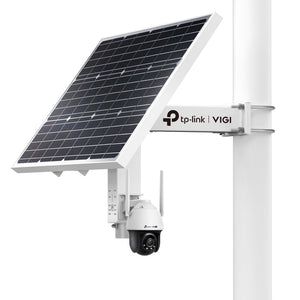

The VIGI SP6020 is an off-grid solar power system designed for outdoor use, combining a 60 W solar panel with a 20.8 Ah lithium battery. It features intelligent auxiliary heating, MPPT charging, adjustable panel angles, and IP66 weatherproofing, making it ideal for powering surveillance cameras and other remote devices with remote management capability.
FEATURES
-
60W Solar Panel: Reliable solar energy source.
-
20.8Ah Lithium Battery: Stores energy, works in cold temperatures.
-
IP66 Weatherproof: Resists rain, dust, and harsh conditions.
-
MPPT Controller: Maximizes charging efficiency.
-
Remote Management: Monitor and control remotely.
-
Adjustable Angles: Optimizes sunlight capture (5°–55°).
-
Multiple DC Outputs: Powers various devices.
SPECIFICATION
| Category | Details |
|---|---|
| Solar Panel (Photovoltaic Panel) |
Power: 60 W Voltage: 18 V Dimensions (L x W x H): 690×516×30 mm (27.2×20.3×1.2 in) |
| Battery |
Type: Lithium Intelligent Auxiliary Heat: Yes Battery Capacity: 20.8 Ah Voltage: 10.8 V Max. Output Voltage: 12.6 V Life: More than 500 cycles Dimension: 242×70×55 mm (9.5×2.8×2.2 in) Charging Condition: 0°C~45°C; -30°C~45°C (With intelligent auxiliary heating) Discharging Condition: -20°C~60°C; -30°C~60°C (With intelligent auxiliary heating) |
| Angle Adjustment (Manual) | 5° / 15° / 25° / 35° / 45° / 55° |
| Hardware |
Interface: 1× 10/100 Mbps RJ45; 1× Photovoltaic Panel Connector; 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6VDC/2A, #3: 12VDC/2A) Indicator LED: 4 LEDs (SYS, LAN, PV, BAT), Color: Blue |
| Software Features | Load Control, High and Low Temperature Protection, Overdischarge Protection, Power Consumption Statistics, Displays Real-time Load Status, Battery Level Display, Time Zone Selection, Region Selection, Schedule Saving, Firmware Remote Update, Remote Reboot, Local LAN Management, Smart Charging Control (-30°C~5°C), Account Management, Remote Reset, Remote Message Push |
| Certification | CB, PSE (Battery), CE, FCC, VCCI, IC, IP66 |
| Package Contents | VIGI SP6020, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Box Dimensions (W x D x H) | 800×615×225 mm (31.5×24.2×8.9 in) |
| Weight | Product Weight: 13 kg; Package Weight: 14.5 kg |
| Environment | Operating Temperature: -30°C~60°C (With intelligent auxiliary heating); Operating Humidity: 10%~90%RH, Non-condensing |
The VIGI SP6020 is an off-grid solar power system designed for outdoor use, combining a 60 W solar panel with a 20.8 Ah lithium battery. It features intelligent auxiliary heating, MPPT charging, adjustable panel angles, and IP66 weatherproofing, making it ideal for powering surveillance cameras and other remote devices with remote management capability.
FEATURES
-
60W Solar Panel: Reliable solar energy source.
-
20.8Ah Lithium Battery: Stores energy, works in cold temperatures.
-
IP66 Weatherproof: Resists rain, dust, and harsh conditions.
-
MPPT Controller: Maximizes charging efficiency.
-
Remote Management: Monitor and control remotely.
-
Adjustable Angles: Optimizes sunlight capture (5°–55°).
-
Multiple DC Outputs: Powers various devices.
SPECIFICATION
| Category | Details |
|---|---|
| Solar Panel (Photovoltaic Panel) |
Power: 60 W Voltage: 18 V Dimensions (L x W x H): 690×516×30 mm (27.2×20.3×1.2 in) |
| Battery |
Type: Lithium Intelligent Auxiliary Heat: Yes Battery Capacity: 20.8 Ah Voltage: 10.8 V Max. Output Voltage: 12.6 V Life: More than 500 cycles Dimension: 242×70×55 mm (9.5×2.8×2.2 in) Charging Condition: 0°C~45°C; -30°C~45°C (With intelligent auxiliary heating) Discharging Condition: -20°C~60°C; -30°C~60°C (With intelligent auxiliary heating) |
| Angle Adjustment (Manual) | 5° / 15° / 25° / 35° / 45° / 55° |
| Hardware |
Interface: 1× 10/100 Mbps RJ45; 1× Photovoltaic Panel Connector; 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6VDC/2A, #3: 12VDC/2A) Indicator LED: 4 LEDs (SYS, LAN, PV, BAT), Color: Blue |
| Software Features | Load Control, High and Low Temperature Protection, Overdischarge Protection, Power Consumption Statistics, Displays Real-time Load Status, Battery Level Display, Time Zone Selection, Region Selection, Schedule Saving, Firmware Remote Update, Remote Reboot, Local LAN Management, Smart Charging Control (-30°C~5°C), Account Management, Remote Reset, Remote Message Push |
| Certification | CB, PSE (Battery), CE, FCC, VCCI, IC, IP66 |
| Package Contents | VIGI SP6020, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Box Dimensions (W x D x H) | 800×615×225 mm (31.5×24.2×8.9 in) |
| Weight | Product Weight: 13 kg; Package Weight: 14.5 kg |
| Environment | Operating Temperature: -30°C~60°C (With intelligent auxiliary heating); Operating Humidity: 10%~90%RH, Non-condensing |
VIGI Intelligent Solar Power Supply System
- Regular price
- $692.00
- Sale price
- $692.00
- Regular price
-
$699.00
Couldn't load pickup availability
