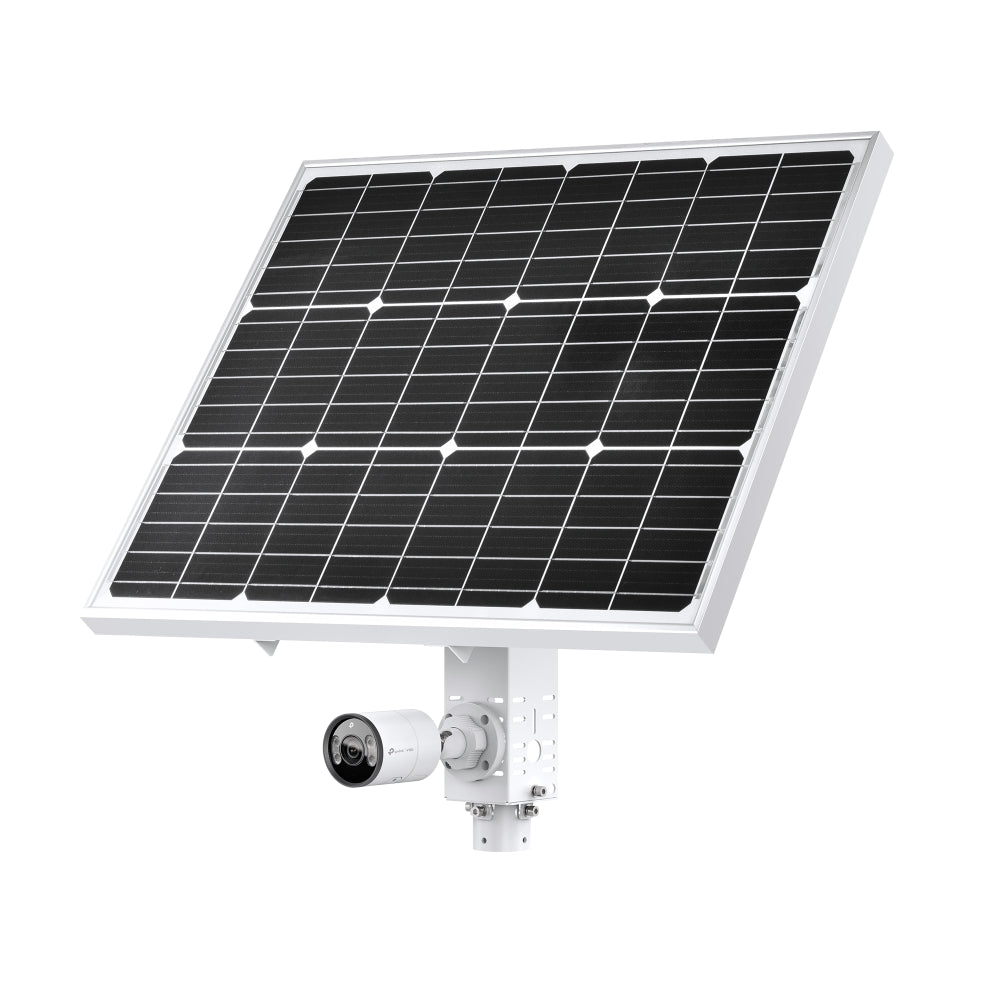

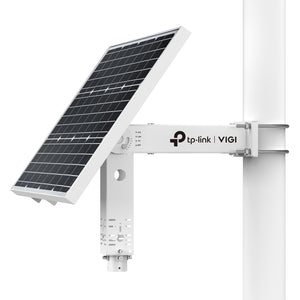

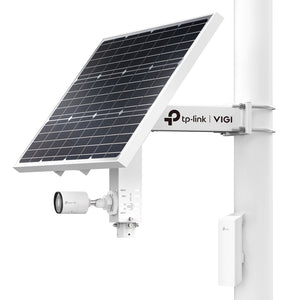

The VIGI SP6030 is a compact, off‑grid solar power solution that combines a high‑efficiency 60 W photovoltaic panel with a 31.2 Ah lithium battery, MPPT charging controller, and remote management. Built for outdoor use with IP66 weatherproofing and adjustable tilt angles, it's ideal for powering surveillance cameras, wireless bridges or other equipment in remote or hard‑to‑wire locations.
FEATURES
- 60W Solar Panel: Provides reliable solar power.
- 31.2Ah Lithium Battery: Stores energy and works in cold conditions.
- IP66 Weatherproof: Protects from rain, dust, and harsh weather.
- MPPT Controller: Optimizes solar charging efficiency.
- Remote Management: Monitor and control the system remotely.
- Adjustable Angles: Tilt panel for maximum sunlight capture.
SPECIFICATION
| Category | Details |
|---|---|
| Solar Panel (Photovoltaic Panel) |
Power: 60 W Voltage: 18 V Dimensions (L x W x H): 690×516×30 mm (27.2×20.3×1.2 in) |
| Battery |
Type: Lithium Intelligent Auxiliary Heat: Yes Battery Capacity: 31.2 Ah Voltage: 10.8 V Max. Output Voltage: 12.6 V Life: More than 500 cycles Dimension: 242×70×65 mm (9.5×2.8×2.6 in) Charging Condition: 0°C~45°C, -30°C~45°C (with intelligent auxiliary heating) Discharging Condition: -20°C~60°C, -30°C~60°C (with intelligent auxiliary heating) |

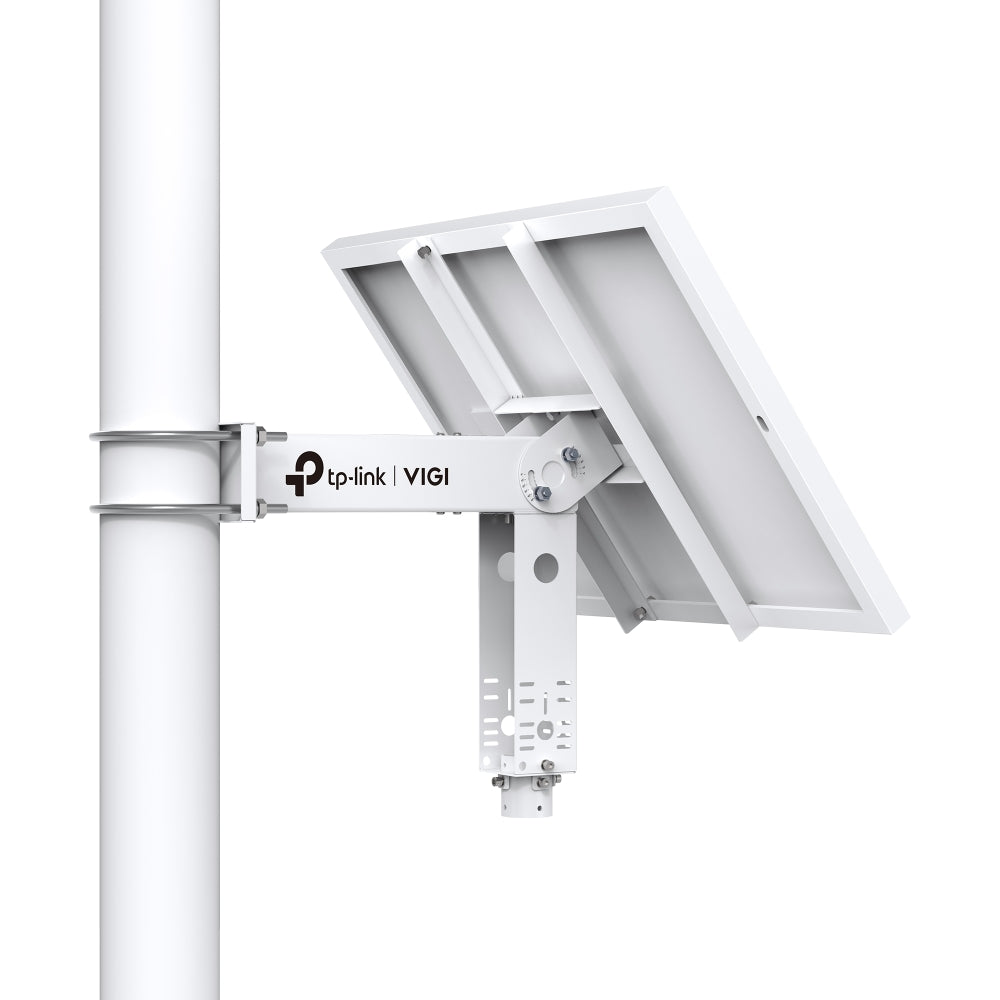

| Angle Adjustment (Manual) | 5° / 15° / 25° / 35° / 45° / 55° |
| Hardware |
Interface: 1× 10/100 Mbps RJ45, 1× Photovoltaic Panel Connector, 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) Indicator LED: Quantity: 4 (SYS, LAN, PV, BAT), Color: Blue |
| Software Features | Load Control, High and Low Temperature Protection, Overdischarge Protection, Power Consumption Statistics, Displays Real-time Load Status, Battery Level Display, Time Zone Selection, Region Selection, Schedule Saving, Firmware Remote Update, Remote Reboot, Local LAN Management, Smart Charging Control (-30°C~5°C), Account Management, Remote Reset, Remote Message Push |
| Others |
Certification: CB, PSE (Battery), CE, FCC, VCCI, IC, IP66 Package Contents: VIGI SP6030, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories Box Dimensions (W x D x H): 800×615×225 mm (31.5×24.2×8.9 in) Weight: Product: 14 kg, Package: 15.5 kg Environment: Operating Temperature: -30°C~60°C (with intelligent auxiliary heating), Operating Humidity: 10%~90% RH, Non-condensing |
