About
Learn what makes this product unique and why it’s right for you.

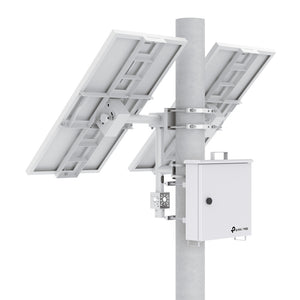

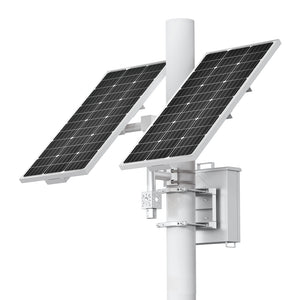

The VIGI SP18090 is a robust solar power supply system designed for reliable and intelligent energy management. Featuring 2× 90W photovoltaic panels, a 93.6Ah lithium battery, and modular design, it delivers efficient power for remote surveillance installations. With MPPT charging,
FEATURES
- 2× 90W Photovoltaic Panels and 93.6Ah/10.95V Lithium Battery
- 3× DC Voltage Output Ports

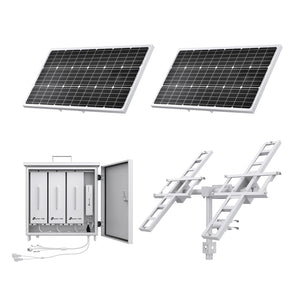

- Modular Design (2× Solar Panel + 1× Solar Mount + 1× System Controller)
- Adjustable Angles: 5°/15°/25°/35°/45°/55°
- Independent Protection Circuit
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
SPECIFICATION
| Category | Details |
|---|---|
| Solar Panel Power | 180 W (90 W per panel) |
| Solar Panel Voltage | 18 V |
| Solar Panel Dimensions (L×W×H) | 39.3×20.3×1.2 in (998×516×30 mm) |
| Battery Type | Lithium |
| Battery Capacity | 93.6Ah Max (31.2Ah per Lithium Battery) |
| Battery Voltage | 10.95 V |
| Max Output Voltage | 12.6 V |
| Battery Life | More than 500 cycles* |
| Battery Dimensions (L×W×H) | 9.4×2.9×2.8 in (240×74×72 mm) per battery |
| Charging Condition | 0°C~45°C, -30°C~45°C (with intelligent auxiliary heating) |
| Discharging Condition | -20°C~60°C, -30°C~60°C (with intelligent auxiliary heating) |
| Manual Angle Adjustment | 5°/15°/25°/35°/45°/55° |
| Hardware Interface | 1× Three-pin Female Connector (Controller), 1× Three-pin Male Connector (Modular Battery), 2× Four-pin Female Connectors (Solar Panel), 1× RJ45 10/100 Mbps, 3× DC Power Plugs (#1,#2: 9V–12.6V/2A, #3: 12V/2A) |
| LED Indicators | 6 LEDs: SYS, LAN, PV, 3× BAT (Blue) |
| Load Control | Three-way Load |
| High/Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Real-time Load Display | Yes |
| Battery Level Display | Yes |
| Time Zone / Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot / Reset | Yes |
| Local LAN Management | Yes |
| Intelligent Auxiliary Heating Control | -30°C~5°C |
| Account Management | Yes |
| Remote Message Push | Yes |
| Certification | CE, FCC, RoHS, IP66 (Weatherproof), IP67 (Solar Panel) |
| Operating Temperature | -30°C~60°C (with intelligent auxiliary heating) |
| Operating Humidity | 10%–90% RH, Non-condensing |
Learn what makes this product unique and why it’s right for you.
The VIGI SP18090 is a robust solar power supply system designed for reliable and intelligent energy management. Featuring 2× 90W photovoltaic panels, a 93.6Ah lithium battery, and modular design, it delivers efficient power for remote surveillance installations. With MPPT charging,
FEATURES
- 2× 90W Photovoltaic Panels and 93.6Ah/10.95V Lithium Battery
- 3× DC Voltage Output Ports
- Modular Design (2× Solar Panel + 1× Solar Mount + 1× System Controller)
- Adjustable Angles: 5°/15°/25°/35°/45°/55°
- Independent Protection Circuit
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
SPECIFICATION
| Category | Details |
|---|---|
| Solar Panel Power | 180 W (90 W per panel) |
| Solar Panel Voltage | 18 V |
| Solar Panel Dimensions (L×W×H) | 39.3×20.3×1.2 in (998×516×30 mm) |
| Battery Type | Lithium |
| Battery Capacity | 93.6Ah Max (31.2Ah per Lithium Battery) |
| Battery Voltage | 10.95 V |
| Max Output Voltage | 12.6 V |
| Battery Life | More than 500 cycles* |
| Battery Dimensions (L×W×H) | 9.4×2.9×2.8 in (240×74×72 mm) per battery |
| Charging Condition | 0°C~45°C, -30°C~45°C (with intelligent auxiliary heating) |
| Discharging Condition | -20°C~60°C, -30°C~60°C (with intelligent auxiliary heating) |
| Manual Angle Adjustment | 5°/15°/25°/35°/45°/55° |
| Hardware Interface | 1× Three-pin Female Connector (Controller), 1× Three-pin Male Connector (Modular Battery), 2× Four-pin Female Connectors (Solar Panel), 1× RJ45 10/100 Mbps, 3× DC Power Plugs (#1,#2: 9V–12.6V/2A, #3: 12V/2A) |
| LED Indicators | 6 LEDs: SYS, LAN, PV, 3× BAT (Blue) |
| Load Control | Three-way Load |
| High/Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Real-time Load Display | Yes |
| Battery Level Display | Yes |
| Time Zone / Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot / Reset | Yes |
| Local LAN Management | Yes |
| Intelligent Auxiliary Heating Control | -30°C~5°C |
| Account Management | Yes |
| Remote Message Push | Yes |
| Certification | CE, FCC, RoHS, IP66 (Weatherproof), IP67 (Solar Panel) |
| Operating Temperature | -30°C~60°C (with intelligent auxiliary heating) |
| Operating Humidity | 10%–90% RH, Non-condensing |
VIGI Intelligent Solar Power Supply System
- Regular price
- $3,265.25
- Sale price
- $3,265.25
- Regular price
-
$3,298.00
