The VIGI NVR4064H is a high-performance 64-channel network video recorder supporting up to 4K HDMI output and extensive decoding capabilities. With H.265+ compression, multi-channel playback, and robust alarm management, it provides reliable, scalable surveillance for enterprise and large-scale projects. Remote monitoring, flexible storage options, and interoperability with ONVIF-compliant cameras make it ideal for professional security deployments.
FEATURES
- 64-Channel Live View and 4K HDMI Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding
- 16-Channel Synchronous Playback
- 320 Mbps Incoming and Outgoing Bandwidth
- 4× SATA Interfaces, up to 16 TB per HDD
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring Support
SPECIFICATIONS
| Category | Details |
|---|---|
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260 Mbps, Extended: 320 Mbps |
| Outgoing Bandwidth | Default: 180 Mbps, Extended: 320 Mbps |
| HDMI Output Resolution | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64 |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 16-Channel |
| Record Mode | Manual, Scheduled, Motion Detection |
| Playback Mode | Instant, Regular, Tag, Event |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Functions | Play, Pause, Stop, Fast Forward/Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| Network Protocols | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP/HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Access | Android, iOS |
| Web Browser | Chrome 57+, Firefox 52+, Edge 91+ |
| Interoperability | ONVIF Profile S/T/G, CGI |

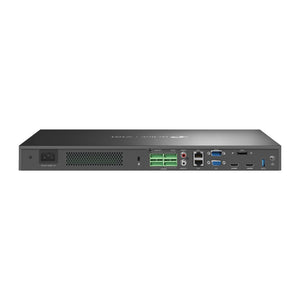

| External Interfaces | 2× RJ-45 10/100/1000 Mbps, 2× USB 2.0 (Front), 1× USB 3.0 (Rear), 1× Audio Input, 1× Audio Output, 16 Alarm In / 4 Alarm Out, 1× RS232, 1× eSATA, 2× HDMI, 1× VGA, 1× AC Power, 1× Reset Button |
| SATA Interfaces | 4, Up to 16 TB per HDD |
| Alarm Functions | Motion Detection, Video Tampering, Scene Change, Line Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removed, Vehicle/Human Detection, Abnormal Sound, Smart Frame. Video Loss, Offline/IP Conflict, Disk/Login/Fan Exception. Alarm Linkage: Recording, White Light, Buzzer, Log, Audible Alarm. |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-condensing |
| Storage Humidity | 10%–90% RH, Non-condensing |
| Dimensions (W×D×H) | 440 × 330 × 44 mm |
| Weight | Net: 4.0 Kg, Gross: 5.0 Kg |
| Power Supply | 100–240 VAC, 50–60 Hz, 1.5 A |
| Max Power Consumption | 6.95 W (Without Disk), 48.38 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
Learn what makes this product unique and why it’s right for you.
The VIGI NVR4064H is a high-performance 64-channel network video recorder supporting up to 4K HDMI output and extensive decoding capabilities. With H.265+ compression, multi-channel playback, and robust alarm management, it provides reliable, scalable surveillance for enterprise and large-scale projects. Remote monitoring, flexible storage options, and interoperability with ONVIF-compliant cameras make it ideal for professional security deployments.
FEATURES
- 64-Channel Live View and 4K HDMI Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding
- 16-Channel Synchronous Playback
- 320 Mbps Incoming and Outgoing Bandwidth
- 4× SATA Interfaces, up to 16 TB per HDD
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring Support
SPECIFICATIONS
| Category | Details |
|---|---|
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260 Mbps, Extended: 320 Mbps |
| Outgoing Bandwidth | Default: 180 Mbps, Extended: 320 Mbps |
| HDMI Output Resolution | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64 |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 16-Channel |
| Record Mode | Manual, Scheduled, Motion Detection |
| Playback Mode | Instant, Regular, Tag, Event |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Functions | Play, Pause, Stop, Fast Forward/Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| Network Protocols | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP/HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Access | Android, iOS |
| Web Browser | Chrome 57+, Firefox 52+, Edge 91+ |
| Interoperability | ONVIF Profile S/T/G, CGI |
| External Interfaces | 2× RJ-45 10/100/1000 Mbps, 2× USB 2.0 (Front), 1× USB 3.0 (Rear), 1× Audio Input, 1× Audio Output, 16 Alarm In / 4 Alarm Out, 1× RS232, 1× eSATA, 2× HDMI, 1× VGA, 1× AC Power, 1× Reset Button |
| SATA Interfaces | 4, Up to 16 TB per HDD |
| Alarm Functions | Motion Detection, Video Tampering, Scene Change, Line Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removed, Vehicle/Human Detection, Abnormal Sound, Smart Frame. Video Loss, Offline/IP Conflict, Disk/Login/Fan Exception. Alarm Linkage: Recording, White Light, Buzzer, Log, Audible Alarm. |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-condensing |
| Storage Humidity | 10%–90% RH, Non-condensing |
| Dimensions (W×D×H) | 440 × 330 × 44 mm |
| Weight | Net: 4.0 Kg, Gross: 5.0 Kg |
| Power Supply | 100–240 VAC, 50–60 Hz, 1.5 A |
| Max Power Consumption | 6.95 W (Without Disk), 48.38 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |

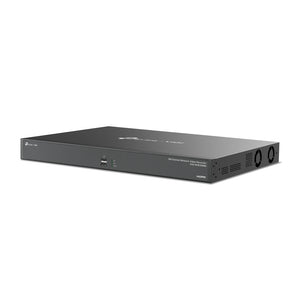

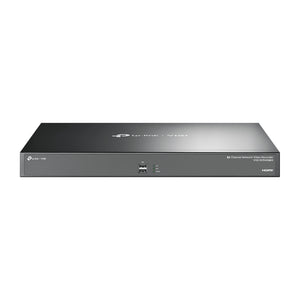

VIGI 64 Channel Network Video Recorder
- Regular price
- $870.21
- Sale price
- $870.21
- Regular price
-
$879.00
