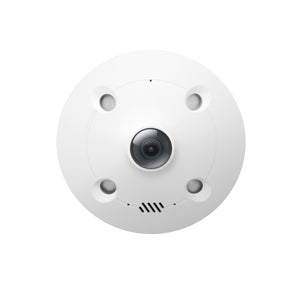

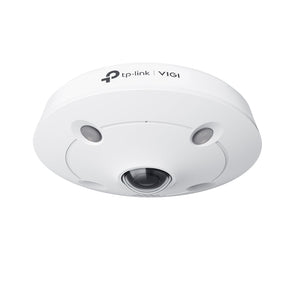

The InSight S655I is a 5MP fisheye network camera designed for 360° coverage without blind spots, suitable for small indoor areas such as retail shops and offices. It features smart detection, H.265+ compression, IP67 weatherproofing, and IK10 vandal-proof design.
FEATURES
- 5MP super-high definition with IR night vision
- 360° coverage without blind spots
- Multiple display modes and ePTZ support
- Ceiling, wall, and pendant mount options
- Smart detection for motion, intrusion, line crossing, region entering/exiting, abnormal sound
- Smart video enhancement (BLC, 3D DNR, HLC, SmartIR)
- Built-in microphone and speaker for two-way audio
- IP67 waterproof, IK10 vandal-proof
- H.265+ video compression technology
SPECIFICATION
| Category | Details |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s, slow shutter supported |
| Min Illumination | Color: 0.01 Lux, 0 Lux with IR |
| Day/Night | IR Cut Filter, Unified/Scheduled/Auto |
| Lens | Fixed Focal Lens, 1.44 mm, F2.0, M12*P0.5 |
| FOV | 180° Horizontal / 180° Vertical / 180° Diagonal |
| DORI Distance | Detect: 28.8 m, Observe: 12 m, Recognize: 5.7 m, Identify: 2.8 m |
| IR Illuminator | 4 LEDs, 10 m range, 850 nm |
| Max Resolution | 2560 × 1920 |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| Frame Rate | Up to 30 fps depending on stream and rotation |
| Video Enhancement | BLC, 3D DNR, HLC, SmartIR, WDR 120 dB |
| Privacy Mask / ROI | Up to 4 masks, 1 region |
| Audio | Two-way audio, built-in microphone & speaker, 8 kHz, 64 Kbps (G.711 alaw) |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
| ONVIF / API | Yes, Profile S/T/G |
| Simultaneous Live View | 3 main streams & 3 sub-streams |
| Client Support | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, Utility |
| Alarm & Event | Intrusion, Line Crossing, Region Enter/Exit, Abnormal Sound, Motion, Video Tampering, Exception; Linkage: memory card recording, push notifications, audible warning, email, FTP upload |
| Interface | 1× RJ45 10/100M PoE, DC power port, Reset button |
| Storage | Built-in MicroSD slot up to 512 GB |
| Operating Temp / Humidity | -30 to 60 °C, ≤ 95% RH |
| Storage Temp / Humidity | -40 to 60 °C, ≤ 95% RH |
| Material | Metal |
| Weight | 0.44 kg (without mounting), 0.48 kg (with mounting) |
| Power | 12V DC ±5%, Max 11.76 W; PoE 802.3af/at, Max 12.14 W |
| Protection | IP67, IK10 |
| Dimensions | 132 × 132 × 56 mm (5.2 × 5.2 × 2.2 in) |
| Package Contents | Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF |
