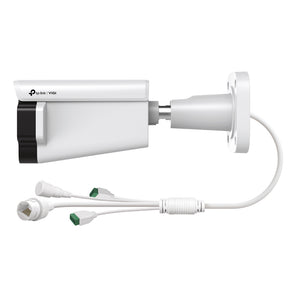

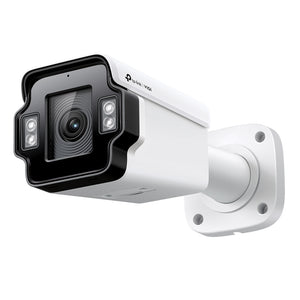

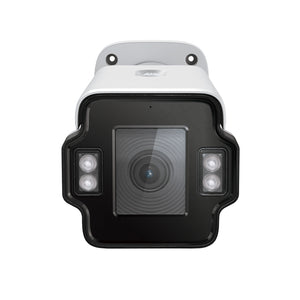

The InSight S345ZI is a 4MP outdoor bullet camera with a 5X optical zoom lens and IR range up to 60 meters. Designed for professional monitoring, it offers human and vehicle classification, smart detection, smart video enhancement, two-way audio, and robust protection against weather and vandalism.





FEATURES

  • 5X Optical Zoom for flexible installation and precise monitoring
  • 4MP Super HD resolution with IR night vision up to 60 m (197 ft)
  • Human & vehicle classification for smarter alerts
  • Smart detection and smart video enhancement technology
  • Audio and alarm interfaces for two-way communication and alarm linkage
  • IP67 weatherproof, IK10 vandal-proof design
  • H.265+ compression technology for efficient video storage





SPECIFICATION

Category Details
Image Sensor 1/2.9” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s, slow shutter supported
Minimum Illumination 0.005 Lux; 0 Lux with IR
Day/Night IR Cut Filter, Unified/Scheduled/Auto
Lens Motorized varifocal 2.7–13.5 mm (5X Optical Zoom), F1.6, Φ14
FOV Horizontal: 29.6°–102°, Vertical: 16.8°–53.8°, Diagonal: 34.1°–122.8°
DORI Distance Detect: 66–207 m, Observe: 28–86 m, Recognize: 13–41 m, Identify: 7–21 m
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
IR Illuminator 4 LEDs, 60 m (197 ft) range, 850 nm
Max Resolution 2688 × 1520
Video Compression Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
Frame Rate Up to 30 fps (depends on stream/resolution)
Video Bit Rate Main Stream: 256 Kbps–6 Mbps; Sub-Stream: 512 Kbps–1024 Kbps
Video Enhancement BLC, 3D DNR, HLC, SmartIR, WDR 120 dB
Privacy Mask / ROI Up to 4 masks, 1 region
Audio Two-way audio, 8 kHz, 64 Kbps (G.711 alaw); 1 Audio In / 1 Audio Out; built-in microphone
Network Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP
ONVIF / API Yes, Profile S/T/G
Simultaneous Live View 3 main streams & 3 sub-streams
Client Support VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Alarm & Event Smart: Intrusion, Line Crossing, Region Enter/Exit, Object Abandoned/Removed, Loitering, People/Vehicle Detection, Abnormal Sound, Scene Change; Basic: Motion Detection (enhanced), Video Tampering, Illegal Login; Alarm linkage: memory card recording, push notifications, audible warning, email, FTP upload, alarm out
Interfaces 1× RJ45 10/100M PoE, DC power port, Reset button, 1 Alarm In / 1 Alarm Out
Storage Built-in MicroSD slot up to 512 GB
Operating Temp / Humidity -30–60 °C, ≤ 95% RH
Storage Temp / Humidity -40–60 °C, ≤ 95% RH
Material Metal
Weight 1.04 kg
Power 12V DC ±5%, Max 10.8 W; PoE 802.3af/at, Max 12 W
Protection IP67 Weatherproof, IK10 Vandal Proof
Dimensions 256 × 100 × 101 mm (10.1 × 3.9 × 4 in)
Package Contents Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
