About
Learn what makes this product unique and why it’s right for you.

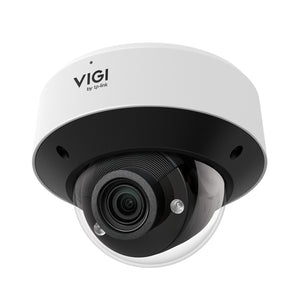

The InSight S245ZI is a 4MP outdoor dome camera with a 5X optical zoom lens and IR range up to 60 meters (197 ft). It features human and vehicle classification, smart detection, two-way audio, and advanced video enhancement, all within a compact, weatherproof, and vandal-resistant dome housing.
FEATURES
- 5X Optical Zoom for flexible installation and monitoring
- 4MP Super HD resolution with IR night vision up to 60 m (197 ft)
- Human & vehicle classification for accurate alerts
- Smart detection and video enhancement technology
- Audio and alarm interface for two-way communication and alarm linkage
- IP67 weatherproof and IK10 vandal-proof design
- H.265+ compression technology for efficient storage
SPECIFICATION
| Category | Details |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s, slow shutter supported |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR |
| Day/Night | IR Cut Filter, Unified/Scheduled/Auto |
| Lens | Motorized varifocal 2.7–13.5 mm (5X Optical Zoom), F1.6, Φ14 |
| FOV | Horizontal: 29.6°–102°, Vertical: 16.8°–53.8°, Diagonal: 34.1°–122.8° |
| DORI Distance | Detect: 62–200 m (203–656 ft), Observe: 27–84 m (89–276 ft), Recognize: 13–40 m (43–131 ft), Identify: 7–21 m (23–69 ft) |
| Angle Adjustment | Pan: 0°–350°, Tilt: 0°–75°, Rotate: 0°–344° |
| IR Illuminator | 4 LEDs, 60 m (197 ft) range, 850 nm |
| Max Resolution | 2688 × 1520 |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| Frame Rate | Up to 30 fps (depends on stream/resolution) |
| Video Bit Rate | Main Stream: 256 Kbps–6 Mbps; Sub-Stream: 64 Kbps–1024 Kbps |
| Video Enhancement | BLC, 3D DNR, HLC, SmartIR, WDR 120 dB |
| Privacy Mask / ROI | Up to 4 masks, 1 region |
| Audio | Two-way audio, 8 kHz, 64 Kbps (G.711 alaw); 1 Audio In / 1 Audio Out; built-in microphone |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
| ONVIF / API | Yes, Profile S/T/G |
| Simultaneous Live View | 3 main streams & 3 sub-streams |
| Client Support | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Alarm & Event | Smart: Intrusion, Line Crossing, Region Enter/Exit, Object Abandoned/Removed, Loitering, People/Vehicle Detection, Abnormal Sound, Scene Change; Basic: Motion Detection (enhanced), Video Tampering, Illegal Login, Alarm Input; Alarm Linkage: memory card recording, push notifications, active defense sound alarm, email, FTP upload, alarm output, send to alarm server |
| Interfaces | 1× RJ45 10/100M PoE, DC power port, Reset button, 1 Alarm In / 1 Alarm Out |
| Storage | Built-in MicroSD slot up to 512 GB |
| Operating Temp / Humidity | -30–60 °C, ≤ 95% RH |
| Storage Temp / Humidity | -40–60 °C, ≤ 95% RH |
| Material | Metal |
| Weight | 0.775 kg |
| Power | 12V DC ±5%, Max 10.8 W; PoE 802.3af/at, Max 12 W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Dimensions | Φ129.9 × 102.5 mm (Φ5.1 × 4.0 in) |

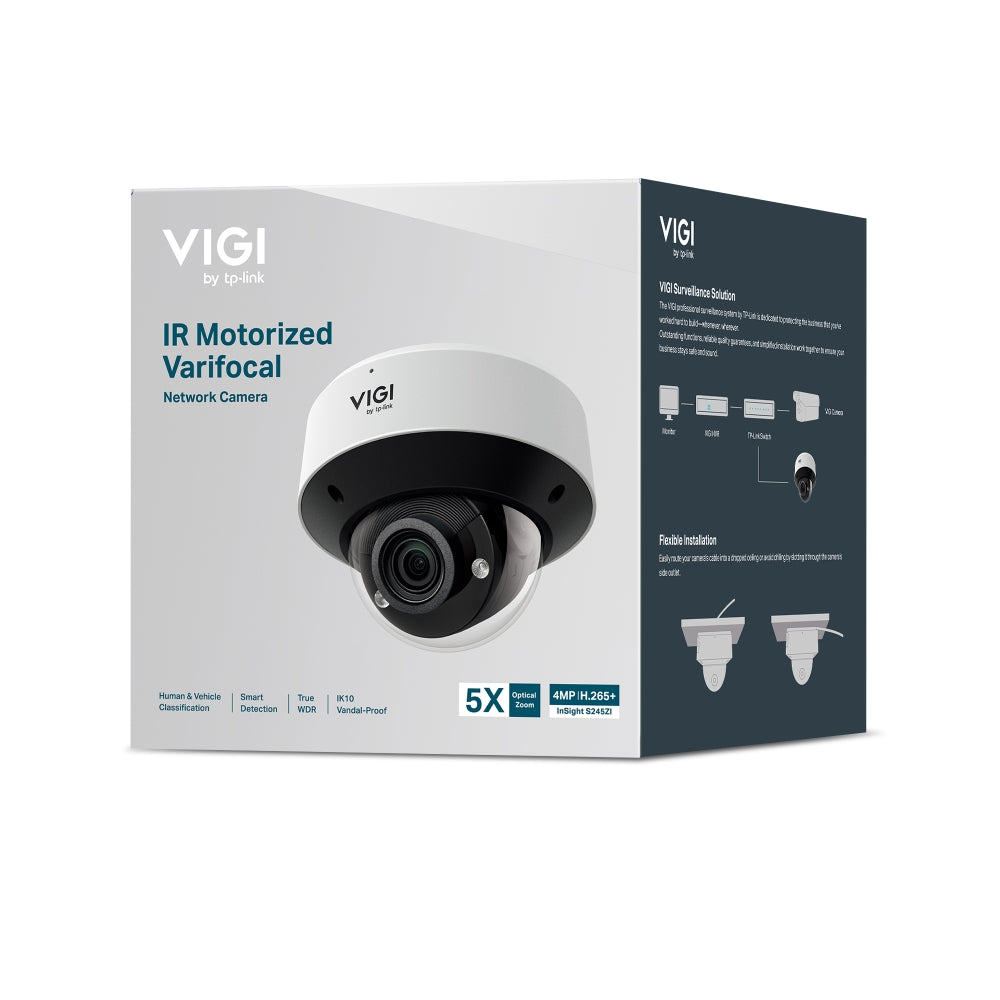

| Package Contents | Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10 |
Learn what makes this product unique and why it’s right for you.
The InSight S245ZI is a 4MP outdoor dome camera with a 5X optical zoom lens and IR range up to 60 meters (197 ft). It features human and vehicle classification, smart detection, two-way audio, and advanced video enhancement, all within a compact, weatherproof, and vandal-resistant dome housing.
FEATURES
- 5X Optical Zoom for flexible installation and monitoring
- 4MP Super HD resolution with IR night vision up to 60 m (197 ft)
- Human & vehicle classification for accurate alerts
- Smart detection and video enhancement technology
- Audio and alarm interface for two-way communication and alarm linkage
- IP67 weatherproof and IK10 vandal-proof design
- H.265+ compression technology for efficient storage
SPECIFICATION
| Category | Details |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s, slow shutter supported |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR |
| Day/Night | IR Cut Filter, Unified/Scheduled/Auto |
| Lens | Motorized varifocal 2.7–13.5 mm (5X Optical Zoom), F1.6, Φ14 |
| FOV | Horizontal: 29.6°–102°, Vertical: 16.8°–53.8°, Diagonal: 34.1°–122.8° |
| DORI Distance | Detect: 62–200 m (203–656 ft), Observe: 27–84 m (89–276 ft), Recognize: 13–40 m (43–131 ft), Identify: 7–21 m (23–69 ft) |
| Angle Adjustment | Pan: 0°–350°, Tilt: 0°–75°, Rotate: 0°–344° |
| IR Illuminator | 4 LEDs, 60 m (197 ft) range, 850 nm |
| Max Resolution | 2688 × 1520 |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| Frame Rate | Up to 30 fps (depends on stream/resolution) |
| Video Bit Rate | Main Stream: 256 Kbps–6 Mbps; Sub-Stream: 64 Kbps–1024 Kbps |
| Video Enhancement | BLC, 3D DNR, HLC, SmartIR, WDR 120 dB |
| Privacy Mask / ROI | Up to 4 masks, 1 region |
| Audio | Two-way audio, 8 kHz, 64 Kbps (G.711 alaw); 1 Audio In / 1 Audio Out; built-in microphone |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
| ONVIF / API | Yes, Profile S/T/G |
| Simultaneous Live View | 3 main streams & 3 sub-streams |
| Client Support | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Alarm & Event | Smart: Intrusion, Line Crossing, Region Enter/Exit, Object Abandoned/Removed, Loitering, People/Vehicle Detection, Abnormal Sound, Scene Change; Basic: Motion Detection (enhanced), Video Tampering, Illegal Login, Alarm Input; Alarm Linkage: memory card recording, push notifications, active defense sound alarm, email, FTP upload, alarm output, send to alarm server |
| Interfaces | 1× RJ45 10/100M PoE, DC power port, Reset button, 1 Alarm In / 1 Alarm Out |
| Storage | Built-in MicroSD slot up to 512 GB |
| Operating Temp / Humidity | -30–60 °C, ≤ 95% RH |
| Storage Temp / Humidity | -40–60 °C, ≤ 95% RH |
| Material | Metal |
| Weight | 0.775 kg |
| Power | 12V DC ±5%, Max 10.8 W; PoE 802.3af/at, Max 12 W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Dimensions | Φ129.9 × 102.5 mm (Φ5.1 × 4.0 in) |
| Package Contents | Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10 |
VIGI 4MP IR Motorized Varifocal Dome Network Camera
- Regular price
- $325.71
- Sale price
- $325.71
- Regular price
-
$329.00
Couldn't load pickup availability
