About
The VIGI NVR1004H-4P provides reliable, high-performance video recording for small surveillance setups. Equipped with four PoE+ ports, it simplifies installation by powering cameras directly through Ethernet connections. Supporting up to 8MP resolution and 4K HDMI output, it ensures crystal-clear video playback. With advanced H.265+ compression, remote monitoring, and two-way audio support, this NVR delivers smart, efficient, and versatile video management for professional security systems.
FEATURES
| Category | Details |
|---|---|
| 4-channel live view and 4K HDMI video output | Provides ultra-clear monitoring and playback for up to four channels simultaneously. |
| Four 10/100 Mbps PoE+ ports with a 53W PoE budget | Delivers both data and power over a single cable to each connected camera for simplified installation. |
| Supports up to 8MP resolution | Captures and records high-definition video for maximum clarity and detail. |
| H.265+ compression technology | Optimizes storage usage and reduces bandwidth consumption while maintaining quality. |
| 4-channel synchronous playback | Allows simultaneous playback of all camera feeds for efficient review of recorded footage. |
| Remote monitoring via VIGI app and VIGI Security Manager | Enables real-time access, control, and playback from mobile or desktop devices. |
| Two-way audio support | Facilitates communication between the NVR and connected cameras with built-in audio features. |
| ONVIF compliance | Ensures compatibility with a wide range of IP cameras and surveillance systems. |
SPECIFICATION
| Category | Details |
|---|---|
| IP Video Input | 4 channels |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | Up to 3840x2160 at 30Hz |
| VGA Output Resolution | Up to 1920x1080 at 60Hz |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711A/G.711U/G.726 |
| SATA Interface | 1, supporting up to 10TB HDD |
| USB Interface | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power Supply | 53.5V DC/1.31A |
| Dimensions (W x D x H) | 246.2 × 148.2 × 45 mm |
| Warranty | 1-Year Limited Warranty |
The VIGI NVR1004H-4P provides reliable, high-performance video recording for small surveillance setups. Equipped with four PoE+ ports, it simplifies installation by powering cameras directly through Ethernet connections. Supporting up to 8MP resolution and 4K HDMI output, it ensures crystal-clear video playback. With advanced H.265+ compression, remote monitoring, and two-way audio support, this NVR delivers smart, efficient, and versatile video management for professional security systems.
FEATURES
| Category | Details |
|---|---|
| 4-channel live view and 4K HDMI video output | Provides ultra-clear monitoring and playback for up to four channels simultaneously. |
| Four 10/100 Mbps PoE+ ports with a 53W PoE budget | Delivers both data and power over a single cable to each connected camera for simplified installation. |
| Supports up to 8MP resolution | Captures and records high-definition video for maximum clarity and detail. |
| H.265+ compression technology | Optimizes storage usage and reduces bandwidth consumption while maintaining quality. |
| 4-channel synchronous playback | Allows simultaneous playback of all camera feeds for efficient review of recorded footage. |
| Remote monitoring via VIGI app and VIGI Security Manager | Enables real-time access, control, and playback from mobile or desktop devices. |
| Two-way audio support | Facilitates communication between the NVR and connected cameras with built-in audio features. |
| ONVIF compliance | Ensures compatibility with a wide range of IP cameras and surveillance systems. |
SPECIFICATION
| Category | Details |
|---|---|
| IP Video Input | 4 channels |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | Up to 3840x2160 at 30Hz |
| VGA Output Resolution | Up to 1920x1080 at 60Hz |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711A/G.711U/G.726 |
| SATA Interface | 1, supporting up to 10TB HDD |
| USB Interface | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power Supply | 53.5V DC/1.31A |
| Dimensions (W x D x H) | 246.2 × 148.2 × 45 mm |
| Warranty | 1-Year Limited Warranty |

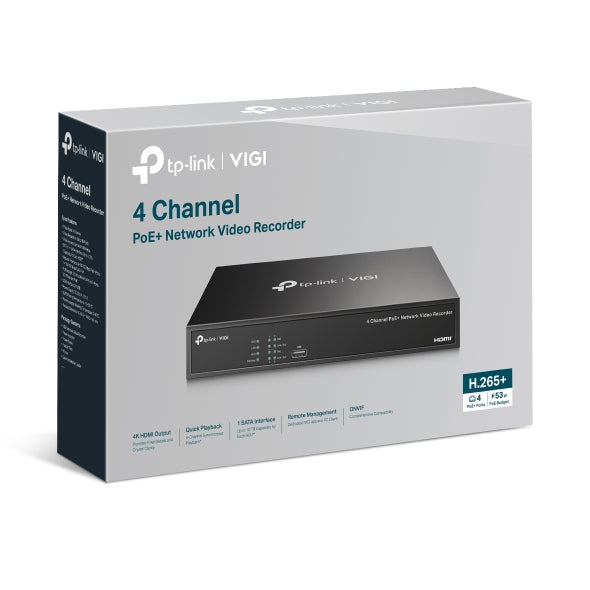

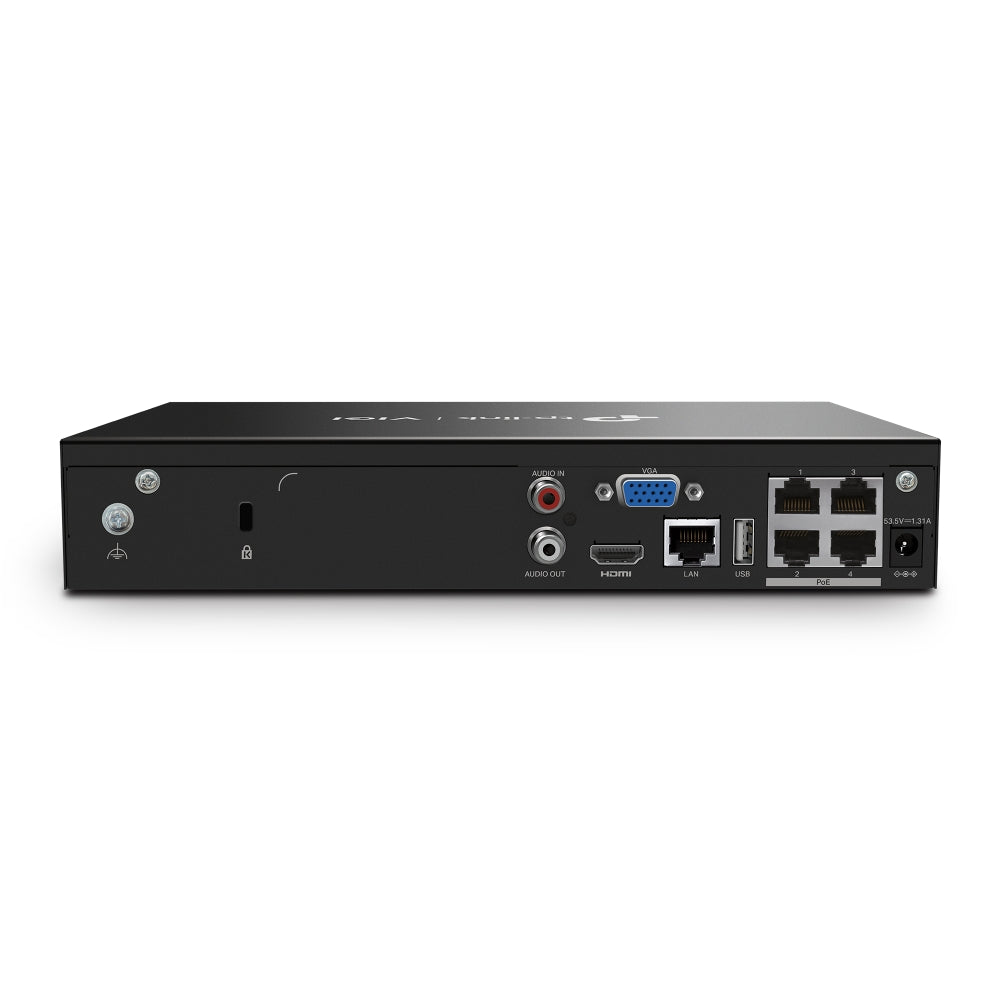

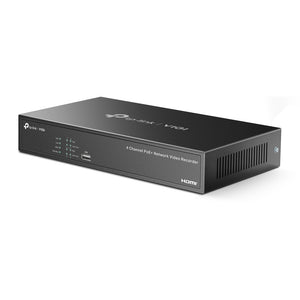

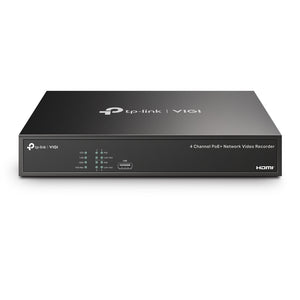

VIGI 4 Channel PoE+ Network Video Recorder
- Regular price
- $268.29
- Sale price
- $268.29
