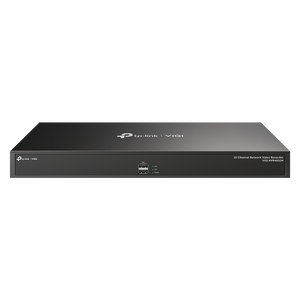

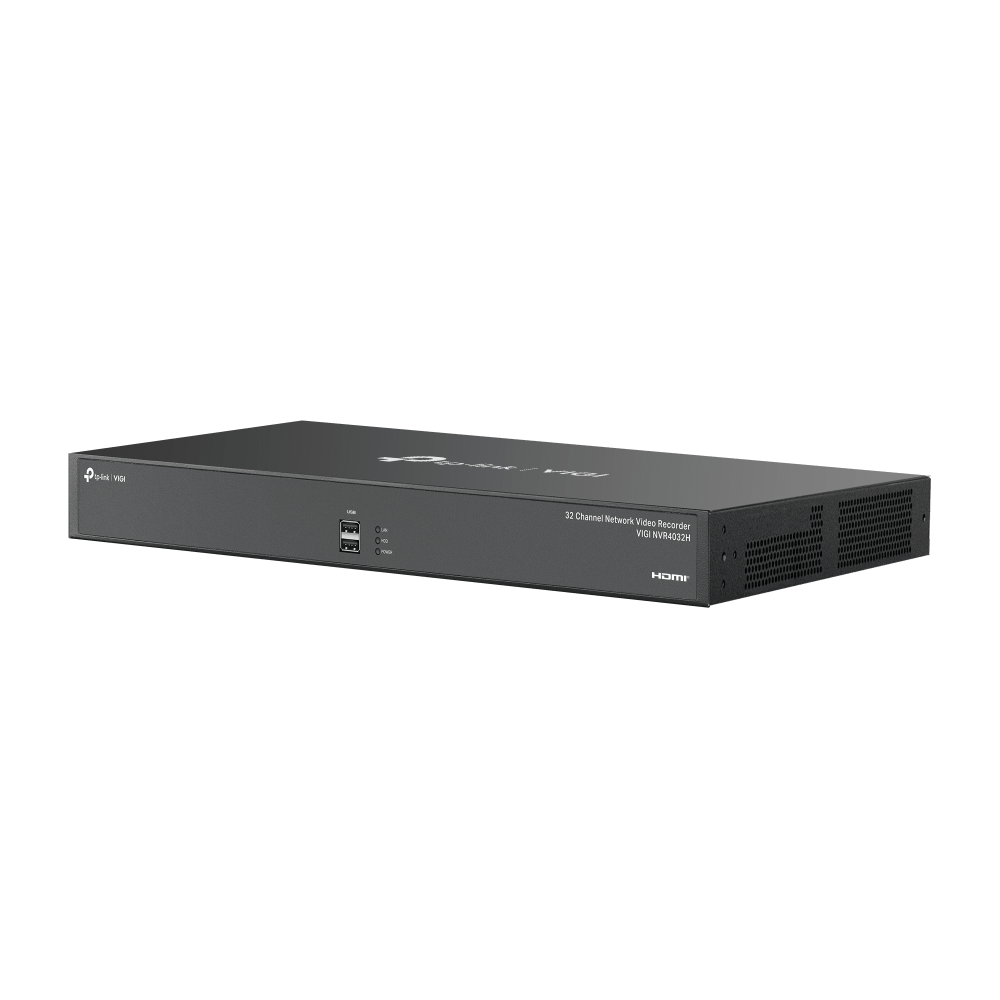

The VIGI NVR4032H is a 32-channel network video recorder with H.265+ compression, dual Ethernet ports, and extensive playback and recording capabilities. It supports independent HDMI/VGA output, mass storage, remote monitoring, and ONVIF interoperability for flexible and professional surveillance solutions.
FEATURES
- 32-channel live view with 16-ch@2MP / 8-ch@4MP decoding
- 1 HDMI and 1 VGA output supporting independent video output
- H.265+ compression to save bandwidth and disk space
- 320 Mbps incoming and outgoing bandwidth
- Mass storage: 4× SATA, up to 10 TB each
- 16-channel simultaneous playback
- Dual Ethernet ports: multi-address mode, network fault-tolerance, load balance
- Plug & Play setup for VIGI IP cameras
- Remote monitoring via VIGI app, web UI, and Security Manager
- Rack-mountable, ONVIF-compatible
SPECIFICATION
| Category | Details |
|---|---|
| IP Video Input | 32-Channel |
| Incoming/Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1,4,6,8,9,16,25,32,36 |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Live View / Playback | 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps) |
| Synchronous Playback | 16-Channel |
| Record Mode | Manual, Scheduled, Motion Detection |
| Playback Mode | Instant, Regular, Tag, Event |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Functions | Play, Pause, Stop, Fast Forward/Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |

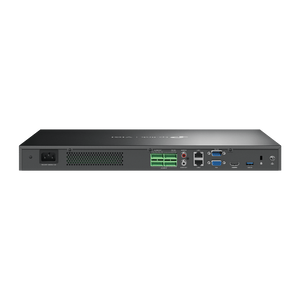

| Network Interface | 2× RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet |
| USB Interface | USB (Front/Rear unspecified) |
| Audio Interface | 1× Input, 1× Output |
| Alarm In/Out | 16/4 |
| Serial Interface | RS232 |
| SATA Interfaces | 4, Up to 10 TB per HDD |
| Alarm Functions | General: Motion Detection, Video Tampering, Intrusion, Line-Crossing Anomaly: Video Loss, Offline/IP Conflict, Disk/Login/Fan Exception Alarm Linkage: Recording, White Light, Buzzer, Log, Audible Alarm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-condensing |
| Storage Humidity | 10%–90% RH, Non-condensing |
| Dimensions (W×D×H) | 440 × 330 × 44 mm |
| Weight | Net: 4.0 Kg, Gross: 5.2 Kg |
| Power Supply | 100–240 VAC, 50–60 Hz, 1.5 A |
| Max Power Consumption | 5 W (Without Disk), 48 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI |
