About

Learn what makes this product unique and why it’s right for you.

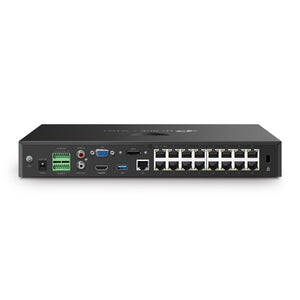

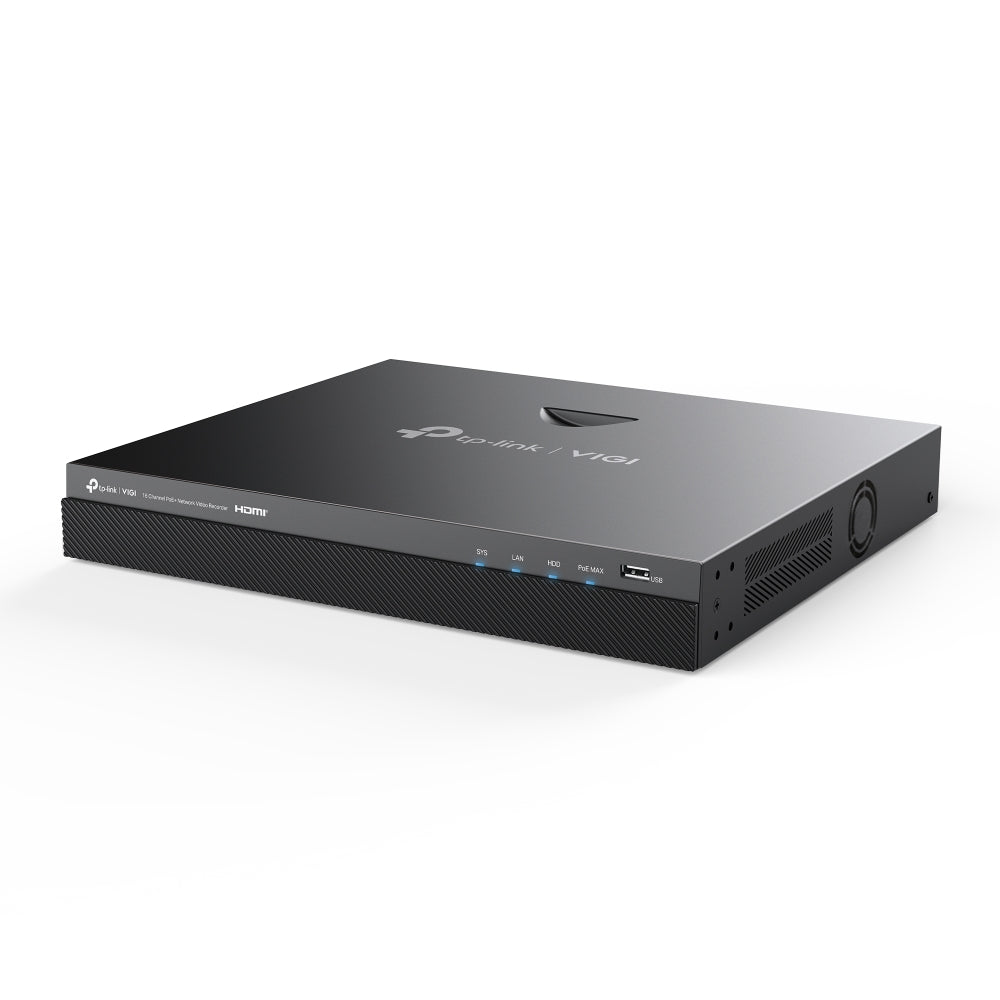

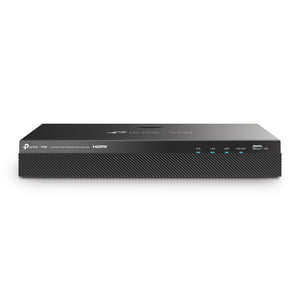

The TP-Link VIGI NVR2016H-16P is a professional-grade 16-channel PoE+ Network Video Recorder designed for scalable and high-quality surveillance. With support for up to 16 IP cameras, 4K HDMI output, and H.265+ compression, it ensures crystal-clear video playback and efficient storage utilization. Featuring a 90W PoE power budget, dual SATA drive support, and ONVIF compatibility, this NVR offers flexibility, reliability, and seamless integration. Remote access through the VIGI app and client software makes monitoring and management effortless, while two-way audio adds interactive security capabilities.





FEATURES

Category Details
4K HDMI Output Delivers ultra-clear video monitoring with high-resolution display support.
16-Channel Simultaneous Playback Allows comprehensive video review across multiple camera feeds at once.
H.265+ Compression Reduces storage and bandwidth requirements without sacrificing image quality.
Auto-Initialize Function Simplifies setup by automatically configuring connected IP cameras and storage drives.
Two-Way Audio Enables real-time communication and deterrence through supported audio interfaces.
Remote Access Monitor and manage your system via the VIGI app or desktop client from anywhere.





SPECIFICATION

Category Details
Video & Audio Supports up to 16 IP cameras
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolutions 3840x2160/30Hz, 1920x1080/60Hz, 1280x720/60Hz
VGA Output Resolutions 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz
Video Compression H.265+/H.265/H.264+/H.264
Storage 2 SATA interfaces, each supporting up to 10TB HDD
Power over Ethernet (PoE) 16 PoE+ ports (IEEE 802.3af/at), total PoE budget: 90W (30W max per port)
External Interfaces 1 x RJ-45 10/100/1000 Mbps Ethernet port, 2 x USB 2.0 ports (front & rear), Audio I/O for two-way audio, 1 x eSATA interface
Dimensions 330 × 285 × 45 mm
Power Supply 53.5V DC/2.43A
Warranty 1-Year Limited Warranty
Learn what makes this product unique and why it’s right for you.

The TP-Link VIGI NVR2016H-16P is a professional-grade 16-channel PoE+ Network Video Recorder designed for scalable and high-quality surveillance. With support for up to 16 IP cameras, 4K HDMI output, and H.265+ compression, it ensures crystal-clear video playback and efficient storage utilization. Featuring a 90W PoE power budget, dual SATA drive support, and ONVIF compatibility, this NVR offers flexibility, reliability, and seamless integration. Remote access through the VIGI app and client software makes monitoring and management effortless, while two-way audio adds interactive security capabilities.





FEATURES

Category Details
4K HDMI Output Delivers ultra-clear video monitoring with high-resolution display support.
16-Channel Simultaneous Playback Allows comprehensive video review across multiple camera feeds at once.
H.265+ Compression Reduces storage and bandwidth requirements without sacrificing image quality.
Auto-Initialize Function Simplifies setup by automatically configuring connected IP cameras and storage drives.
Two-Way Audio Enables real-time communication and deterrence through supported audio interfaces.
Remote Access Monitor and manage your system via the VIGI app or desktop client from anywhere.





SPECIFICATION

Category Details
Video & Audio Supports up to 16 IP cameras
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolutions 3840x2160/30Hz, 1920x1080/60Hz, 1280x720/60Hz
VGA Output Resolutions 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz
Video Compression H.265+/H.265/H.264+/H.264
Storage 2 SATA interfaces, each supporting up to 10TB HDD
Power over Ethernet (PoE) 16 PoE+ ports (IEEE 802.3af/at), total PoE budget: 90W (30W max per port)
External Interfaces 1 x RJ-45 10/100/1000 Mbps Ethernet port, 2 x USB 2.0 ports (front & rear), Audio I/O for two-way audio, 1 x eSATA interface
Dimensions 330 × 285 × 45 mm
Power Supply 53.5V DC/2.43A
Warranty 1-Year Limited Warranty

VIGI 16 Channel PoE+ Network Video Recorder

$424.21
$424.21
$429.00
