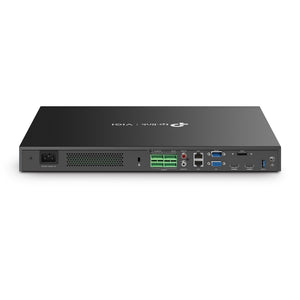

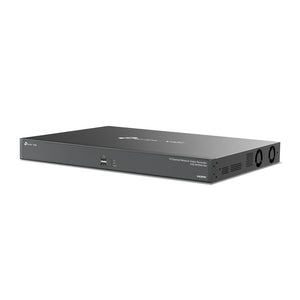

The VIGI NVR4016H is a 16-channel network video recorder with H.265+ compression, 4× SATA storage, dual HDMI/VGA output, and 16-channel synchronous playback. It supports remote monitoring, smart alarm functions, and ONVIF interoperability for flexible surveillance deployments.





FEATURES

  • 16-channel live view with 4K HDMI video output
  • Decoding: Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080p (25fps)
  • 16-channel synchronous playback
  • 320 Mbps incoming and outgoing bandwidth
  • 4× SATA interfaces, up to 16 TB per HDD
  • H.265+ compression technology
  • HDMI and VGA independent output (HDMI2 and VGA cannot operate simultaneously)
  • Remote monitoring via Android/iOS and web browsers





SPECIFICATION

Category Details
IP Video Input 16-Channel
Incoming/Outgoing Bandwidth 320 Mbps
HDMI Output Resolution HDMI1: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
HDMI2: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI1/HDMI2 Independent, HDMI1/VGA Independent
Multi-View Display 1, 4, 6, 8, 9, 16
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/H.264+/H.264
Record Resolution 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback 16-Channel
Decoding Capability 25fps: 10-ch@3MP, 16-ch@1080p
30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP
Record Mode Manual, Scheduled, Motion Detection
Playback Mode Instant, Regular, Tag, Event
Backup Mode Regular Backup, Video Clip Backup
Playback Functions Play, Pause, Stop, Fast Forward/Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network Interface 2× RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
USB Interface 2× USB 2.0 (Front), 1× USB 3.0 (Rear)
Audio Interface 1× RCA Input, 1× RCA Output
Alarm In/Out 16/4
Serial Interface RS232
SATA Interfaces 4, Up to 16 TB per HDD
Alarm Functions General: Motion Detection, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removed, Vehicle, Human, Abnormal Sound, Smart Frame
Anomaly: Video Loss, Offline/IP Conflict, Disk/Login/Fan Exception
Alarm Linkage: Recording, White Light, Buzzer, Log, Audible Alarm
Operating Temperature -10°C to 55°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% RH, Non-condensing
Storage Humidity 10%–90% RH, Non-condensing
Dimensions (W×D×H) 440 × 330 × 44 mm
Weight Net: 4.0 Kg, Gross: 5.0 Kg
Power Supply 100–240 VAC, 50–60 Hz, 1.5 A
Max Power Consumption 5.5 W (Without Disk), 45 W (With Disk)
Certifications CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
