About

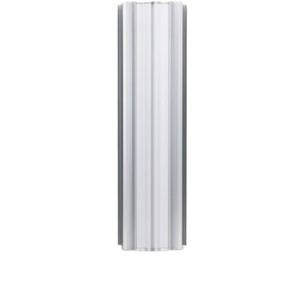

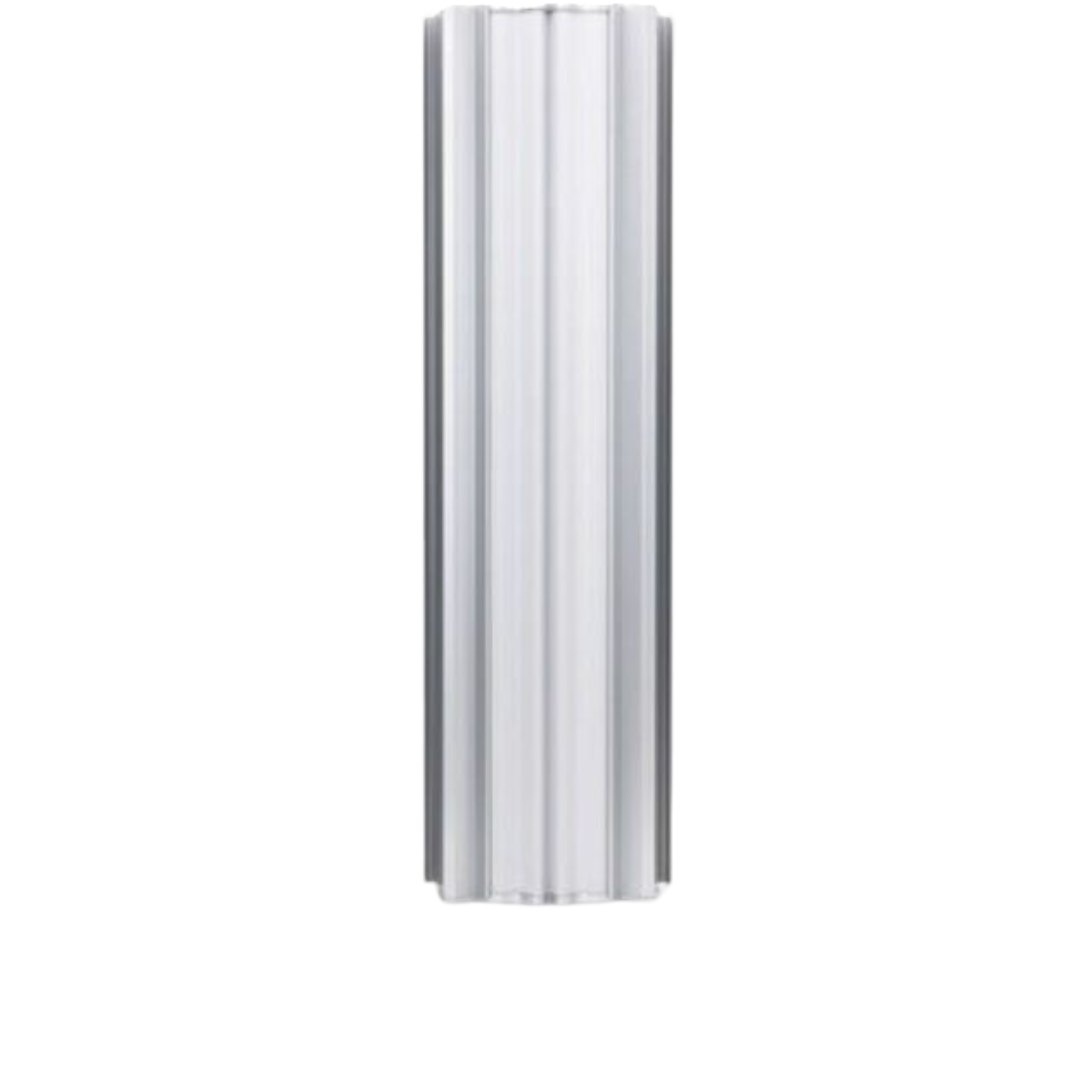

The airMAX AC 22 dBi 45° Sector Antenna (model AM‑5AC22‑45) is a high-performance, outdoor directional sector antenna built for point-to-multipoint (PtMP) deployments in the 5 GHz band. It is optimized for 802.11ac (airMAX AC) networks and is designed to work seamlessly with Ubiquiti Rocket or RocketM radios. With its 45° horizontal beamwidth and robust design, this antenna enables wide area coverage while maintaining high gain and strong interference rejection — suitable for ISP base stations, campus networks, and rural broadband deployments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | AM‑5AC22‑45 |
| Device Type | 5 GHz Sector Antenna |
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 22 dBi |
| Horizontal Beamwidth | 45° |
| Vertical Beamwidth | 45° |
| Electrical Downtilt | 2° |
| Polarization | Dual-Linear (2x2 MIMO) |
| Cross-Polarization Isolation | 30 dB minimum |
| VSWR | 1.5:1 maximum |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N @ 200 km/h |
| Dimensions | 750 x 215 x 94 mm |
| Weight | 6 kg |

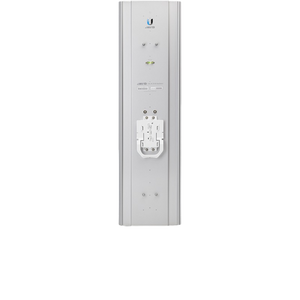

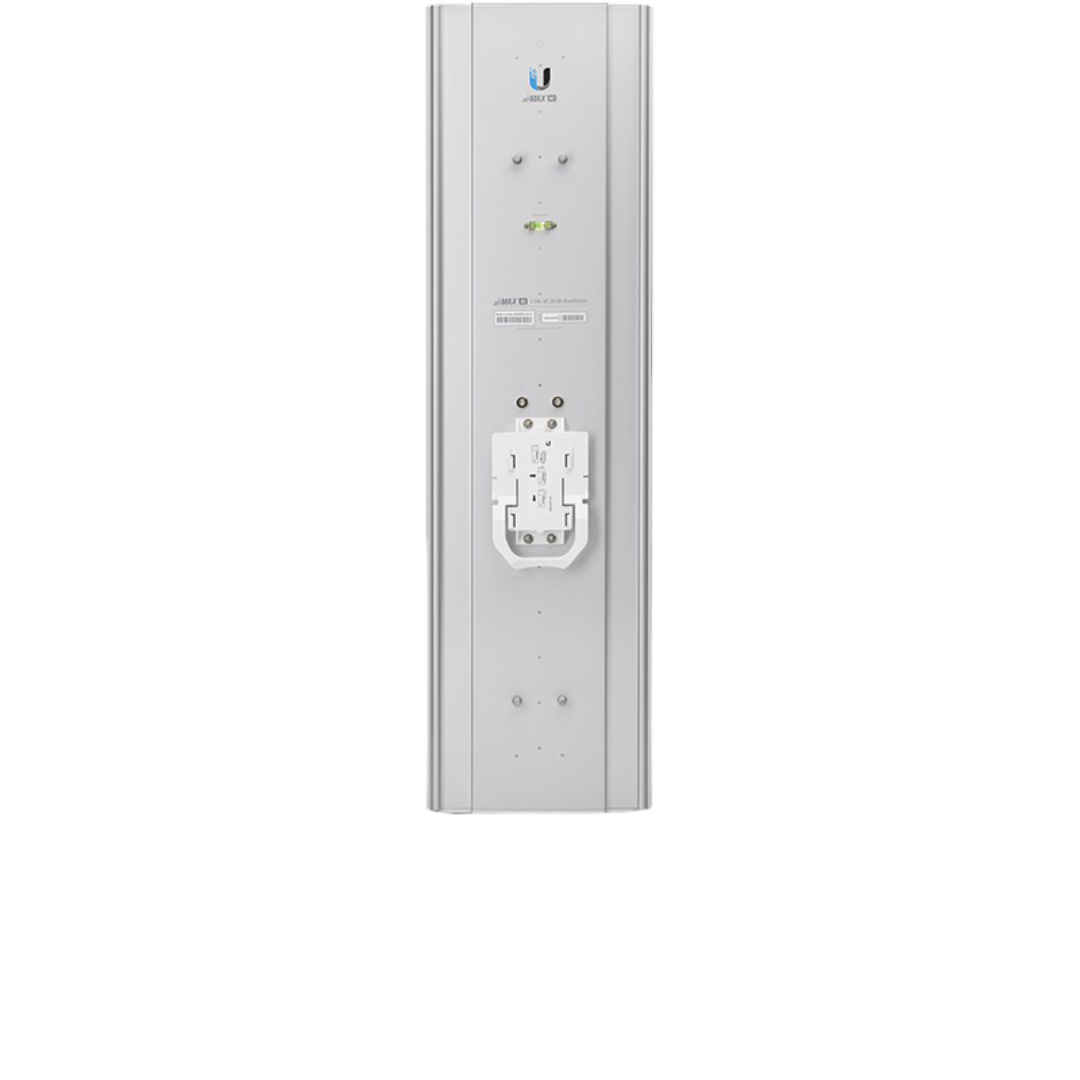

| Mounting | Universal Pole Mount (Included) |
| Compatibility | Rocket 5AC, RocketM5, airMAX Radios |
| Compliance | ETSI EN 302 326 DN2, NDAA Compliant |
The airMAX AC 22 dBi 45° Sector Antenna (model AM‑5AC22‑45) is a high-performance, outdoor directional sector antenna built for point-to-multipoint (PtMP) deployments in the 5 GHz band. It is optimized for 802.11ac (airMAX AC) networks and is designed to work seamlessly with Ubiquiti Rocket or RocketM radios. With its 45° horizontal beamwidth and robust design, this antenna enables wide area coverage while maintaining high gain and strong interference rejection — suitable for ISP base stations, campus networks, and rural broadband deployments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | AM‑5AC22‑45 |
| Device Type | 5 GHz Sector Antenna |
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 22 dBi |
| Horizontal Beamwidth | 45° |
| Vertical Beamwidth | 45° |
| Electrical Downtilt | 2° |
| Polarization | Dual-Linear (2x2 MIMO) |
| Cross-Polarization Isolation | 30 dB minimum |
| VSWR | 1.5:1 maximum |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N @ 200 km/h |
| Dimensions | 750 x 215 x 94 mm |
| Weight | 6 kg |
| Mounting | Universal Pole Mount (Included) |
| Compatibility | Rocket 5AC, RocketM5, airMAX Radios |
| Compliance | ETSI EN 302 326 DN2, NDAA Compliant |
Ubiquity airMAX 22dBi 5GHz Sector Antenna 45 degree - AC
- Regular price
- $300.00
- Sale price
- $300.00
- Regular price
-
$380.50
