The Ubiquiti UniFi nanoHD is a compact, high-performance wireless access point that leverages the power of 802.11ac Wave 2 MU-MIMO technology to deliver fast, reliable Wi-Fi connectivity. Designed for enterprise environments, it supports over 200 concurrent users and is easily managed through the UniFi Controller software, offering powerful tools like real-time monitoring, advanced security, and seamless scalability. Ideal for high-density networks, the nanoHD is perfect for offices, campuses, hotels, and other performance-critical environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | UniFi nanoHD (UAP-nanoHD) |
| Wi-Fi Standards | 802.11a/b/g/n/r/k/v/ac/ac-wave2 |
| MU-MIMO Support | 4x4 MU-MIMO (5GHz), 2x2 (2.4GHz) |
| Radio Rates | 2.4GHz: 300 Mbps 5GHz: 1733 Mbps |
| Antenna Gain | 2.4GHz: 2.8 dBi (x2) 5GHz: 3 dBi (x2 dual-polarity) |
| Max TX Power | 2.4GHz: 23 dBm 5GHz: 26 dBm |

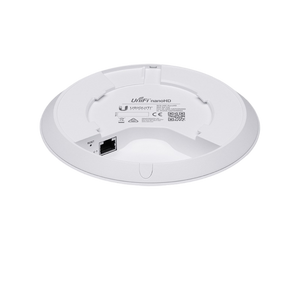

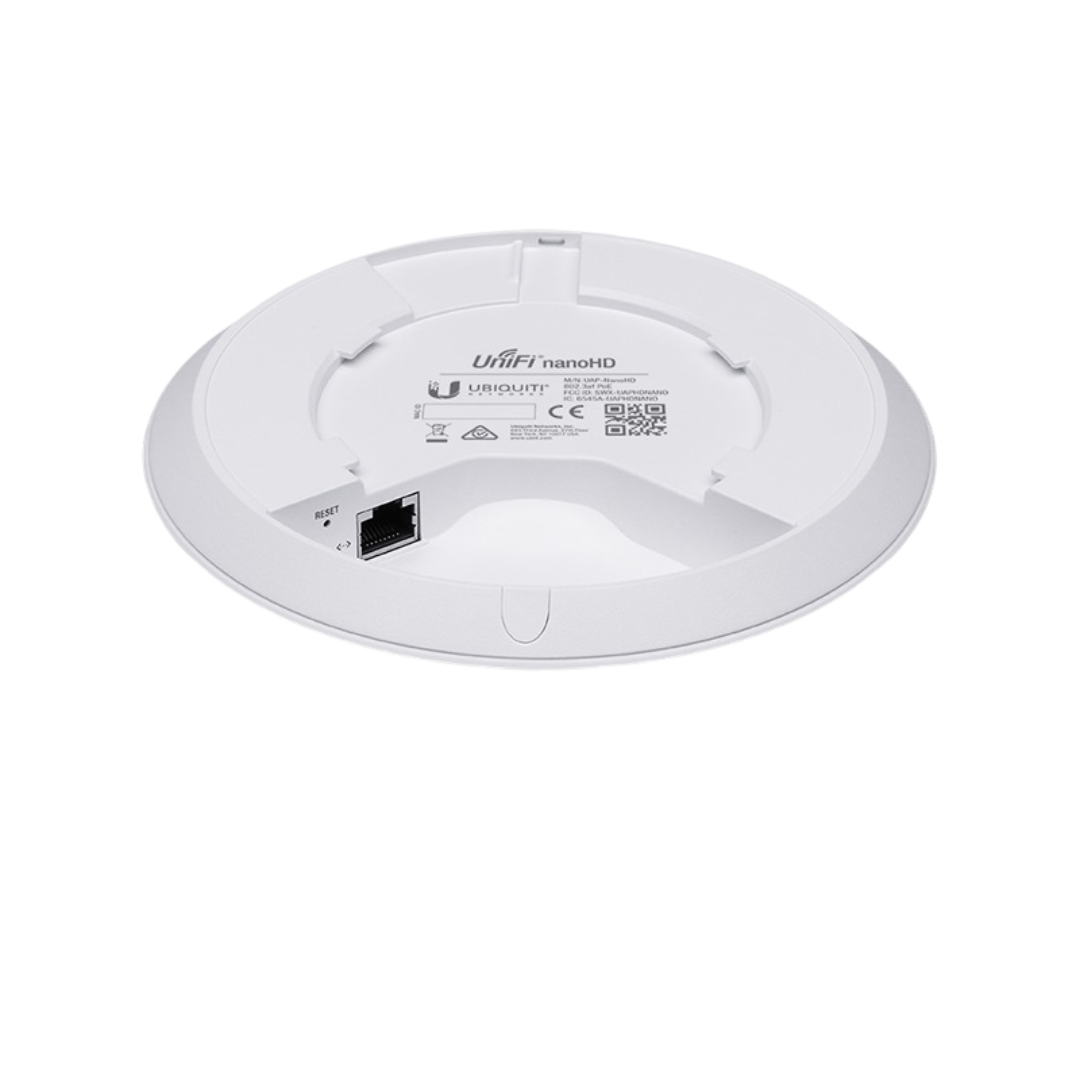

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Power Method | 802.3af PoE |
| Power Supply | 48V PoE (Not included) |
| Maximum Power Consumption | 10.5W |
| Voltage Range | 44 to 57VDC |
| BSSID Support | 4 per band (8 total) |
| Concurrent Clients | 200+ |
| Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| Traffic Management | VLAN (802.1Q), Guest Isolation, Per-User Rate Limiting, WMM QoS |
| Mounting Options | Wall / Ceiling (Mounting kits included) |
| Dimensions | 160 x 160 x 32.65 mm |
| Weight | 300g (Device Only), 315g (With Mount Kit) |
| Operating Temperature | -10°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
| Certifications | CE, FCC, IC, ACMA |
| Supported Data Rates |
802.11a: 6–54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6–54 Mbps 802.11n: 6.5 Mbps–300 Mbps (HT 20/40) 802.11ac: 6.5 Mbps–1.7 Gbps (VHT 20/40/80), up to 1.7 Gbps (MCS0–MCS9, NSS1–4) |
The Ubiquiti UniFi nanoHD is a compact, high-performance wireless access point that leverages the power of 802.11ac Wave 2 MU-MIMO technology to deliver fast, reliable Wi-Fi connectivity. Designed for enterprise environments, it supports over 200 concurrent users and is easily managed through the UniFi Controller software, offering powerful tools like real-time monitoring, advanced security, and seamless scalability. Ideal for high-density networks, the nanoHD is perfect for offices, campuses, hotels, and other performance-critical environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | UniFi nanoHD (UAP-nanoHD) |
| Wi-Fi Standards | 802.11a/b/g/n/r/k/v/ac/ac-wave2 |
| MU-MIMO Support | 4x4 MU-MIMO (5GHz), 2x2 (2.4GHz) |
| Radio Rates | 2.4GHz: 300 Mbps 5GHz: 1733 Mbps |
| Antenna Gain | 2.4GHz: 2.8 dBi (x2) 5GHz: 3 dBi (x2 dual-polarity) |
| Max TX Power | 2.4GHz: 23 dBm 5GHz: 26 dBm |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Power Method | 802.3af PoE |
| Power Supply | 48V PoE (Not included) |
| Maximum Power Consumption | 10.5W |
| Voltage Range | 44 to 57VDC |
| BSSID Support | 4 per band (8 total) |
| Concurrent Clients | 200+ |
| Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| Traffic Management | VLAN (802.1Q), Guest Isolation, Per-User Rate Limiting, WMM QoS |
| Mounting Options | Wall / Ceiling (Mounting kits included) |
| Dimensions | 160 x 160 x 32.65 mm |
| Weight | 300g (Device Only), 315g (With Mount Kit) |
| Operating Temperature | -10°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
| Certifications | CE, FCC, IC, ACMA |
| Supported Data Rates |
802.11a: 6–54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6–54 Mbps 802.11n: 6.5 Mbps–300 Mbps (HT 20/40) 802.11ac: 6.5 Mbps–1.7 Gbps (VHT 20/40/80), up to 1.7 Gbps (MCS0–MCS9, NSS1–4) |

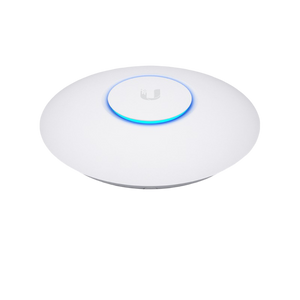

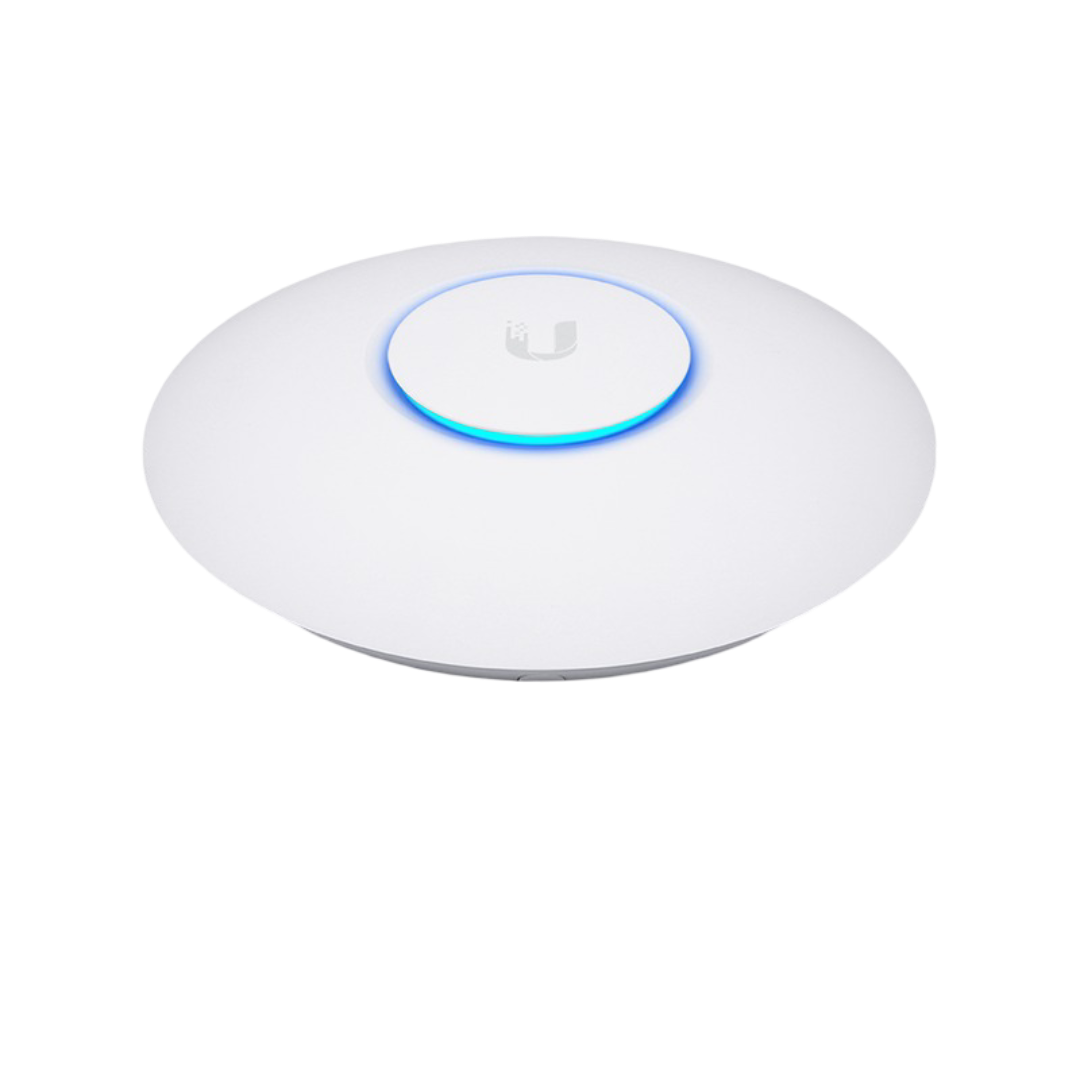

Ubiquiti UniFi Nano HD 4x4 MU-MIMO 802.11ac Wave 2 Access Point
- Regular price
- $314.00
- Sale price
- $314.00
- Regular price
-
$369.88
