The U6‑Pro is a dual‑band WiFi 6 (802.11ax) access point engineered for high client capacity environments, supporting over 300 concurrent users. It uses 4×4 MU‑MIMO on the 5 GHz band and 2×2 on the 2.4 GHz band to deliver high throughput. With internal antennas, IP54 protection, and PoE+ support, it is suitable for robust indoor deployments (and semi‑outdoor in sheltered locations). It is managed via the UniFi Network Controller/app, offering features like guest traffic isolation, VLAN, and advanced QoS.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | UniFi Access Point WiFi 6 Pro (U6‑Pro) |
| Wireless Standard / Protocols | 802.11ax (WiFi 6), 802.11a/b/g/n/ac, MU‑MIMO, OFDMA |
| Frequency Bands | 2.4 GHz & 5 GHz (simultaneous dual‑band) |
| Throughput / Aggregate Rate | Up to ~5.373 Gbps total (5 GHz ~4.8 Gbps + 2.4 GHz ~573 Mbps) |
| MIMO Configuration | 5 GHz: 4×4 MU‑MIMO / 2.4 GHz: 2×2 MU‑MIMO |
| Antenna Gain | 5 GHz: ~6 dBi / 2.4 GHz: ~4 dBi |
| Transmit Power (max) | ~26 dBm (5 GHz) / ~22 dBm (2.4 GHz) |
| Supported Clients | 300+ concurrent clients |
| Network / Ethernet Interface | 1 × Gigabit Ethernet (RJ‑45), PoE+ (802.3at) |
| Supported Voltage / PoE | 44 – 57 V DC (PoE+), approx. 13 W max consumption |
| Housing / Protection | Plastic enclosure, IP54 rated (dust & splash resistant) |
| Dimensions | Ø197 × 35 mm (7.8″ × 1.4″) |
| Weight | ~460 g (without mount) |
| Operating Temperature | −30 °C to +60 °C |
| Operating Humidity | 5% to 95% non‑condensing |
| Security & Encryption | WPA, WPA2, WPA3, WPA‑Enterprise / WPA3‑Enterprise, Guest Traffic Isolation |
| Mounting Options | Wall / Ceiling mounting kit included |
| Certifications | CE, FCC, IC |
The U6‑Pro is a dual‑band WiFi 6 (802.11ax) access point engineered for high client capacity environments, supporting over 300 concurrent users. It uses 4×4 MU‑MIMO on the 5 GHz band and 2×2 on the 2.4 GHz band to deliver high throughput. With internal antennas, IP54 protection, and PoE+ support, it is suitable for robust indoor deployments (and semi‑outdoor in sheltered locations). It is managed via the UniFi Network Controller/app, offering features like guest traffic isolation, VLAN, and advanced QoS.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | UniFi Access Point WiFi 6 Pro (U6‑Pro) |
| Wireless Standard / Protocols | 802.11ax (WiFi 6), 802.11a/b/g/n/ac, MU‑MIMO, OFDMA |
| Frequency Bands | 2.4 GHz & 5 GHz (simultaneous dual‑band) |
| Throughput / Aggregate Rate | Up to ~5.373 Gbps total (5 GHz ~4.8 Gbps + 2.4 GHz ~573 Mbps) |
| MIMO Configuration | 5 GHz: 4×4 MU‑MIMO / 2.4 GHz: 2×2 MU‑MIMO |
| Antenna Gain | 5 GHz: ~6 dBi / 2.4 GHz: ~4 dBi |
| Transmit Power (max) | ~26 dBm (5 GHz) / ~22 dBm (2.4 GHz) |
| Supported Clients | 300+ concurrent clients |
| Network / Ethernet Interface | 1 × Gigabit Ethernet (RJ‑45), PoE+ (802.3at) |
| Supported Voltage / PoE | 44 – 57 V DC (PoE+), approx. 13 W max consumption |
| Housing / Protection | Plastic enclosure, IP54 rated (dust & splash resistant) |
| Dimensions | Ø197 × 35 mm (7.8″ × 1.4″) |
| Weight | ~460 g (without mount) |
| Operating Temperature | −30 °C to +60 °C |
| Operating Humidity | 5% to 95% non‑condensing |
| Security & Encryption | WPA, WPA2, WPA3, WPA‑Enterprise / WPA3‑Enterprise, Guest Traffic Isolation |
| Mounting Options | Wall / Ceiling mounting kit included |
| Certifications | CE, FCC, IC |

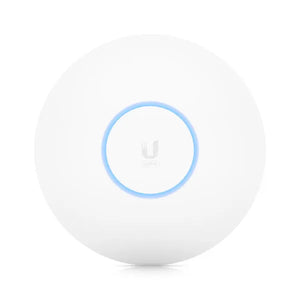

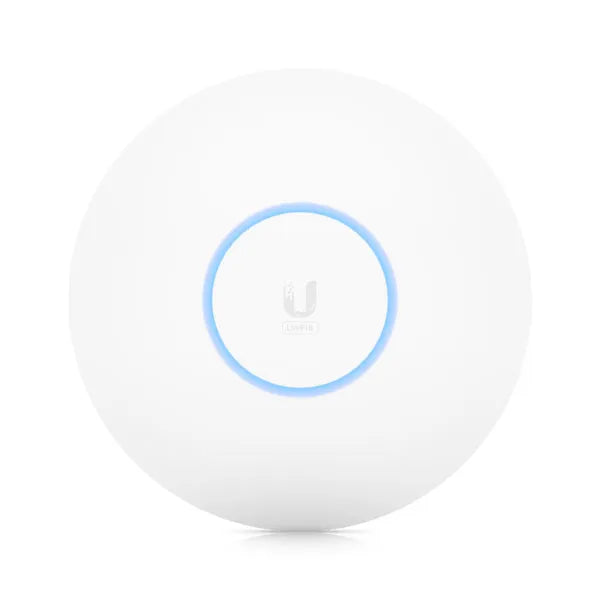

Ubiquiti UniFi Access Point WiFi 6 Pro (U6‑Pro)
- Regular price
- $349.00
- Sale price
- $349.00
- Regular price
-
$352.94
