About
The RocketDish 5G31 AC is a high‑performance directional parabolic dish antenna for point‑to‑point (PtP) wireless backhaul in the 5 GHz band. It integrates a built‑in Rocket mount, allowing you to snap compatible radios (e.g. Rocket5ac, RocketM5) directly into the dish without extra cabling, reducing loss and simplifying deployment. With a narrow beam, excellent front‑to‑back isolation, and robust mechanical design, it is ideal for long-range links and co‑location scenarios requiring strong interference rejection.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | RocketDish 5G31 AC (RD‑5G31‑AC) |
| Wireless / Technology | airMAX ac, dual‑linear polarization |
| Operating Frequency | 5.1 – 5.8 GHz |
| Antenna Gain | 31 dBi |
| Maximum VSWR | 1.4:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 1,028 N @ 200 km/h (≈231 lbf @ 125 mph) |
| Polarization | Dual linear |
| Cross‑Polarization Isolation | 35 dB (minimum) |
| Front‑to‑Back Ratio (F/B) | High / improved (for interference suppression) |
| ETSI / Standard | EN 302 326 DN2 |
| Dimensions | 748 × 748 × 349 mm (29.45″ × 29.45″ × 13.74″) |
| Weight (with mount) | 7.6 kg (16.76 lb) |
| Mounting / Included Hardware | Universal pole mount, RocketM bracket, weatherproof RF jumpers, radome & shroud |
The RocketDish 5G31 AC is a high‑performance directional parabolic dish antenna for point‑to‑point (PtP) wireless backhaul in the 5 GHz band. It integrates a built‑in Rocket mount, allowing you to snap compatible radios (e.g. Rocket5ac, RocketM5) directly into the dish without extra cabling, reducing loss and simplifying deployment. With a narrow beam, excellent front‑to‑back isolation, and robust mechanical design, it is ideal for long-range links and co‑location scenarios requiring strong interference rejection.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | RocketDish 5G31 AC (RD‑5G31‑AC) |
| Wireless / Technology | airMAX ac, dual‑linear polarization |
| Operating Frequency | 5.1 – 5.8 GHz |
| Antenna Gain | 31 dBi |
| Maximum VSWR | 1.4:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 1,028 N @ 200 km/h (≈231 lbf @ 125 mph) |
| Polarization | Dual linear |
| Cross‑Polarization Isolation | 35 dB (minimum) |
| Front‑to‑Back Ratio (F/B) | High / improved (for interference suppression) |
| ETSI / Standard | EN 302 326 DN2 |
| Dimensions | 748 × 748 × 349 mm (29.45″ × 29.45″ × 13.74″) |
| Weight (with mount) | 7.6 kg (16.76 lb) |
| Mounting / Included Hardware | Universal pole mount, RocketM bracket, weatherproof RF jumpers, radome & shroud |

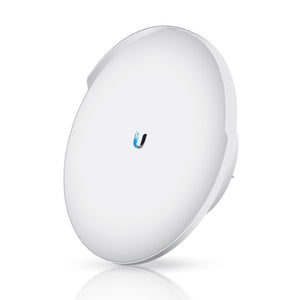

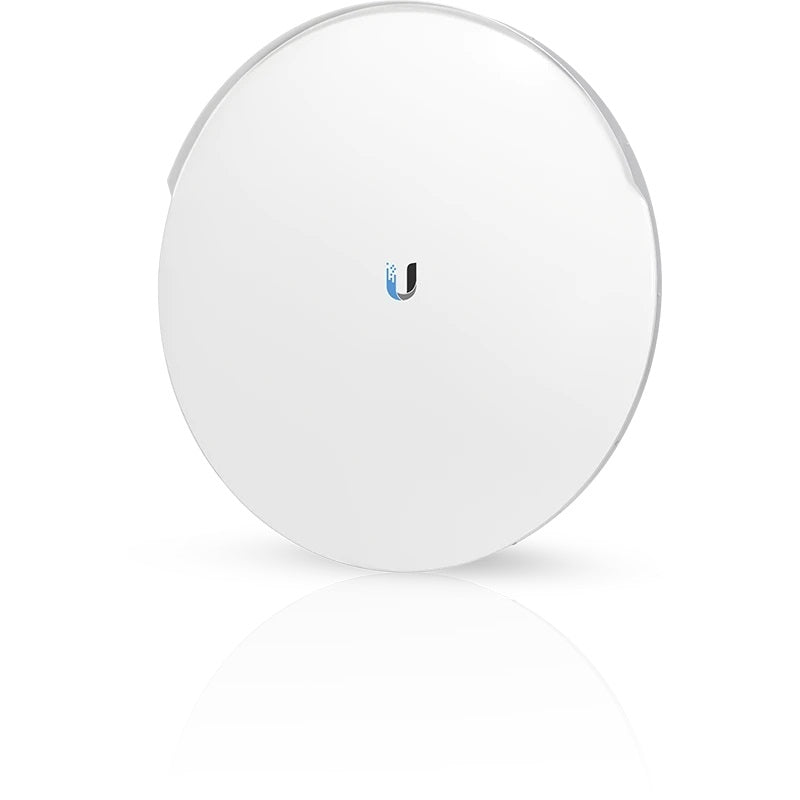

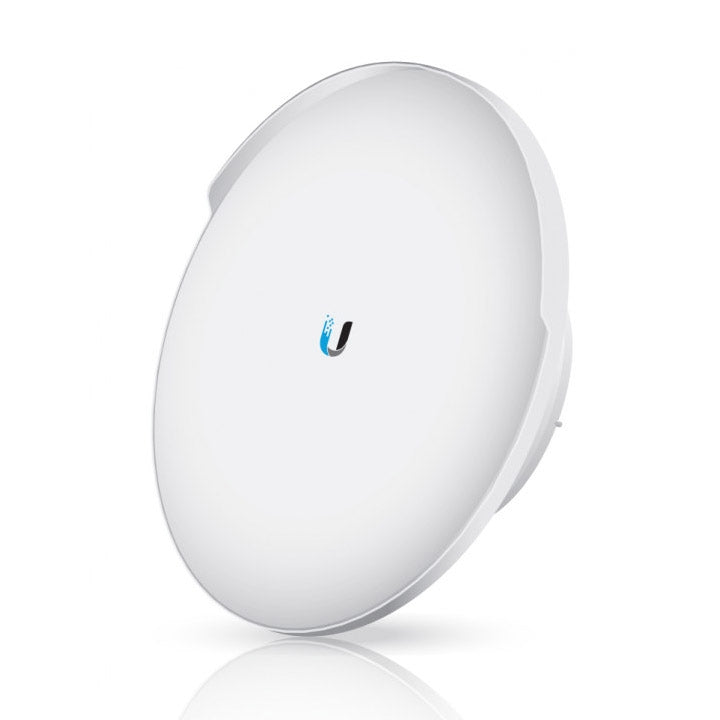

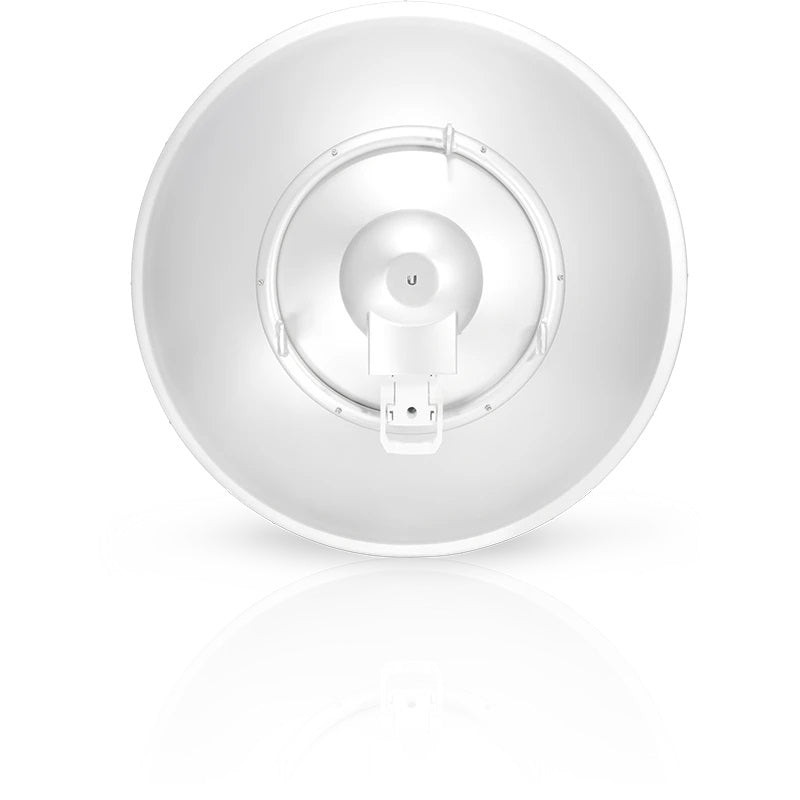

UBIQUITI RocketDish 5G31 AC (RD-5G31-AC)
- Regular price
- $614.75
- Sale price
- $614.75
- Regular price
-
$723.25
Couldn't load pickup availability
