About
The Ubiquiti NanoStation 5AC (NS-5AC) is a compact, high-performance CPE (Customer Premises Equipment) radio designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) applications. Operating in the 5 GHz frequency band and equipped with airMAX AC technology, it delivers powerful, low-latency wireless connectivity over long distances. The NS-5AC features a built-in 16 dBi dual-polarity antenna, dedicated management radio, and advanced RF filtering for cleaner signal in dense deployments. It is ideal for bridging networks or providing broadband wireless access to remote locations.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | NanoStation 5AC (NS-5AC) |
| Device Type | Outdoor Wireless Radio / CPE |
| Operating Frequency | 5 GHz (5150 – 5875 MHz, depending on country regulations) |
| Antenna Gain | 16 dBi |
| Antenna Beamwidth | 45° (Vertical and Horizontal) |
| Max Throughput | Up to 450+ Mbps |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 RAM, 8 MB Flash |

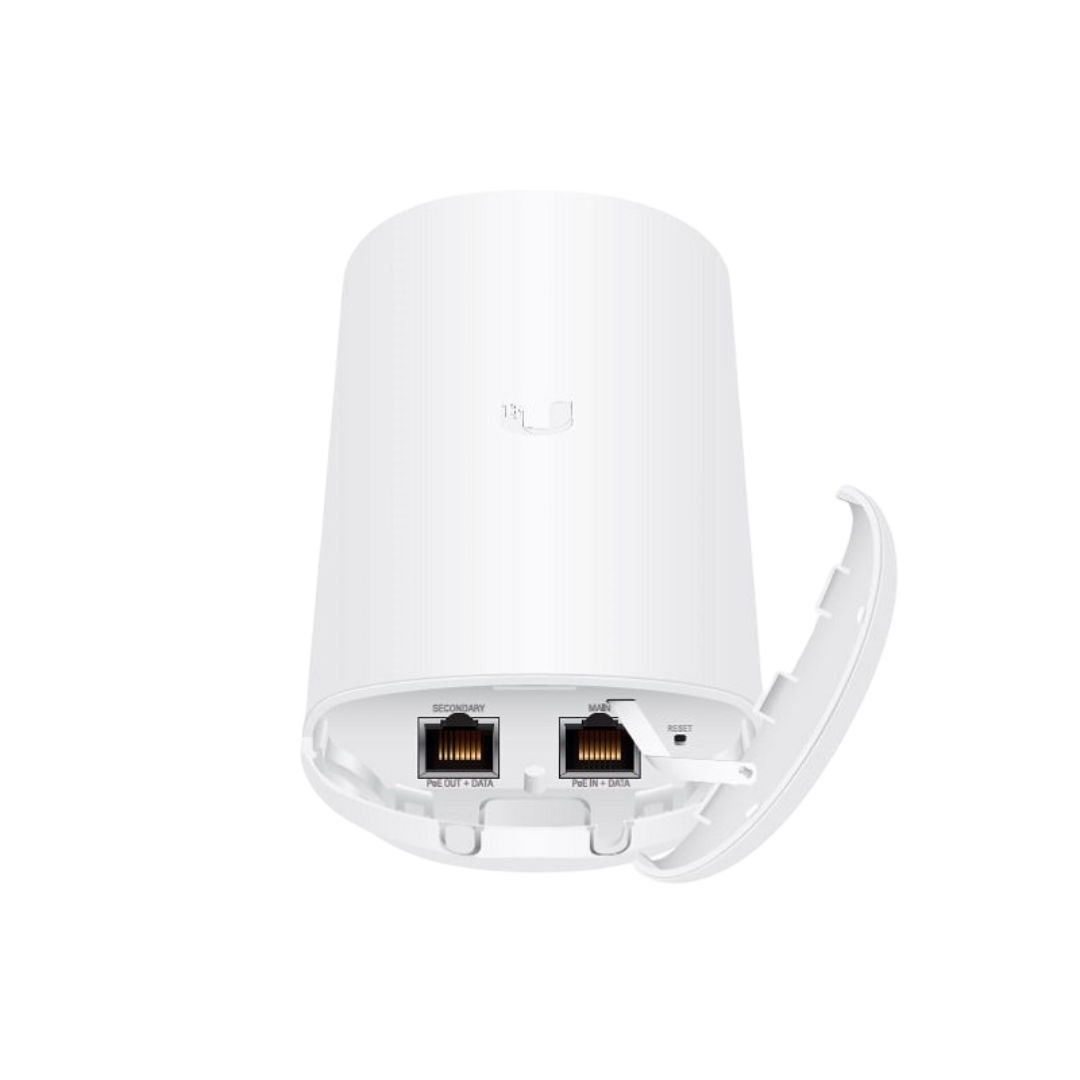

| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Secondary Ethernet | PoE Pass-through Support |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Consumption | 8.5W |
| Dimensions | 255.4 x 59.3 x 59.1 mm |
| Weight | 400 g |
| Enclosure | Outdoor UV-Stabilized Plastic |
| Mounting | Pole-Mount Kit Included |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
| Management Interface | Dedicated 2.4 GHz Wi-Fi Radio for Setup |
| Software | airOS 8, airView, airMAX AC |
| Wireless Security | WEP, WPA, WPA2 |
| Surge Protection | ±24kV ESD Protection |
| Certifications | CE, FCC, IC |
The Ubiquiti NanoStation 5AC (NS-5AC) is a compact, high-performance CPE (Customer Premises Equipment) radio designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) applications. Operating in the 5 GHz frequency band and equipped with airMAX AC technology, it delivers powerful, low-latency wireless connectivity over long distances. The NS-5AC features a built-in 16 dBi dual-polarity antenna, dedicated management radio, and advanced RF filtering for cleaner signal in dense deployments. It is ideal for bridging networks or providing broadband wireless access to remote locations.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | NanoStation 5AC (NS-5AC) |
| Device Type | Outdoor Wireless Radio / CPE |
| Operating Frequency | 5 GHz (5150 – 5875 MHz, depending on country regulations) |
| Antenna Gain | 16 dBi |
| Antenna Beamwidth | 45° (Vertical and Horizontal) |
| Max Throughput | Up to 450+ Mbps |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 RAM, 8 MB Flash |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Secondary Ethernet | PoE Pass-through Support |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Consumption | 8.5W |
| Dimensions | 255.4 x 59.3 x 59.1 mm |
| Weight | 400 g |
| Enclosure | Outdoor UV-Stabilized Plastic |
| Mounting | Pole-Mount Kit Included |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
| Management Interface | Dedicated 2.4 GHz Wi-Fi Radio for Setup |
| Software | airOS 8, airView, airMAX AC |
| Wireless Security | WEP, WPA, WPA2 |
| Surge Protection | ±24kV ESD Protection |
| Certifications | CE, FCC, IC |
