About
The Ubiquiti NanoBeam 5AC Gen 2 is a compact, high-performance CPE (Customer Premises Equipment) designed for point-to-point (PtP) or point-to-multipoint (PtMP) wireless bridging applications. Operating on the 5 GHz frequency band, it supports airMAX AC technology, delivering high throughput and low latency even in noisy environments. Its integrated radio and directional antenna design provides excellent beam directivity for improved link quality over long distances. The Gen 2 version adds enhanced surge protection, a dedicated Wi-Fi radio for management, and improved mounting hardware.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | NanoBeam 5AC Gen 2 (NBE-5AC-Gen2) |
| Device Type | Outdoor Wireless CPE / PtP / PtMP |
| Operating Frequency | 5 GHz (5150 – 5875 MHz, varies by country) |
| Antenna Gain | 19 dBi |
| Max Throughput | Up to 450+ Mbps (real TCP/IP throughput) |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 RAM, 8 MB Flash |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Consumption | 6.5W |
| Mounting | Pole-Mounting Kit Included |
| Dimensions | 189 x 189 x 125 mm |
| Weight | 530 g (with mount) |
| Enclosure | Outdoor UV-Stabilized Plastic |
| LED Indicators | Power, Ethernet, Signal Strength |
| Management Interface | Dedicated 2.4 GHz Wi-Fi Radio for Configuration |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
| Weatherproofing | Yes (Outdoor Rated) |
| ESD/Surge Protection | ±24kV Air/Contact |
| Software | airOS 8, airView, airMagic |
| Antenna Beamwidth | 55° (HPOL) / 55° (VPOL) |
| Certifications | FCC, IC, CE |
The Ubiquiti NanoBeam 5AC Gen 2 is a compact, high-performance CPE (Customer Premises Equipment) designed for point-to-point (PtP) or point-to-multipoint (PtMP) wireless bridging applications. Operating on the 5 GHz frequency band, it supports airMAX AC technology, delivering high throughput and low latency even in noisy environments. Its integrated radio and directional antenna design provides excellent beam directivity for improved link quality over long distances. The Gen 2 version adds enhanced surge protection, a dedicated Wi-Fi radio for management, and improved mounting hardware.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | NanoBeam 5AC Gen 2 (NBE-5AC-Gen2) |
| Device Type | Outdoor Wireless CPE / PtP / PtMP |
| Operating Frequency | 5 GHz (5150 – 5875 MHz, varies by country) |
| Antenna Gain | 19 dBi |
| Max Throughput | Up to 450+ Mbps (real TCP/IP throughput) |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 RAM, 8 MB Flash |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Consumption | 6.5W |
| Mounting | Pole-Mounting Kit Included |
| Dimensions | 189 x 189 x 125 mm |
| Weight | 530 g (with mount) |
| Enclosure | Outdoor UV-Stabilized Plastic |
| LED Indicators | Power, Ethernet, Signal Strength |
| Management Interface | Dedicated 2.4 GHz Wi-Fi Radio for Configuration |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
| Weatherproofing | Yes (Outdoor Rated) |
| ESD/Surge Protection | ±24kV Air/Contact |
| Software | airOS 8, airView, airMagic |
| Antenna Beamwidth | 55° (HPOL) / 55° (VPOL) |
| Certifications | FCC, IC, CE |

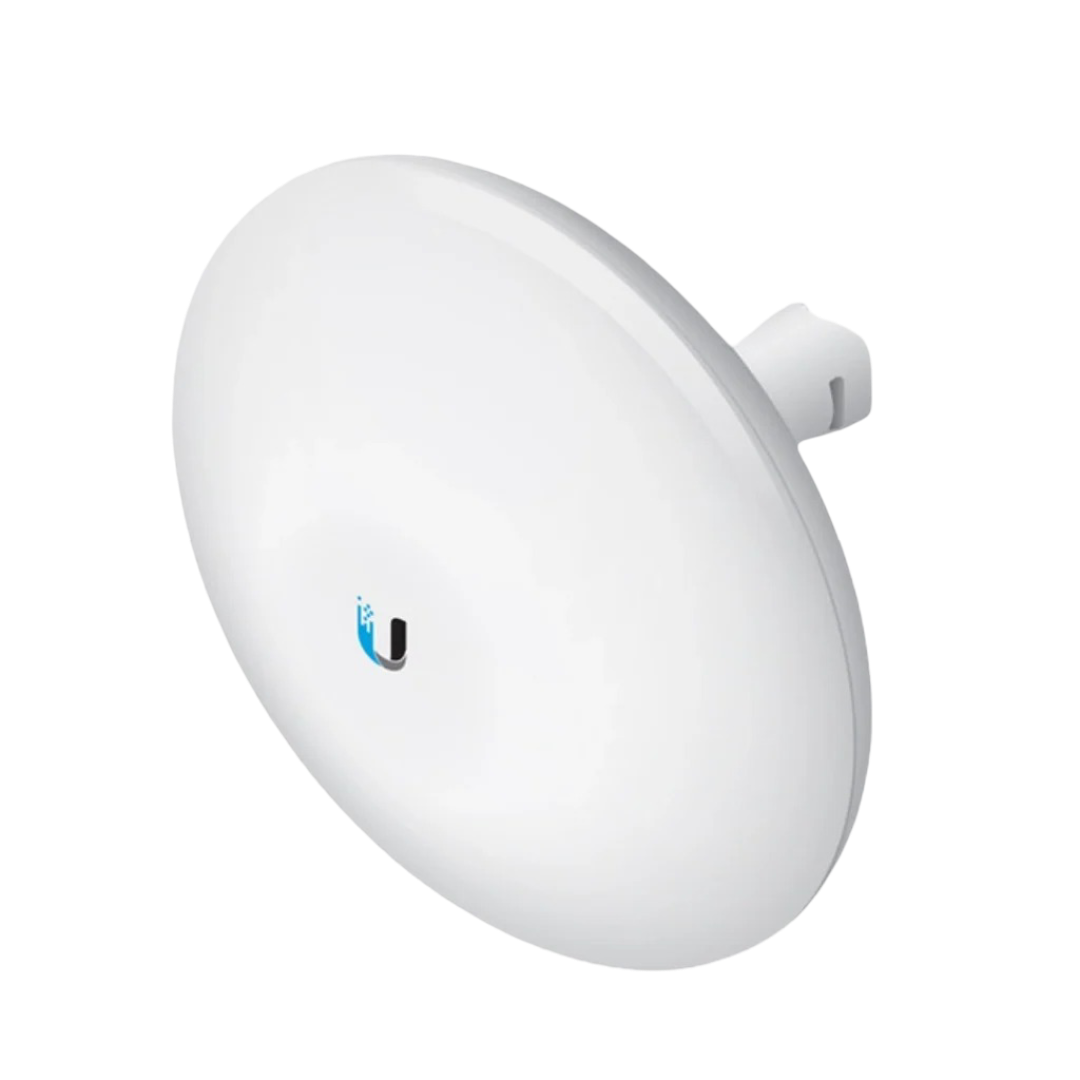

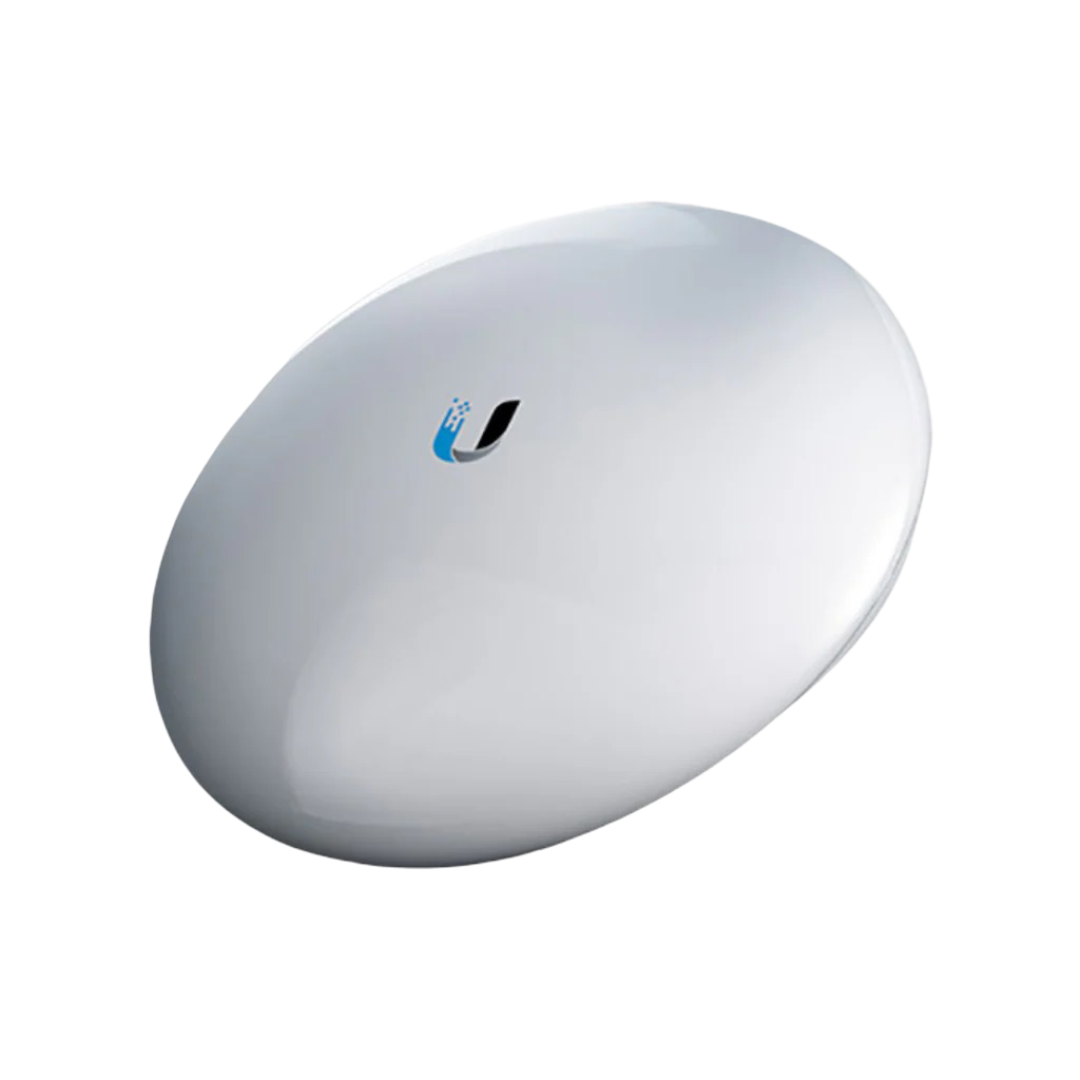

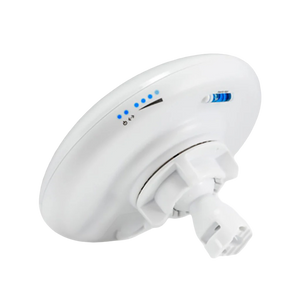

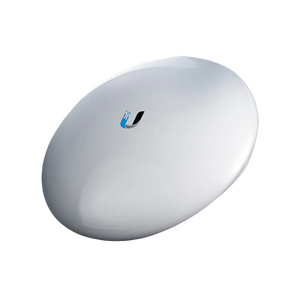

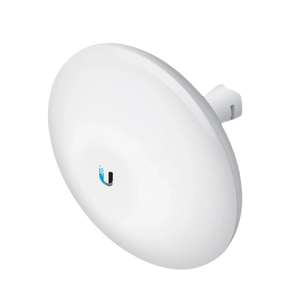

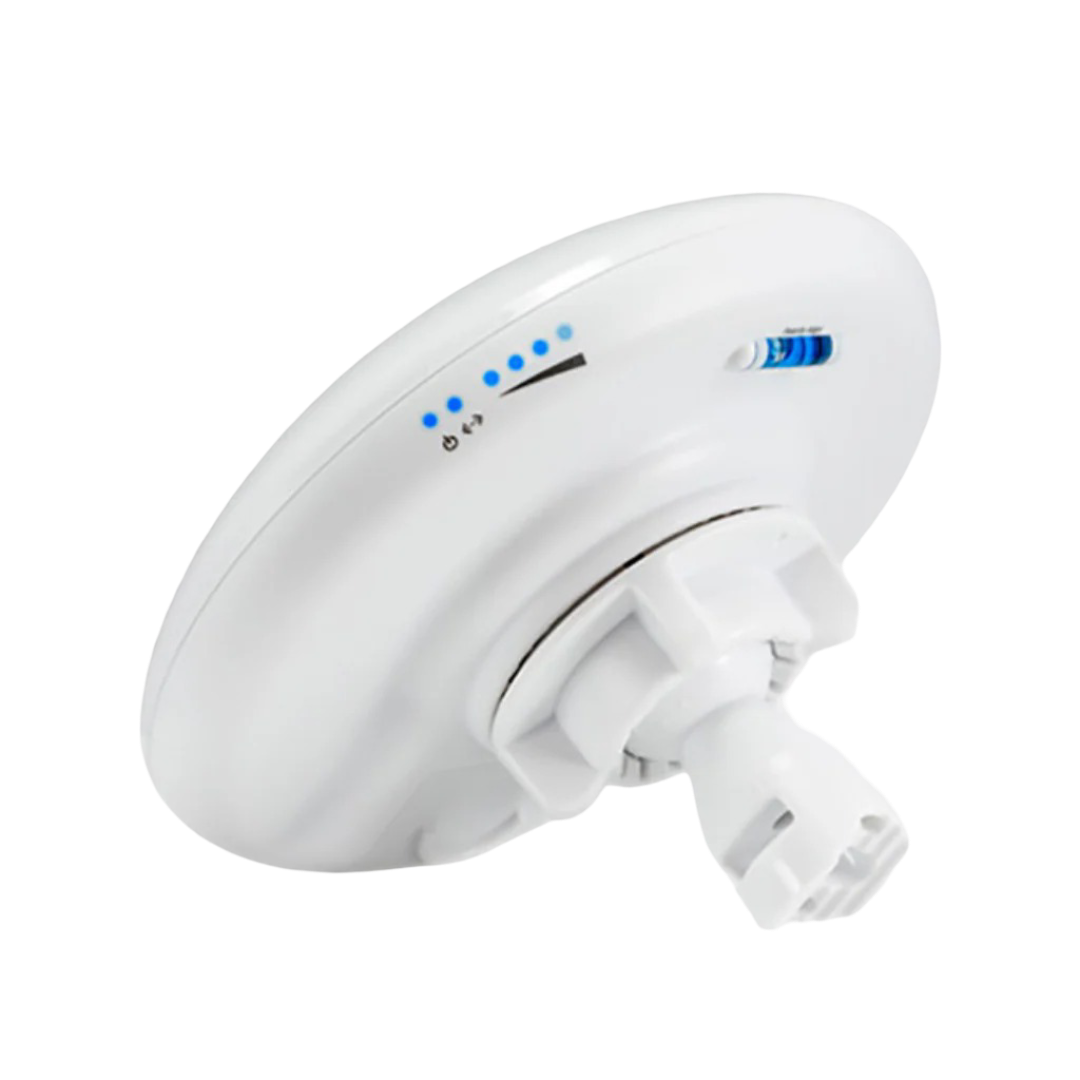

Ubiquiti NanoBeam 5AC Gen 2
- Regular price
- $178.00
- Sale price
- $178.00
- Regular price
-
$210.00
Couldn't load pickup availability
