About

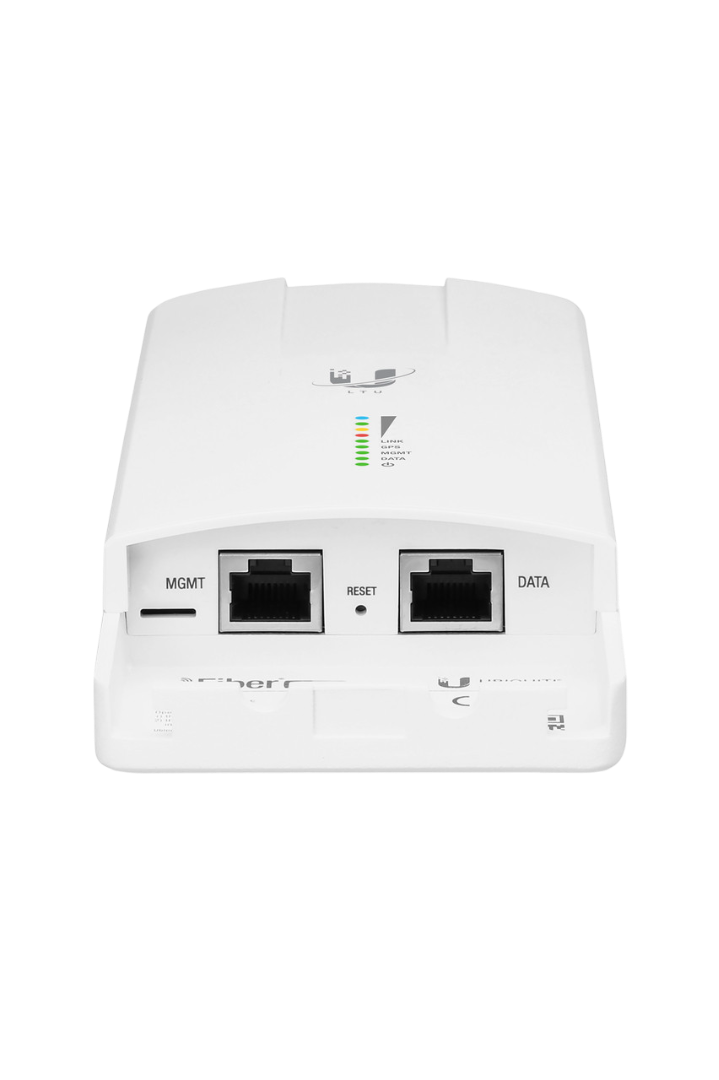

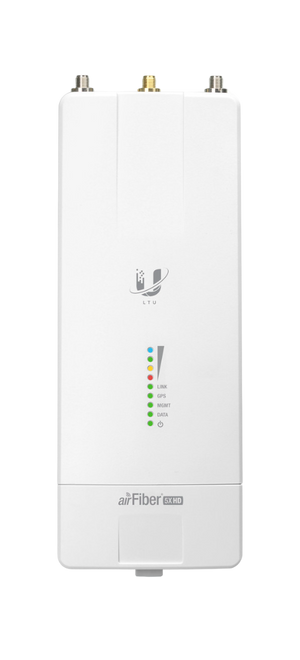

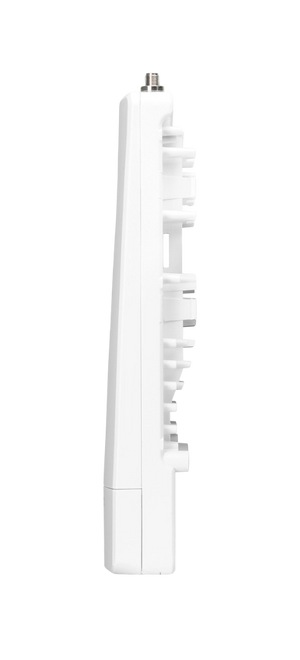

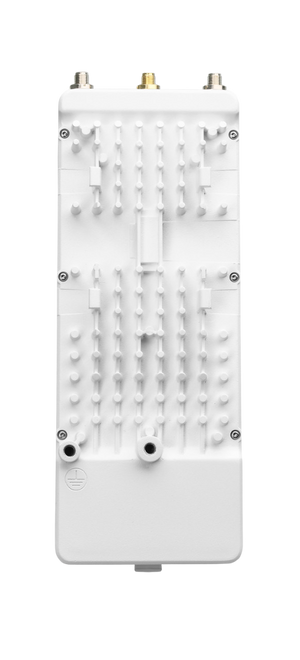

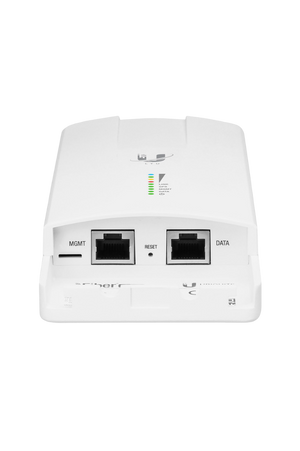

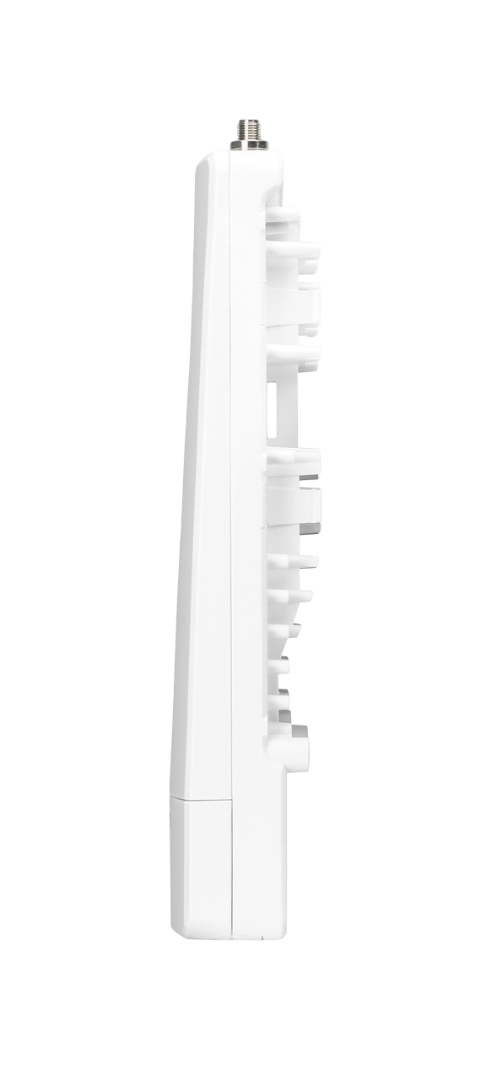

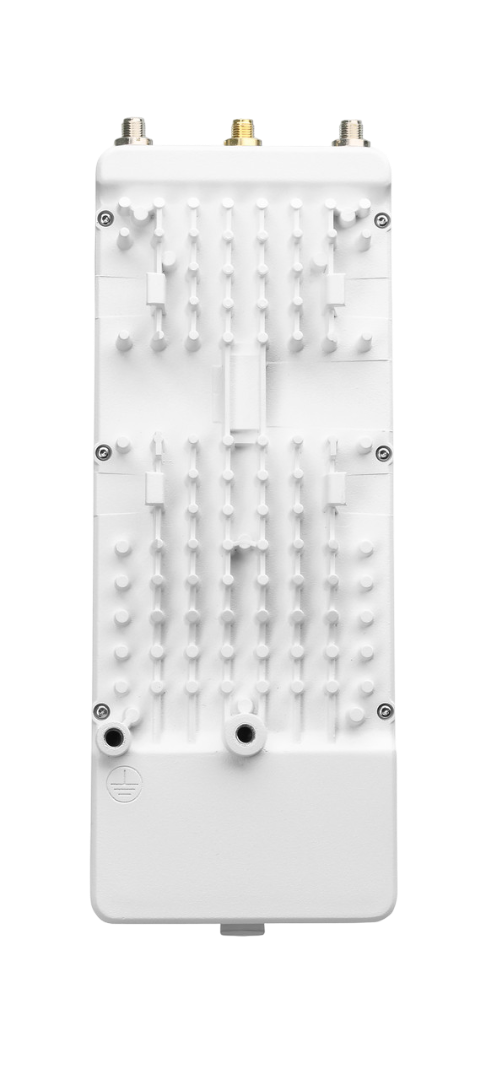

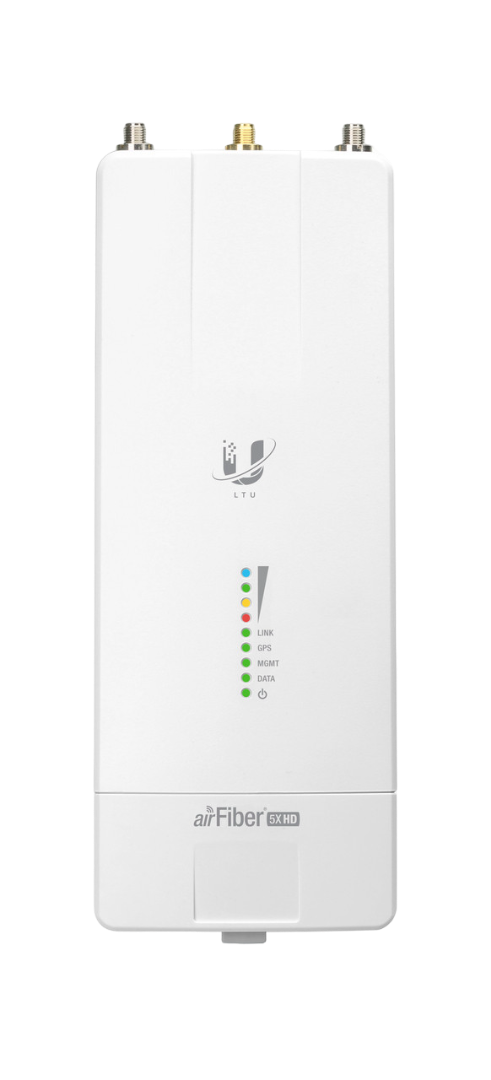

The Ubiquiti airFiber 5XHD is a high-performance, carrier-class 5 GHz Point-to-Point (PtP) radio, designed for long-distance wireless backhaul applications. With a throughput capacity of over 1 Gbps and a range exceeding 100 km, the AF-5XHD is built to deliver exceptional reliability and speed in demanding network environments. It supports GPS synchronization, programmable RF filtering, and is compatible with airFiber X antennas, offering incredible deployment flexibility. Ideal for ISPs and enterprise network backhauls requiring high throughput and low latency.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | airFiber 5XHD (AF-5XHD) |
| Device Type | Carrier-Class Point-to-Point Radio |
| Operating Frequency | 5 GHz (4.9 – 6.2 GHz, subject to country regulations) |
| Modulation | QPSK, 16QAM, 64QAM, 256QAM |
| Max Throughput | Over 1 Gbps (Aggregate) |
| Range | 100+ km (Line of Sight) |
| Channel Bandwidth | 10, 20, 30, 40, 50, 60, 80, 100 MHz |
| GPS Synchronization | Yes |
| Networking Interface | (1) 10/100/1000 Ethernet Port (1) Data + Power Port |
| Management Interface | Ethernet / airOS Web UI |
| Processor | Quad-Core ARM Cortex A7 |
| RAM | 256 MB DDR3 |
| Storage | 64 MB NAND |
| Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
| Power Consumption | ≤ 8.5W |
| Supported Voltage Range | 19 – 50VDC |
| LED Indicators | Power, Ethernet, GPS Sync, Radio Signal Strength |
| Mounting | Pole Mount (with airFiber X Antenna) |
| Dimensions | 224 x 82 x 48 mm |
| Weight | 0.35 kg (Without Mount) |
| Operating Temperature | -40°C to 55°C |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/Surge Protection | 24kV Contact / Air |
| Certifications | FCC, IC, CE |
| Antenna Compatibility | Compatible with all airFiber X Antennas |
The Ubiquiti airFiber 5XHD is a high-performance, carrier-class 5 GHz Point-to-Point (PtP) radio, designed for long-distance wireless backhaul applications. With a throughput capacity of over 1 Gbps and a range exceeding 100 km, the AF-5XHD is built to deliver exceptional reliability and speed in demanding network environments. It supports GPS synchronization, programmable RF filtering, and is compatible with airFiber X antennas, offering incredible deployment flexibility. Ideal for ISPs and enterprise network backhauls requiring high throughput and low latency.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | airFiber 5XHD (AF-5XHD) |
| Device Type | Carrier-Class Point-to-Point Radio |
| Operating Frequency | 5 GHz (4.9 – 6.2 GHz, subject to country regulations) |
| Modulation | QPSK, 16QAM, 64QAM, 256QAM |
| Max Throughput | Over 1 Gbps (Aggregate) |
| Range | 100+ km (Line of Sight) |
| Channel Bandwidth | 10, 20, 30, 40, 50, 60, 80, 100 MHz |
| GPS Synchronization | Yes |
| Networking Interface | (1) 10/100/1000 Ethernet Port (1) Data + Power Port |
| Management Interface | Ethernet / airOS Web UI |
| Processor | Quad-Core ARM Cortex A7 |
| RAM | 256 MB DDR3 |
| Storage | 64 MB NAND |
| Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
| Power Consumption | ≤ 8.5W |
| Supported Voltage Range | 19 – 50VDC |
| LED Indicators | Power, Ethernet, GPS Sync, Radio Signal Strength |
| Mounting | Pole Mount (with airFiber X Antenna) |
| Dimensions | 224 x 82 x 48 mm |
| Weight | 0.35 kg (Without Mount) |
| Operating Temperature | -40°C to 55°C |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/Surge Protection | 24kV Contact / Air |
| Certifications | FCC, IC, CE |
| Antenna Compatibility | Compatible with all airFiber X Antennas |
Ubiquiti airFiber 5XHD (5GHz, 1+Gbps, 100+km) Single Unit
- Regular price
- $773.00
- Sale price
- $773.00
- Regular price
-
$910.00
