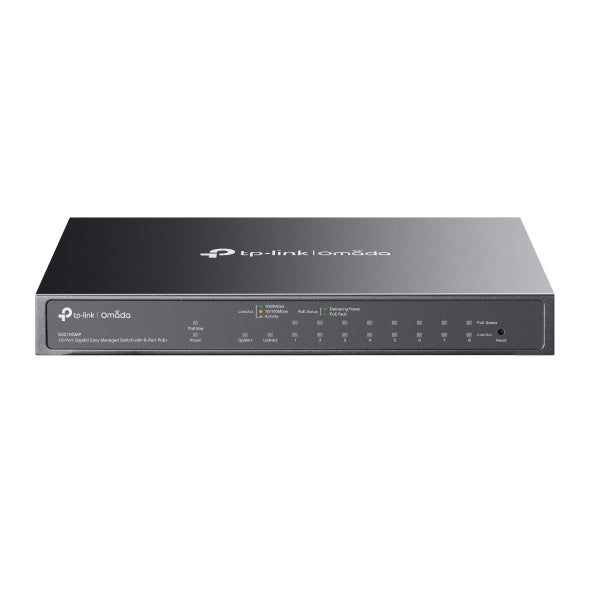

TTP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
• 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
• 123W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design
TECHNICAL SPECIFICATION
| Hardware Features | |
|---|---|
| Interface | 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at) 1× Gigabit RJ45 Port 1× Gigabit SFP/RJ45 Combo Port Auto-Negotiation / Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | Desktop / Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | DC Adapter (53.5V / 2.43A) |
| PoE Features | 8 PoE+ Ports 123W Total Budget 30W Max per Port Fast PoE & Perpetual PoE PoE Auto Recovery Up to 250m PoE Distance |
| Dimensions | 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in) |
| Surge Protection | ±6kV |
| Performance | |
|---|---|
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Quality of Service (QoS | |
|---|---|
| QoS Types | Port-based / 802.1p / DSCP |
| Priority Queues | 8 Queues |
| Scheduling | WRR (Weighted Round Robin) |
| Bandwidth Control | Port-Based Rate Limit |
| Storm Control | Broadcast / Multicast / Unknown Unicast |
| Layer 2 Features | |
|---|---|
| Link Aggregation | Static |
| Loop Prevention | Loopback Detection |
| Flow Control | 802.3x |
| Port Mirroring | One-to-One / Many-to-One / Ingress / Egress / Both |
| Monitoring | Port Statistics |
| LLDP | 802.1ab |
| Multicast | |
|---|---|
| IGMP Snooping | v1 / v2 / v3 |
| Fast Leave | Supported |
| VLAN | |
|---|---|
| VLAN Types | MTU VLAN / Port-Based / 802.1Q |
| Max VLAN Groups | 32 |
| VLAN ID | 4K VID |
| Management Features | |
|---|---|
| Omada App | Yes (Controller required) |
| Centralized Management | Cloud / Hardware / Software Controller |
| Cloud Access | Yes |
| Zero-Touch Provisioning | Yes (Cloud Controller required) |
| Interface | Web GUI |
| Tools | DHCP Client, Cable Diagnostics |
| Advanced | Auto Discovery, Batch Config, Batch Firmware Upgrade, Unified Config |
| Other Information | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | ES210GMP, Power Adapter, Installation Guide, Rubber Feet |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Storage Humidity | 5%–90% (non-condensing) |
TTP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
• 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
• 123W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design
TECHNICAL SPECIFICATION
| Hardware Features | |
|---|---|
| Interface | 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at) 1× Gigabit RJ45 Port 1× Gigabit SFP/RJ45 Combo Port Auto-Negotiation / Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | Desktop / Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | DC Adapter (53.5V / 2.43A) |
| PoE Features | 8 PoE+ Ports 123W Total Budget 30W Max per Port Fast PoE & Perpetual PoE PoE Auto Recovery Up to 250m PoE Distance |
| Dimensions | 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in) |
| Surge Protection | ±6kV |
| Performance | |
|---|---|
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Quality of Service (QoS | |
|---|---|
| QoS Types | Port-based / 802.1p / DSCP |
| Priority Queues | 8 Queues |
| Scheduling | WRR (Weighted Round Robin) |
| Bandwidth Control | Port-Based Rate Limit |
| Storm Control | Broadcast / Multicast / Unknown Unicast |
| Layer 2 Features | |
|---|---|
| Link Aggregation | Static |
| Loop Prevention | Loopback Detection |
| Flow Control | 802.3x |
| Port Mirroring | One-to-One / Many-to-One / Ingress / Egress / Both |
| Monitoring | Port Statistics |
| LLDP | 802.1ab |
| Multicast | |
|---|---|
| IGMP Snooping | v1 / v2 / v3 |
| Fast Leave | Supported |
| VLAN | |
|---|---|
| VLAN Types | MTU VLAN / Port-Based / 802.1Q |
| Max VLAN Groups | 32 |
| VLAN ID | 4K VID |
| Management Features | |
|---|---|
| Omada App | Yes (Controller required) |
| Centralized Management | Cloud / Hardware / Software Controller |
| Cloud Access | Yes |
| Zero-Touch Provisioning | Yes (Cloud Controller required) |
| Interface | Web GUI |
| Tools | DHCP Client, Cable Diagnostics |
| Advanced | Auto Discovery, Batch Config, Batch Firmware Upgrade, Unified Config |
| Other Information | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | ES210GMP, Power Adapter, Installation Guide, Rubber Feet |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Storage Humidity | 5%–90% (non-condensing) |
