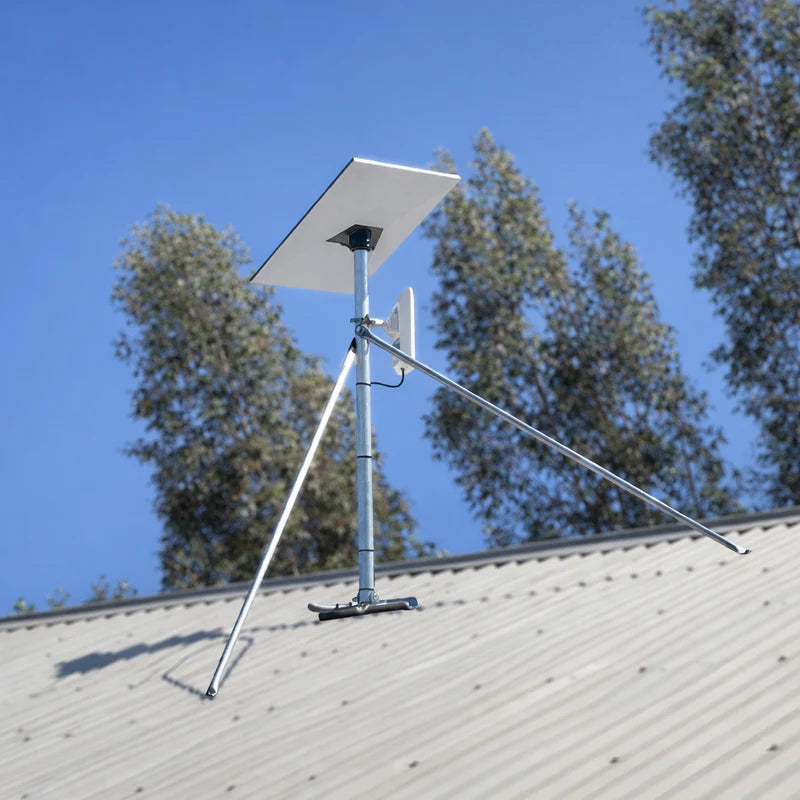

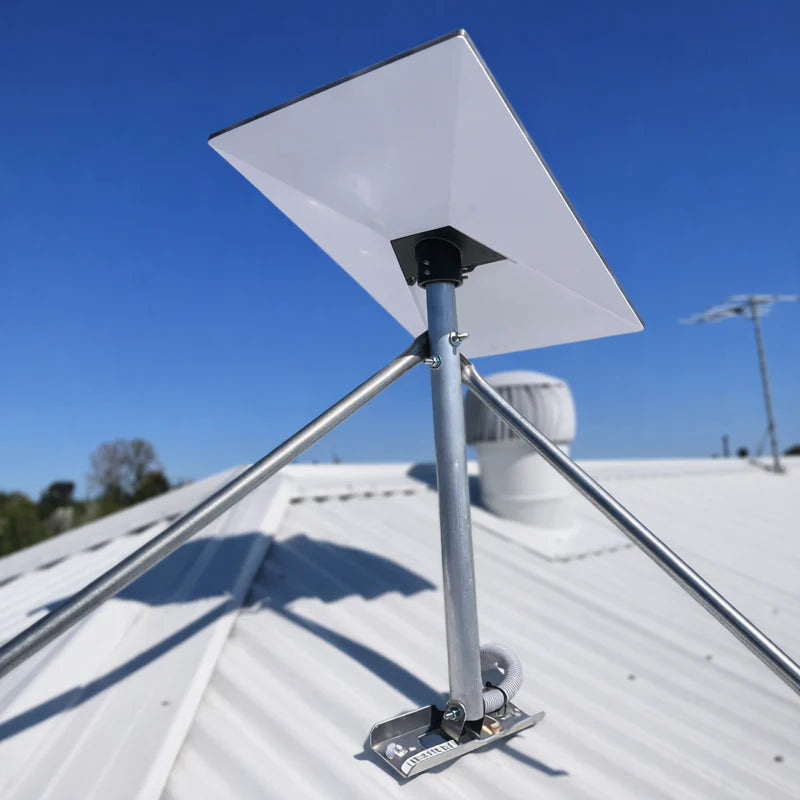

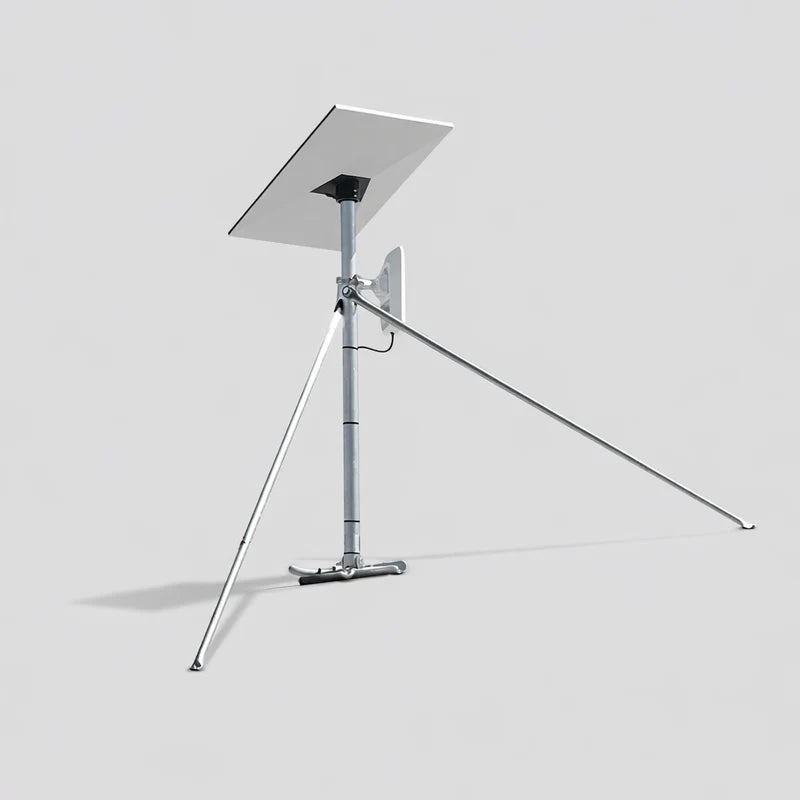

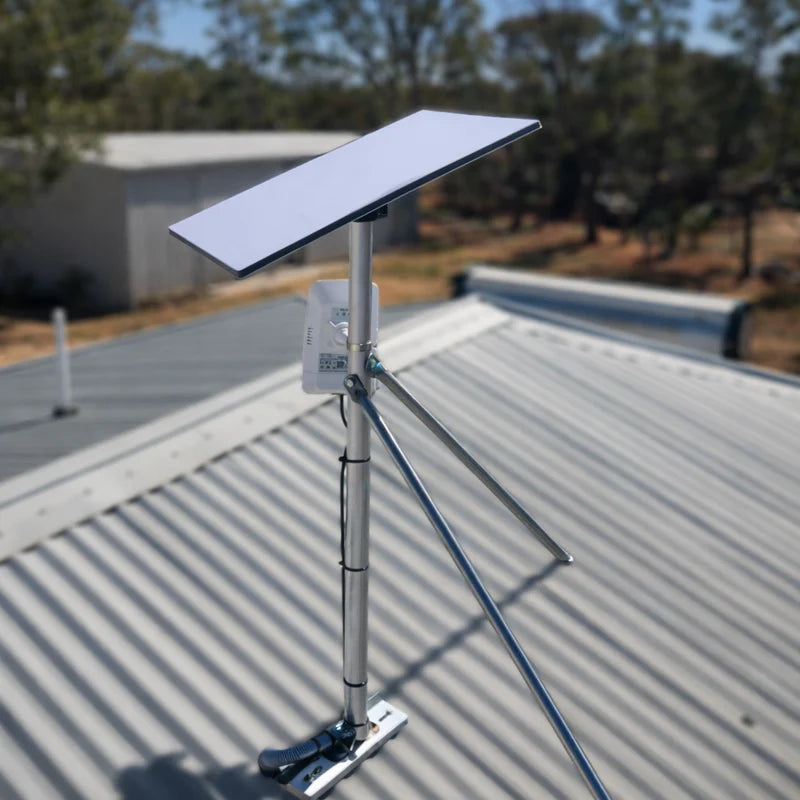

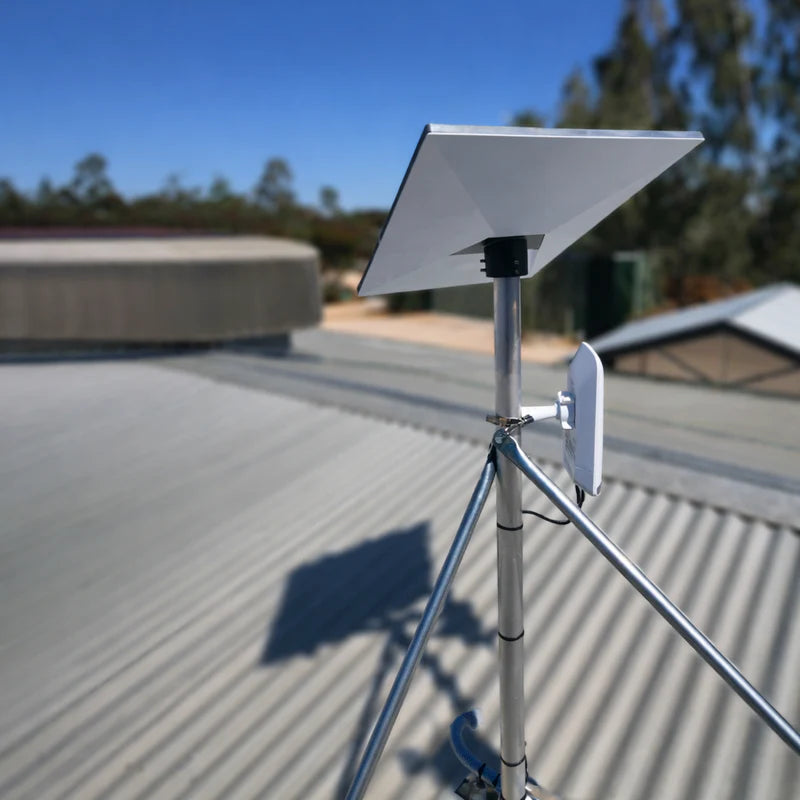

Australian-made roof mount designed specifically for the Starlink Gen 3 (V4) rectangular dish. Ideal for fixed installation on corrugated metal roofs.

The elevated pole design improves airflow and helps reduce heat transfer from hot metal roofing, supporting reliable performance in high temperatures.

What’s Included

Dimensions
Mast: 1800(L) x 44.5(0) mm
Outer Stays: 1060(L) x 25(0) mm
Inner Stays: 1060(L) x 20.5(0) mm
Base: 400(W) x 52(D) mm
Materials Mast & Stays: 1.2mm thick, Pre-Galvanised Steel
Base: 2.5mm thick, Mild Steel HDG

Note: Starlink dish not included.

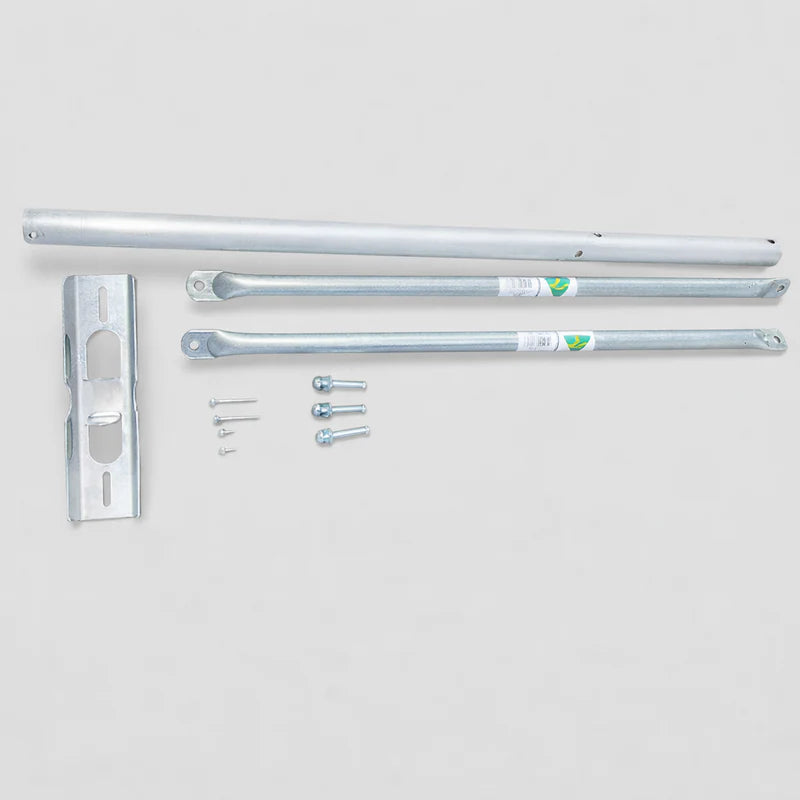

• 1x 1.8m Mounting Mast

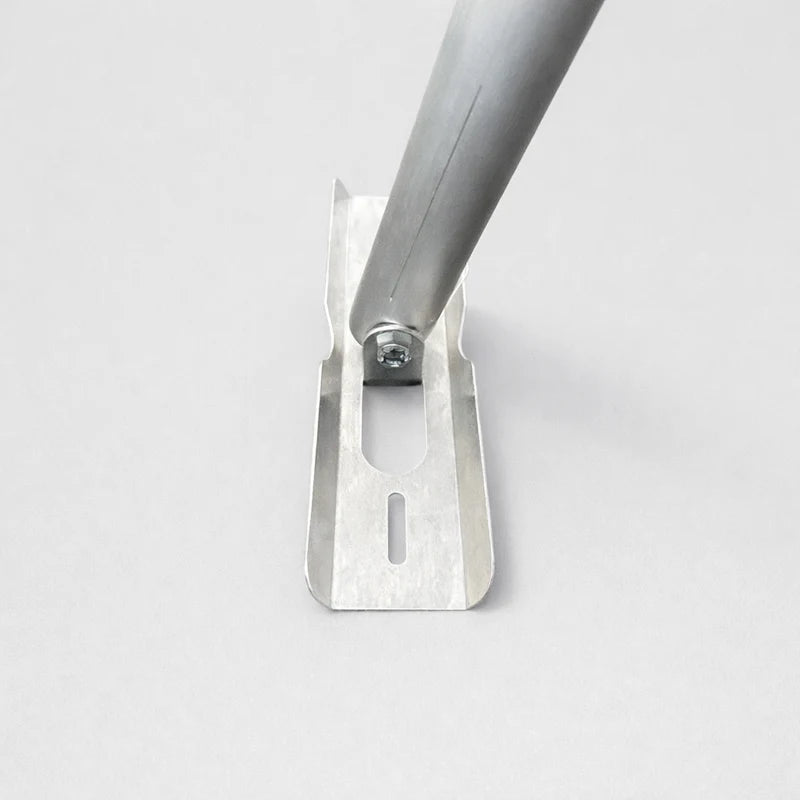

• 1x Metal Roof Baseplate
• 2x Telescopic Stays (2x Outer & 2x Inner)
• 2x Cyclone Washers
• 2x Rubber Washers
• 4x Washers
• 2x Hexagon Screws
• 2x M8 Hexagon Head Bolts
• 2x M8 Flange Nuts
• 4x Hexagon Self-Tapping Screws

Professional installation recommended. Roof penetrations must be properly sealed.
