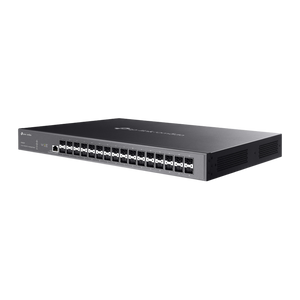

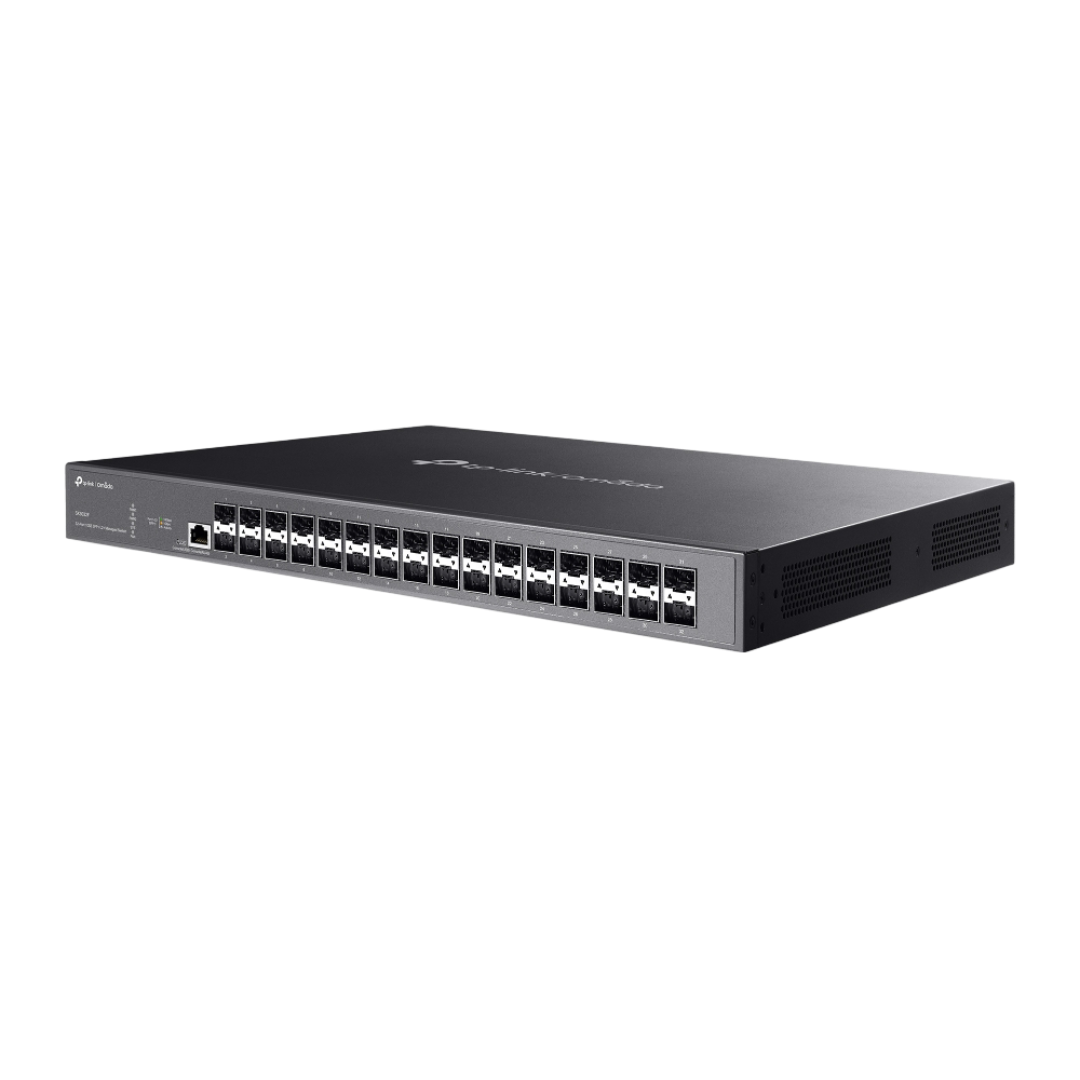

The Omada SX3032F is a high‑performance 32‑port 10GE SFP+ L2+ managed switch designed for aggregation and backbone layers in business networks. With all 32 ports supporting 10 G SFP+, redundant internal power modules, and full compatibility with the Omada SDN controller, it delivers reliable, high-throughput switching with advanced Layer‑2+ and management features.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6, Dual Redundant Power Supplies
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|

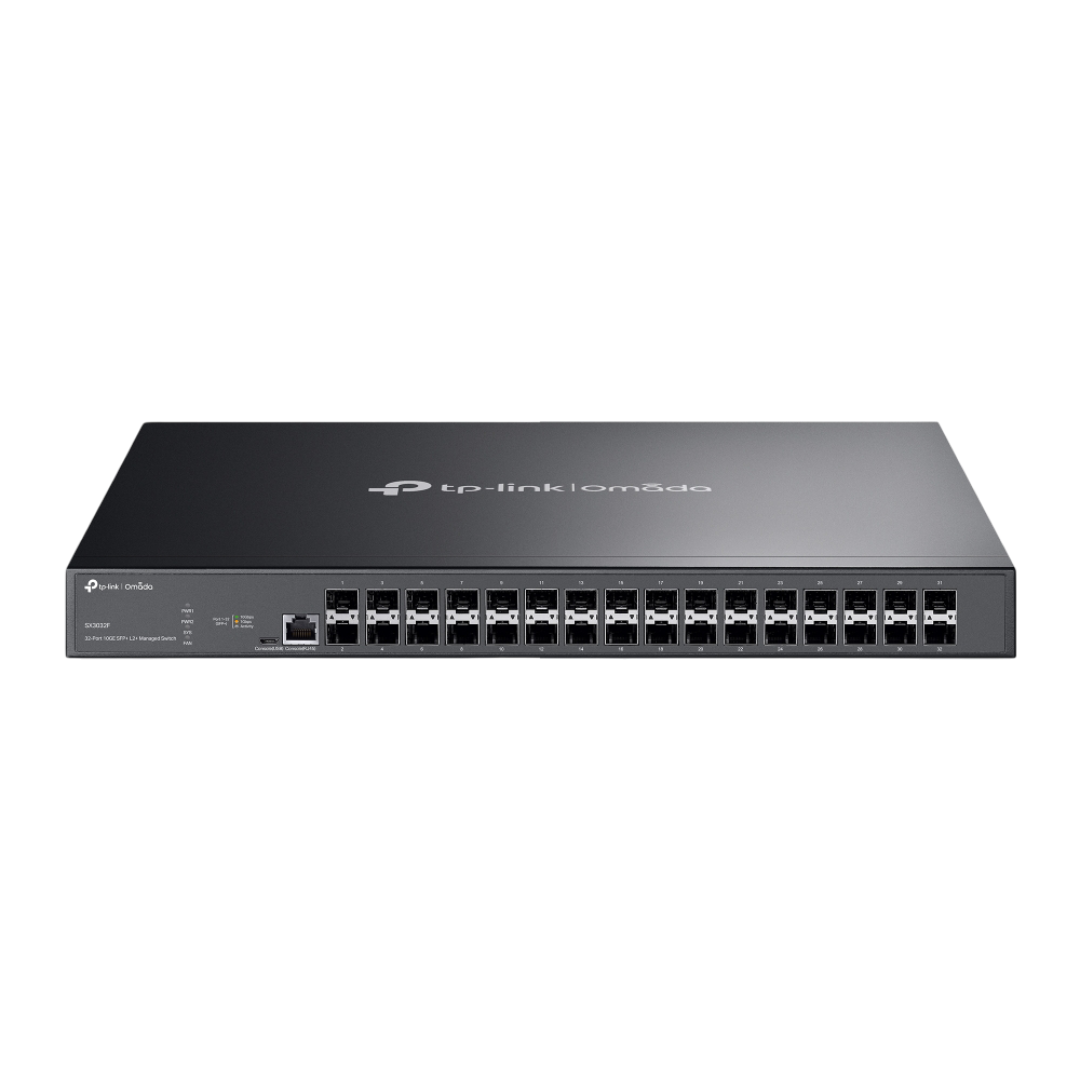

| Interface / Ports | 32 × 1/10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Switching Capacity | 640 Gbps |
| Forwarding / Packet Rate | 476.16 Mpps |
| MAC / Buffer / Jumbo Frame | MAC address table: 32K entries Packet buffer: 24 Mbit Supports jumbo frames up to 9 KB |

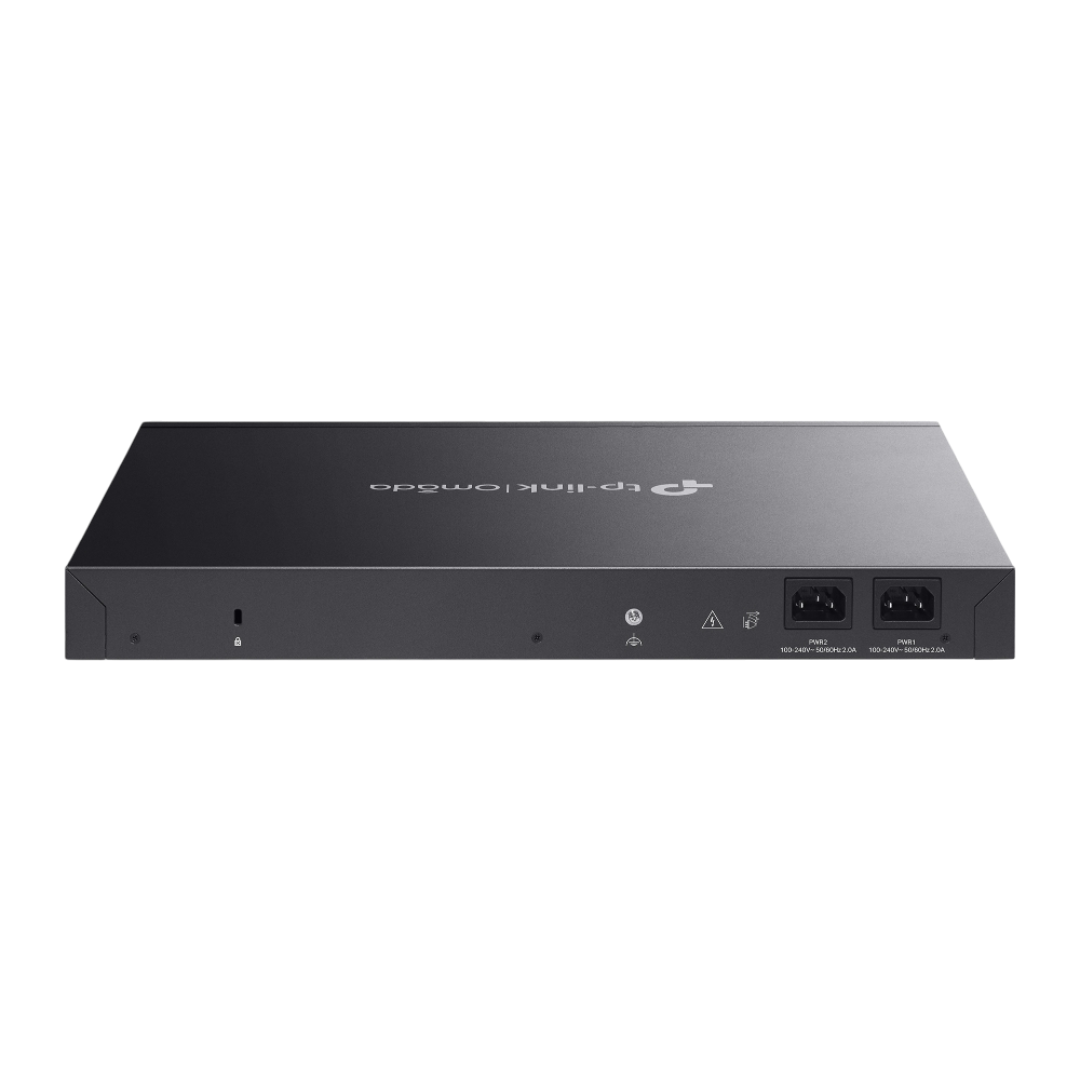

| Power / Redundancy | Dual internal 1+1 redundant power supply modules (fixed) AC input: 100–240 V, 50/60 Hz Max power consumption: ~49.4 W |
| Fans / Cooling | 2 internal fixed fans |
| Dimensions & Mounting | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) 1U rack‑mountable steel case |
| Layer 2 / L2+ Features | Static routing (IPv4 / IPv6) Link aggregation: static & LACP (up to 8 groups, 8 ports per group) Spanning Tree: STP, RSTP, MSTP Loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLANs (up to 4,000) QinQ (port-based / selective) IGMP v1 / v2 / v3 snooping & authentication, MLD snooping Multicast VLAN Registration (MVR) |
| Quality of Service (QoS) | 8 priority queues 802.1p / DSCP remarking / priority handling Queue scheduling: SP, WRR, SP+WRR Rate limiting, traffic shaping / policing |
| Security / Access Control | Access control lists (ACLs) 802.1X authentication, MAC-based authentication RADIUS / TACACS+ support IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection Port security (max 64 MACs per port) |
| Management / Monitoring | Omada SDN Controller (cloud, software, hardware) Web UI, CLI (console / SSH / Telnet) SNMP v1 / v2c / v3, RMON, Syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / config, zero-touch provisioning |
| IPv6 Support | Dual‑stack IPv4 / IPv6 IPv6 ACLs, IPv6 static routing, neighbor discovery, MLD snooping, path MTU discovery |
| Standards & Compliance | IEEE 802.3z (1G fiber), IEEE 802.3ae (10G fiber) IEEE 802.1Q, 802.1p, 802.1D, s, w, x 802.3x flow control, 802.1ab LLDP Certifications: CE, FCC, RoHS |
| Environmental / Operating Conditions | Operating temperature: –5 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Others | SX3032F switch unit, 2 × power cords, rack mount kit, rubber feet, quick installation guide |
The Omada SX3032F is a high‑performance 32‑port 10GE SFP+ L2+ managed switch designed for aggregation and backbone layers in business networks. With all 32 ports supporting 10 G SFP+, redundant internal power modules, and full compatibility with the Omada SDN controller, it delivers reliable, high-throughput switching with advanced Layer‑2+ and management features.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6, Dual Redundant Power Supplies
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 32 × 1/10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Switching Capacity | 640 Gbps |
| Forwarding / Packet Rate | 476.16 Mpps |
| MAC / Buffer / Jumbo Frame | MAC address table: 32K entries Packet buffer: 24 Mbit Supports jumbo frames up to 9 KB |
| Power / Redundancy | Dual internal 1+1 redundant power supply modules (fixed) AC input: 100–240 V, 50/60 Hz Max power consumption: ~49.4 W |
| Fans / Cooling | 2 internal fixed fans |
| Dimensions & Mounting | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) 1U rack‑mountable steel case |
| Layer 2 / L2+ Features | Static routing (IPv4 / IPv6) Link aggregation: static & LACP (up to 8 groups, 8 ports per group) Spanning Tree: STP, RSTP, MSTP Loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLANs (up to 4,000) QinQ (port-based / selective) IGMP v1 / v2 / v3 snooping & authentication, MLD snooping Multicast VLAN Registration (MVR) |
| Quality of Service (QoS) | 8 priority queues 802.1p / DSCP remarking / priority handling Queue scheduling: SP, WRR, SP+WRR Rate limiting, traffic shaping / policing |
| Security / Access Control | Access control lists (ACLs) 802.1X authentication, MAC-based authentication RADIUS / TACACS+ support IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection Port security (max 64 MACs per port) |
| Management / Monitoring | Omada SDN Controller (cloud, software, hardware) Web UI, CLI (console / SSH / Telnet) SNMP v1 / v2c / v3, RMON, Syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / config, zero-touch provisioning |
| IPv6 Support | Dual‑stack IPv4 / IPv6 IPv6 ACLs, IPv6 static routing, neighbor discovery, MLD snooping, path MTU discovery |
| Standards & Compliance | IEEE 802.3z (1G fiber), IEEE 802.3ae (10G fiber) IEEE 802.1Q, 802.1p, 802.1D, s, w, x 802.3x flow control, 802.1ab LLDP Certifications: CE, FCC, RoHS |
| Environmental / Operating Conditions | Operating temperature: –5 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Others | SX3032F switch unit, 2 × power cords, rack mount kit, rubber feet, quick installation guide |
SX3032F - Omada 32-Port 10GE SFP+ L2+ Managed Switch
- Regular price
- $1,699.00
- Sale price
- $1,699.00
