About

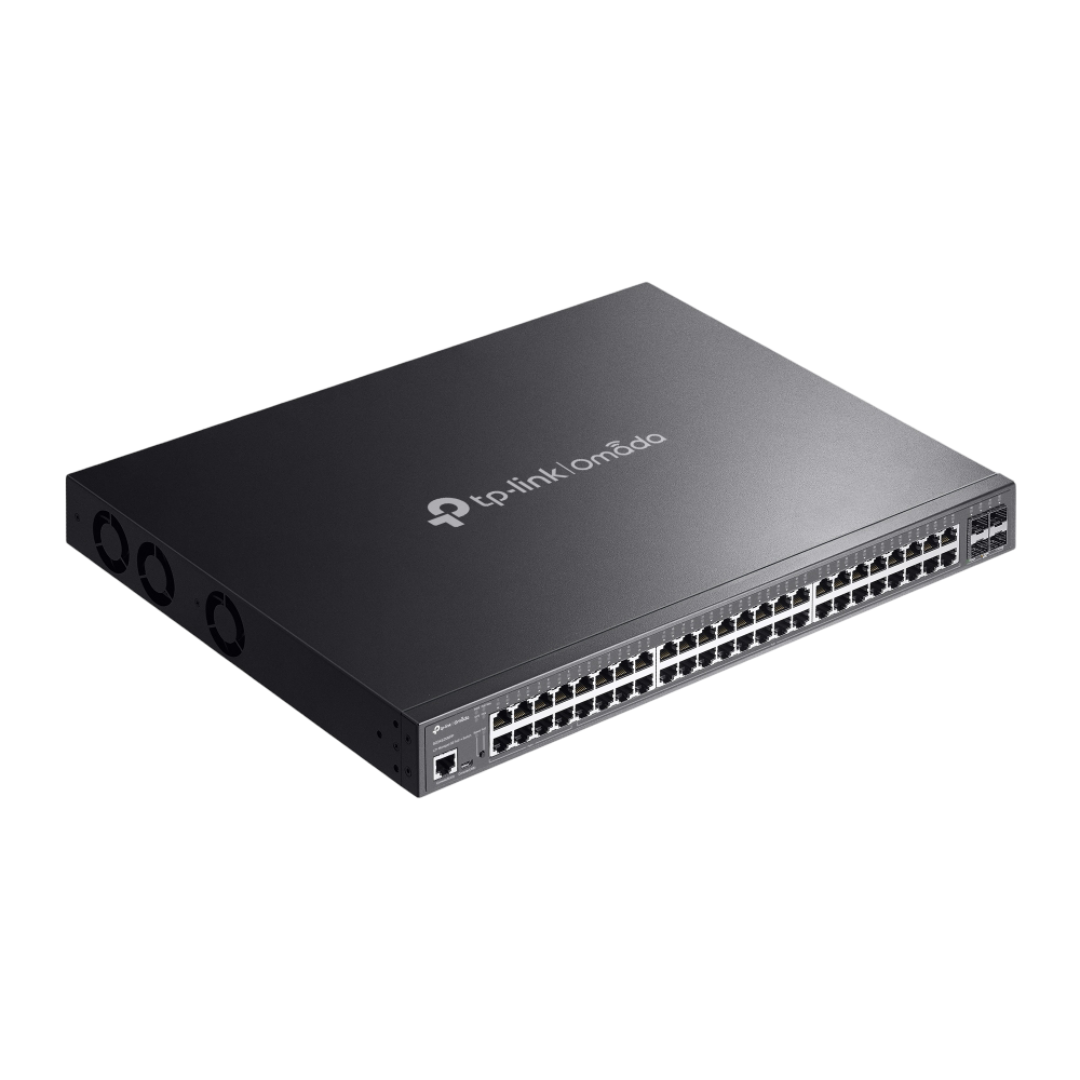

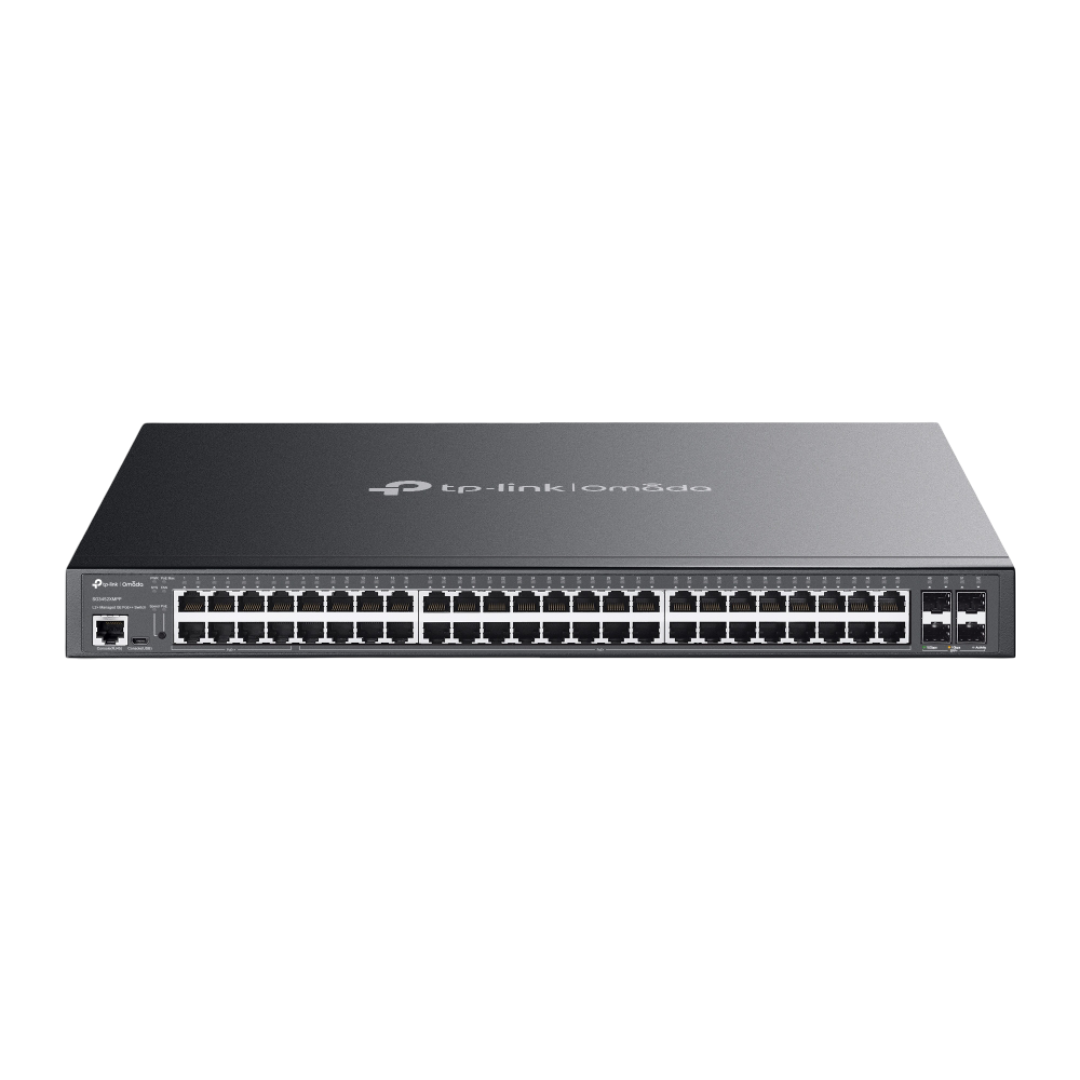

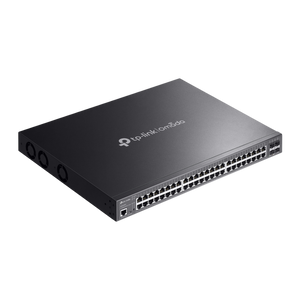

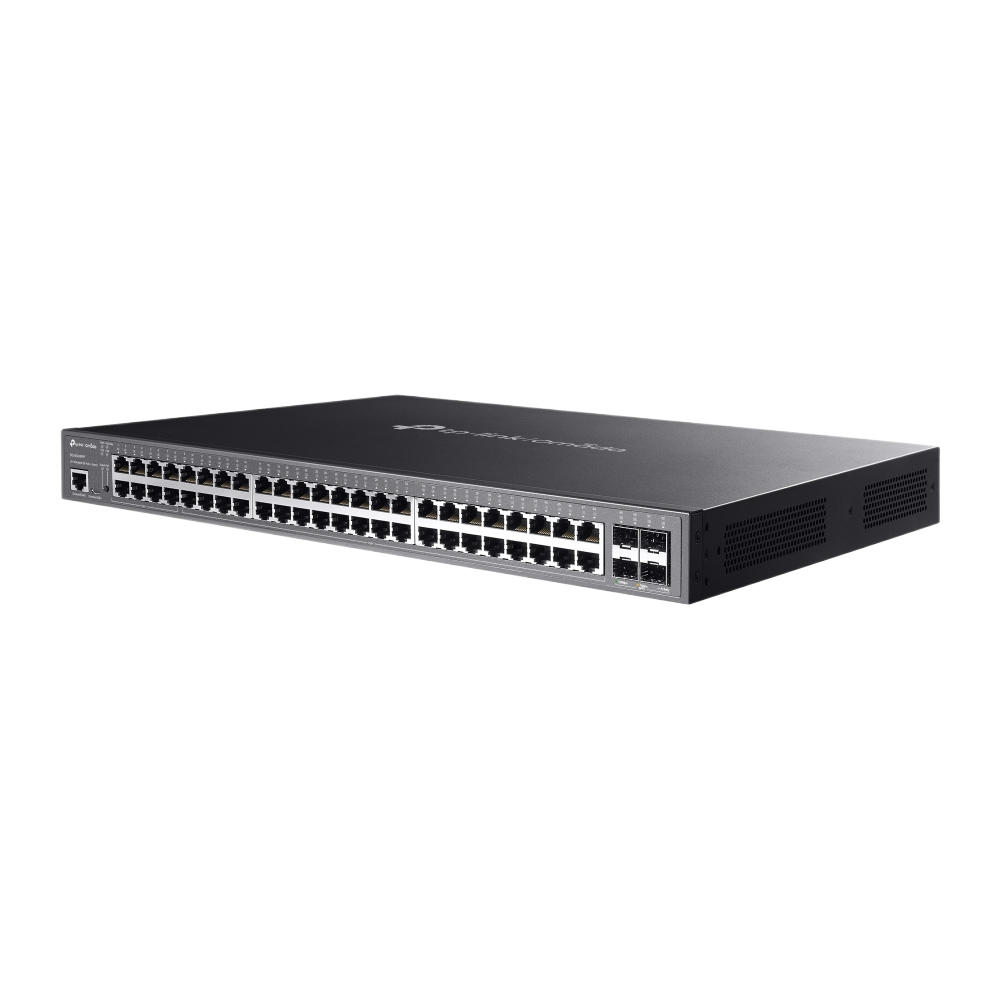

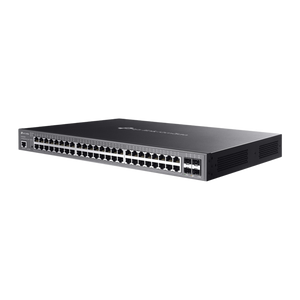

The TP-Link Omada SG3452XMPP is a high-performance L2+ managed switch designed for scalable and secure enterprise networks. It features 48 Gigabit RJ45 ports—40 with PoE+ and 8 with PoE++—alongside 4 high-speed 10G SFP+ uplink slots, offering powerful bandwidth aggregation and flexibility. With a 750 W total PoE power budget, this switch is ideal for powering access points, IP cameras, and other PoE devices. It integrates seamlessly with the Omada SDN platform, allowing for centralized cloud or on-premises management, and supports advanced L2+/L3 features such as static routing, VLAN, ACL, QoS, and multicast filtering, making it a strong core or access-layer switch for business environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 48 × 10/100/1000 Mbps RJ45 Ports (40 × PoE+, 8 × PoE++) 4 × 10G SFP+ Slots 1 × RJ45 Console Port 1 × Micro-USB Console Port |
| Power over Ethernet (PoE) | 8 × PoE++ Ports (up to 90W per port) 40 × PoE+ Ports (up to 30W per port) Total PoE Power Budget: 750 W |
| Cooling | 3 Active Cooling Fans |
| Power Supply / Consumption | AC 100–240 V, 50/60 Hz Max Power Consumption: 913.4 W (Full Load) Max Heat Dissipation: 3114.69 BTU/hr |
| Dimensions / Mounting | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) 1U Rack Mountable |
| Switching Capacity / Performance | Switching Capacity: 176 Gbps Forwarding Rate: 130.9 Mpps |
| MAC Address Table | 16K MAC Addresses |
| Buffer / Jumbo Frames | Packet Buffer: 12 Mbit Jumbo Frame Size: 9 KB |
| L2 / L3 Features | Static Routing (IPv4/IPv6) Spanning Tree (STP/RSTP/MSTP), Loopback Detection Link Aggregation (LACP), Port Mirroring Broadcast/Multicast/Unknown-Unicast Storm Control |
| Multicast / VLAN | IGMP Snooping v1/v2/v3 MLD Snooping v1/v2 1,000 IGMP Groups 4,000 VLANs Supported 802.1Q, GVRP, Private VLAN, VLAN Mapping |
| Security Features | 802.1X Authentication, RADIUS, IP-MAC-Port Binding ARP Inspection, DHCP Snooping DoS Defense, Port Isolation, Port Security |
| QoS / Traffic Control | 8 Priority Queues DSCP/802.1p QoS Rate Limiting & Traffic Shaping Scheduling: SP, WRR, SP+WRR |
| Management & Monitoring | Omada SDN: Cloud, Software, or Hardware Controller Standalone: Web UI, CLI (SSH/Telnet), SNMP, Syslog sFlow, RMON, LLDP, Cable Diagnostics Dual Image & Dual Configuration Support |
| IPv6 Support | IPv6 Static Routing MLD Snooping, IPv6 ACL IPv6 Neighbor Discovery Dual Stack IPv4/IPv6 |
| Standards Compliance | IEEE 802.3i/u/ab/ae/af/at/bt IEEE 802.1Q/p/D/s/w/x IEEE 802.3x, 802.3ad (LACP), 802.1X Certifications: CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10–90% (non-condensing) |
| Package Contents | SG3452XMPP Switch Unit Power Cord, Rack Mount Kit, Rubber Feet Quick Installation Guide |
