The TP‑Link Omada SG3452X is a 48‑port Gigabit L2+ managed switch equipped with 4 × 10G SFP+ uplink slots. It is designed for business networks that require high bandwidth aggregation, robust management, and advanced Layer‑2+ features. The switch is 1U, rack-mountable in a steel enclosure, and supports integration with the Omada SDN controller for centralized management. It offers features like static routing, OAM, sFlow, DDM, QinQ, VLAN, IGMP snooping, QoS, ACL, 802.1X, RADIUS/TACACS+ authentication, link aggregation (LACP), CLI/SNMP management, dual image/configuration, and full IPv6 support.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 48 × 10/100/1000 Mbps RJ45 Ports 4 × 10G SFP+ Slots 1 × RJ45 Console Port 1 × Micro‑USB Console Port |
| Cooling / Fans | Fanless (passive cooling design) |
| Power / Consumption | AC 100–240 V, 50/60 Hz Maximum power consumption: ~32.72 W (typical) — no PoE as this model has no PoE support |
| Dimensions / Mounting | 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) 1U Rack‑mountable Steel Case |
| Switching Capacity / Performance | 176 Gbps switching capacity Packet forwarding rate: 130.9 Mpps |
| MAC / Buffer / Jumbo Frame | MAC address table: 16K entries Packet buffer memory: 12 Mbit Supports jumbo frames up to 9 KB |
| L2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Supports up to 48 static routes Link aggregation (static & LACP), up to 8 aggregation groups with 8 ports per group Spanning Tree (STP / RSTP / MSTP) with security features Loopback detection, flow control, port mirroring, HOL blocking prevention |
| Multicast / VLAN | IGMP Snooping v1/v2/v3 with fast leave, IGMP snooping querier, IGMP authentication MLD Snooping v1/v2 Multicast VLAN Registration (MVR) Supports up to 4,000 VLANs (802.1Q), QinQ (port‑based / selective), GVRP, VLAN mapping, private VLANs |
| Security / Access Control | ACL (MAC / IP / VLAN / Time‑based) IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection Port security (up to 64 MACs per port) 802.1X (port authentication, MAB), RADIUS / TACACS+ support, port isolation, storm control |
| Quality of Service (QoS) | 8 priority queues 802.1p / DSCP remarking / priority Queue scheduling: SP, WRR, SP+WRR Bandwidth control per port / flow, traffic shaping / policing |
| Management / Monitoring | Integration with Omada SDN (cloud, hardware, software controller) Standalone management: Web GUI, CLI (SSH / telnet / console) SNMP v1 / v2c / v3, RMON, syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero-touch provisioning |
| IPv6 Support | Dual‑stack IPv4/IPv6 IPv6 ACL, IPv6 static routing, neighbor discovery, path MTU discovery, MLD snooping, IPv6 applications (ping6, SSH v6, HTTP v6 etc.) |
| Standards / Compliance | IEEE 802.3i/u/ab, IEEE 802.3ae (10G), 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x, 802.3ad (LACP), 802.3x (flow control), 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Environmental / Operating Conditions | Operating temperature: 0 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Others | SG3452X Switch, power cord, rack mount kit, rubber feet, quick installation guide Physical security lock slot |
The TP‑Link Omada SG3452X is a 48‑port Gigabit L2+ managed switch equipped with 4 × 10G SFP+ uplink slots. It is designed for business networks that require high bandwidth aggregation, robust management, and advanced Layer‑2+ features. The switch is 1U, rack-mountable in a steel enclosure, and supports integration with the Omada SDN controller for centralized management. It offers features like static routing, OAM, sFlow, DDM, QinQ, VLAN, IGMP snooping, QoS, ACL, 802.1X, RADIUS/TACACS+ authentication, link aggregation (LACP), CLI/SNMP management, dual image/configuration, and full IPv6 support.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 48 × 10/100/1000 Mbps RJ45 Ports 4 × 10G SFP+ Slots 1 × RJ45 Console Port 1 × Micro‑USB Console Port |
| Cooling / Fans | Fanless (passive cooling design) |
| Power / Consumption | AC 100–240 V, 50/60 Hz Maximum power consumption: ~32.72 W (typical) — no PoE as this model has no PoE support |
| Dimensions / Mounting | 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) 1U Rack‑mountable Steel Case |
| Switching Capacity / Performance | 176 Gbps switching capacity Packet forwarding rate: 130.9 Mpps |
| MAC / Buffer / Jumbo Frame | MAC address table: 16K entries Packet buffer memory: 12 Mbit Supports jumbo frames up to 9 KB |
| L2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Supports up to 48 static routes Link aggregation (static & LACP), up to 8 aggregation groups with 8 ports per group Spanning Tree (STP / RSTP / MSTP) with security features Loopback detection, flow control, port mirroring, HOL blocking prevention |
| Multicast / VLAN | IGMP Snooping v1/v2/v3 with fast leave, IGMP snooping querier, IGMP authentication MLD Snooping v1/v2 Multicast VLAN Registration (MVR) Supports up to 4,000 VLANs (802.1Q), QinQ (port‑based / selective), GVRP, VLAN mapping, private VLANs |
| Security / Access Control | ACL (MAC / IP / VLAN / Time‑based) IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection Port security (up to 64 MACs per port) 802.1X (port authentication, MAB), RADIUS / TACACS+ support, port isolation, storm control |
| Quality of Service (QoS) | 8 priority queues 802.1p / DSCP remarking / priority Queue scheduling: SP, WRR, SP+WRR Bandwidth control per port / flow, traffic shaping / policing |
| Management / Monitoring | Integration with Omada SDN (cloud, hardware, software controller) Standalone management: Web GUI, CLI (SSH / telnet / console) SNMP v1 / v2c / v3, RMON, syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero-touch provisioning |
| IPv6 Support | Dual‑stack IPv4/IPv6 IPv6 ACL, IPv6 static routing, neighbor discovery, path MTU discovery, MLD snooping, IPv6 applications (ping6, SSH v6, HTTP v6 etc.) |
| Standards / Compliance | IEEE 802.3i/u/ab, IEEE 802.3ae (10G), 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x, 802.3ad (LACP), 802.3x (flow control), 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Environmental / Operating Conditions | Operating temperature: 0 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Others | SG3452X Switch, power cord, rack mount kit, rubber feet, quick installation guide Physical security lock slot |

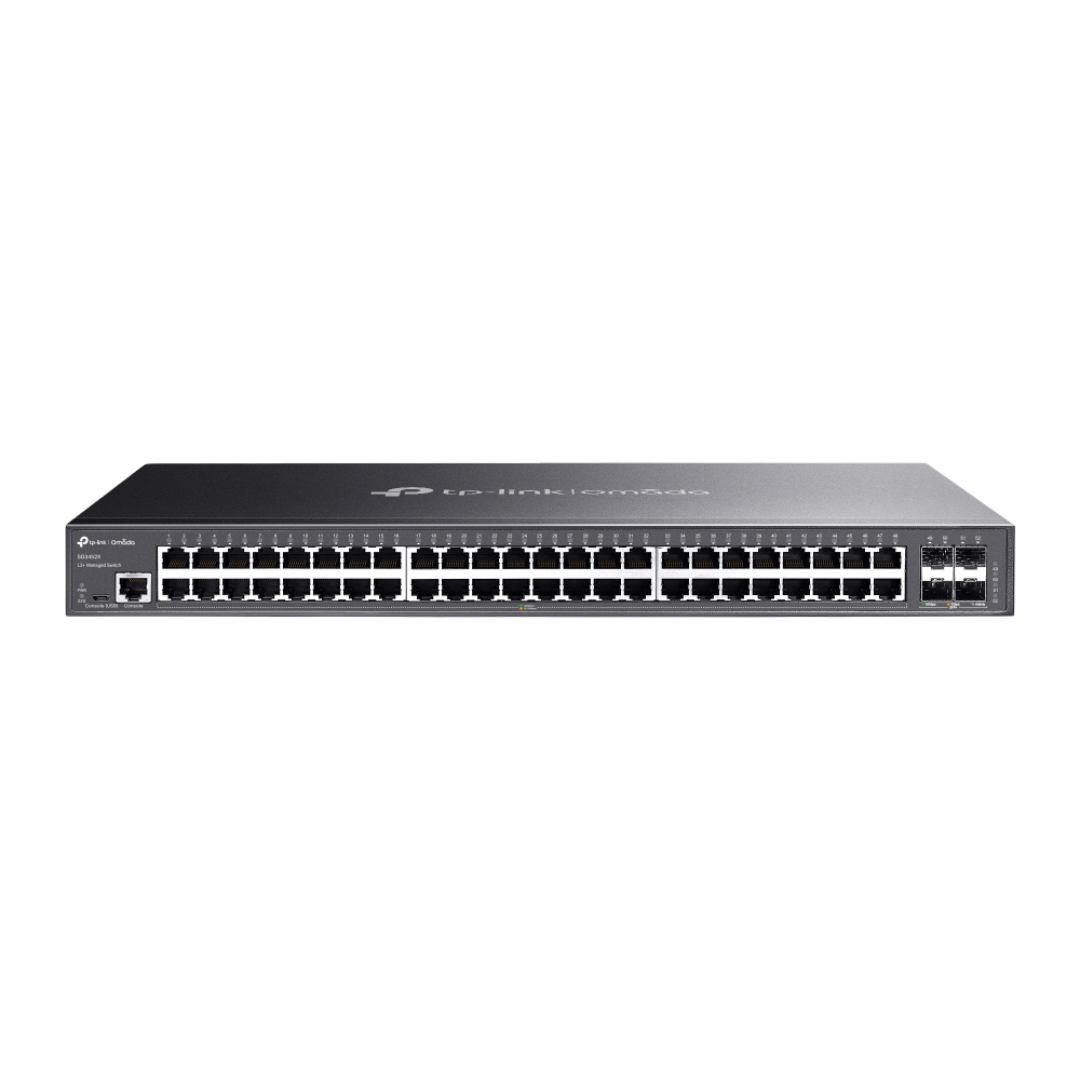

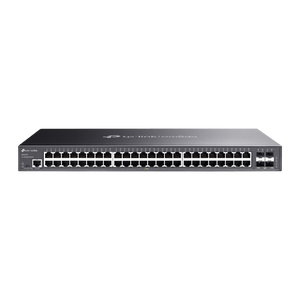

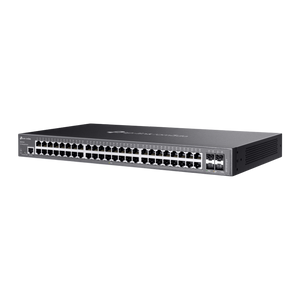

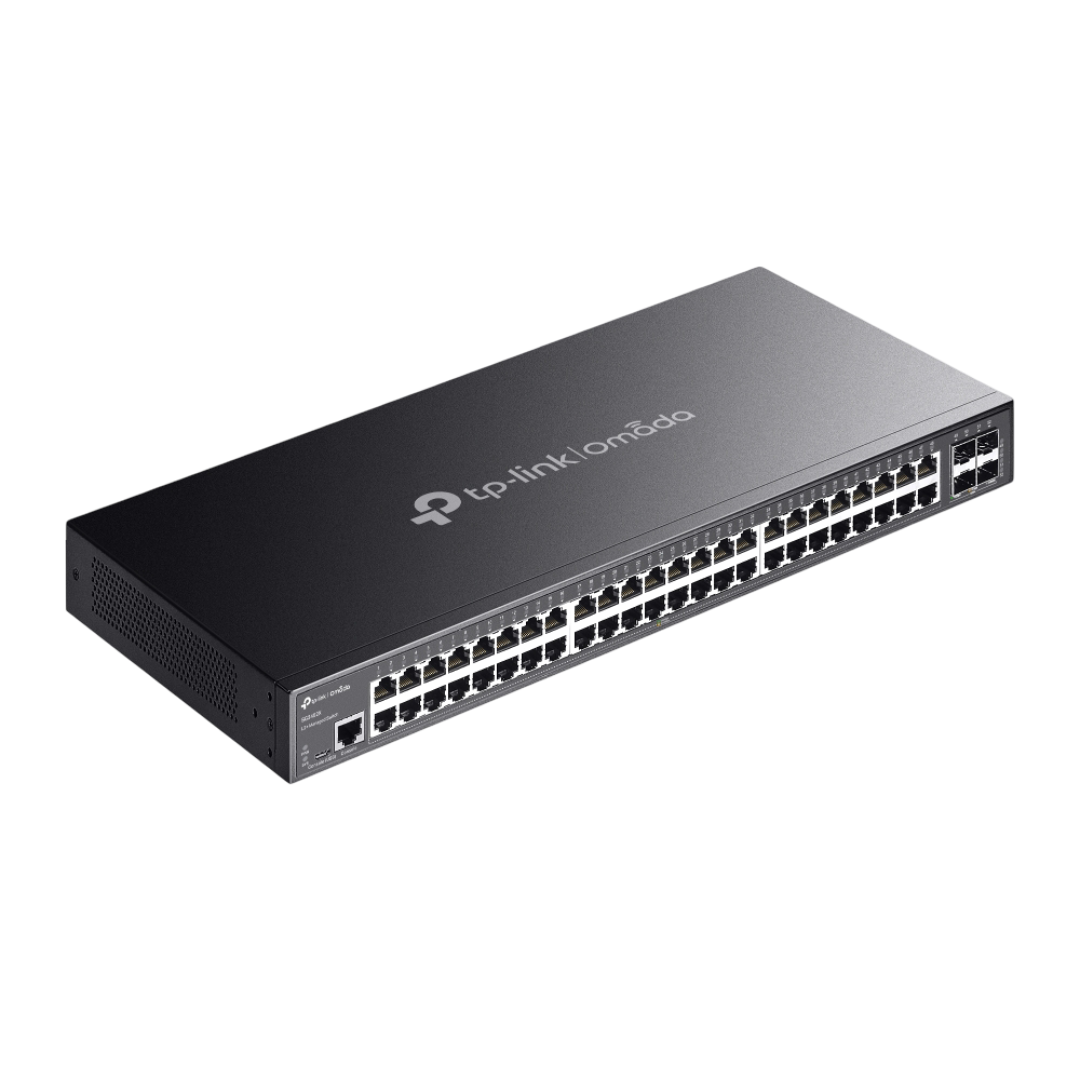

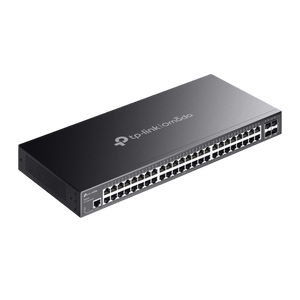

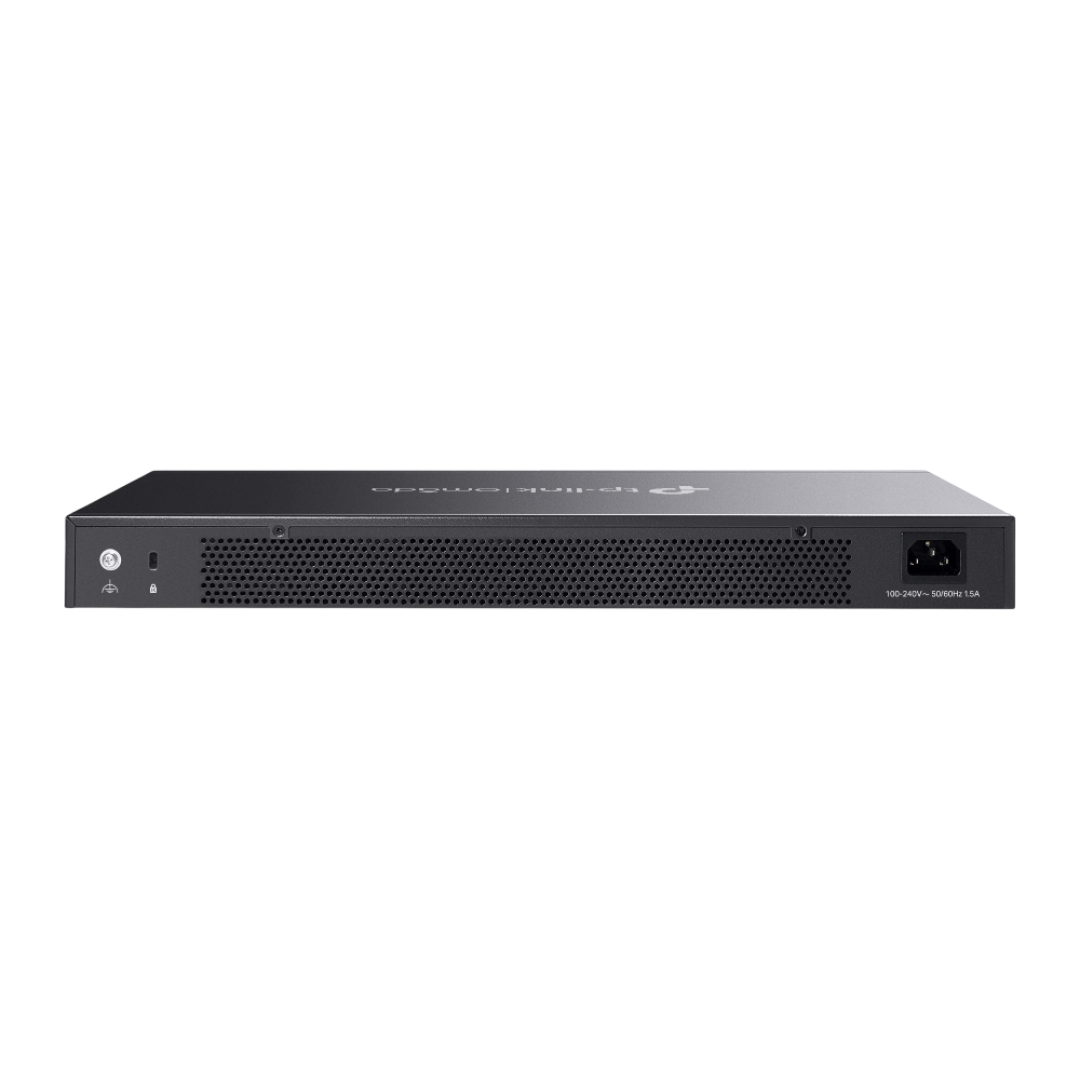

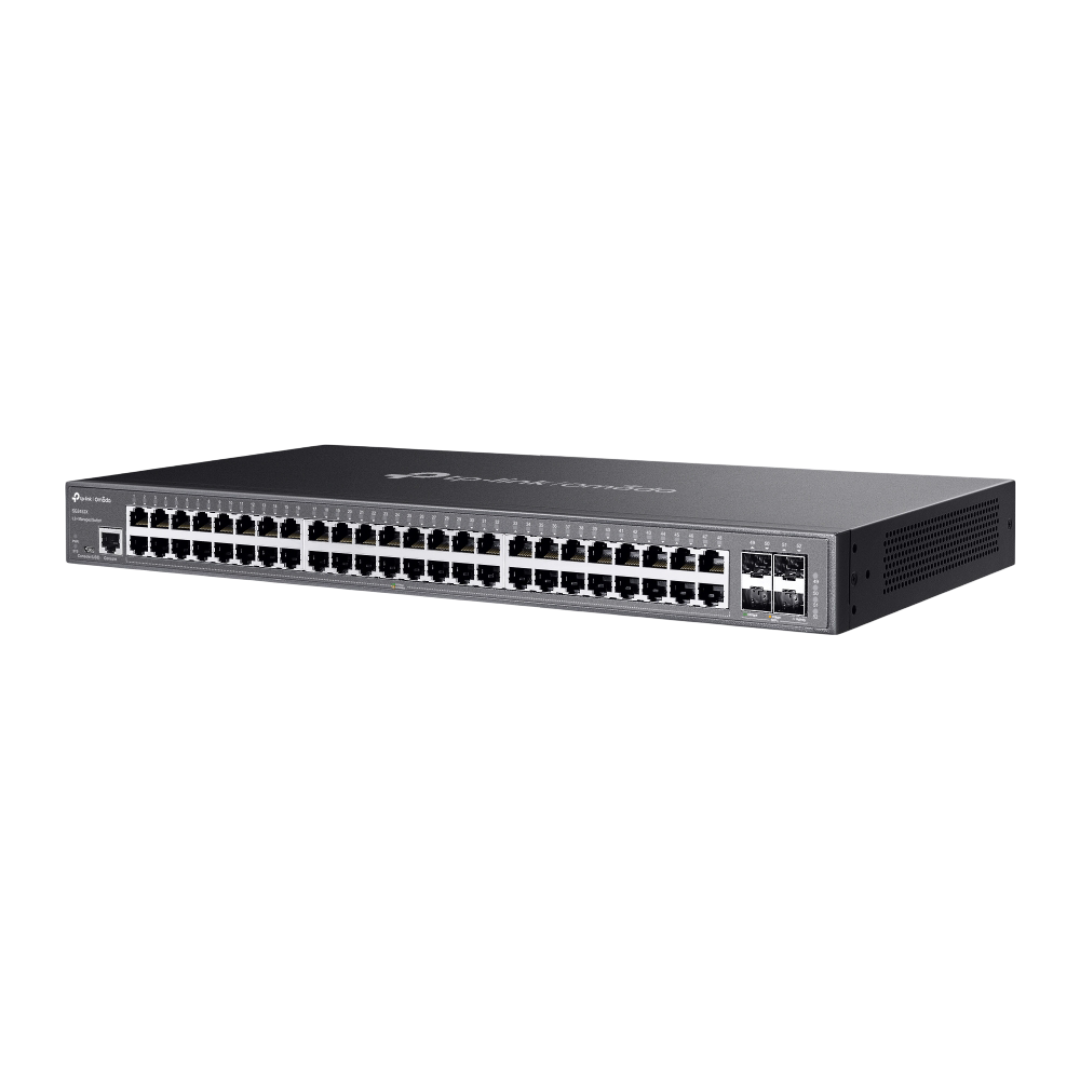

SG3452X - Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
- Regular price
- $849.00
- Sale price
- $849.00
