About
The TP-Link Omada SG3452P is a high-capacity 52-port Gigabit L2+ managed switch with 48 PoE+ ports and 4 Gigabit SFP slots for fiber connectivity. Designed for medium to large enterprise networks, it supports up to 384W of PoE power to efficiently power connected devices like IP cameras, access points, and VoIP phones. The switch offers advanced Layer 2+ features and seamless integration with the Omada SDN Controller platform. Housed in a 1U rack-mountable steel case, it combines robust performance, flexible management, and enterprise-grade security.
FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 48 × Gigabit RJ45 PoE+ ports 4 × Gigabit SFP slots 1 × RJ45 console port 1 × Micro-USB console port |
| PoE | Supports 802.3at/af PoE standards Maximum PoE power budget: 384 W |
| Switching Capacity / Forwarding | Switching capacity: 104 Gbps Packet forwarding rate: 77.38 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer memory: 12 Mbit Jumbo frame support: up to 9 KB |
| Dimensions / Mounting | 1U 19-inch rack-mountable steel chassis Dimensions: 440 × 220 × 44 mm |
| Layer 2 / Routing Features | Static routing support 802.1Q VLAN, QinQ STP / RSTP / MSTP IGMP Snooping v1/v2/v3 |
| QoS | 802.1p / DSCP QoS ACL support for traffic filtering and prioritization |
| Security | 802.1X authentication Radius and Tacacs+ authentication Access Control Lists (ACLs) |
| Management | Omada SDN Controller integration Command Line Interface (CLI) SNMP v1/v2c/v3 Dual Image and Dual Configuration Web-based GUI management |
| IPv6 Support | Full IPv4/IPv6 dual stack support IPv6 routing and ACLs |
| Environmental | Operating temperature: 0 °C to 45 °C Storage temperature: -40 °C to 70 °C Operating humidity: 10%–90% non-condensing |
| Certifications | CE, FCC, RoHS compliant |
The TP-Link Omada SG3452P is a high-capacity 52-port Gigabit L2+ managed switch with 48 PoE+ ports and 4 Gigabit SFP slots for fiber connectivity. Designed for medium to large enterprise networks, it supports up to 384W of PoE power to efficiently power connected devices like IP cameras, access points, and VoIP phones. The switch offers advanced Layer 2+ features and seamless integration with the Omada SDN Controller platform. Housed in a 1U rack-mountable steel case, it combines robust performance, flexible management, and enterprise-grade security.
FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 48 × Gigabit RJ45 PoE+ ports 4 × Gigabit SFP slots 1 × RJ45 console port 1 × Micro-USB console port |
| PoE | Supports 802.3at/af PoE standards Maximum PoE power budget: 384 W |
| Switching Capacity / Forwarding | Switching capacity: 104 Gbps Packet forwarding rate: 77.38 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer memory: 12 Mbit Jumbo frame support: up to 9 KB |
| Dimensions / Mounting | 1U 19-inch rack-mountable steel chassis Dimensions: 440 × 220 × 44 mm |
| Layer 2 / Routing Features | Static routing support 802.1Q VLAN, QinQ STP / RSTP / MSTP IGMP Snooping v1/v2/v3 |
| QoS | 802.1p / DSCP QoS ACL support for traffic filtering and prioritization |
| Security | 802.1X authentication Radius and Tacacs+ authentication Access Control Lists (ACLs) |
| Management | Omada SDN Controller integration Command Line Interface (CLI) SNMP v1/v2c/v3 Dual Image and Dual Configuration Web-based GUI management |
| IPv6 Support | Full IPv4/IPv6 dual stack support IPv6 routing and ACLs |
| Environmental | Operating temperature: 0 °C to 45 °C Storage temperature: -40 °C to 70 °C Operating humidity: 10%–90% non-condensing |
| Certifications | CE, FCC, RoHS compliant |

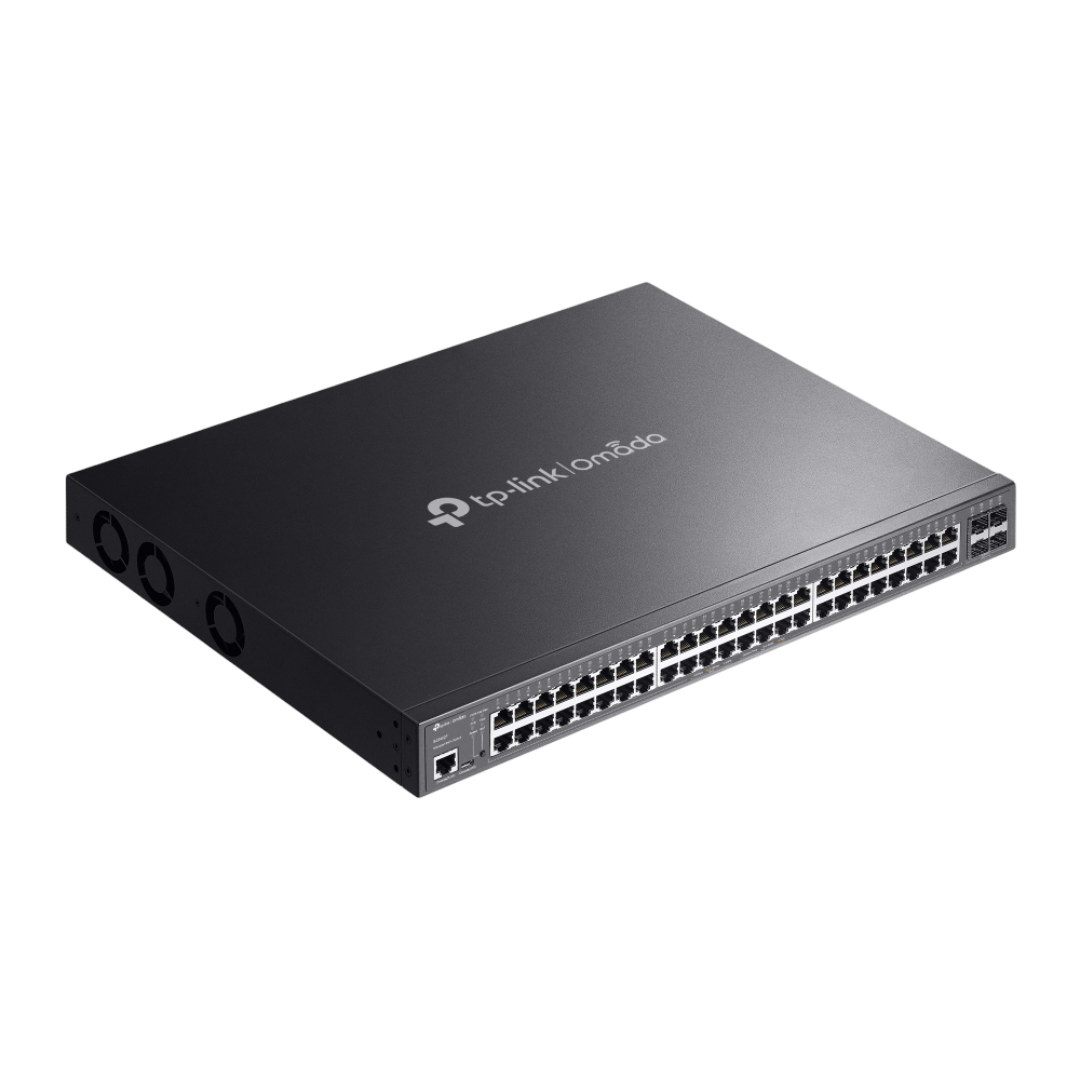

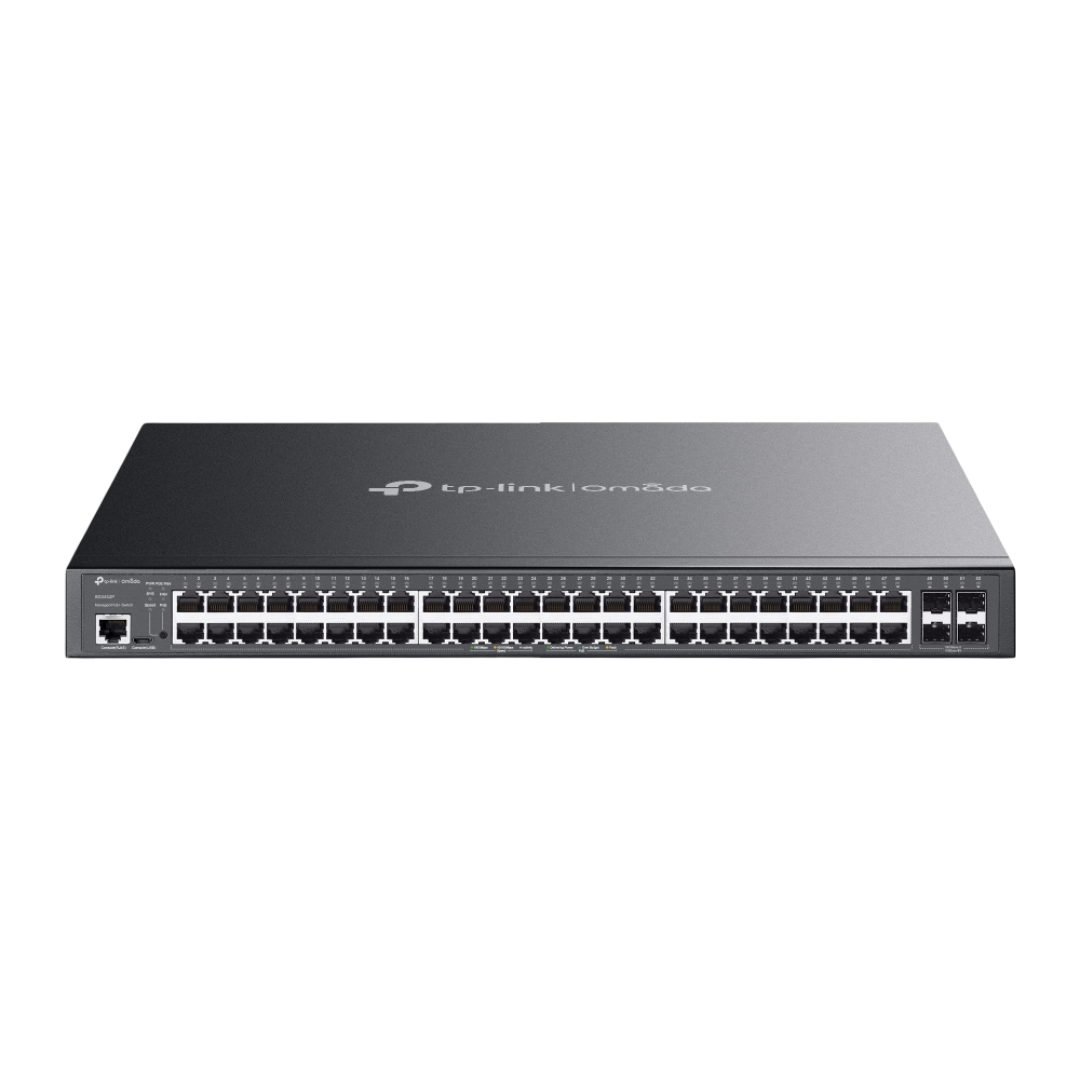

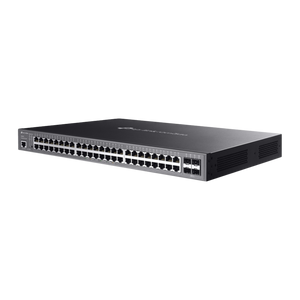

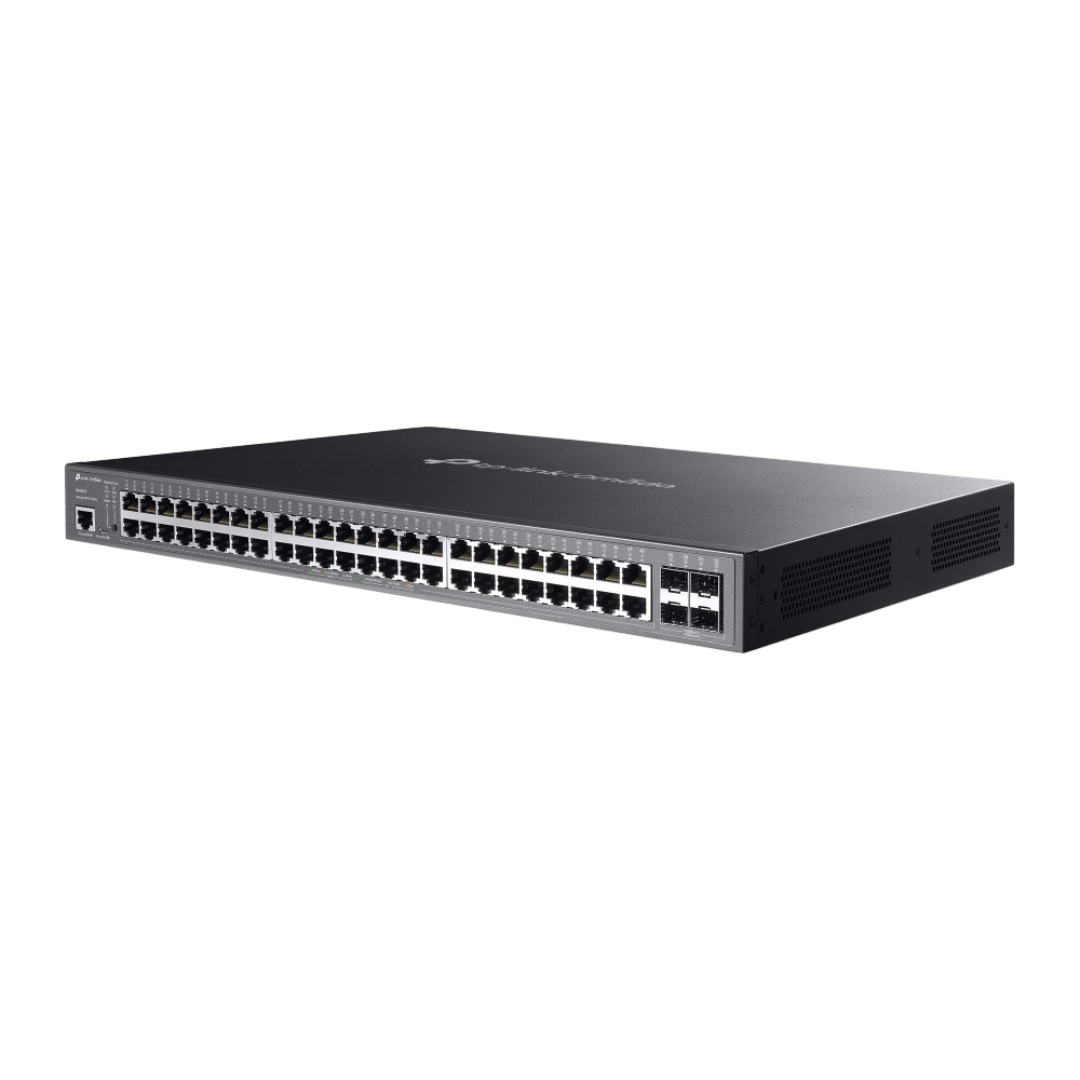

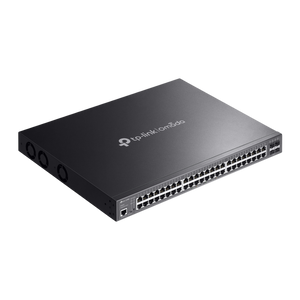

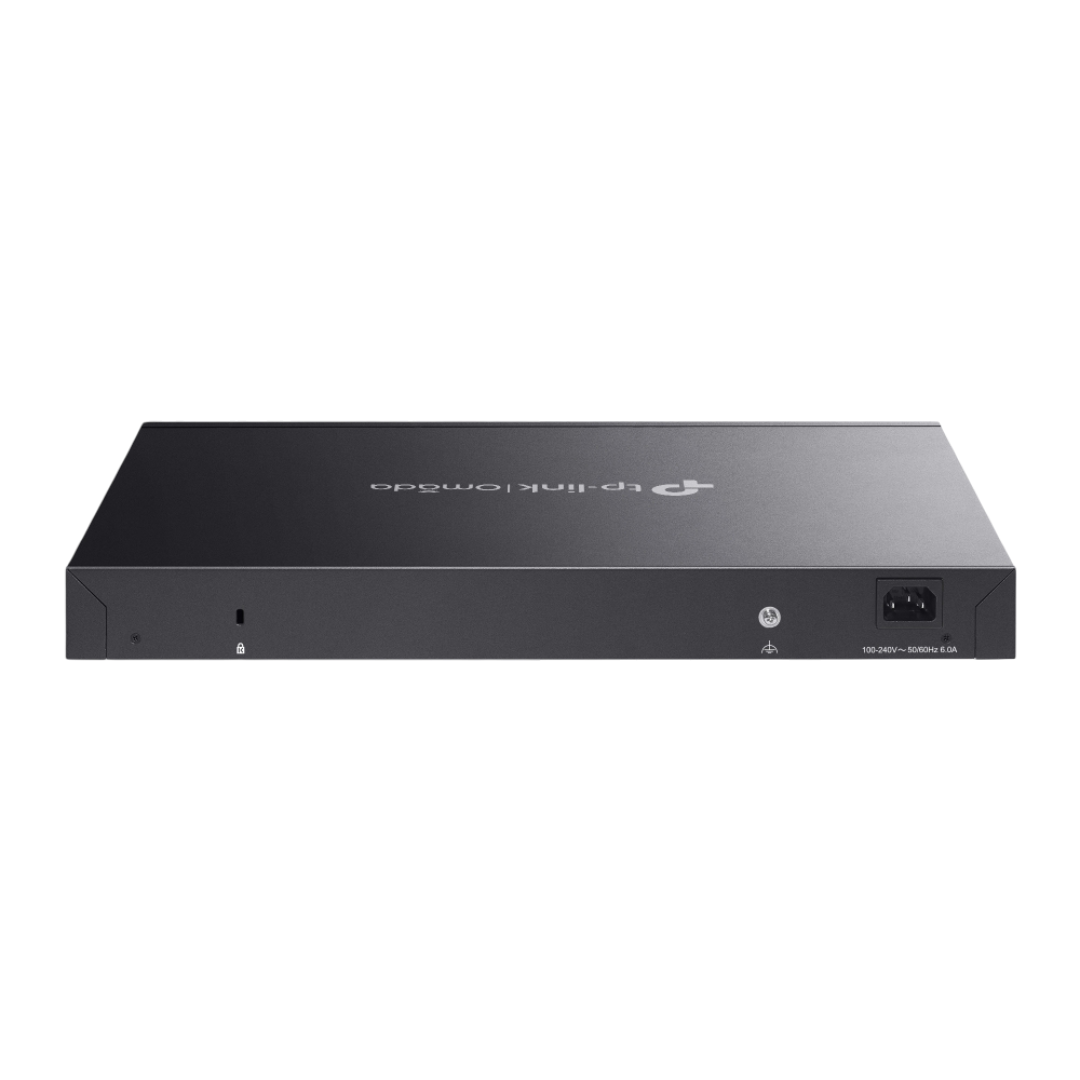

SG3452P - Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
