About
Learn what makes this product unique and why it’s right for you.
The SG3452 is a high-performance Layer 2+ managed switch designed for enterprise and SMB networks. It offers 48 Gigabit RJ45 ports and 4 SFP slots for flexible fiber connectivity. With advanced L2 and L2+ features, rich security options, and centralized management via the Omada platform, it ensures scalable, secure, and efficient network operations. This fanless switch supports IPv4/IPv6 dual-stack and includes enhanced QoS, VLAN, and multicast features, making it an ideal solution for demanding network environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface | 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX), 4× 100/1000 Mbps SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions (W x D x H) | 17.3×8.7×1.7 in (440×220×44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 34.86 W (220 V/ 50 Hz) |
| Max. Heat Dissipation | 118.94 BTU/h (220 V / 50 Hz) |
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.38 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow based), QoS remark (802.1P, DSCP) |
| L2 and L2+ Features | 32 IP Interfaces (IPv4/IPv6), 48 Static Routes (IPv4/IPv6), Static ARP (128 entries), 316 ARP entries, Proxy ARP, Gratuitous ARP, DHCP Server/Relay, Link Aggregation, STP, Loopback Detection, 802.3x Flow Control, Mirroring, DLDP |
| L2 Multicast | Supports 511 IGMP groups, IGMP Snooping/Authentication, MVR, MLD Snooping, Multicast Filtering (256 profiles) |
| Advanced Features | Automatic Device Discovery, Batch Configuration & Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule |
| ISP Features | L2PT, DLDP, PPPoE ID Insertion, ERPS |
| VLAN | Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN, Protocol VLAN, Private VLAN, GVRP, VLAN VPN (QinQ), Voice VLAN |
| Access Control List | Time-based ACL, MAC/IP ACL, Combined ACL, Packet Content ACL, IPv6 ACL, Policies (Mirroring, Redirect, Rate Limit, QoS Remark), ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, IPv4/IPv6 Source Guard, DoS Defend, DHCP Filter, Port Security, Storm Control, 802.1X Authentication, AAA (TACACS+), Port Isolation, Secure Web & CLI management (HTTPS, SSH) |
| IPv6 | Dual IPv4/IPv6, MLD Snooping, IPv6 ACL, Static IPv6 Routing, ND, MTU discovery, ICMPv6, TCPv6/UDPv6, IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet v6, SNMP, SSH, SSL, HTTP/HTTPS, TFTP) |
| MIBs | MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting & Authentication Client MIBs, Remote Ping/Traceroute MIB, TP-Link private MIBs, RMON MIB (RFC1757) |
| Management Features | Omada App support (requires Omada Controllers), Centralized Management (Cloud, Hardware, Software Controller), Cloud Access, Zero-Touch Provisioning, Web GUI, CLI, SNMP v1/v2c/v3, SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED, DHCP AutoInstall, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log |
| Certification | CE, FCC, RoHS |
| Package Content | SG3452 Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7/8/10/11, MAC® OS, NetWare®, UNIX®, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing |
Learn what makes this product unique and why it’s right for you.
The SG3452 is a high-performance Layer 2+ managed switch designed for enterprise and SMB networks. It offers 48 Gigabit RJ45 ports and 4 SFP slots for flexible fiber connectivity. With advanced L2 and L2+ features, rich security options, and centralized management via the Omada platform, it ensures scalable, secure, and efficient network operations. This fanless switch supports IPv4/IPv6 dual-stack and includes enhanced QoS, VLAN, and multicast features, making it an ideal solution for demanding network environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface | 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX), 4× 100/1000 Mbps SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions (W x D x H) | 17.3×8.7×1.7 in (440×220×44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 34.86 W (220 V/ 50 Hz) |
| Max. Heat Dissipation | 118.94 BTU/h (220 V / 50 Hz) |
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.38 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow based), QoS remark (802.1P, DSCP) |
| L2 and L2+ Features | 32 IP Interfaces (IPv4/IPv6), 48 Static Routes (IPv4/IPv6), Static ARP (128 entries), 316 ARP entries, Proxy ARP, Gratuitous ARP, DHCP Server/Relay, Link Aggregation, STP, Loopback Detection, 802.3x Flow Control, Mirroring, DLDP |
| L2 Multicast | Supports 511 IGMP groups, IGMP Snooping/Authentication, MVR, MLD Snooping, Multicast Filtering (256 profiles) |
| Advanced Features | Automatic Device Discovery, Batch Configuration & Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule |
| ISP Features | L2PT, DLDP, PPPoE ID Insertion, ERPS |
| VLAN | Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN, Protocol VLAN, Private VLAN, GVRP, VLAN VPN (QinQ), Voice VLAN |
| Access Control List | Time-based ACL, MAC/IP ACL, Combined ACL, Packet Content ACL, IPv6 ACL, Policies (Mirroring, Redirect, Rate Limit, QoS Remark), ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, IPv4/IPv6 Source Guard, DoS Defend, DHCP Filter, Port Security, Storm Control, 802.1X Authentication, AAA (TACACS+), Port Isolation, Secure Web & CLI management (HTTPS, SSH) |
| IPv6 | Dual IPv4/IPv6, MLD Snooping, IPv6 ACL, Static IPv6 Routing, ND, MTU discovery, ICMPv6, TCPv6/UDPv6, IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet v6, SNMP, SSH, SSL, HTTP/HTTPS, TFTP) |
| MIBs | MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting & Authentication Client MIBs, Remote Ping/Traceroute MIB, TP-Link private MIBs, RMON MIB (RFC1757) |
| Management Features | Omada App support (requires Omada Controllers), Centralized Management (Cloud, Hardware, Software Controller), Cloud Access, Zero-Touch Provisioning, Web GUI, CLI, SNMP v1/v2c/v3, SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED, DHCP AutoInstall, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log |
| Certification | CE, FCC, RoHS |
| Package Content | SG3452 Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7/8/10/11, MAC® OS, NetWare®, UNIX®, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing |

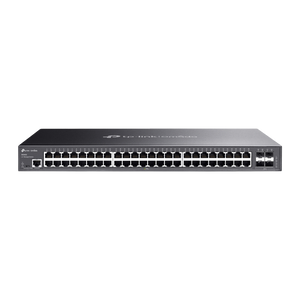

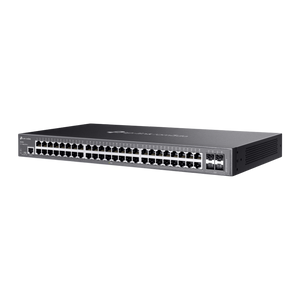

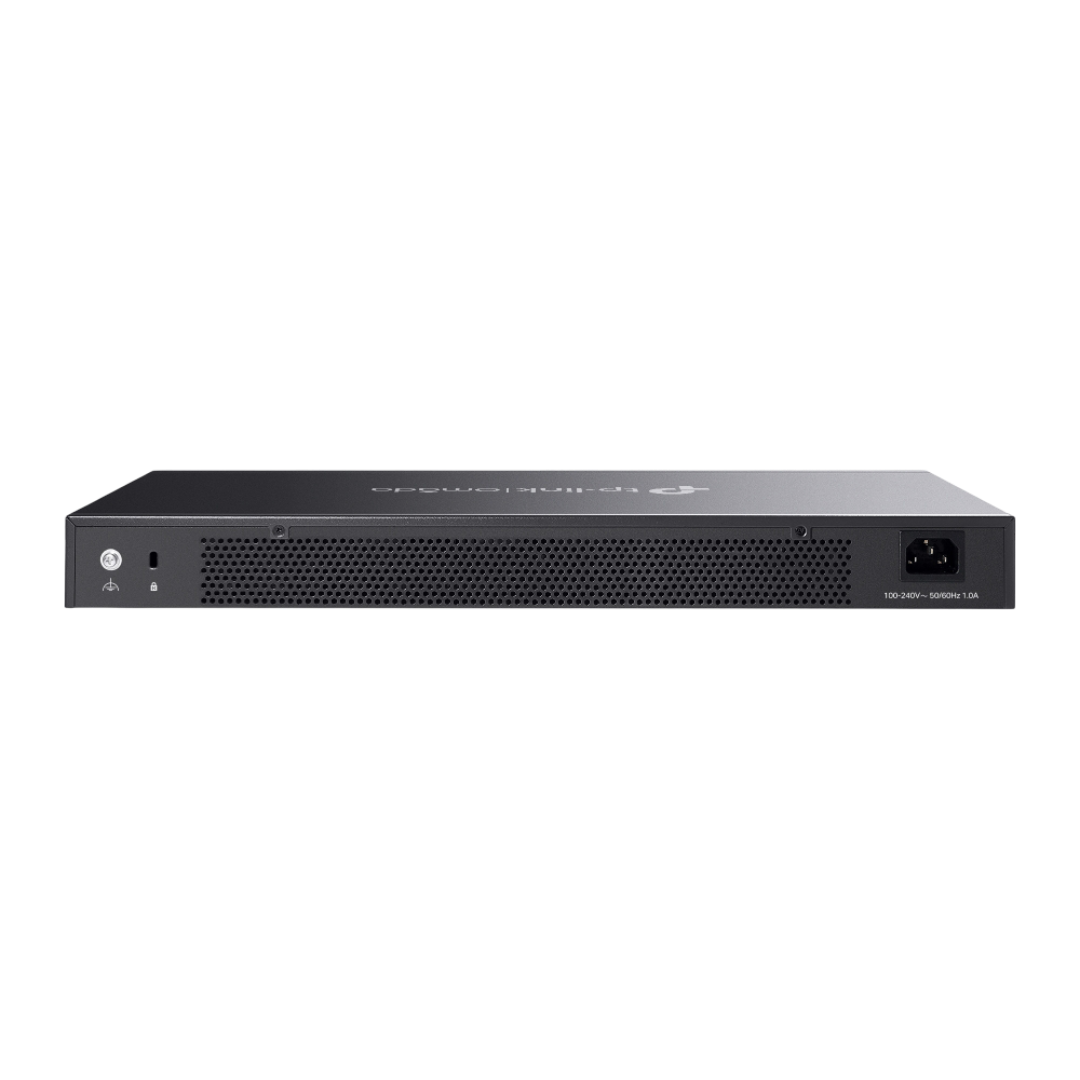

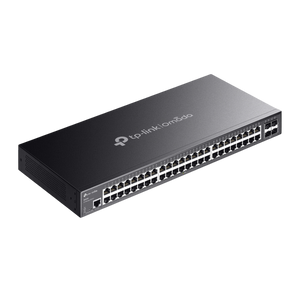

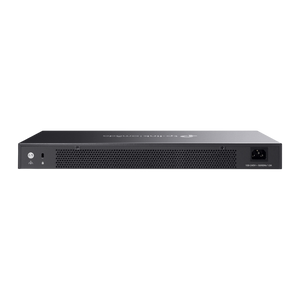

SG3452 - Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
- Regular price
- $649.00
- Sale price
- $649.00
