About
SG3428XPP-M2 is a high-performance Layer 2+ managed switch ideal for high-speed LAN environments like Wi-Fi 6/6E/7 deployments. With 24 multi-gigabit ports including both PoE+ and high-power PoE++ (up to 90W/port), it supports power-intensive devices such as access points, cameras, and workstations. Fully integrated with Omada SDN, it offers advanced L2+ features, static routing, and robust network security.
TECHNICAL SPECIFICATION
Category | Details |
---|---|
Model | SG3428XPP-M2 |
Ports | 24× 2.5G RJ45 Ports (16× PoE+, 8× PoE++), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port |
PoE Standard | IEEE 802.3bt/at/af |
PoE Budget | 500 W |
Switching Capacity | Typically ≥ 320 Gbps (not officially specified) |
SDN Integration | Yes, with Omada SDN Controller |
Layer 3 Features | Static Routing |
Monitoring & Diagnostics | OAM, DDM |
Layer 2 Features | 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping |
QoS & Traffic Control | 802.1p/DSCP QoS, ACL |
Security | 802.1x, Radius/Tacacs+ Authentication |
Management | CLI, SNMP, Omada Cloud, Web UI |
Redundancy | Dual Image/Configuration |
IPv6 Support | Yes |
Construction | 1U 19-inch Rack-mountable Steel Case |
SG3428XPP-M2 is a high-performance Layer 2+ managed switch ideal for high-speed LAN environments like Wi-Fi 6/6E/7 deployments. With 24 multi-gigabit ports including both PoE+ and high-power PoE++ (up to 90W/port), it supports power-intensive devices such as access points, cameras, and workstations. Fully integrated with Omada SDN, it offers advanced L2+ features, static routing, and robust network security.
TECHNICAL SPECIFICATION
Category | Details |
---|---|
Model | SG3428XPP-M2 |
Ports | 24× 2.5G RJ45 Ports (16× PoE+, 8× PoE++), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port |
PoE Standard | IEEE 802.3bt/at/af |
PoE Budget | 500 W |
Switching Capacity | Typically ≥ 320 Gbps (not officially specified) |
SDN Integration | Yes, with Omada SDN Controller |
Layer 3 Features | Static Routing |
Monitoring & Diagnostics | OAM, DDM |
Layer 2 Features | 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping |
QoS & Traffic Control | 802.1p/DSCP QoS, ACL |
Security | 802.1x, Radius/Tacacs+ Authentication |
Management | CLI, SNMP, Omada Cloud, Web UI |
Redundancy | Dual Image/Configuration |
IPv6 Support | Yes |
Construction | 1U 19-inch Rack-mountable Steel Case |

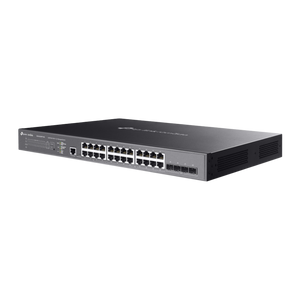

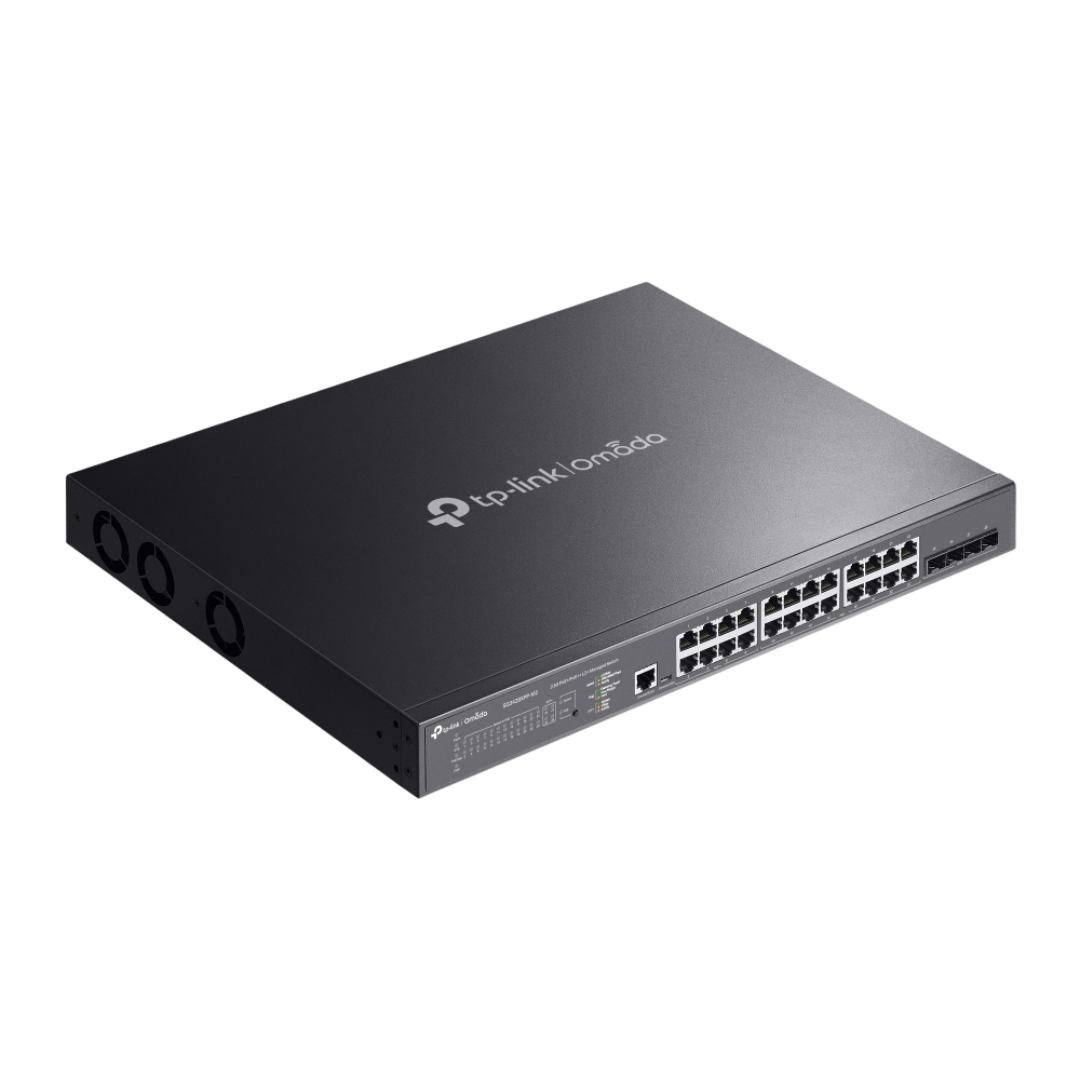

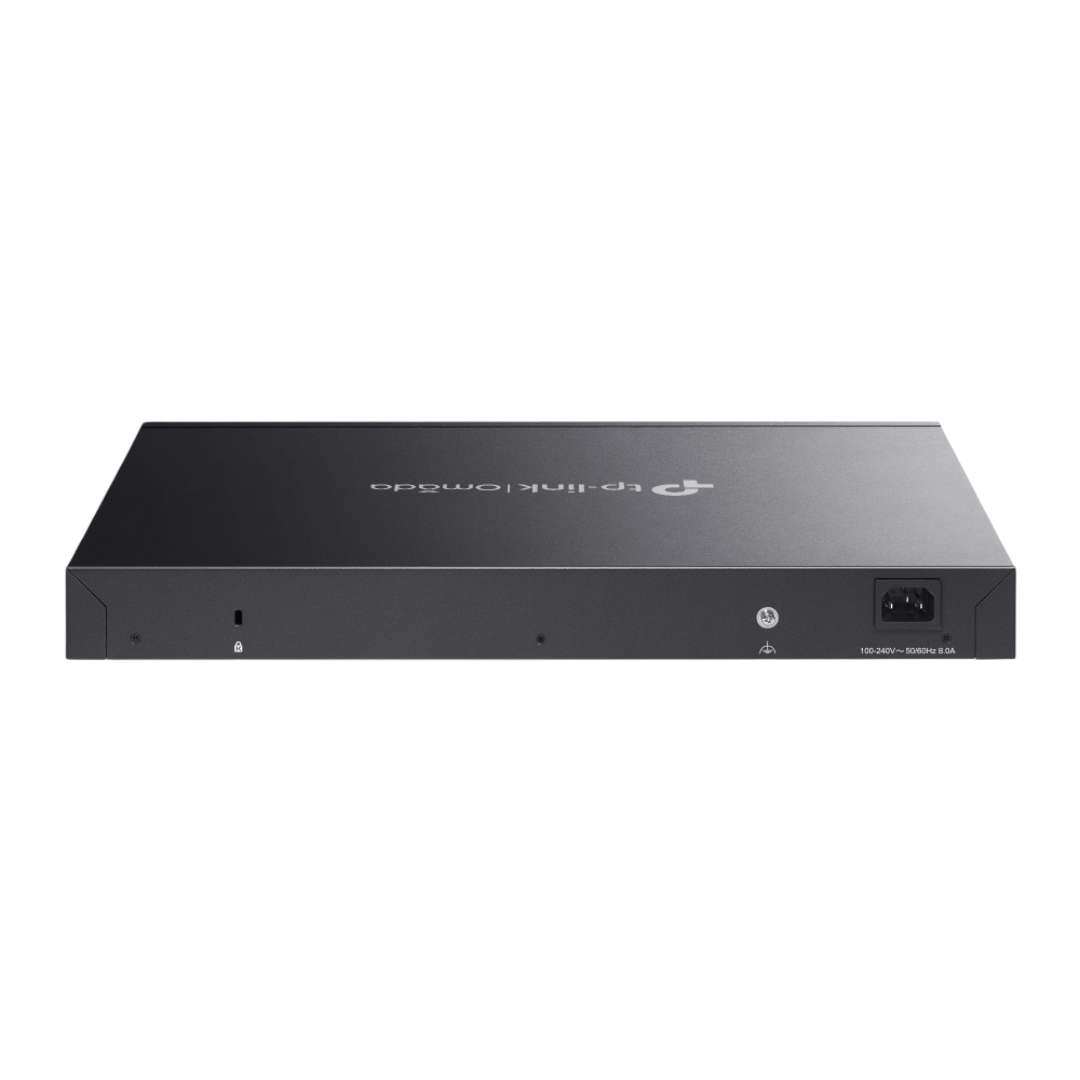

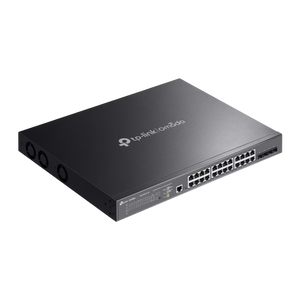

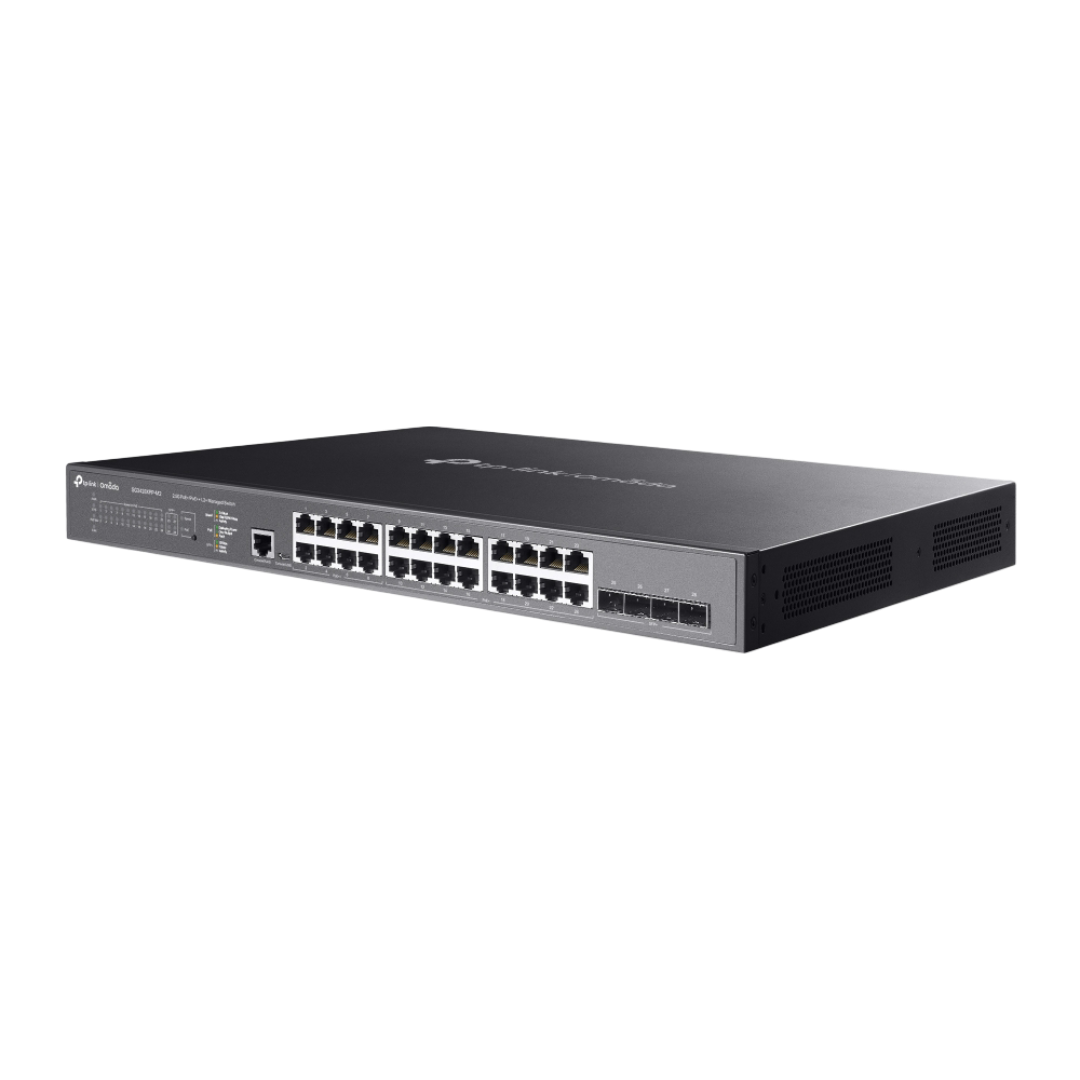

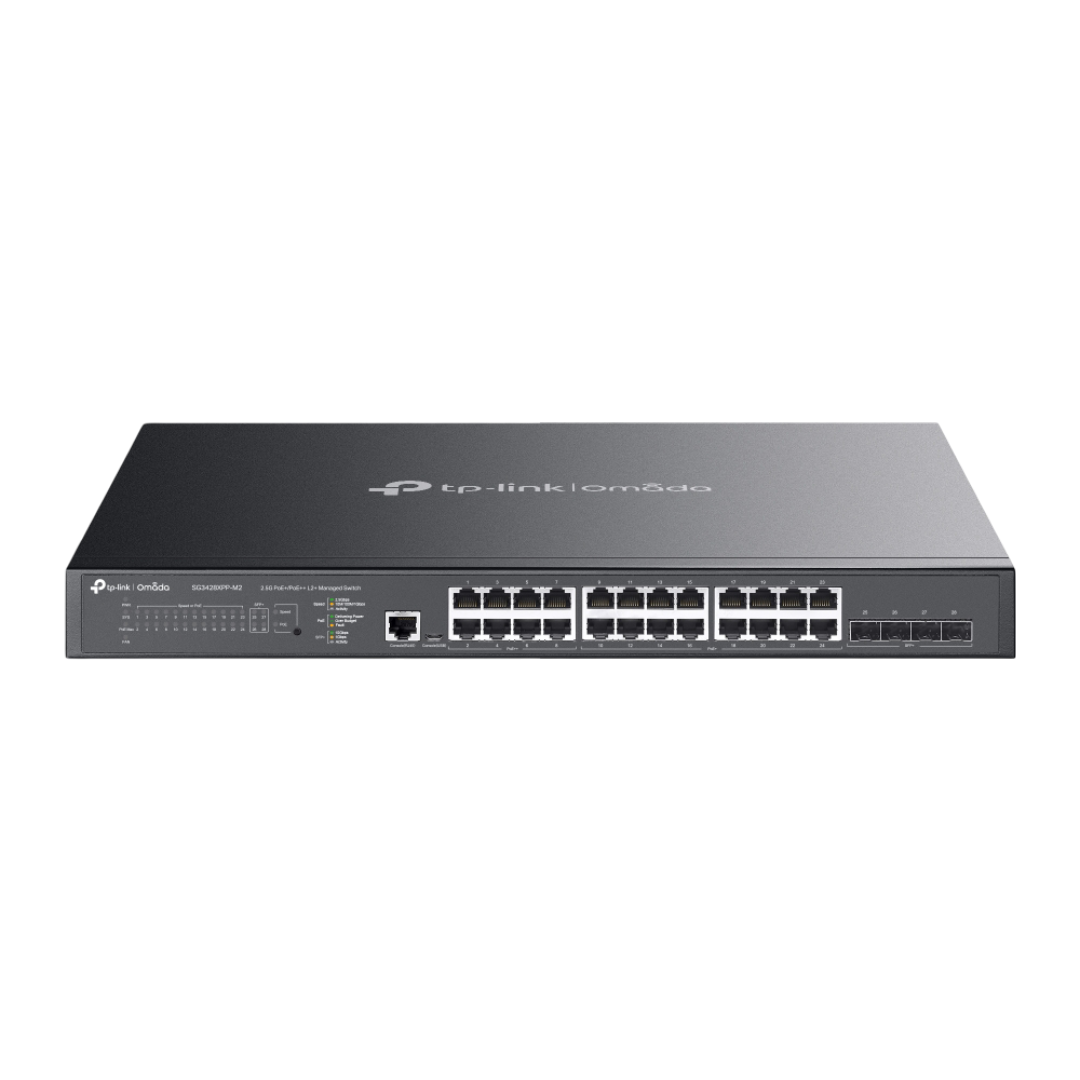

SG3428XPP-M2 – Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
- Regular price
- $1,199.00
- Sale price
- $1,199.00
