About
Learn what makes this product unique and why it’s right for you.

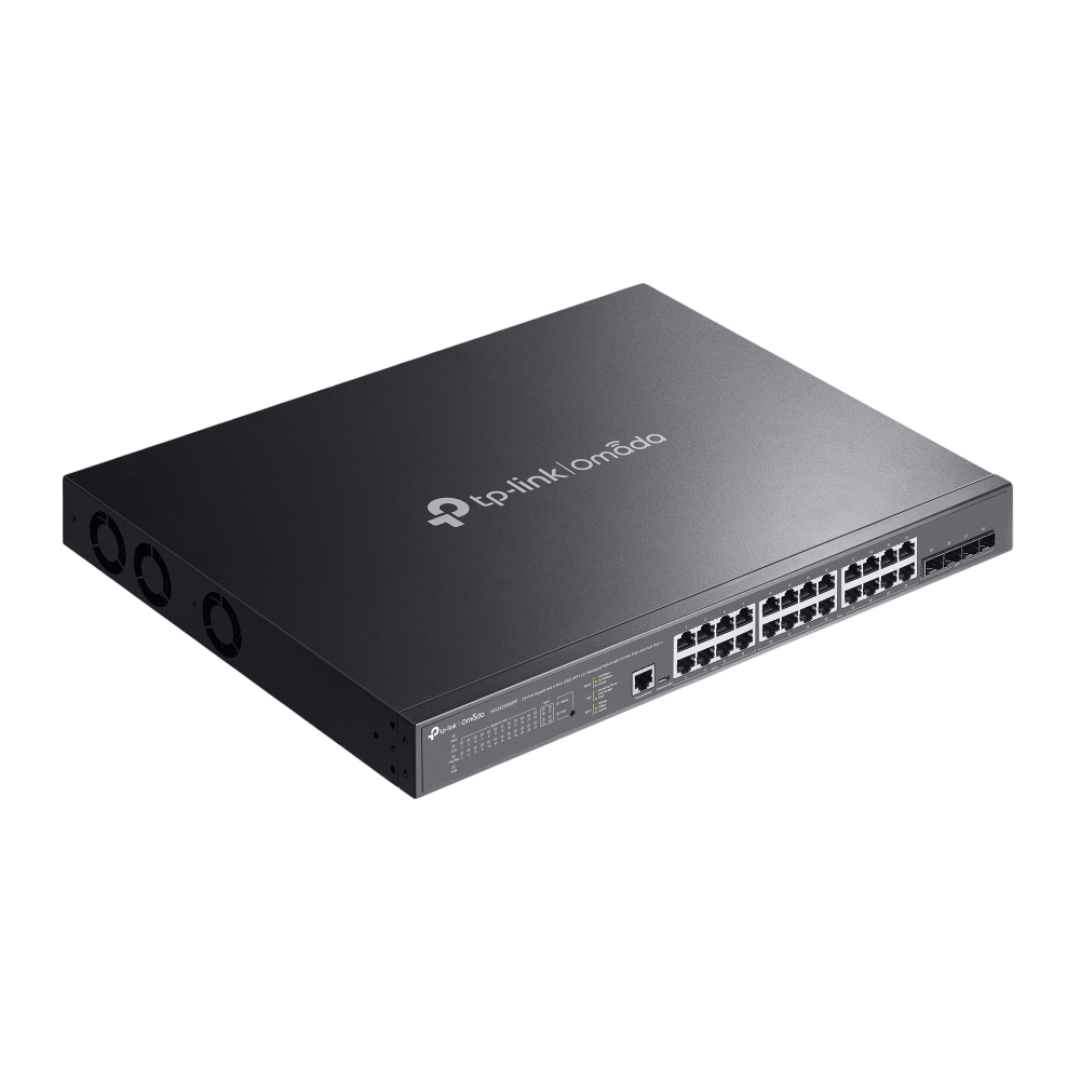

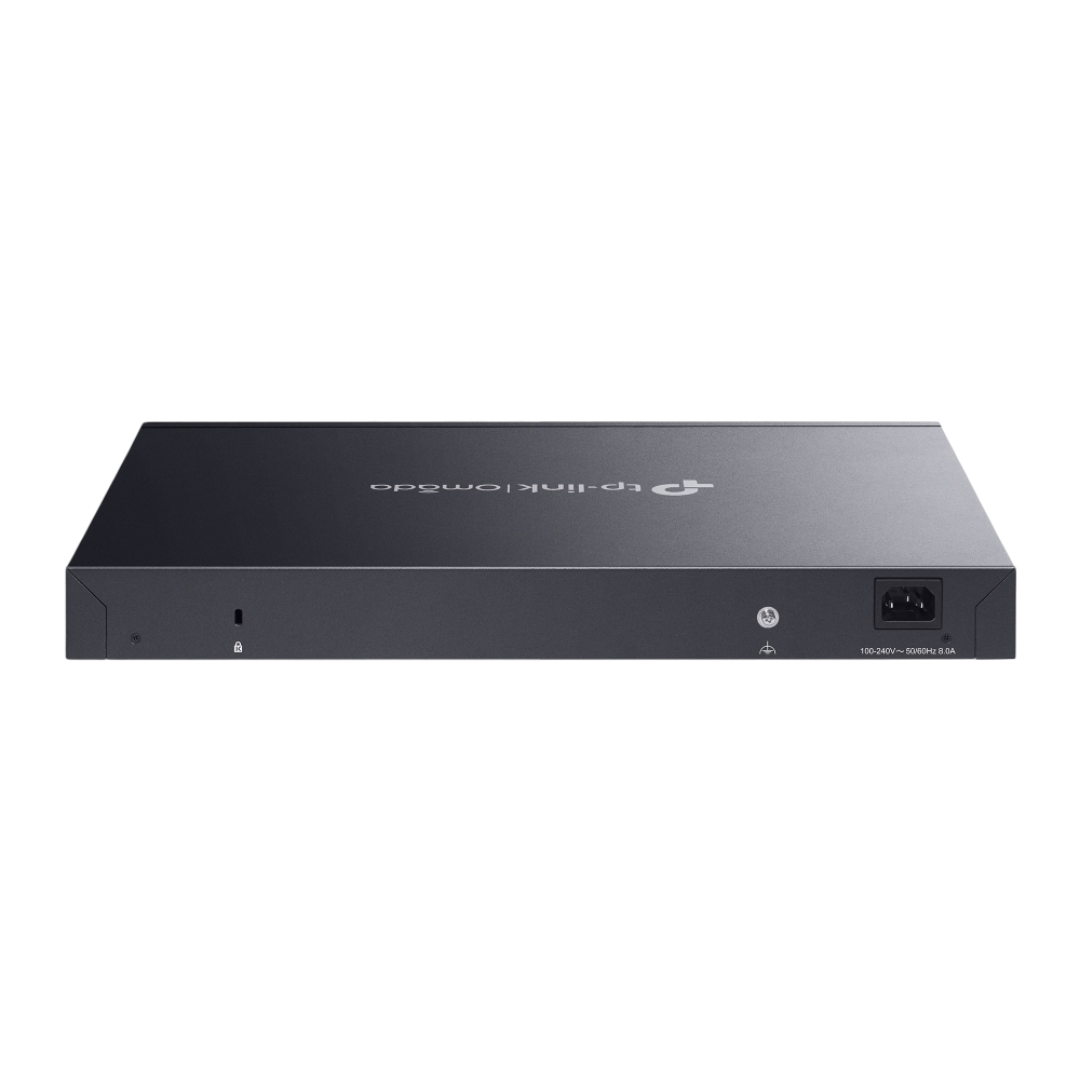

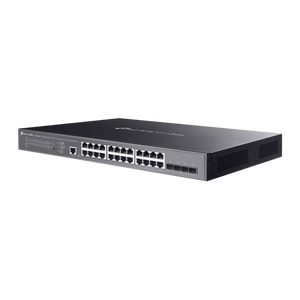

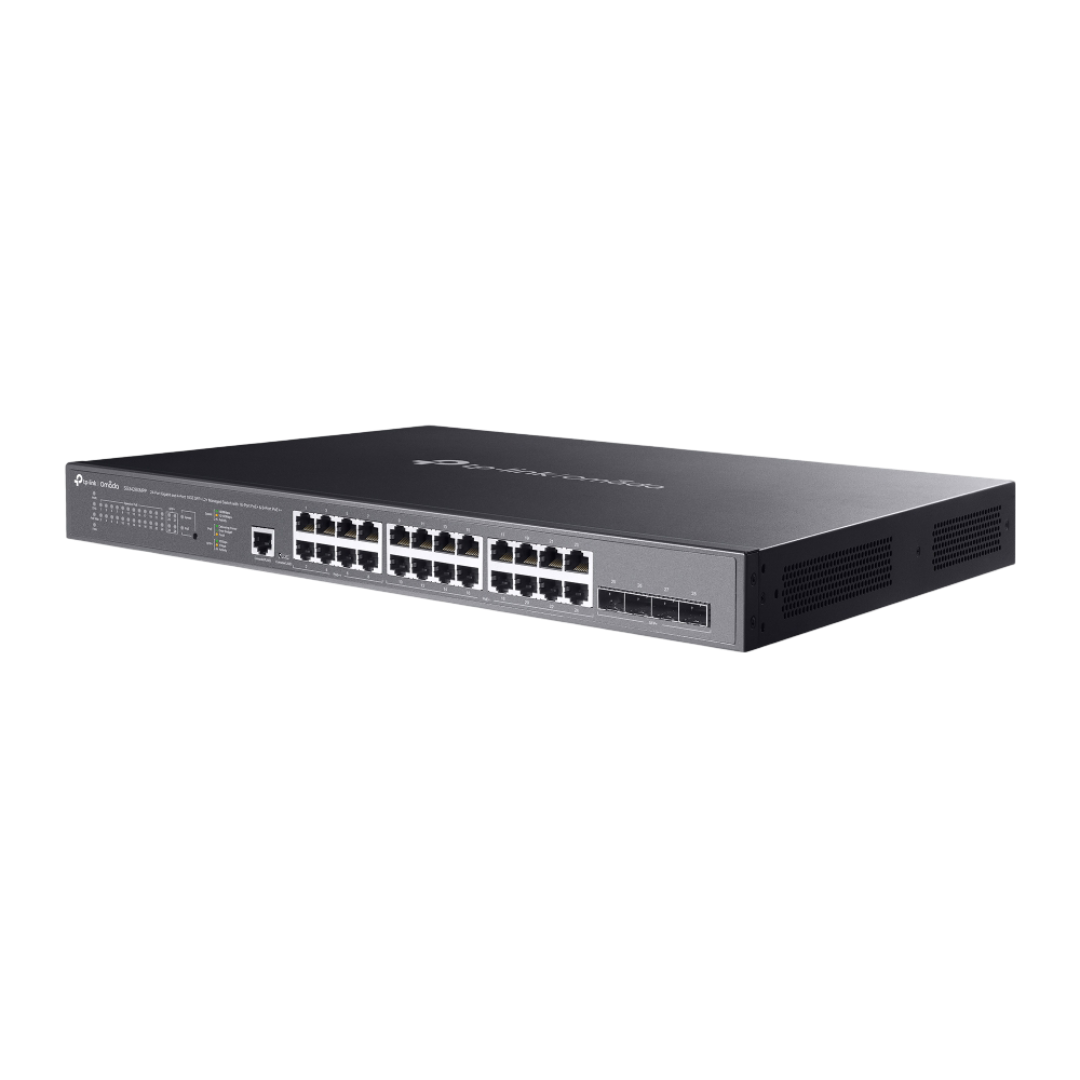

The TP‑Link Omada SG3428XMPP is a hybrid PoE switch combining robust power delivery and uplink flexibility, ideal for access or edge deployments. It provides 24 Gigabit RJ45 ports that support both PoE+ and PoE++, plus 4 × 10 G SFP+ uplink slots. With a 500 W PoE budget, this switch can power high-demand devices (like pan-tilt-zoom cameras, WiFi 6/7 APs, or lighting). It supports advanced L2+ features, centralized management through Omada SDN, and full IPv6 capability. Its 1U rack‑mountable steel chassis is designed for network closets or server racks.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 24 × 10/100/1000 Mbps RJ45 ports (combining PoE+ & PoE++) 4 × 10G SFP+ uplink slots 1 × RJ45 Console port 1 × Micro‑USB Console port |
| PoE / Power Budget | Supports IEEE 802.3af / 802.3at / 802.3bt Ports 1–8: PoE++ (up to 90 W per port) Ports 9–24: PoE+ (up to 30 W per port) Total PoE budget: 500 W |
| Switching Capacity / Performance | 128 Gbps switching capacity 95.23 Mpps packet forwarding rate |
| MAC Address / Buffer / Jumbo | MAC address table: 16K entries Packet buffer: 12 Mbit Supports jumbo frames up to 9 KB |
| Cooling / Fans | 2 internal fans (for thermal management) |
| Power / Consumption | Input: 100–240 V AC, 50/60 Hz Idle / non‑PoE power: ~34.4 W Max power consumption (with full PoE load): ~465.8 W (110V scenario) Heat dissipation: up to ~1,589.3 BTU/hr (with PoE load) |
| Dimensions / Mounting | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) 1U rack‑mountable steel enclosure |
| L2 / L2+ & Routing Features | Static routing (IPv4 / IPv6) Supports up to 48 static routes Link aggregation: static & LACP (multiple groups) STP / RSTP / MSTP, loopback detection, flow control, port mirroring ERPS (Ring Protection) support |
| VLAN / Multicast | 802.1Q VLAN support, QinQ, VLAN mapping IGMP v1/v2/v3 snooping & authentication MLD snooping Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues; 802.1p / DSCP remarking Scheduling: SP, WRR, SP+WRR Rate limiting / traffic shaping / policing |
| Security / Access Control | ACLs (MAC / IP / VLAN / time-based) 802.1X authentication (port & MAC), RADIUS / TACACS+ support IP-MAC-Port binding, DHCP snooping, ARP inspection, DoS defense, port security (max 64 MACs/port) |
| Management / Monitoring | Omada SDN support (cloud / software / hardware) Standalone: Web UI, CLI (SSH / Telnet / console) SNMP v1/v2c/v3, RMON, Syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / config, zero-touch provisioning |
| IPv6 Support | Dual-stack IPv4 / IPv6 IPv6 ACL, IPv6 static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab, IEEE 802.3ae (10G), IEEE 802.3at/af/bt 802.1Q / 802.1p / 802.1D / 802.1s / 802.1w / 802.1x / 802.3ad (LACP) / 802.3x flow control / 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental Conditions | Operating temperature: 0 °C – 40 °C Storage temperature: –40 °C – 70 °C Operating humidity: 10% – 90% RH (non‑condensing) Storage humidity: 5% – 90% RH (non‑condensing) |
| Package Contents & Other Features | SG3428XMPP switch, power cord, rack-mount kit, rubber feet, quick installation guide Physical security lock slot, built-in LED indicators |
Learn what makes this product unique and why it’s right for you.
The TP‑Link Omada SG3428XMPP is a hybrid PoE switch combining robust power delivery and uplink flexibility, ideal for access or edge deployments. It provides 24 Gigabit RJ45 ports that support both PoE+ and PoE++, plus 4 × 10 G SFP+ uplink slots. With a 500 W PoE budget, this switch can power high-demand devices (like pan-tilt-zoom cameras, WiFi 6/7 APs, or lighting). It supports advanced L2+ features, centralized management through Omada SDN, and full IPv6 capability. Its 1U rack‑mountable steel chassis is designed for network closets or server racks.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 24 × 10/100/1000 Mbps RJ45 ports (combining PoE+ & PoE++) 4 × 10G SFP+ uplink slots 1 × RJ45 Console port 1 × Micro‑USB Console port |
| PoE / Power Budget | Supports IEEE 802.3af / 802.3at / 802.3bt Ports 1–8: PoE++ (up to 90 W per port) Ports 9–24: PoE+ (up to 30 W per port) Total PoE budget: 500 W |
| Switching Capacity / Performance | 128 Gbps switching capacity 95.23 Mpps packet forwarding rate |
| MAC Address / Buffer / Jumbo | MAC address table: 16K entries Packet buffer: 12 Mbit Supports jumbo frames up to 9 KB |
| Cooling / Fans | 2 internal fans (for thermal management) |
| Power / Consumption | Input: 100–240 V AC, 50/60 Hz Idle / non‑PoE power: ~34.4 W Max power consumption (with full PoE load): ~465.8 W (110V scenario) Heat dissipation: up to ~1,589.3 BTU/hr (with PoE load) |
| Dimensions / Mounting | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) 1U rack‑mountable steel enclosure |
| L2 / L2+ & Routing Features | Static routing (IPv4 / IPv6) Supports up to 48 static routes Link aggregation: static & LACP (multiple groups) STP / RSTP / MSTP, loopback detection, flow control, port mirroring ERPS (Ring Protection) support |
| VLAN / Multicast | 802.1Q VLAN support, QinQ, VLAN mapping IGMP v1/v2/v3 snooping & authentication MLD snooping Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues; 802.1p / DSCP remarking Scheduling: SP, WRR, SP+WRR Rate limiting / traffic shaping / policing |
| Security / Access Control | ACLs (MAC / IP / VLAN / time-based) 802.1X authentication (port & MAC), RADIUS / TACACS+ support IP-MAC-Port binding, DHCP snooping, ARP inspection, DoS defense, port security (max 64 MACs/port) |
| Management / Monitoring | Omada SDN support (cloud / software / hardware) Standalone: Web UI, CLI (SSH / Telnet / console) SNMP v1/v2c/v3, RMON, Syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / config, zero-touch provisioning |
| IPv6 Support | Dual-stack IPv4 / IPv6 IPv6 ACL, IPv6 static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab, IEEE 802.3ae (10G), IEEE 802.3at/af/bt 802.1Q / 802.1p / 802.1D / 802.1s / 802.1w / 802.1x / 802.3ad (LACP) / 802.3x flow control / 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental Conditions | Operating temperature: 0 °C – 40 °C Storage temperature: –40 °C – 70 °C Operating humidity: 10% – 90% RH (non‑condensing) Storage humidity: 5% – 90% RH (non‑condensing) |
| Package Contents & Other Features | SG3428XMPP switch, power cord, rack-mount kit, rubber feet, quick installation guide Physical security lock slot, built-in LED indicators |
SG3428XMPP - Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
- Regular price
- $999.00
- Sale price
- $999.00
