About

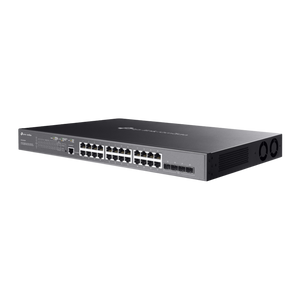

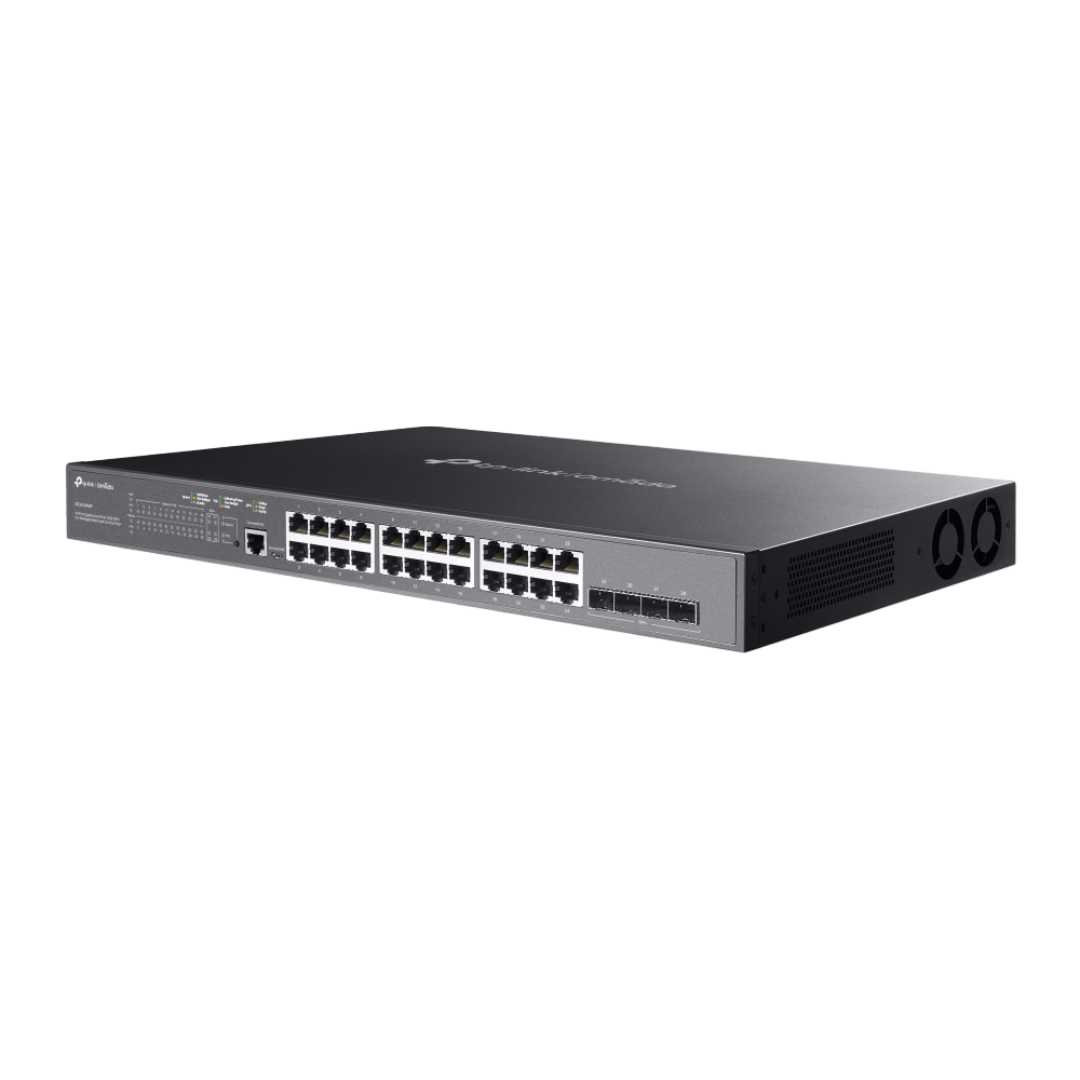

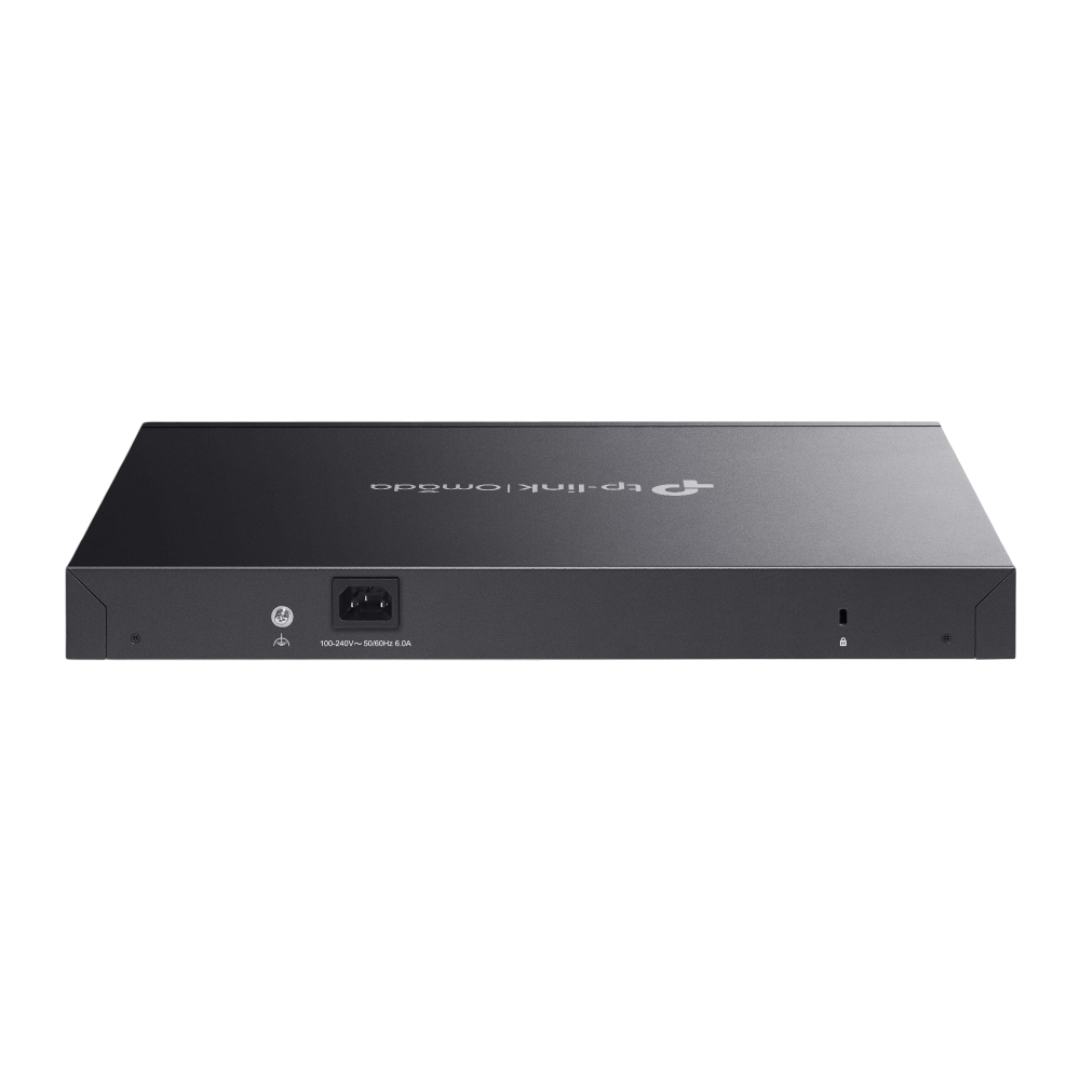

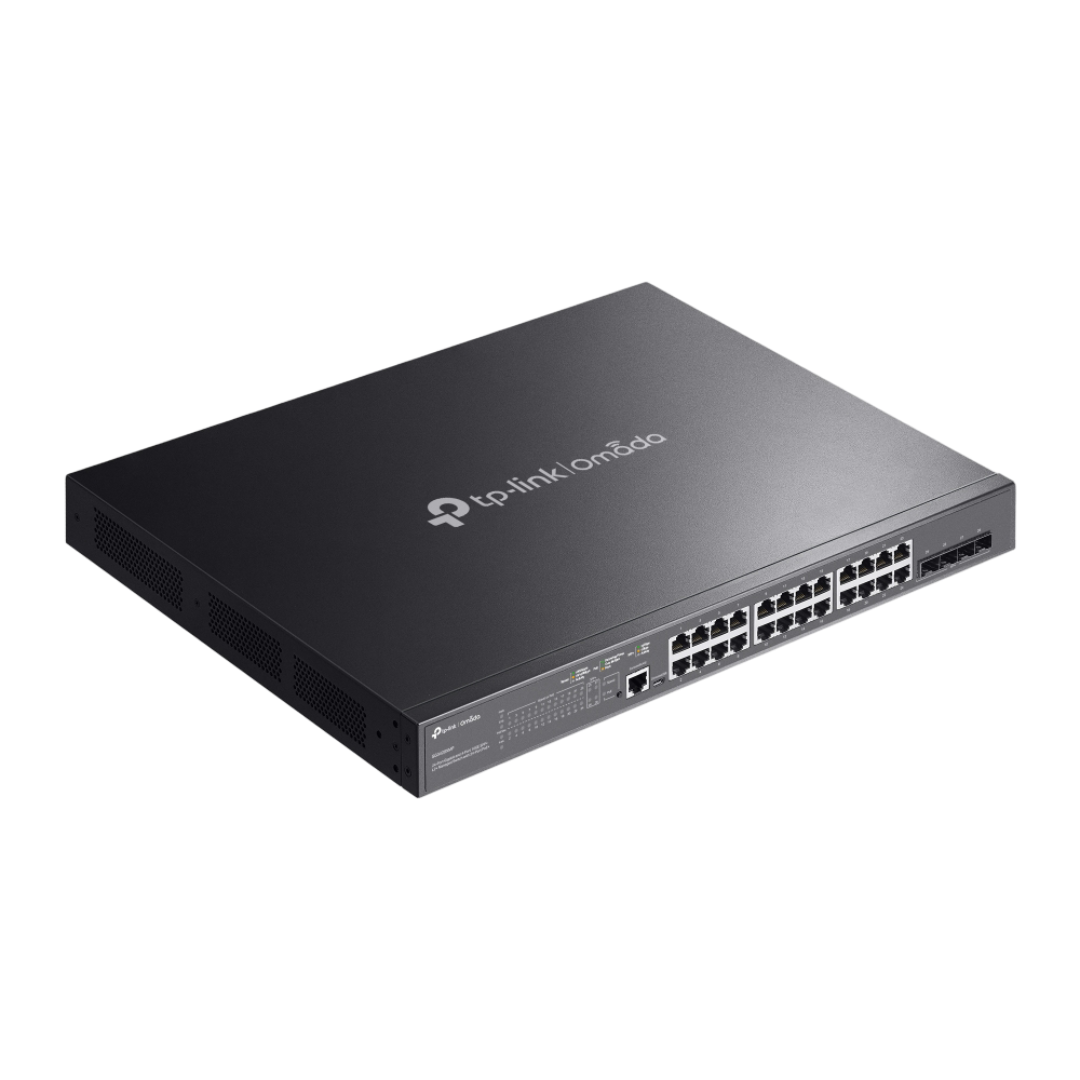

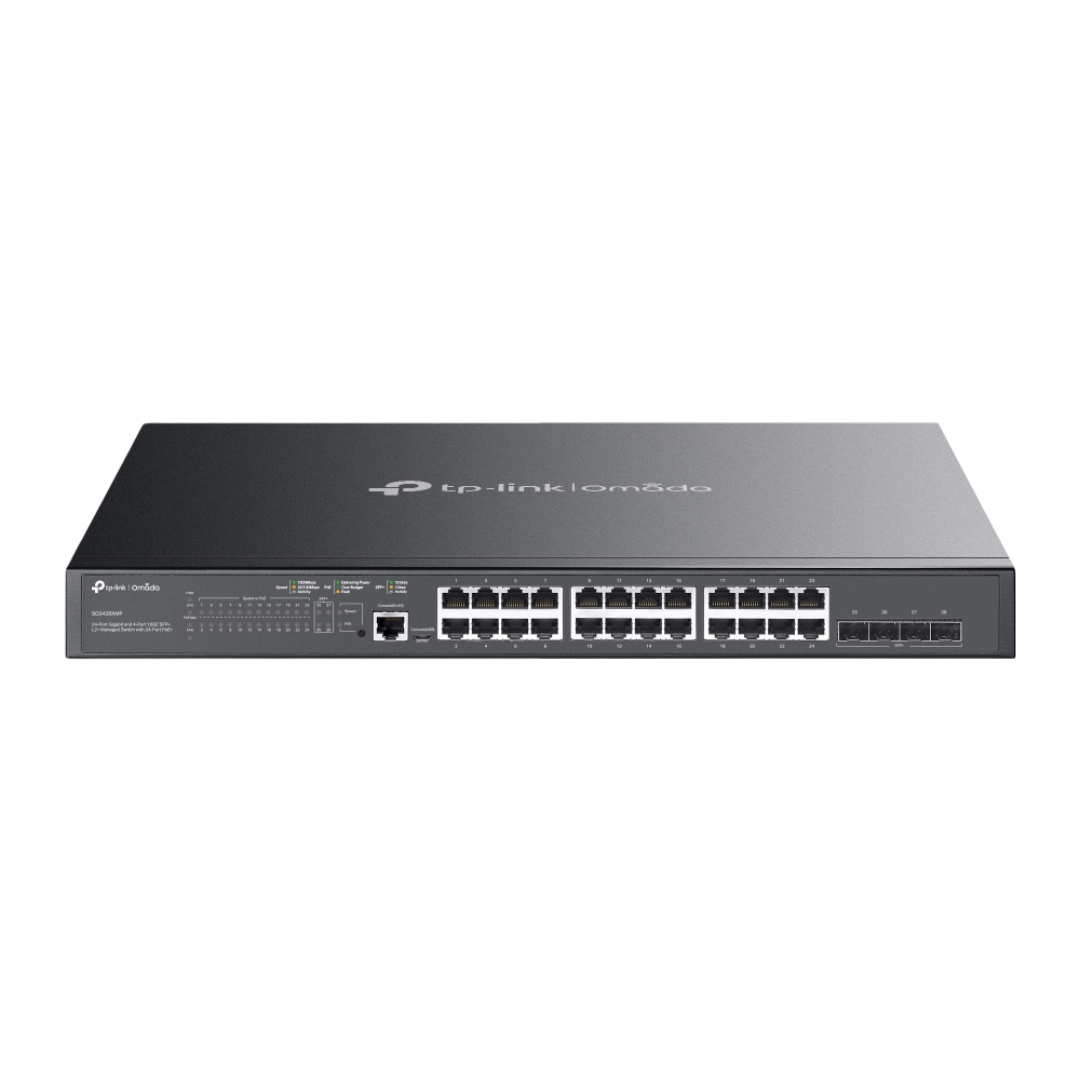

The TP‑Link Omada SG3428XMP is a mid‑density PoE+ switch that blends power delivery and high uplink bandwidth for business edge deployments. It offers 24 Gigabit RJ45 ports with full PoE+ support, along with 4 × 10G SFP+ uplinks for aggregation or backbone links. With a 384 W PoE budget and a 1U rack‑mount steel chassis, it’s ideal for powering IP cameras, WiFi access points, VoIP phones, and other PoE devices. It supports the full Omada SDN stack for centralized management, and offers a rich set of L2+ and routing features for advanced network control.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 24 × 10/100/1000 Mbps RJ45 (PoE+) ports 4 × 10G SFP+ slots for uplinks / stacking 1 × RJ45 console port 1 × Micro‑USB console port |
| PoE / Power Budget | Compliant with IEEE 802.3af / 802.3at Up to 30 W per PoE+ port Total PoE budget: 384 W (for all 24 ports) |
| Switching Capacity / Forwarding | Switching capacity: 128 Gbps Forwarding rate: 95.23 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer: 12 Mbit Jumbo frame support: up to 9 KB |
| Power / Consumption / Heat | AC Input: 100‑240 V AC, 50/60 Hz Power consumption (no PD load): ~34.4 W Max power consumption (with full PoE load): up to ~465.8 W (version‑dependent) Heat dissipation at full load: ~1,589.3 BTU/hr |
| Cooling / Fans | 2 internal fans for thermal cooling |
| Dimensions / Mounting | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) 1U rack‑mountable steel chassis |
| L2+ / Routing Features | Static routing (IPv4 / IPv6) Support for up to 48 static routes Link Aggregation: static & LACP (up to 8 groups) Spanning Tree (STP, RSTP, MSTP) with security options Loopback detection, flow control, port mirroring, HOL prevention |
| VLAN / Multicast | 802.1Q VLANs (up to 4,000) QinQ (port-based / selective) IGMP Snooping (v1 / v2 / v3), IGMP authentication MLD Snooping Multicast VLAN Registration (MVR) |
| Quality of Service (QoS) | 8 priority queues 802.1p / DSCP remarking & priority mapping Scheduling modes: SP, WRR, SP + WRR Rate limiting per port / flow, traffic shaping / policing |
| Security / Access Control | Access Control Lists (ACLs): MAC / IP / VLAN / time‑based Port security, IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection 802.1X authentication (port & MAC), RADIUS / TACACS+ support Storm control, port isolation |
| Management / Monitoring | Omada SDN integration (cloud, hardware, software controllers) Standalone: Web UI, CLI (console / SSH / Telnet) SNMP v1 / v2c / v3, RMON, Syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero‑touch provisioning |
| IPv6 Support | Dual‑stack IPv4 / IPv6 support IPv6 ACLs, IPv6 static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab (10/100/1000), IEEE 802.3ae (10G) 802.1Q / 802.1p / 802.1D / 802.1s / 802.1w / 802.1x, 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental | Operating temperature: 0 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Other Features | SG3428XMP switch unit, power cord, rack mount kit, rubber feet, quick installation guide Physical security lock slot, LED status indicators, dual image / configuration feature |
The TP‑Link Omada SG3428XMP is a mid‑density PoE+ switch that blends power delivery and high uplink bandwidth for business edge deployments. It offers 24 Gigabit RJ45 ports with full PoE+ support, along with 4 × 10G SFP+ uplinks for aggregation or backbone links. With a 384 W PoE budget and a 1U rack‑mount steel chassis, it’s ideal for powering IP cameras, WiFi access points, VoIP phones, and other PoE devices. It supports the full Omada SDN stack for centralized management, and offers a rich set of L2+ and routing features for advanced network control.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 24 × 10/100/1000 Mbps RJ45 (PoE+) ports 4 × 10G SFP+ slots for uplinks / stacking 1 × RJ45 console port 1 × Micro‑USB console port |
| PoE / Power Budget | Compliant with IEEE 802.3af / 802.3at Up to 30 W per PoE+ port Total PoE budget: 384 W (for all 24 ports) |
| Switching Capacity / Forwarding | Switching capacity: 128 Gbps Forwarding rate: 95.23 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer: 12 Mbit Jumbo frame support: up to 9 KB |
| Power / Consumption / Heat | AC Input: 100‑240 V AC, 50/60 Hz Power consumption (no PD load): ~34.4 W Max power consumption (with full PoE load): up to ~465.8 W (version‑dependent) Heat dissipation at full load: ~1,589.3 BTU/hr |
| Cooling / Fans | 2 internal fans for thermal cooling |
| Dimensions / Mounting | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) 1U rack‑mountable steel chassis |
| L2+ / Routing Features | Static routing (IPv4 / IPv6) Support for up to 48 static routes Link Aggregation: static & LACP (up to 8 groups) Spanning Tree (STP, RSTP, MSTP) with security options Loopback detection, flow control, port mirroring, HOL prevention |
| VLAN / Multicast | 802.1Q VLANs (up to 4,000) QinQ (port-based / selective) IGMP Snooping (v1 / v2 / v3), IGMP authentication MLD Snooping Multicast VLAN Registration (MVR) |
| Quality of Service (QoS) | 8 priority queues 802.1p / DSCP remarking & priority mapping Scheduling modes: SP, WRR, SP + WRR Rate limiting per port / flow, traffic shaping / policing |
| Security / Access Control | Access Control Lists (ACLs): MAC / IP / VLAN / time‑based Port security, IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection 802.1X authentication (port & MAC), RADIUS / TACACS+ support Storm control, port isolation |
| Management / Monitoring | Omada SDN integration (cloud, hardware, software controllers) Standalone: Web UI, CLI (console / SSH / Telnet) SNMP v1 / v2c / v3, RMON, Syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero‑touch provisioning |
| IPv6 Support | Dual‑stack IPv4 / IPv6 support IPv6 ACLs, IPv6 static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab (10/100/1000), IEEE 802.3ae (10G) 802.1Q / 802.1p / 802.1D / 802.1s / 802.1w / 802.1x, 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental | Operating temperature: 0 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Other Features | SG3428XMP switch unit, power cord, rack mount kit, rubber feet, quick installation guide Physical security lock slot, LED status indicators, dual image / configuration feature |
SG3428XMP - Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
- Regular price
- $749.00
- Sale price
- $749.00
