About

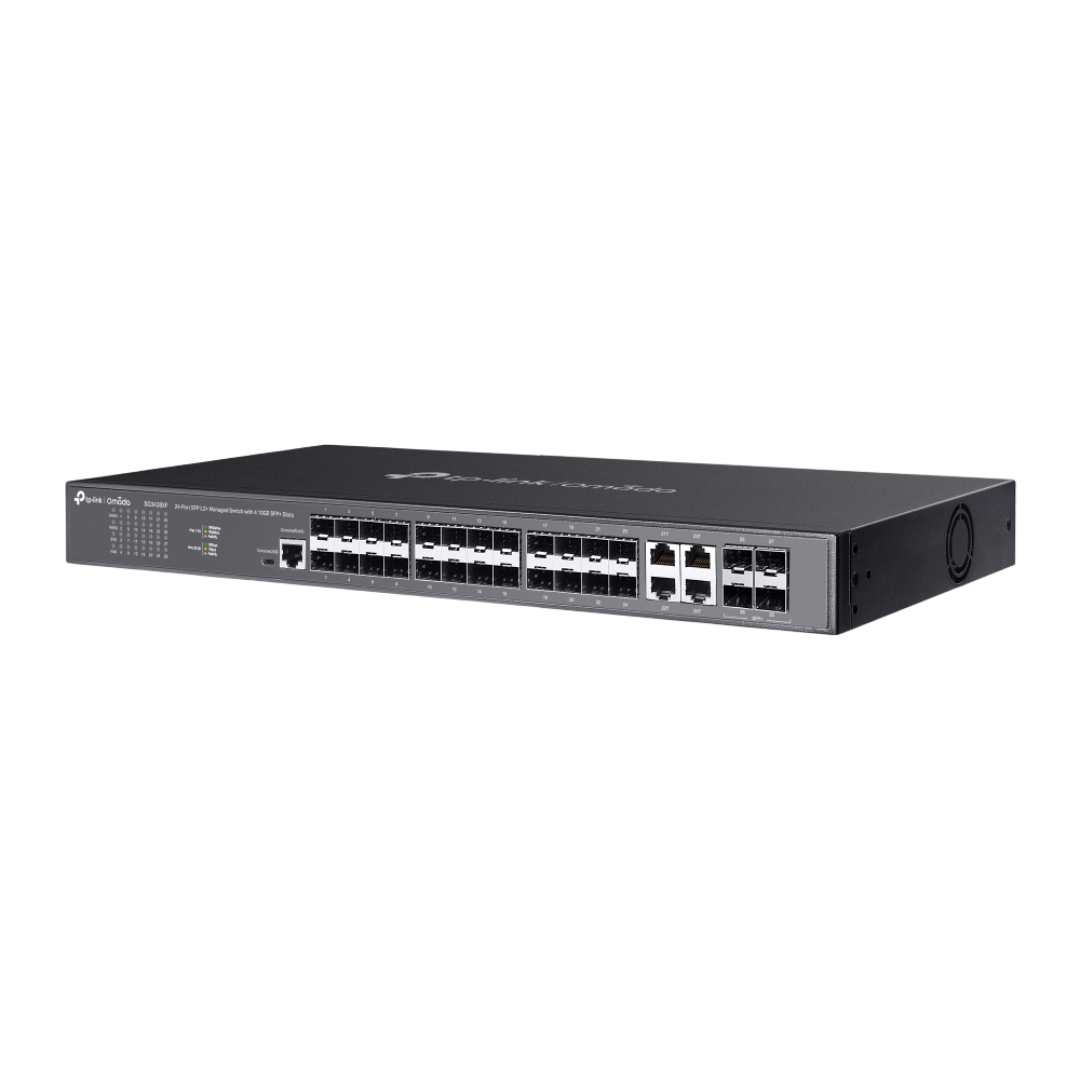

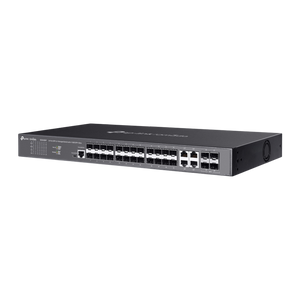

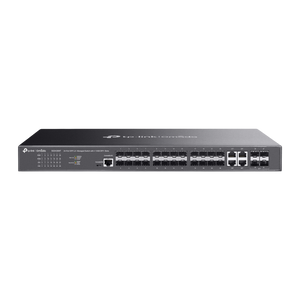

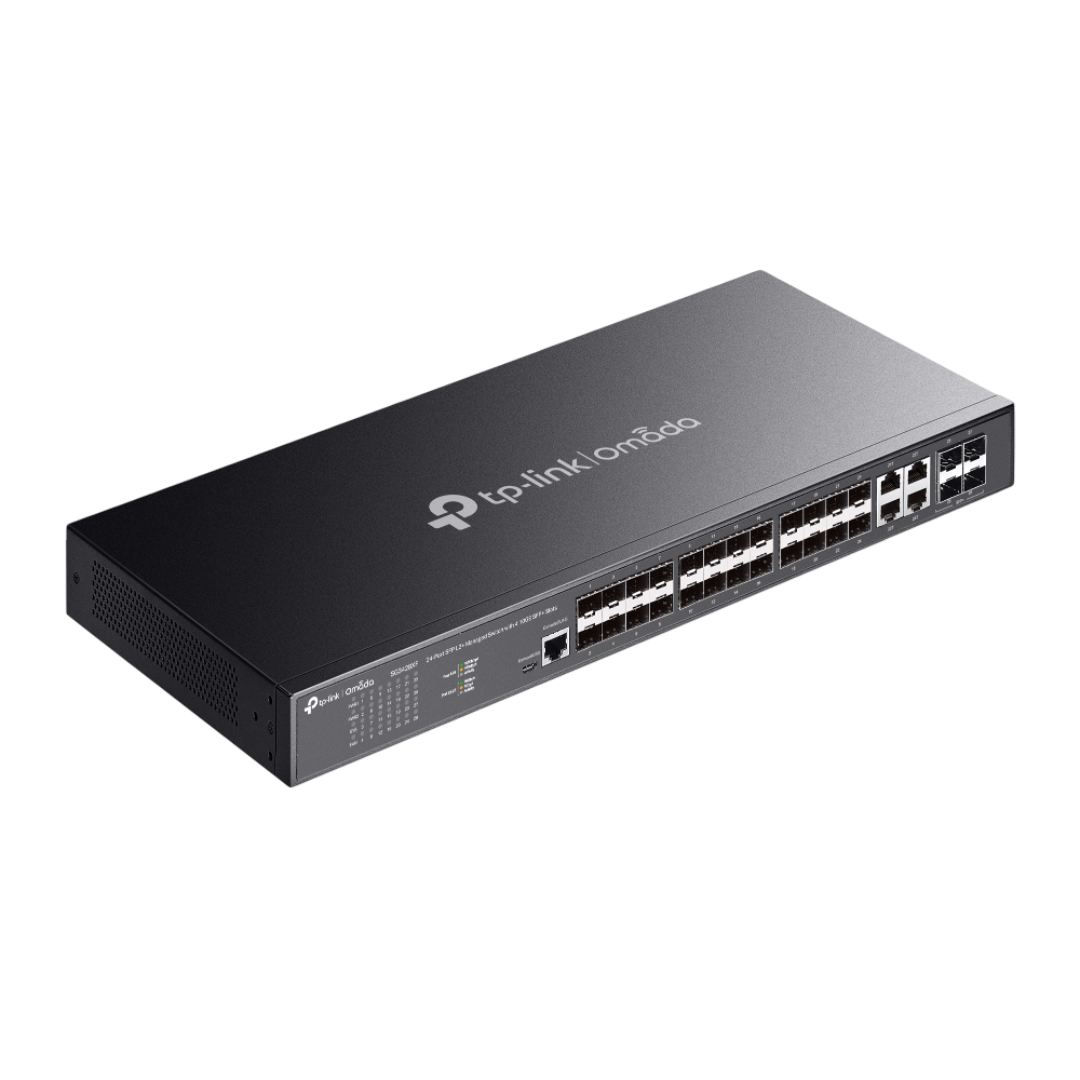

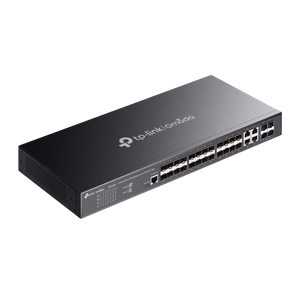

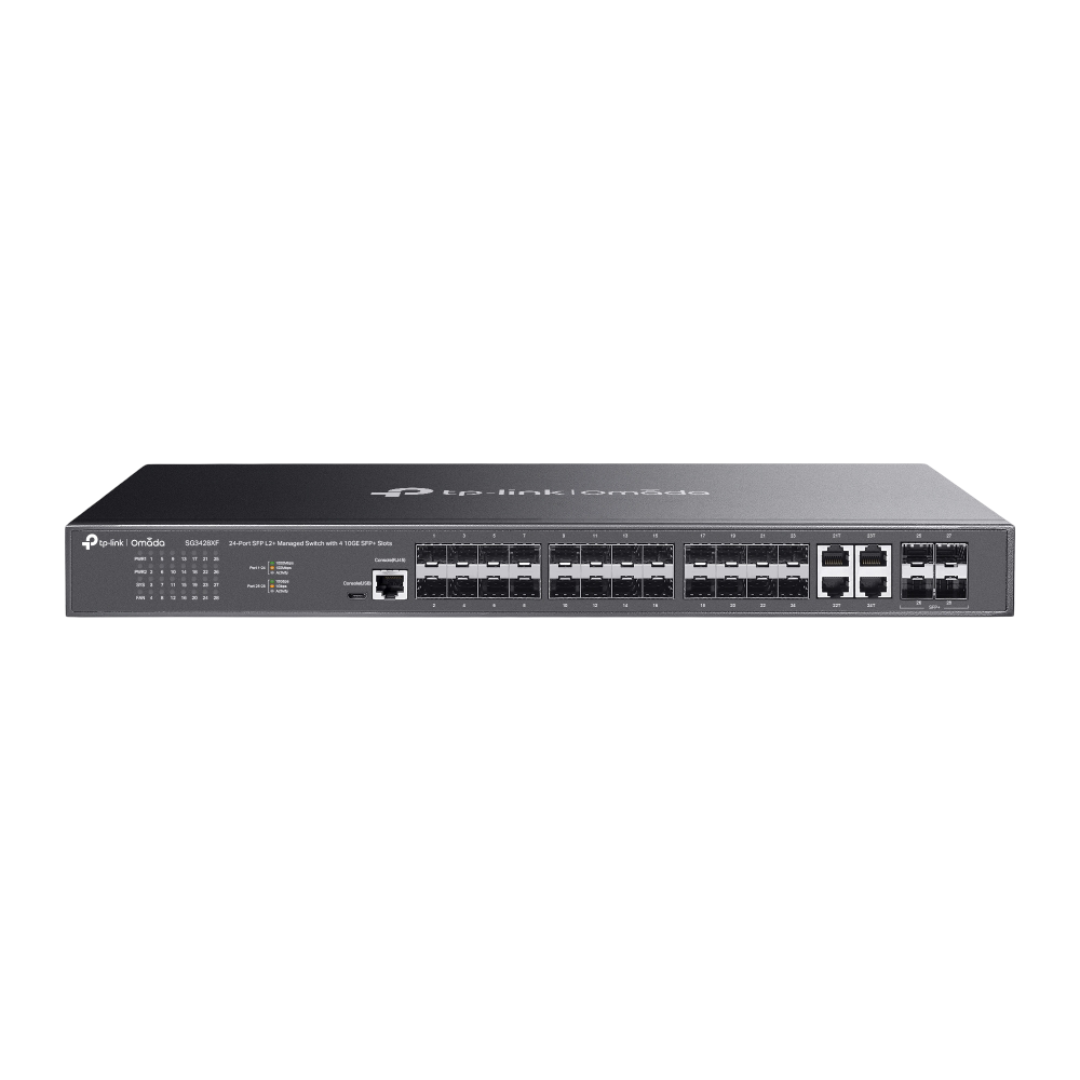

The TP-Link Omada SG3428XF is a high-performance 24-port SFP L2+ managed switch with 4 10GE SFP+ uplink slots, designed for fiber-based networks requiring high-speed connectivity and flexibility. Featuring 20 dedicated Gigabit SFP ports and 4 Gigabit SFP/RJ45 combo ports, it supports advanced Layer 2+ features and seamless integration with the Omada SDN Controller platform. The switch comes in a 1U rack-mountable steel chassis and includes dual redundant power supplies for enhanced reliability.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1x, Radius / Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6, Dual Redundant Power Supplies
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 20 × Gigabit SFP ports 4 × Gigabit SFP/RJ45 combo ports 4 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro-USB console port |
| Switching Capacity / Forwarding | Switching capacity: 128 Gbps Packet forwarding rate: 95.23 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer memory: 12 Mbit Jumbo frame support: up to 9 KB |

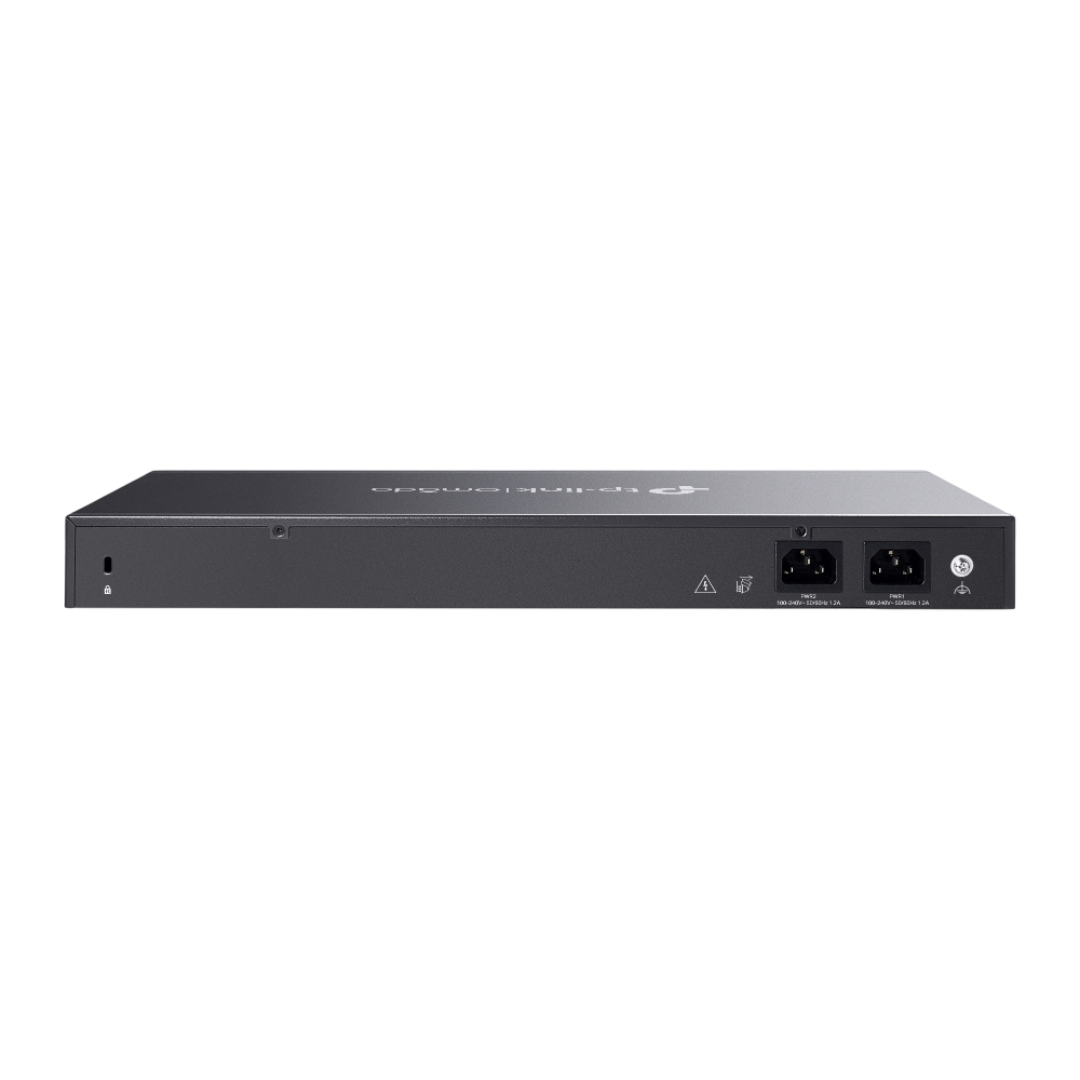

| Power / Redundancy | Dual redundant power supplies AC input: 100-240 V, 50/60 Hz |
| Dimensions / Mounting | 1U 19-inch rack-mountable steel chassis Dimensions: 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) |
| L2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Link aggregation (LACP & static) STP / RSTP / MSTP Loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLAN (up to 4,000 VLANs), QinQ, VLAN mapping IGMP Snooping v1/v2/v3, MLD Snooping, Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues 802.1p / DSCP remarking and priority mapping Scheduling: SP, WRR, SP + WRR Bandwidth control and traffic shaping/policing |
| Security / Access Control | ACLs (L2 / L3 / L4) 802.1X authentication RADIUS / TACACS+ authentication IP-MAC-Port binding, DHCP snooping, ARP inspection, DoS defense, port security |
| Management / Monitoring | Omada SDN Controller integration Web GUI, CLI (SSH, Telnet, Console) SNMP v1/v2c/v3, RMON, syslog, LLDP, cable diagnostics, dual image/configuration, zero-touch provisioning |
| IPv6 Support | Full IPv4 / IPv6 dual stack support IPv6 ACL, static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab (10/100/1000), IEEE 802.3ae (10G SFP+) 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental Conditions | Operating temperature: 0 °C to 45 °C Storage temperature: -40 °C to 70 °C Operating humidity: 10–90% RH (non-condensing) Storage humidity: 5–90% RH (non-condensing) |
| Package Contents & Other Features | SG3428XF switch unit, dual power supplies, power cords, rack mounting kit, rubber feet, quick installation guide LED status indicators, dual image/configuration support |
The TP-Link Omada SG3428XF is a high-performance 24-port SFP L2+ managed switch with 4 10GE SFP+ uplink slots, designed for fiber-based networks requiring high-speed connectivity and flexibility. Featuring 20 dedicated Gigabit SFP ports and 4 Gigabit SFP/RJ45 combo ports, it supports advanced Layer 2+ features and seamless integration with the Omada SDN Controller platform. The switch comes in a 1U rack-mountable steel chassis and includes dual redundant power supplies for enhanced reliability.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1x, Radius / Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6, Dual Redundant Power Supplies
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 20 × Gigabit SFP ports 4 × Gigabit SFP/RJ45 combo ports 4 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro-USB console port |
| Switching Capacity / Forwarding | Switching capacity: 128 Gbps Packet forwarding rate: 95.23 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer memory: 12 Mbit Jumbo frame support: up to 9 KB |
| Power / Redundancy | Dual redundant power supplies AC input: 100-240 V, 50/60 Hz |
| Dimensions / Mounting | 1U 19-inch rack-mountable steel chassis Dimensions: 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) |
| L2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Link aggregation (LACP & static) STP / RSTP / MSTP Loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLAN (up to 4,000 VLANs), QinQ, VLAN mapping IGMP Snooping v1/v2/v3, MLD Snooping, Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues 802.1p / DSCP remarking and priority mapping Scheduling: SP, WRR, SP + WRR Bandwidth control and traffic shaping/policing |
| Security / Access Control | ACLs (L2 / L3 / L4) 802.1X authentication RADIUS / TACACS+ authentication IP-MAC-Port binding, DHCP snooping, ARP inspection, DoS defense, port security |
| Management / Monitoring | Omada SDN Controller integration Web GUI, CLI (SSH, Telnet, Console) SNMP v1/v2c/v3, RMON, syslog, LLDP, cable diagnostics, dual image/configuration, zero-touch provisioning |
| IPv6 Support | Full IPv4 / IPv6 dual stack support IPv6 ACL, static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab (10/100/1000), IEEE 802.3ae (10G SFP+) 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental Conditions | Operating temperature: 0 °C to 45 °C Storage temperature: -40 °C to 70 °C Operating humidity: 10–90% RH (non-condensing) Storage humidity: 5–90% RH (non-condensing) |
| Package Contents & Other Features | SG3428XF switch unit, dual power supplies, power cords, rack mounting kit, rubber feet, quick installation guide LED status indicators, dual image/configuration support |
SG3428XF - Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
- Regular price
- $999.00
- Sale price
- $999.00
