About

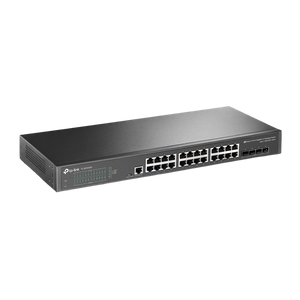

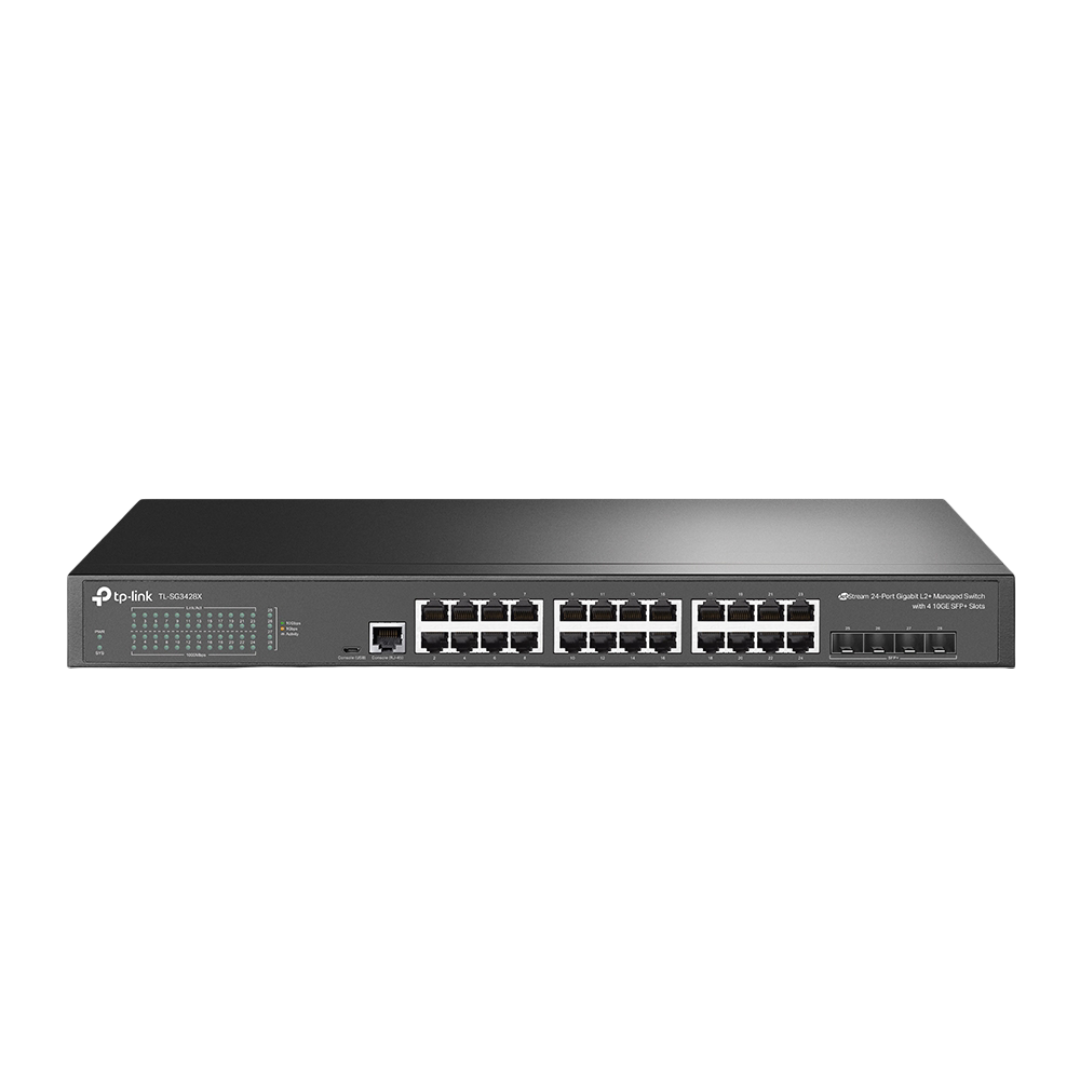

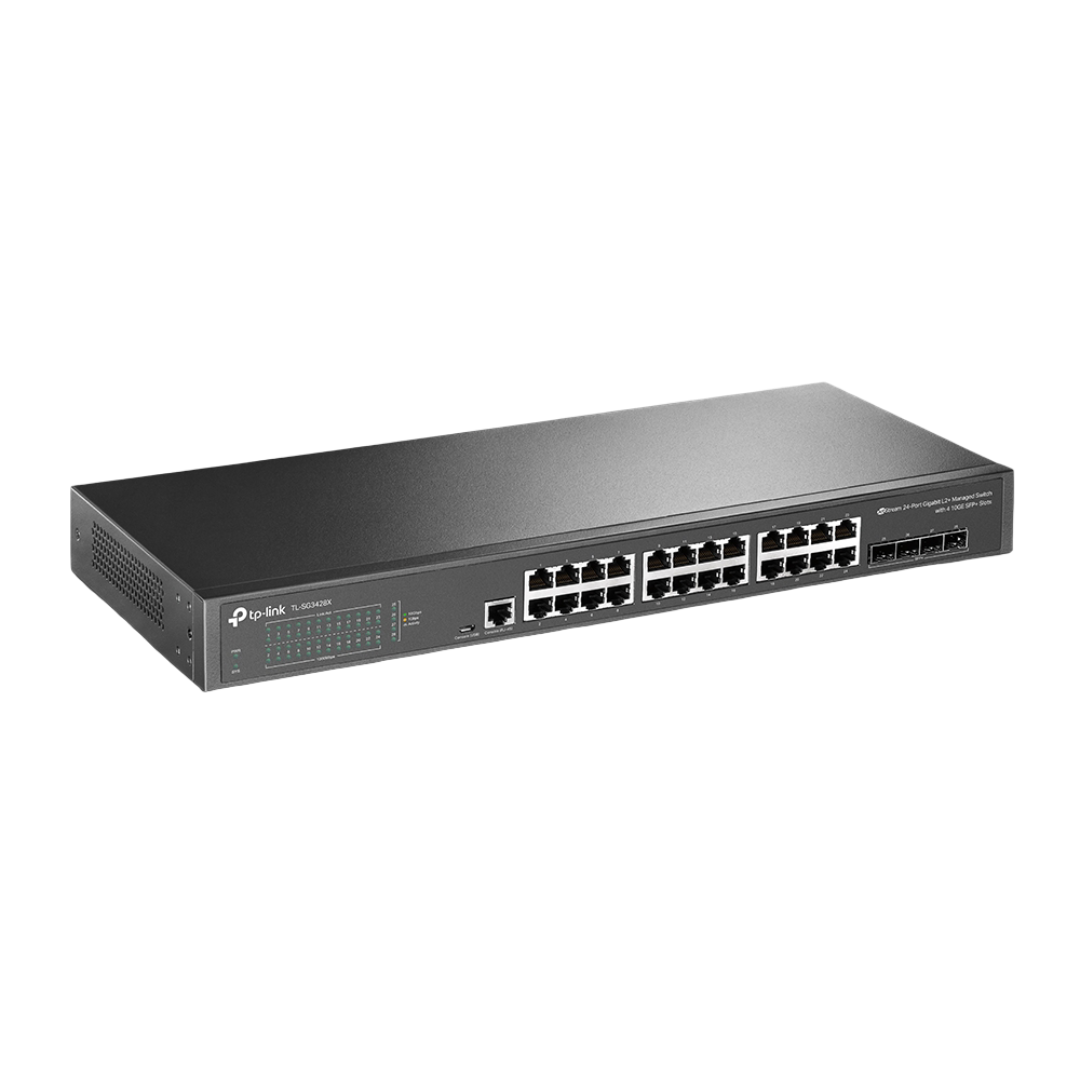

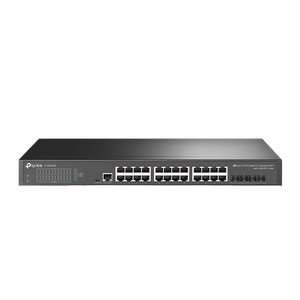

The TP‑Link Omada SG3428X is a 24‑port Gigabit L2+ managed switch with four 10G SFP+ uplink slots, ideal for mid‑density access or aggregation layers. It offers high uplink bandwidth, advanced L2+ features, and seamless integration with the Omada SDN platform for centralized management. In a 1U rack‑mountable steel enclosure, it balances performance, manageability, and reliability for enterprise deployments.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|

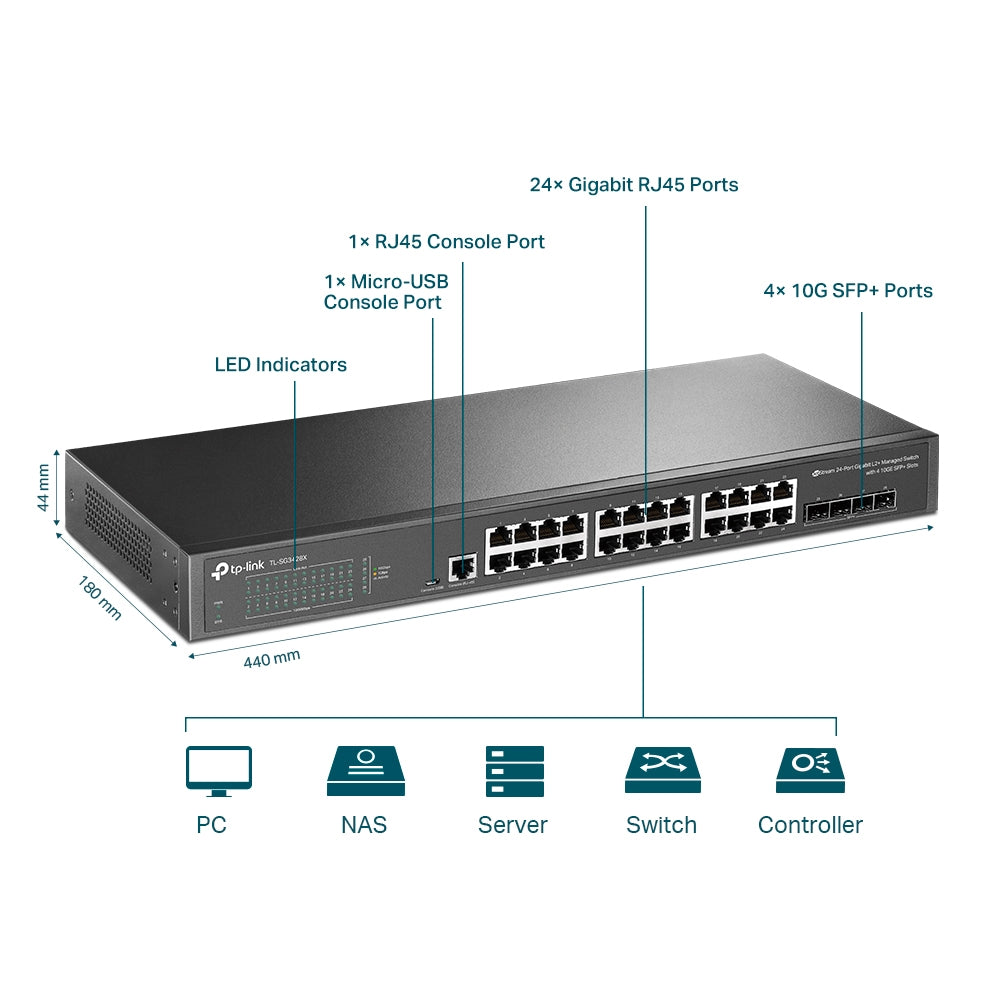

| Interface / Ports | 24 × 10/100/1000 Mbps RJ45 ports 4 × 10G SFP+ slots (for uplinks or stacking) 1 × RJ45 console port 1 × Micro‑USB console port |
| Cooling / Fans | Fanless design (passive cooling) |

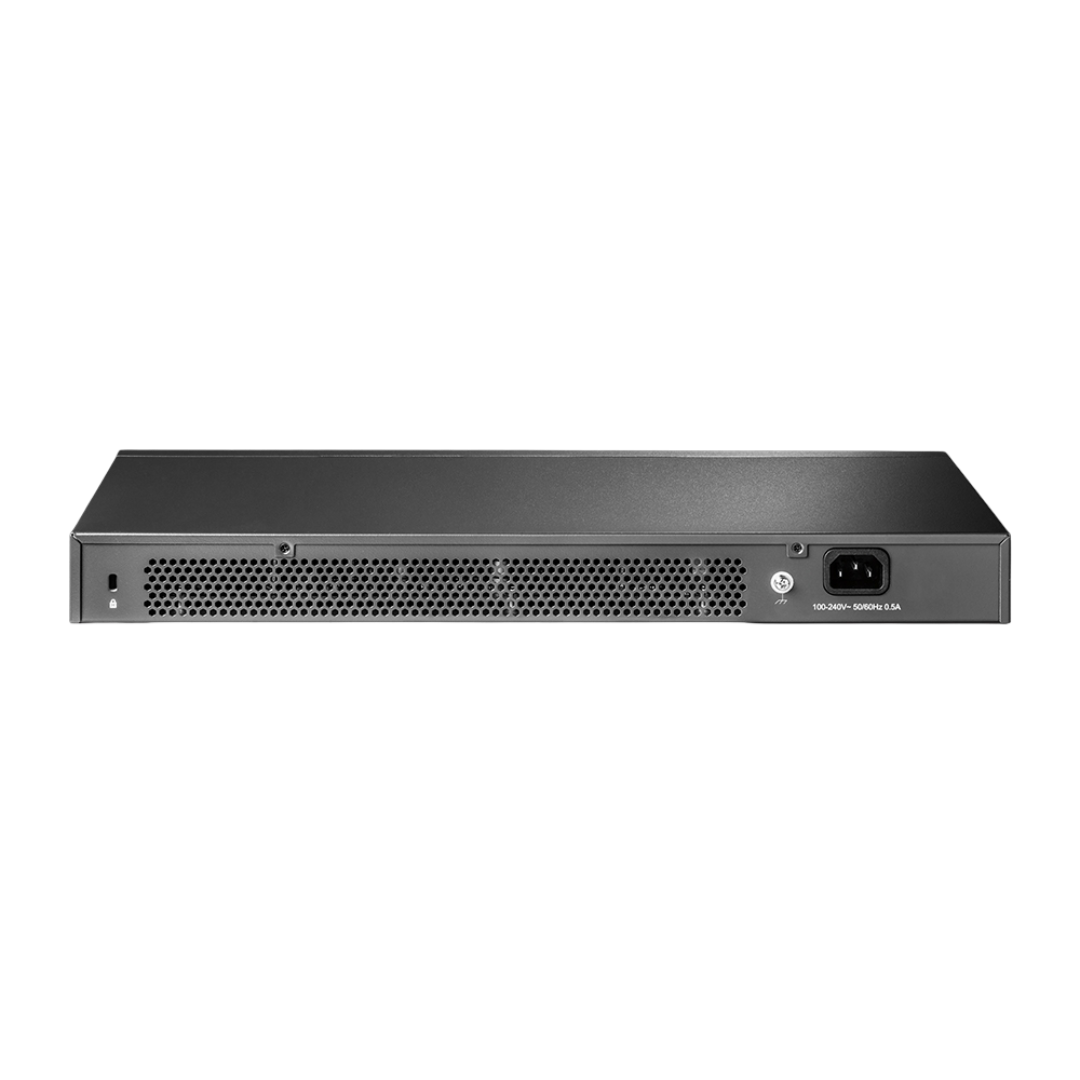

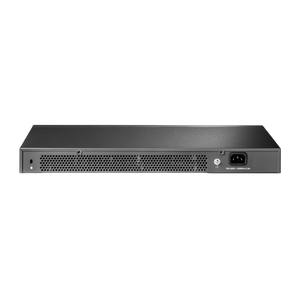

| Power / Consumption | AC input: 100–240 V, 50/60 Hz Typical power consumption: ~23.6 W Max power consumption: ~23.6 W (no PoE) (≈ 80.35 BTU/hr) |
| Dimensions / Mounting | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) 1U rack‑mountable steel chassis |
| Switching Capacity / Forwarding | Switching capacity: 128 Gbps Packet forwarding rate: 95.23 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer memory: 12 Mbit Jumbo frame support: up to 9 KB |
| L2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Supports up to 48 static routes Link aggregation (static & LACP, up to 8 aggregation groups) Spanning Tree: STP / RSTP / MSTP (with BPDU protection, root protection, etc.) Loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLAN (up to 4,000 VLANs), QinQ, VLAN mapping IGMP Snooping v1/v2/v3 (fast leave, authentication) MLD snooping Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues 802.1p / DSCP remarking and priority mapping Scheduling: SP, WRR, SP + WRR Bandwidth control (per port / flow), traffic shaping / policing |
| Security / Access Control | Access control lists (ACLs) – L2 / L3 / L4 802.1X (port & MAC), RADIUS / TACACS+ Authentication IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS defense, port security (up to 64 MACs per port) |
| Management / Monitoring | Integration with Omada SDN (cloud / software / hardware controller) Standalone: Web GUI, CLI (console / SSH / telnet) SNMP v1 / v2c / v3, RMON, syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero‑touch provisioning |
| IPv6 Support | Full dual‑stack IPv4 / IPv6 support IPv6 ACL, static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab (10/100/1000), IEEE 802.3ae (10G SFP+) 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental Conditions | Operating temperature: 0 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Other Features | SG3428X switch unit, power cord, rack mounting kit, rubber feet, quick installation guide LED status indicators, dual image / configuration |
The TP‑Link Omada SG3428X is a 24‑port Gigabit L2+ managed switch with four 10G SFP+ uplink slots, ideal for mid‑density access or aggregation layers. It offers high uplink bandwidth, advanced L2+ features, and seamless integration with the Omada SDN platform for centralized management. In a 1U rack‑mountable steel enclosure, it balances performance, manageability, and reliability for enterprise deployments.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 24 × 10/100/1000 Mbps RJ45 ports 4 × 10G SFP+ slots (for uplinks or stacking) 1 × RJ45 console port 1 × Micro‑USB console port |
| Cooling / Fans | Fanless design (passive cooling) |
| Power / Consumption | AC input: 100–240 V, 50/60 Hz Typical power consumption: ~23.6 W Max power consumption: ~23.6 W (no PoE) (≈ 80.35 BTU/hr) |
| Dimensions / Mounting | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) 1U rack‑mountable steel chassis |
| Switching Capacity / Forwarding | Switching capacity: 128 Gbps Packet forwarding rate: 95.23 Mpps |
| MAC Address Table / Buffer / Jumbo Frames | MAC address table: 16 K entries Packet buffer memory: 12 Mbit Jumbo frame support: up to 9 KB |
| L2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Supports up to 48 static routes Link aggregation (static & LACP, up to 8 aggregation groups) Spanning Tree: STP / RSTP / MSTP (with BPDU protection, root protection, etc.) Loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLAN (up to 4,000 VLANs), QinQ, VLAN mapping IGMP Snooping v1/v2/v3 (fast leave, authentication) MLD snooping Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues 802.1p / DSCP remarking and priority mapping Scheduling: SP, WRR, SP + WRR Bandwidth control (per port / flow), traffic shaping / policing |
| Security / Access Control | Access control lists (ACLs) – L2 / L3 / L4 802.1X (port & MAC), RADIUS / TACACS+ Authentication IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS defense, port security (up to 64 MACs per port) |
| Management / Monitoring | Integration with Omada SDN (cloud / software / hardware controller) Standalone: Web GUI, CLI (console / SSH / telnet) SNMP v1 / v2c / v3, RMON, syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero‑touch provisioning |
| IPv6 Support | Full dual‑stack IPv4 / IPv6 support IPv6 ACL, static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab (10/100/1000), IEEE 802.3ae (10G SFP+) 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating / Environmental Conditions | Operating temperature: 0 °C to 45 °C Storage temperature: –40 °C to 70 °C Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) |
| Package Contents & Other Features | SG3428X switch unit, power cord, rack mounting kit, rubber feet, quick installation guide LED status indicators, dual image / configuration |
SG3428X - Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
- Regular price
- $429.00
- Sale price
- $429.00
