About

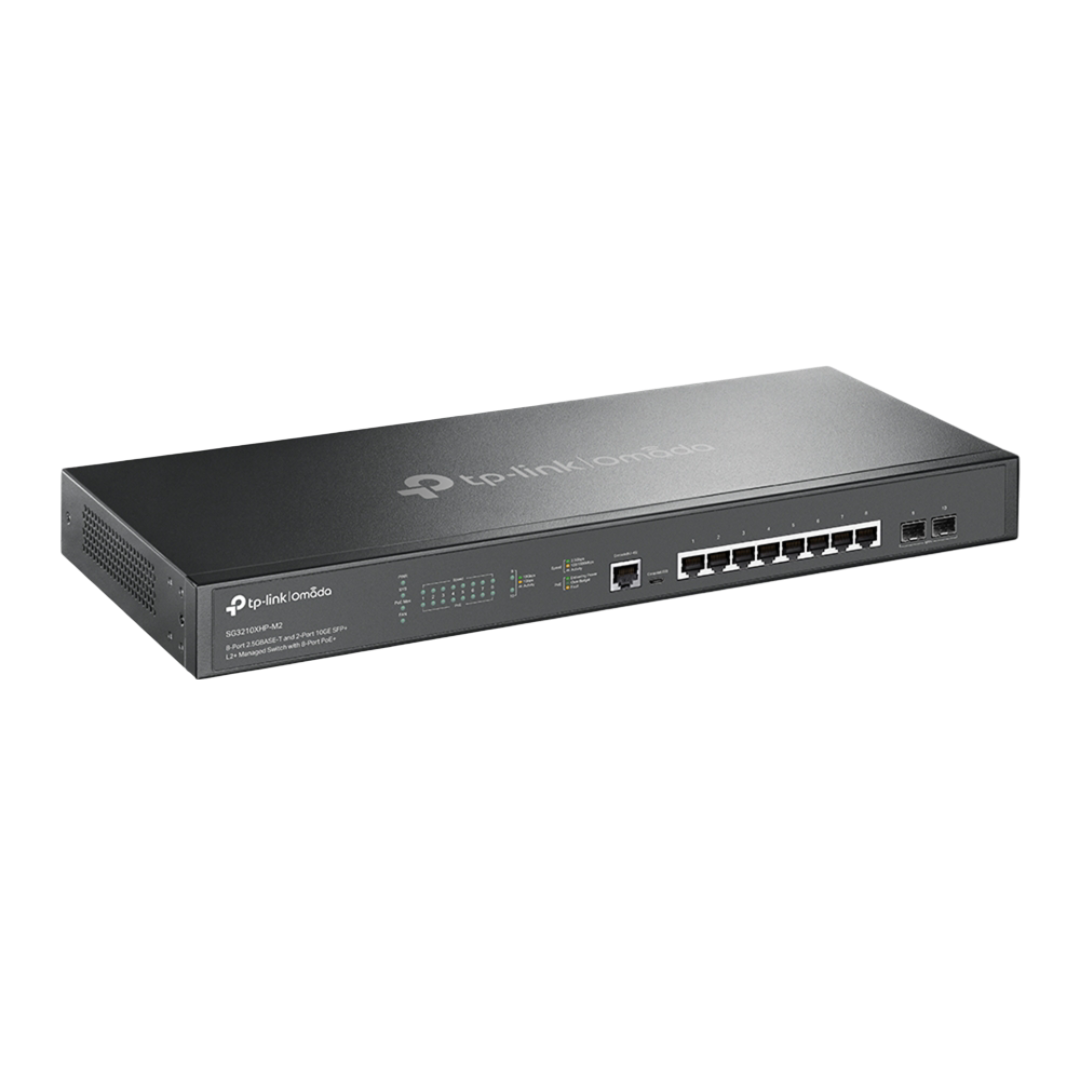

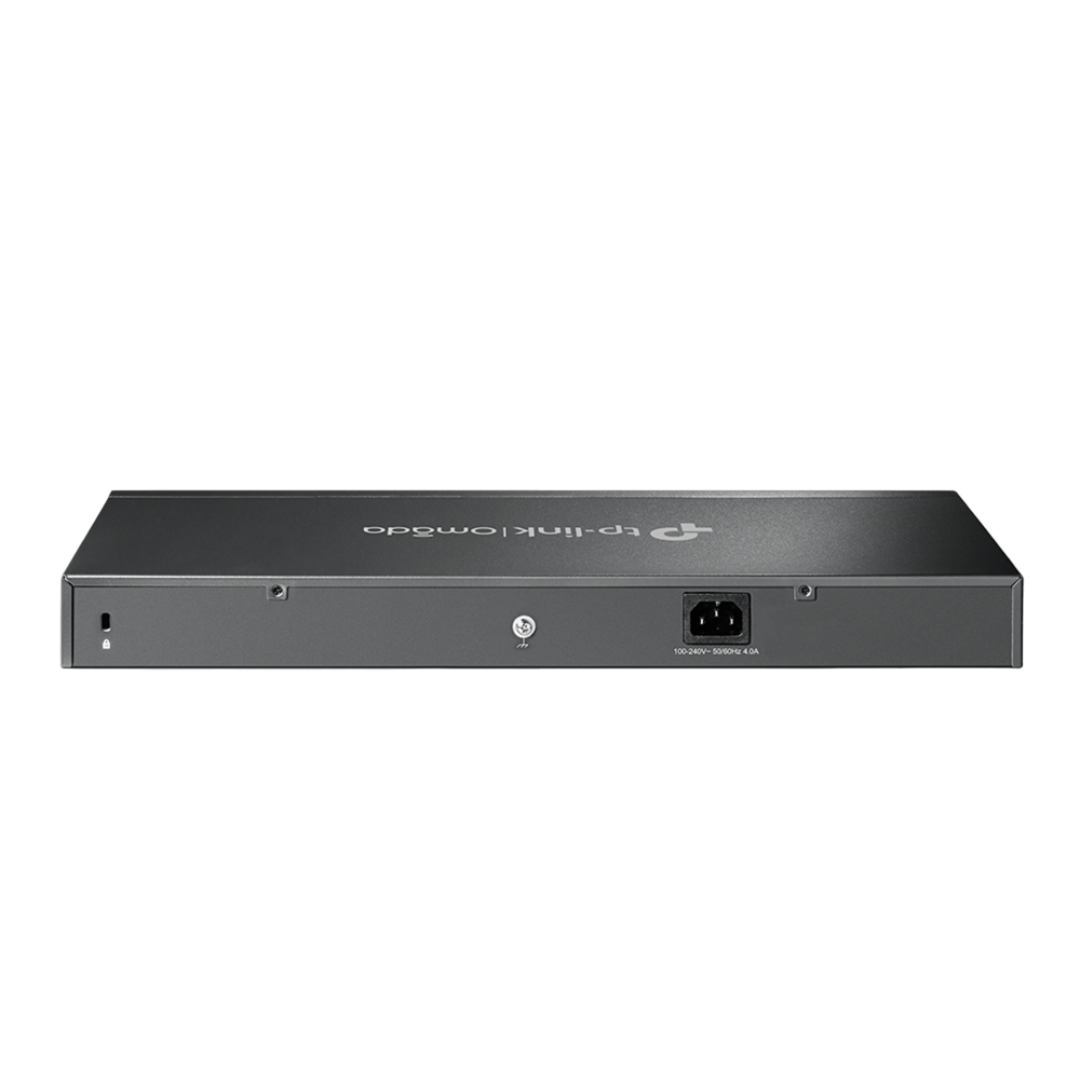

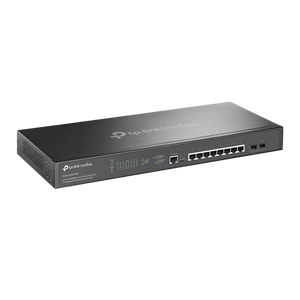

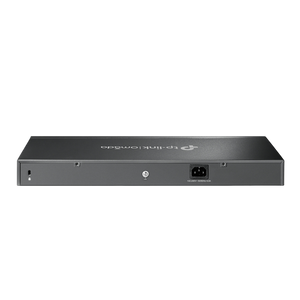

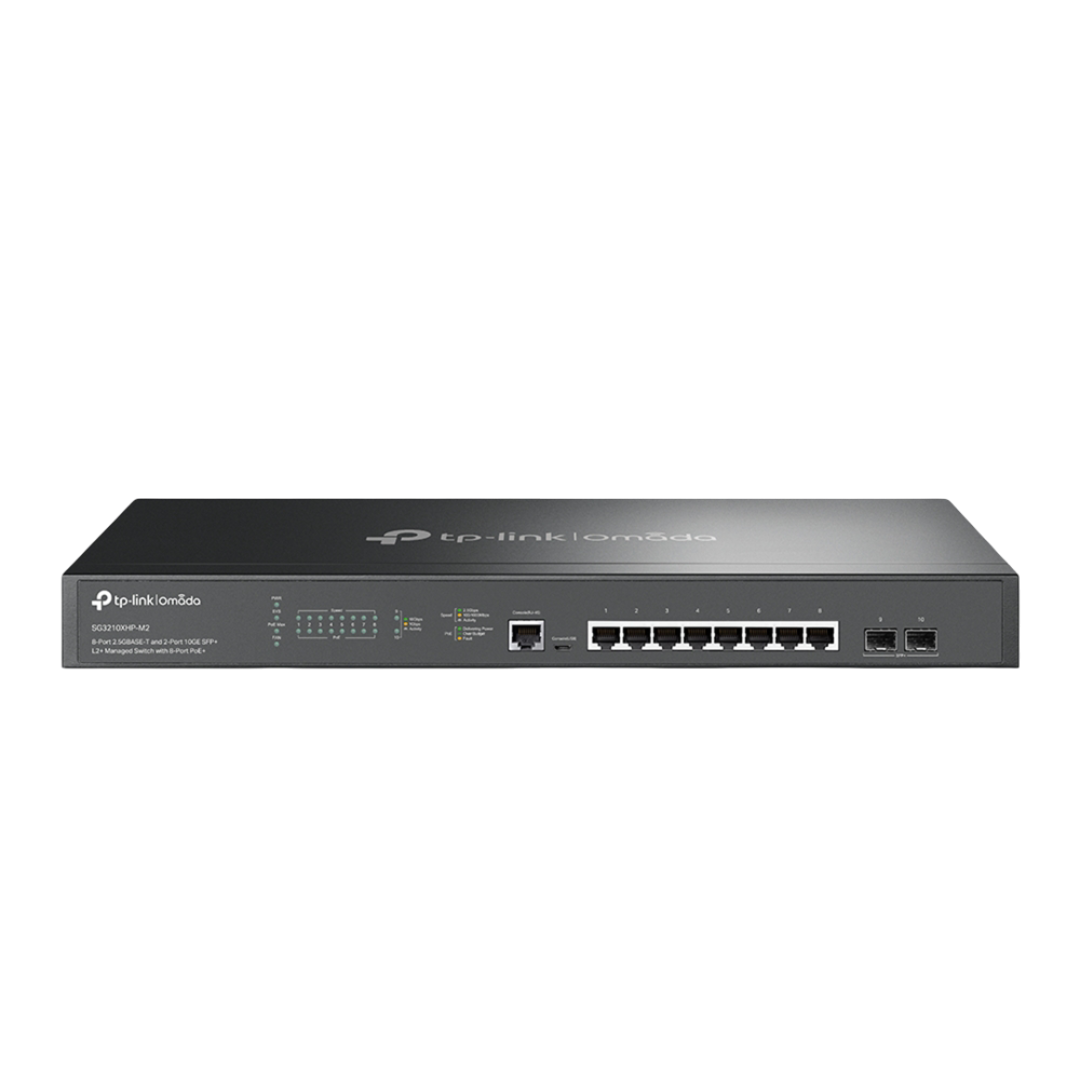

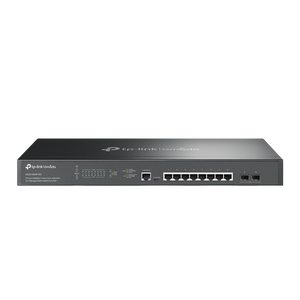

The TP‑Link Omada SG3210XHP‑M2 is a compact but powerful L2+ managed switch designed for multi‑gigabit PoE deployments. It offers 8 ports of 2.5GBASE‑T with PoE+, plus 2 × 10G SFP+ uplinks, making it ideal for modern WiFi 6/7 access point backhaul and high-speed aggregation. It supports centralized management via the Omada SDN controller and comes packed with features such as static routing, OAM, sFlow, VLAN / QinQ, STP/RSTP/MSTP, IGMP snooping, QoS, ACLs, 802.1X, RADIUS/TACACS+ authentication, LACP, CLI / SNMP, dual image/configuration, IPv6, and is built in a 1U steel rack case.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 8 × 100/1000/2500 Mbps RJ45 Ports (PoE+) 2 × 10G SFP+ Slots 1 × RJ45 Console Port 1 × Micro‑USB Console Port |
| PoE / Power Budget | IEEE 802.3at / 802.3af compliant PoE+ Total PoE Power Budget: 240 W |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| MAC / Table / Buffer | MAC address table: 16K entries Packet buffer: 12 Mbit Jumbo frame support: up to 9 KB |
| Power Supply / Consumption | AC 100–240 V ~ 50/60 Hz Power consumption (no PD load): ~17.24 W Max power consumption (with full PoE load): ~291.5 W |
| Dimensions / Mounting | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) 1U, rack-mountable steel chassis |
| Cooling / Fans | 2 built-in fans |
| Layer 2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Link Aggregation (static & LACP, up to 8 groups) STP / RSTP / MSTP, loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLANs (up to 4,000) QinQ (port-based / selective) IGMP Snooping v1/v2/v3, fast leave, querier, authentication MLD Snooping, Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues 802.1p / DSCP remarking / priority handling Scheduling modes: SP, WRR, SP + WRR Bandwidth limiting, traffic shaping / policing |
| Security / Access Control | ACL (MAC / IP / VLAN / Time‑based) 802.1X (port & MAC-based), RADIUS / TACACS+ authentication IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection, port security (up to 64 MACs per port) |
| Management / Monitoring | Omada SDN integration (cloud / hardware / software controller) Web GUI, CLI (console / SSH / Telnet) SNMP v1/v2c/v3, RMON, syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero-touch provisioning |
| IPv6 Support | Dual‑stack IPv4/IPv6 support IPv6 ACLs, static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab, 802.3ae (10G) 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x, 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating Environment | Operating Temperature: 0 °C to 50 °C Storage Temperature: −40 °C to 70 °C Operating Humidity: 10–90% RH non‑condensing Storage Humidity: 5–90% RH non‑condensing |
| Package Contents & Others | SG3210XHP‑M2 switch, power cord, rack mount kit, rubber feet, quick install guide |
The TP‑Link Omada SG3210XHP‑M2 is a compact but powerful L2+ managed switch designed for multi‑gigabit PoE deployments. It offers 8 ports of 2.5GBASE‑T with PoE+, plus 2 × 10G SFP+ uplinks, making it ideal for modern WiFi 6/7 access point backhaul and high-speed aggregation. It supports centralized management via the Omada SDN controller and comes packed with features such as static routing, OAM, sFlow, VLAN / QinQ, STP/RSTP/MSTP, IGMP snooping, QoS, ACLs, 802.1X, RADIUS/TACACS+ authentication, LACP, CLI / SNMP, dual image/configuration, IPv6, and is built in a 1U steel rack case.
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP / RSTP / MSTP, IGMP Snooping, 802.1p / DSCP QoS, ACL, 802.1X, RADIUS / TACACS+ Authentication, LACP, CLI, SNMP, Dual Image / Configuration, IPv6
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface / Ports | 8 × 100/1000/2500 Mbps RJ45 Ports (PoE+) 2 × 10G SFP+ Slots 1 × RJ45 Console Port 1 × Micro‑USB Console Port |
| PoE / Power Budget | IEEE 802.3at / 802.3af compliant PoE+ Total PoE Power Budget: 240 W |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| MAC / Table / Buffer | MAC address table: 16K entries Packet buffer: 12 Mbit Jumbo frame support: up to 9 KB |
| Power Supply / Consumption | AC 100–240 V ~ 50/60 Hz Power consumption (no PD load): ~17.24 W Max power consumption (with full PoE load): ~291.5 W |
| Dimensions / Mounting | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) 1U, rack-mountable steel chassis |
| Cooling / Fans | 2 built-in fans |
| Layer 2 / L2+ / Routing Features | Static routing (IPv4 / IPv6) Link Aggregation (static & LACP, up to 8 groups) STP / RSTP / MSTP, loopback detection, flow control, port mirroring |
| VLAN / Multicast | 802.1Q VLANs (up to 4,000) QinQ (port-based / selective) IGMP Snooping v1/v2/v3, fast leave, querier, authentication MLD Snooping, Multicast VLAN Registration (MVR) |
| QoS / Traffic Control | 8 priority queues 802.1p / DSCP remarking / priority handling Scheduling modes: SP, WRR, SP + WRR Bandwidth limiting, traffic shaping / policing |
| Security / Access Control | ACL (MAC / IP / VLAN / Time‑based) 802.1X (port & MAC-based), RADIUS / TACACS+ authentication IP‑MAC‑Port binding, DHCP snooping, ARP inspection, DoS protection, port security (up to 64 MACs per port) |
| Management / Monitoring | Omada SDN integration (cloud / hardware / software controller) Web GUI, CLI (console / SSH / Telnet) SNMP v1/v2c/v3, RMON, syslog, LLDP / LLDP‑MED, cable diagnostics, dual image / configuration, zero-touch provisioning |
| IPv6 Support | Dual‑stack IPv4/IPv6 support IPv6 ACLs, static routing, neighbor discovery, path MTU discovery, MLD snooping |
| Standards / Compliance | IEEE 802.3i/u/ab, 802.3ae (10G) 802.1Q, 802.1p, 802.1D, 802.1s, 802.1w, 802.1x, 802.3ad (LACP), 802.3x flow control, 802.1ab (LLDP) Certifications: CE, FCC, RoHS |
| Operating Environment | Operating Temperature: 0 °C to 50 °C Storage Temperature: −40 °C to 70 °C Operating Humidity: 10–90% RH non‑condensing Storage Humidity: 5–90% RH non‑condensing |
| Package Contents & Others | SG3210XHP‑M2 switch, power cord, rack mount kit, rubber feet, quick install guide |
SG3210XHP-M2 - Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
- Regular price
- $599.00
- Sale price
- $599.00
