About

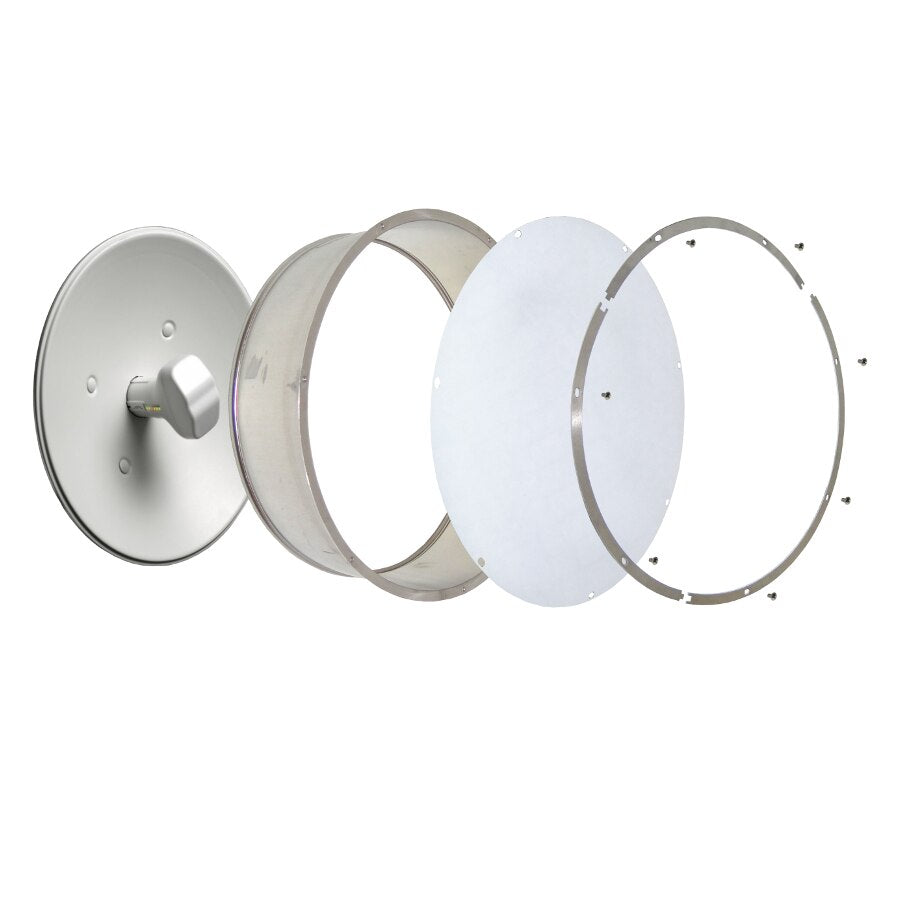

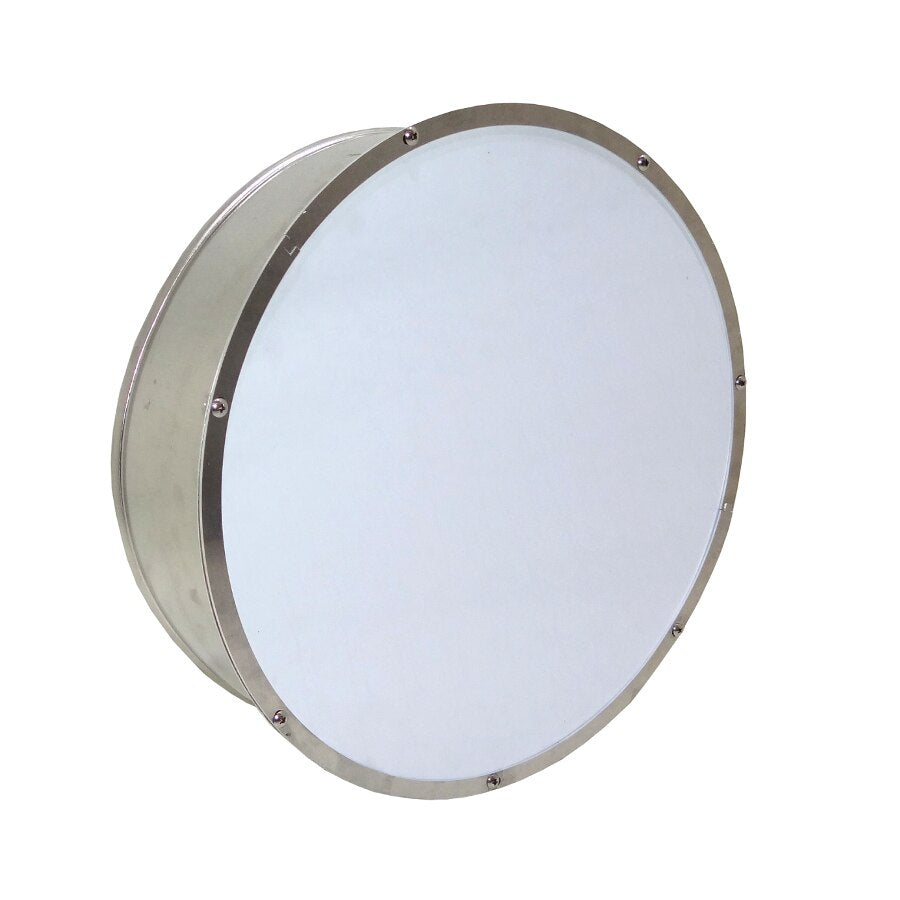

The RF Armor UNBK5 is a radio shielding cover designed to reduce unwanted RF energy from the the back, sides, top, and bottom of Ubiquiti directional radios (such as PowerBeam, NanoBridge, NanoBeam). Its purpose is not to boost antenna gain but to lower the noise floor, resulting in a cleaner signal and better signal‑to‑noise ratio. This makes co‑locating several radios closer together easier with less self‑interference. The cover is constructed from marine‑grade aluminum and is intended to be mounted around the radio housing.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | RF Armor BK5UN |
| Purpose / Function | Radio shielding / cover to block stray RF, reduce noise floor, improve signal clarity |
| Compatible Radios / Antennas | PBE‑5AC‑300, NB‑5G22 (NanoBridge M5‑22), NBE‑M5‑300 (NanoBeam M5), PBE‑M5‑300 (PowerBeam M5‑22) |
| Construction / Material | Marine‑grade aluminum |
| Weight | 2.2 lb (~1.0 kg) |
| Dimensions | 16 × 16 × 6 (inches) |
| Radio / Antenna Included? | No (radio and antenna not part of kit) |
| Performance Effect | Will **not** increase antenna gain; lowers the noise floor for cleaner signal and higher sustainable air rates |
| Installation / Mounting | Field‑mountable around radio housing (requires proper alignment and mounting hardware) |
| Environmental Durability | Resistant to outdoor elements (due to aluminum construction) |
| Other Notes / Features | Allows closer spacing (co‑location) of radios with reduced interference; shielding from undesired RF directions |
The RF Armor UNBK5 is a radio shielding cover designed to reduce unwanted RF energy from the the back, sides, top, and bottom of Ubiquiti directional radios (such as PowerBeam, NanoBridge, NanoBeam). Its purpose is not to boost antenna gain but to lower the noise floor, resulting in a cleaner signal and better signal‑to‑noise ratio. This makes co‑locating several radios closer together easier with less self‑interference. The cover is constructed from marine‑grade aluminum and is intended to be mounted around the radio housing.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | RF Armor BK5UN |
| Purpose / Function | Radio shielding / cover to block stray RF, reduce noise floor, improve signal clarity |
| Compatible Radios / Antennas | PBE‑5AC‑300, NB‑5G22 (NanoBridge M5‑22), NBE‑M5‑300 (NanoBeam M5), PBE‑M5‑300 (PowerBeam M5‑22) |
| Construction / Material | Marine‑grade aluminum |
| Weight | 2.2 lb (~1.0 kg) |
| Dimensions | 16 × 16 × 6 (inches) |
| Radio / Antenna Included? | No (radio and antenna not part of kit) |
| Performance Effect | Will **not** increase antenna gain; lowers the noise floor for cleaner signal and higher sustainable air rates |
| Installation / Mounting | Field‑mountable around radio housing (requires proper alignment and mounting hardware) |
| Environmental Durability | Resistant to outdoor elements (due to aluminum construction) |
| Other Notes / Features | Allows closer spacing (co‑location) of radios with reduced interference; shielding from undesired RF directions |
RF Armor UNBK5 Radio cover for Ubiquiti PowerBeam/NanoBridge/NanoBeam
- Regular price
- $53.00
- Sale price
- $53.00
- Regular price
-
$67.45
